Year |
1999 |
|---|---|
Make |
Matsuura |
Model |
ES-450HII |
Description |
CNC Horizontal Machining Center |
Reference # |
8073540 |
Price |
Activate Pricing |

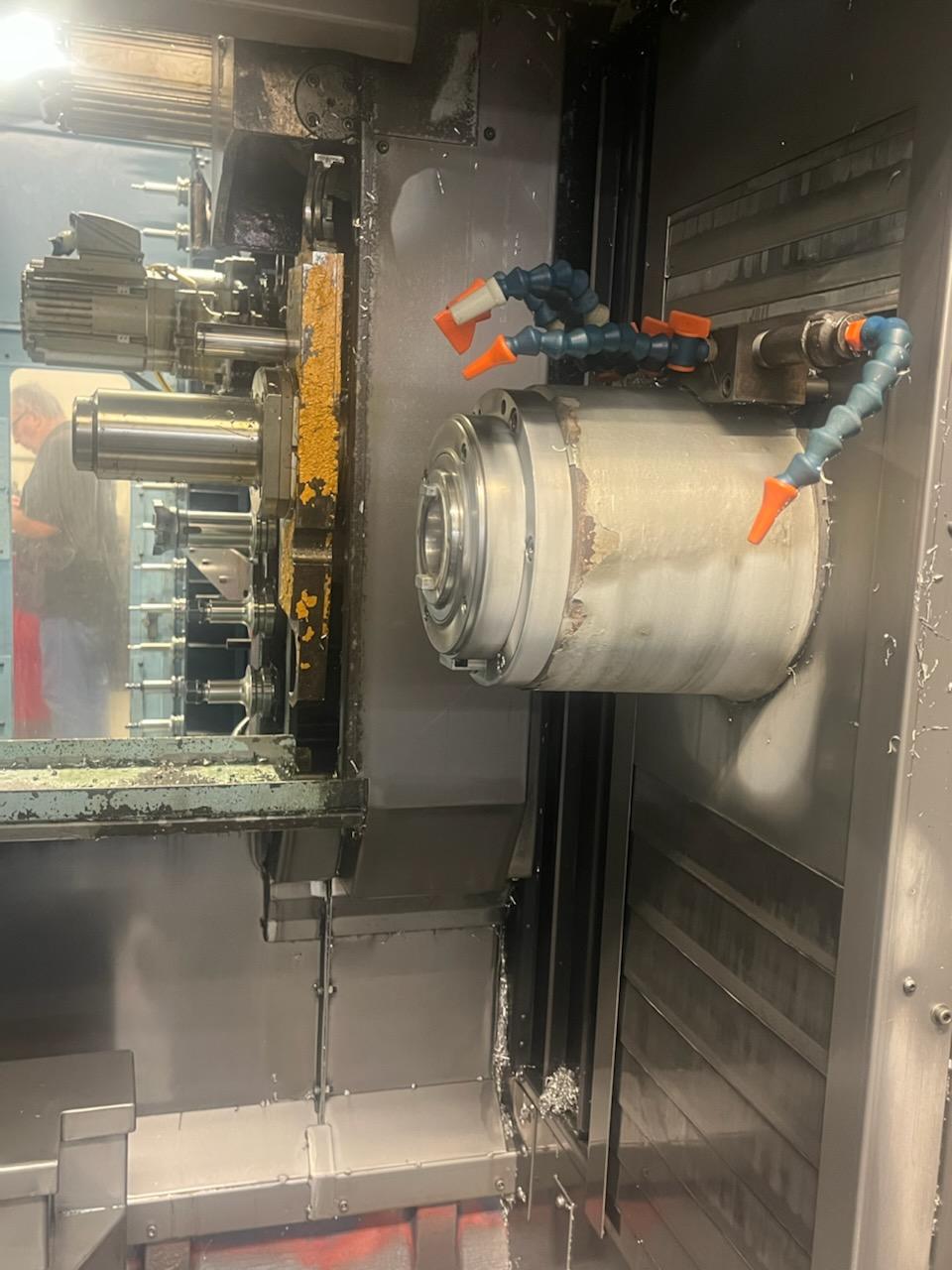

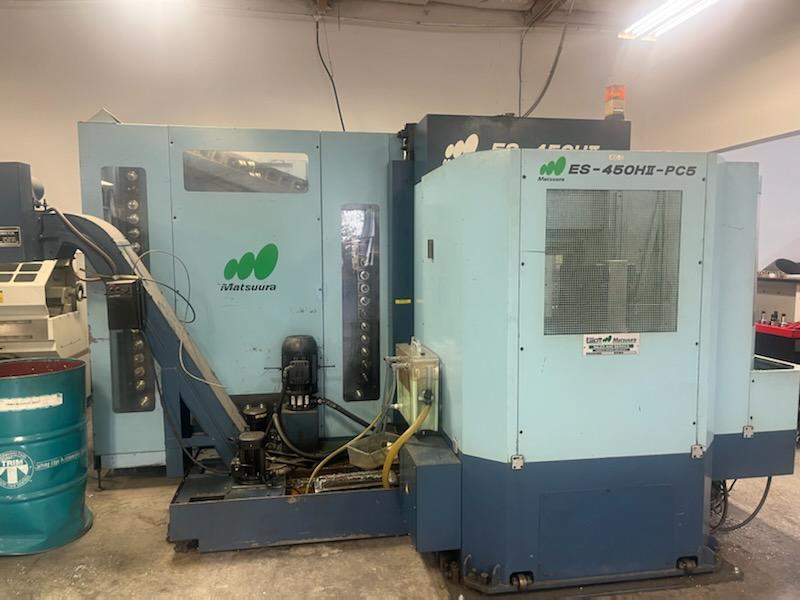

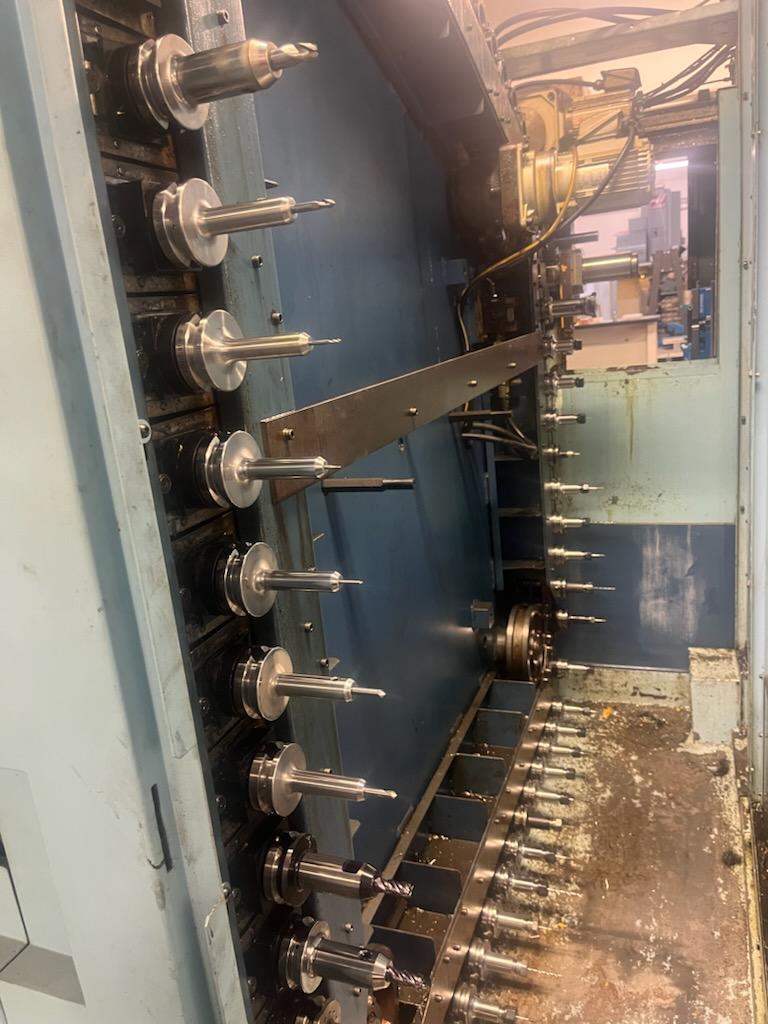

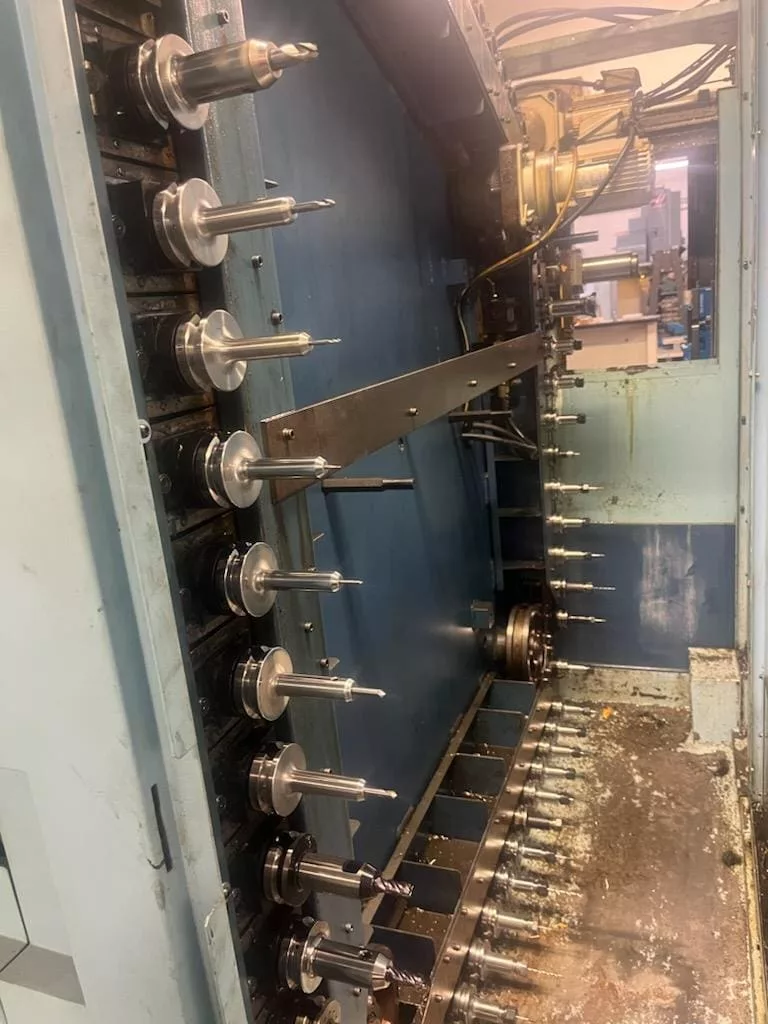

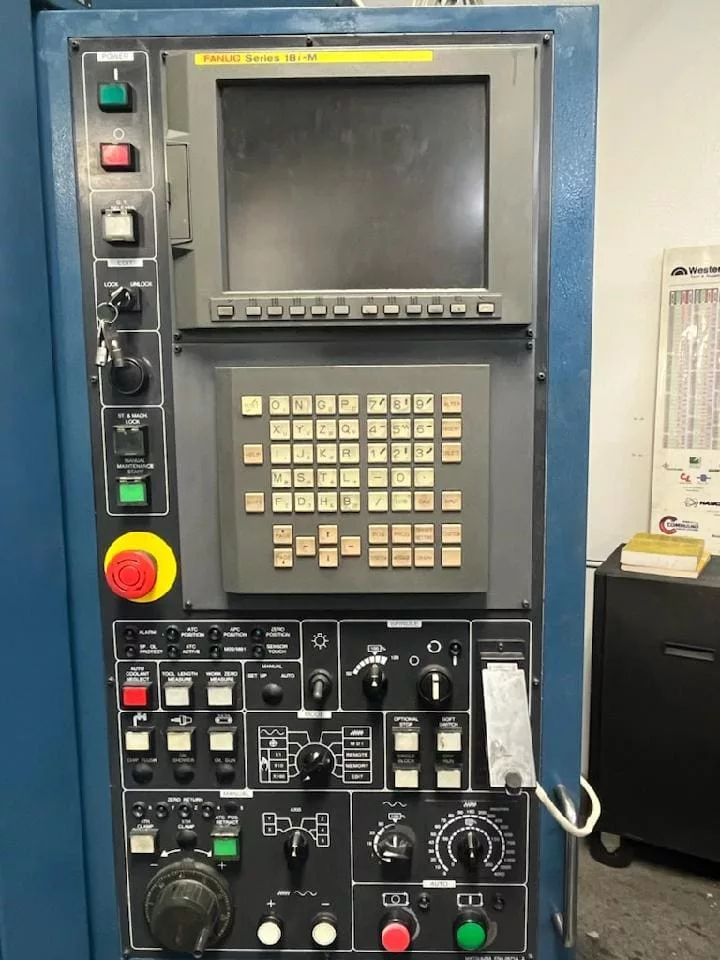

Used Matsuura ES-450HII (1999) CNC Horizontal Machining Center for Sale. This Matsuura horizontal is controlled by a Fanuc 18i-M and carries a 450 mm pallet measuring 11.8″ x 11.8″, with 1 degree pallet indexing. Travels are 17.71″ in X and 15.74″ in both Y and Z. The spindle runs to 15,000 RPM with a CAT 40 taper, high torque spindle, through-spindle coolant and rigid tapping, and the 30 ATC handles tool changes. It is equipped with a five pallet pool and load/unload station, 5 pallets, HPCC hi-speed look ahead, turbo chip conveyor and chip flush system. Machine weight is 12,566 lbs. It can be seen under power for an inspection. See more CNC horizontal machining centers, Activate Pricing, or Request a Quote.
Specifications
| Pallet Size (Millimeters) |
450 |
|---|---|
| Pallet Size |
11.8" x 11.8" |
| X-Axis Travel |
17.71" |
| Y-Axis Travel |
15.74" |
| Z-Axis Travel |
15.74" |
| Tool Magazine Capacity |
30 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Fanuc 18i-M |
| Pallet Indexing |
1 Degree |
| Chip Removal |
Turbo Chip Conveyor |
| Coolant |
Through-Spindle Coolant |
| Weight |
12,566 Lbs |
Features
|
Five Pallet Pool |
HPCC Hi-Speed Look Ahead |
|
Load/Unload Station |
Rigid Tapping |
|
5 Pallets |
Chip Flush System |
|
High Torque Spindle |
