Year |
2004 |
|---|---|
Make |
Haas |
Model |
EC-400 |
Description |
CNC Horizontal Machining Center |
Reference # |
8071969 |
Price |
Activate Pricing |

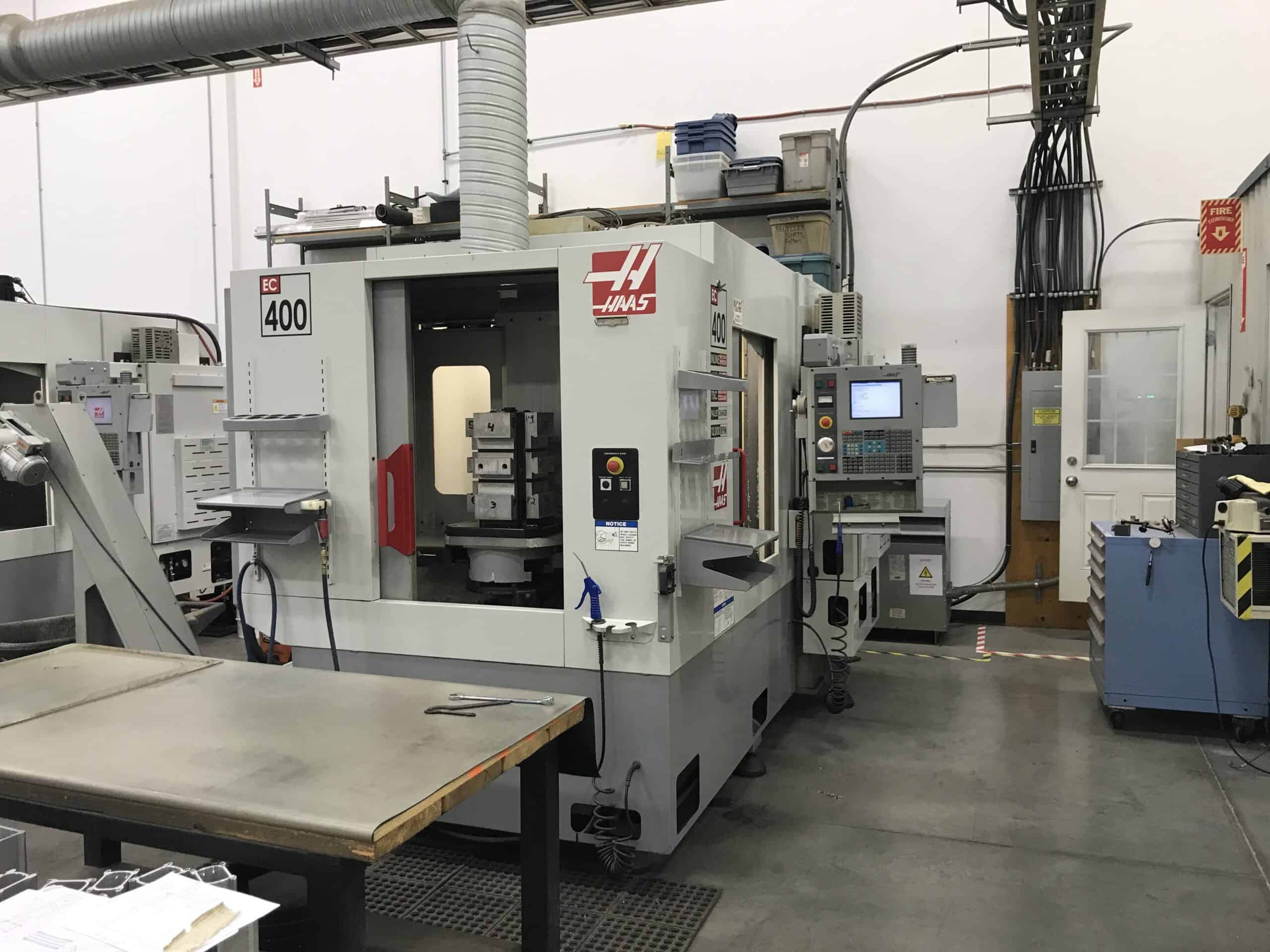

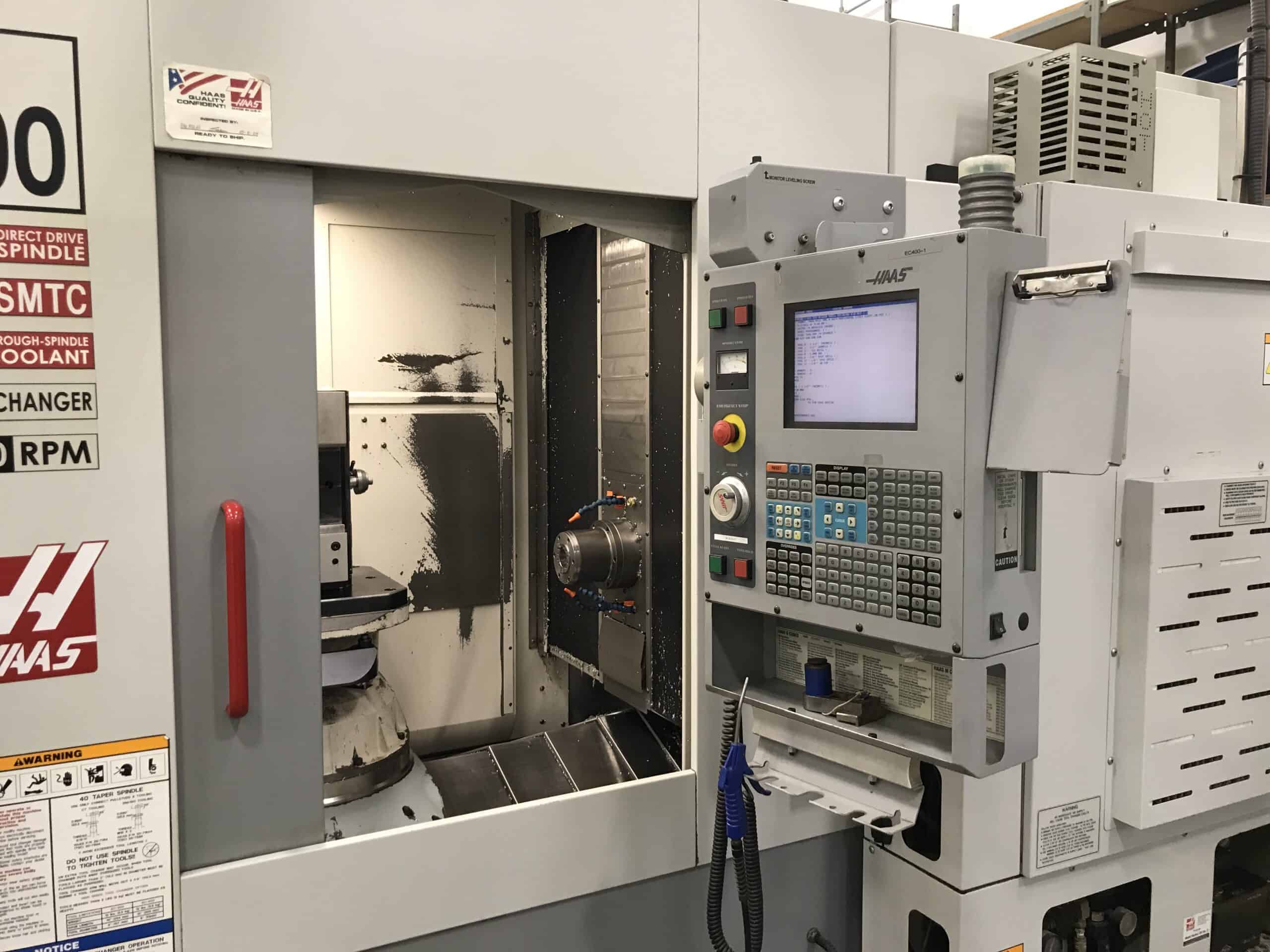

Used Haas EC-400 (2004) CNC Horizontal Machining Center for Sale. This machine has a 400 mm pallet measuring 15.75″ x 15.75″ with 1 degree pallet indexing, and travels of 20″ in X, Y, and Z. The 12,000 RPM spindle uses a CAT 40 taper and is served by a 40-station ATC, with through spindle coolant and a programmable coolant nozzle. It is run by the Haas CNC control and also equipped with a chip conveyor, remote jog handle, and auxiliary coolant filter. The machine can be seen under power for an inspection. See more CNC horizontal machining centers or browse our Haas inventory. Use Activate Pricing to view the price, or Request a Quote and we will follow up with details. This machine is located in Canada.
Specifications
| Pallet Size (Millimeters) |
400 |
|---|---|
| Pallet Size |
15.75" x 15.75" |
| X-Axis Travel |
20" |
| Y-Axis Travel |
20" |
| Z-Axis Travel |
20" |
| Tool Magazine Capacity |
40 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Haas CNC |
| Pallet Indexing |
1 Degree |
| Chip Removal |
Chip Conveyor |
| Coolant |
Through Spindle Coolant |
Features
|
Programmable Coolant Nozzle |
Remote Jog Handle |
|
Auxiliary Coolant Filter |
