Year |
1999 |
|---|---|
Make |
CMS |
Model |
NC-PK36-TUCU |
Description |

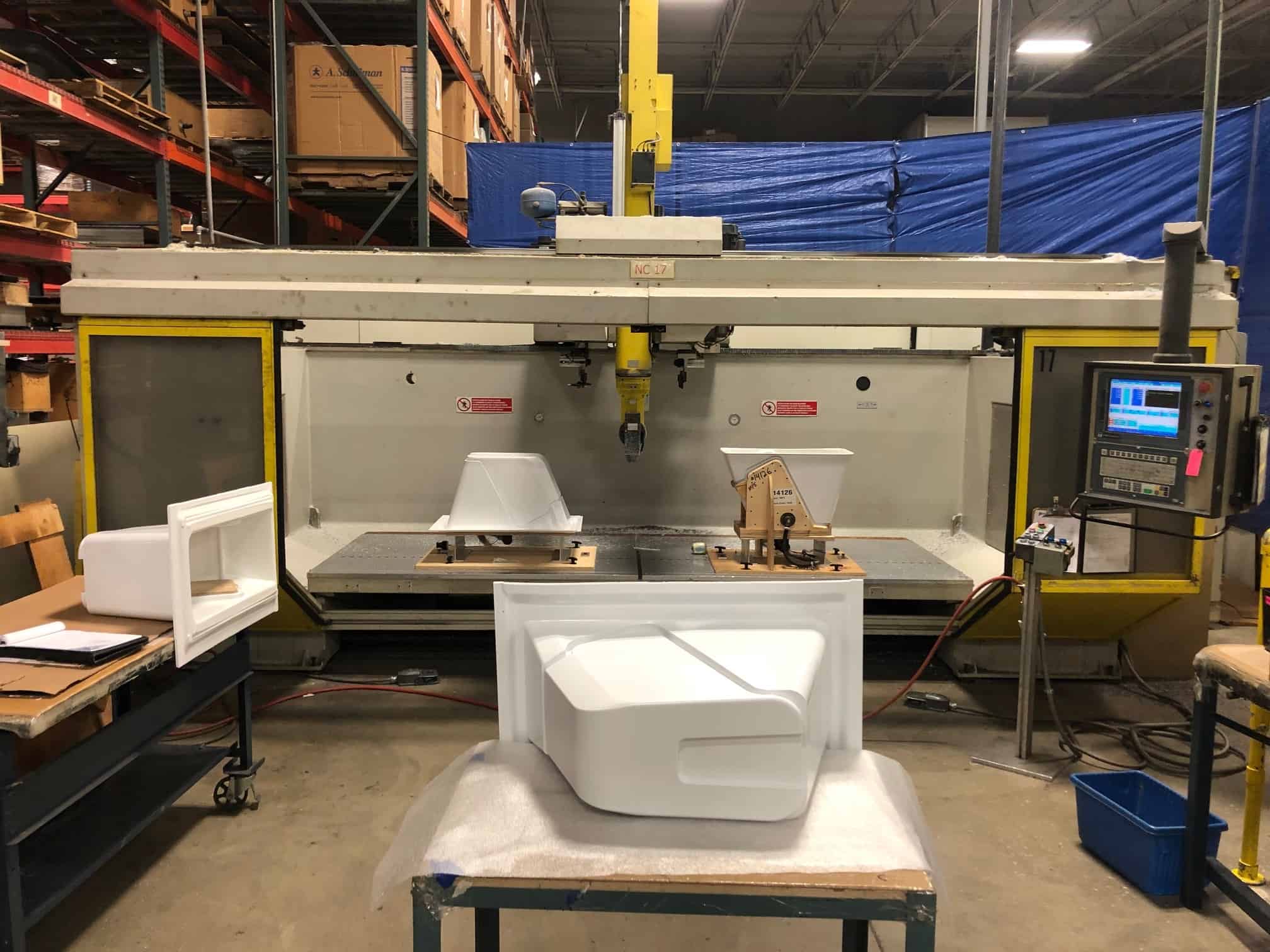

CNC Router |
Reference # |
8068533 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Number of Axis |
5 |
|---|---|
| Table Width |
51" |
| Table Length |
126" |

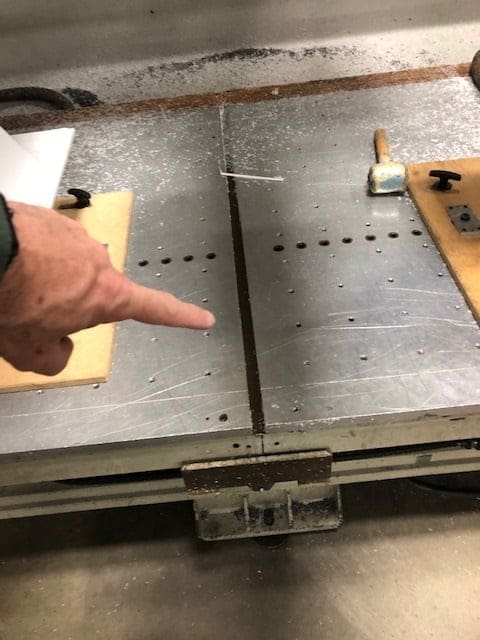

| Number of Tables |
Single with a Divider to Create (2) Sides |
| X-Axis Travel |
141.73" |
| Y-Axis Travel |
64.96" |
| Z-Axis Travel |
33.46" |
| Spindle Speed |
40,000 |
| Spindle Motor |
5.36 HP |
| Tool Changer |
8 Postion IS0 30 |

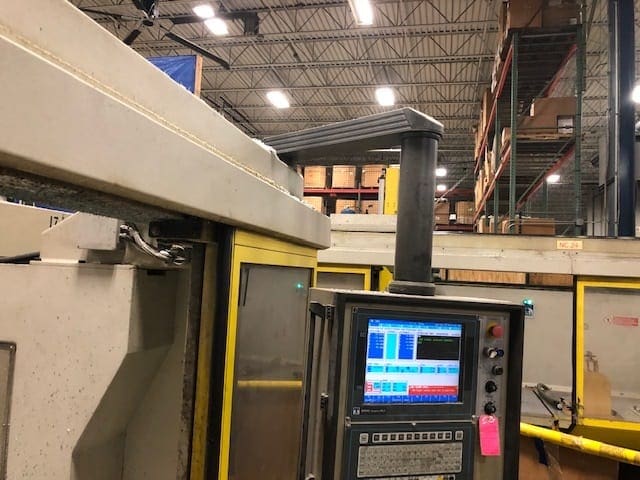

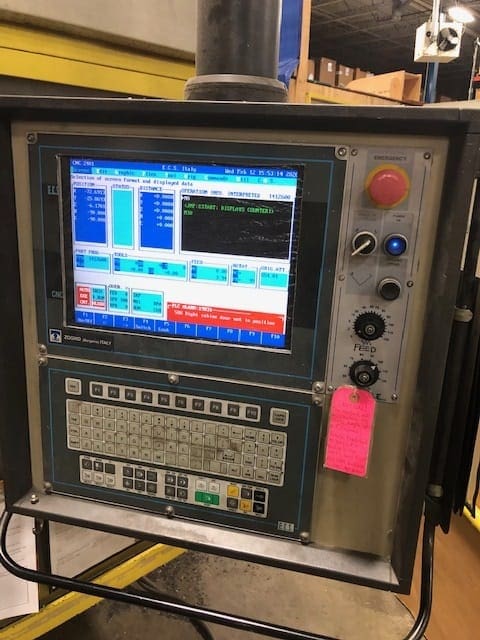

| Control |
ECS |
| Electrics |
480V - 3Ph |
| Basic Footprint |
212” wide x 110” deep |
| Mast Height at Full Extension |
165" |
| Note |
Tables Can Be Divided to Create Dual 51" x 63" Tables. In Addition To The Basic Machine Footprint, There Is A Control Cabinet Mounted To The Right Rear Corner Of The Machine Which Is An Additional 56” In Width (The Depth Of The Cabinet Is Only 30”). |
Features
|
Becker Vacuum Pump |
Table Material Steel |
|
Axes Movement AC Brushless Servo Motors |

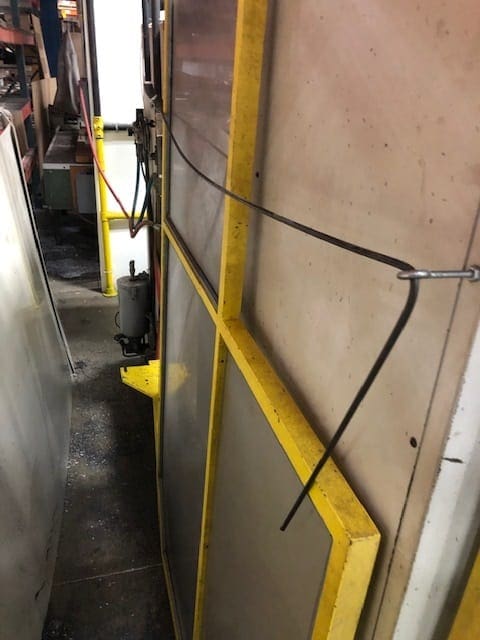

Full Safety Enclosure For The Router Wall Divider |
|
Overlapping Carriages |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
