Year |
1998 |
|---|---|
Make |
Niigata |
Model |
HN50C |
Description |
CNC Horizontal Machining Center |
Reference # |
8076836 |
Price |
Activate Pricing |

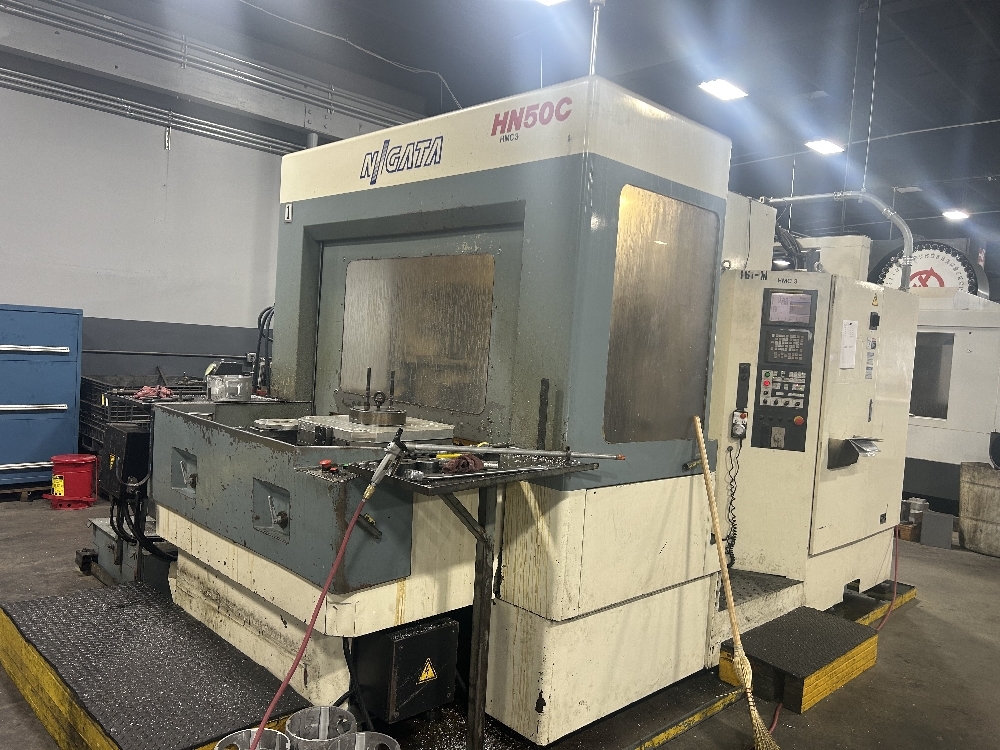

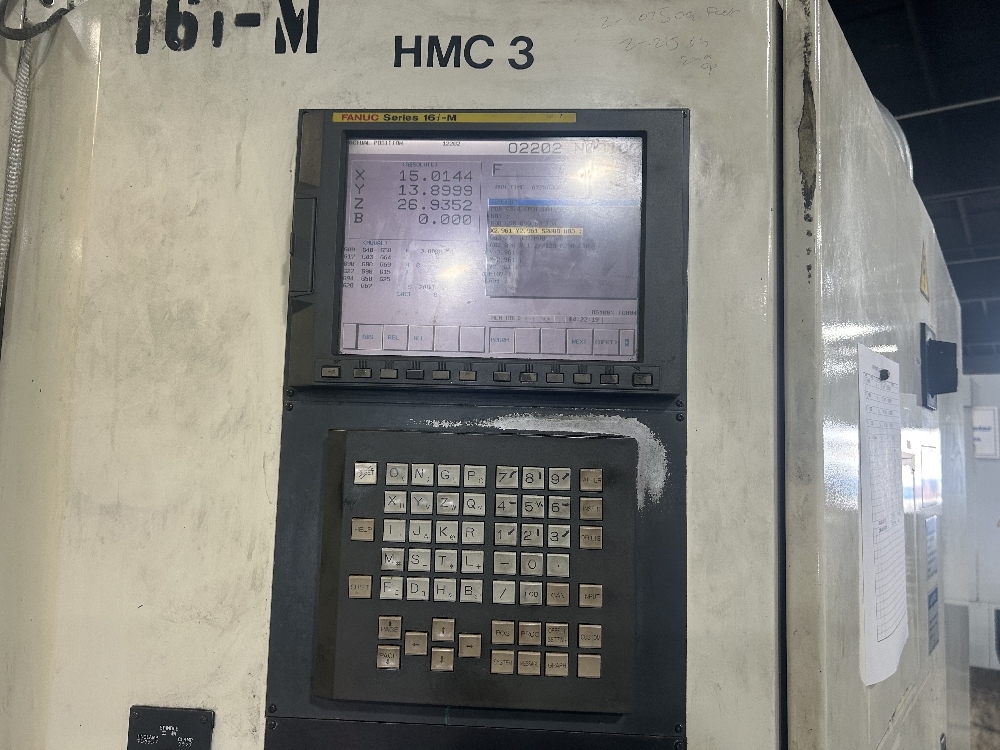

Used Niigata HN50C (1998) CNC Horizontal Machining Center for Sale. This machine runs a Fanuc 16i-M control with a 500 mm pallet measuring 19.7″ x 19.7″ and full 4th axis pallet indexing. Travels measure 31.5″ in X, 27.6″ in Y and 22.8″ in Z. The CAT 50 spindle is driven by a 25 HP motor with speeds to 6,500 RPM, and the 60-position ATC covers larger tool loads. Also equipped with a chip conveyor and flood coolant. Power requirement is 3PH 230/460V. The machine can be seen under power for an inspection so you can verify operation before purchase. See more equipment in our CNC horizontal machining centers category, use Activate Pricing, or Request a Quote for details.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.7" x 19.7" |
| X-Axis Travel |
31.5" |
| Y-Axis Travel |
27.6" |
| Z-Axis Travel |
22.8" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
6,500 RPM |
| Spindle Taper |
CAT 50 |
| Control |
Fanuc 16i-M |
| Pallet Indexing |
Full 4th Axis |

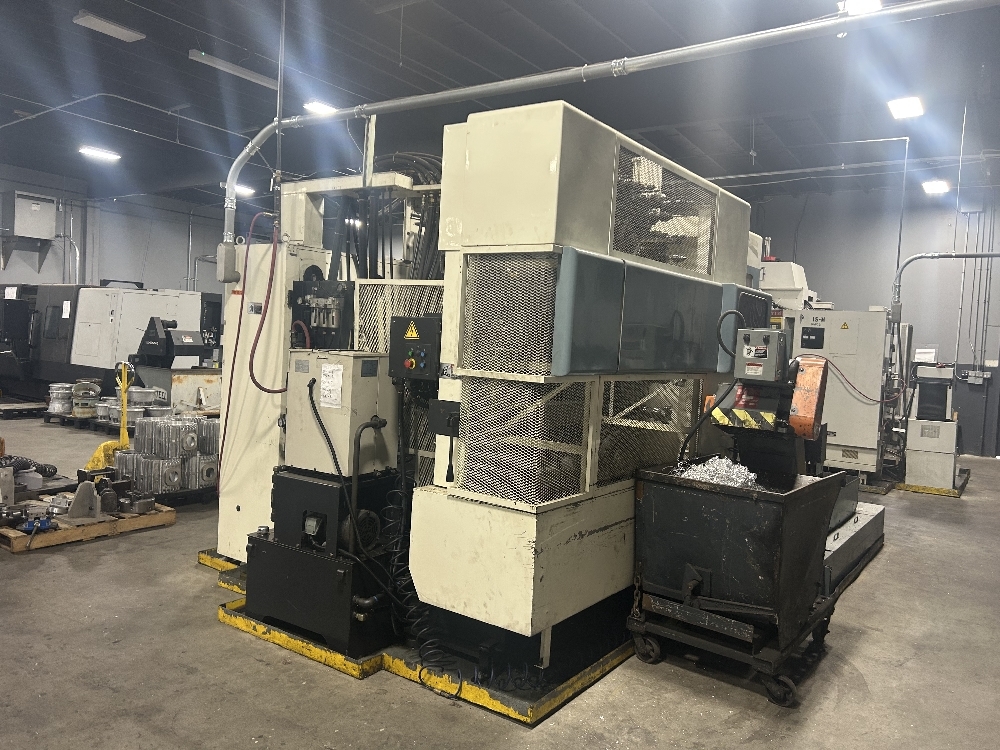

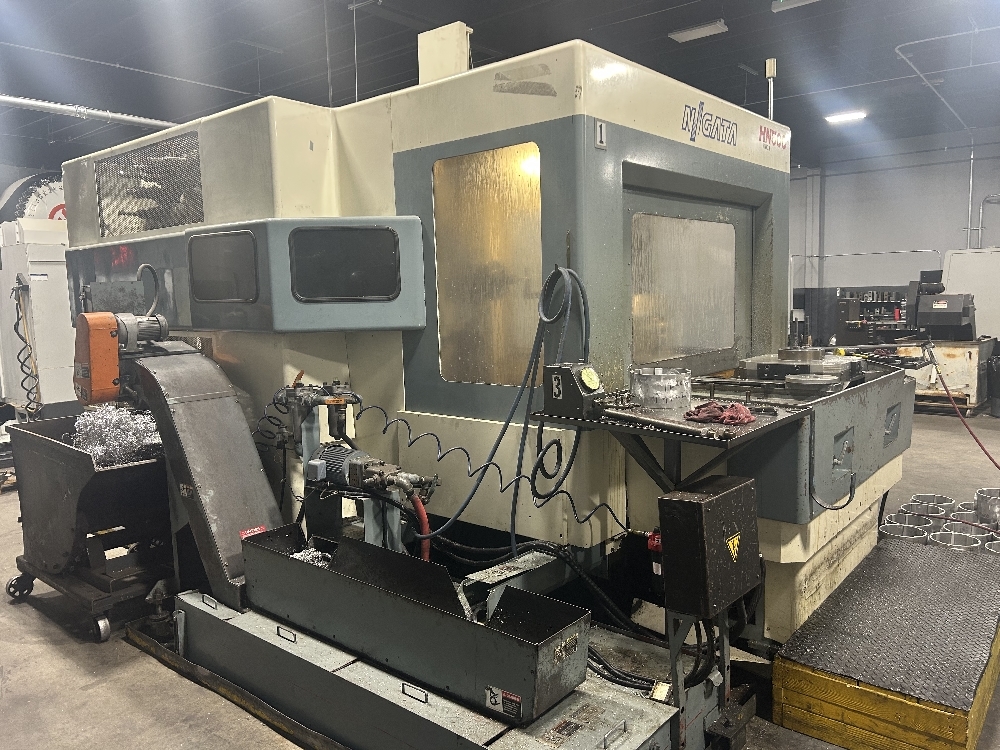

| Chip Removal |
Chip Conveyor |
| Spindle Motor |
25 HP |
| Coolant |
Flood Coolant |
| Power Requirement |
3PH 230/460V |
