Year |
1997 |
|---|---|
Make |
Nissei |
Model |
FN7000-100A |
Description |
400 Ton 41 oz Shot Size Injection Molding Machine |
Reference # |
8078604 |
Price |
Activate Pricing |

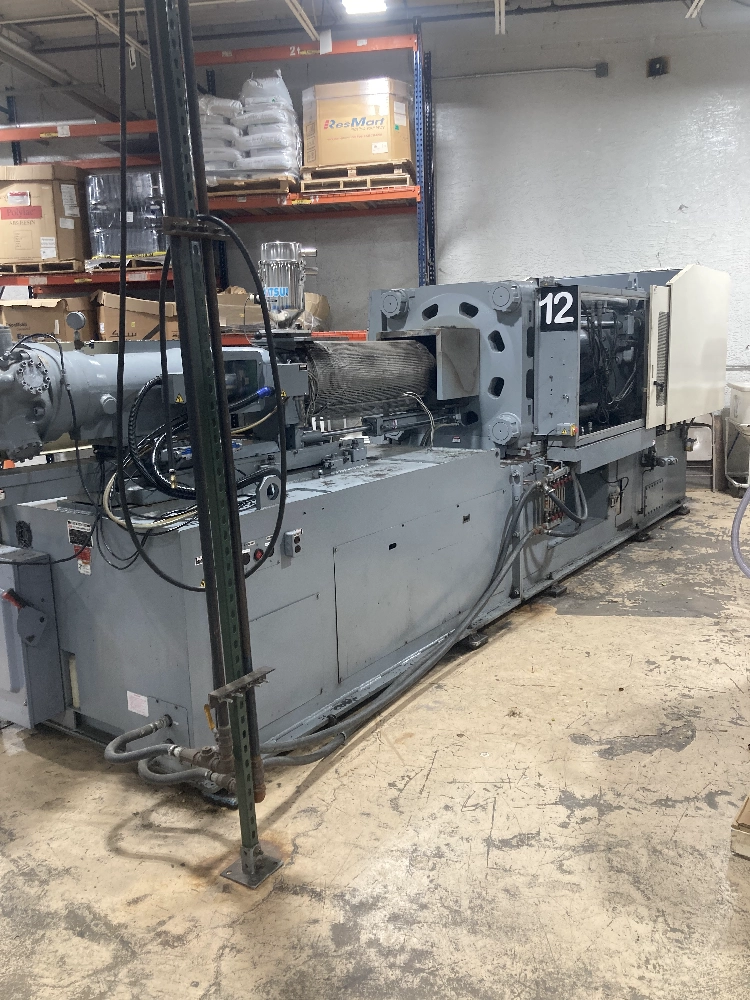

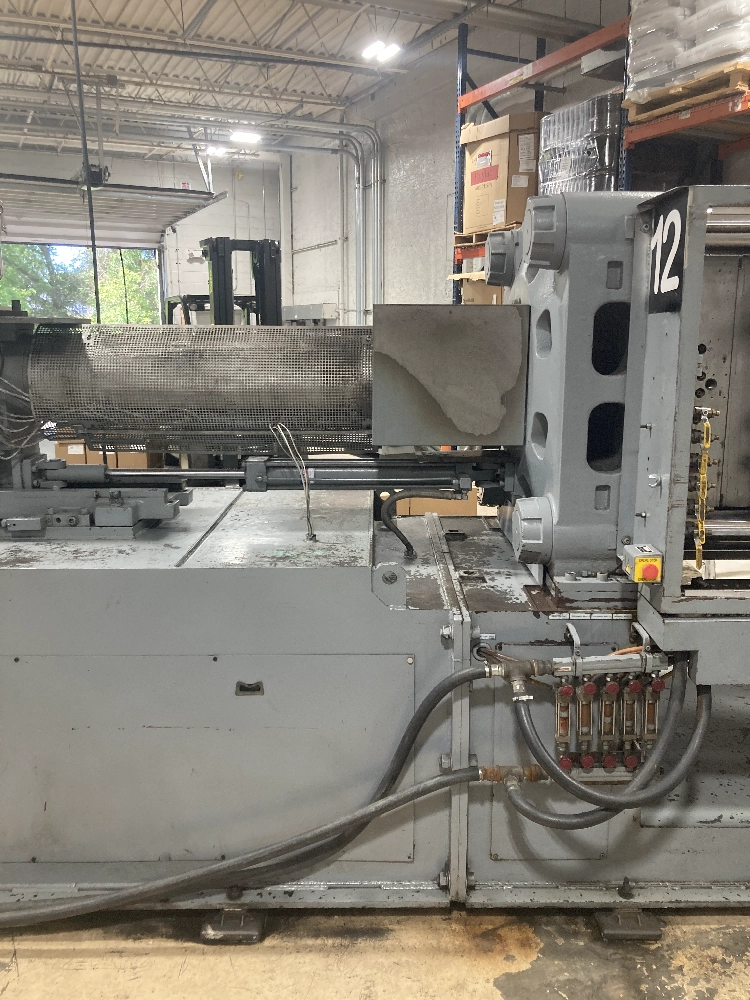

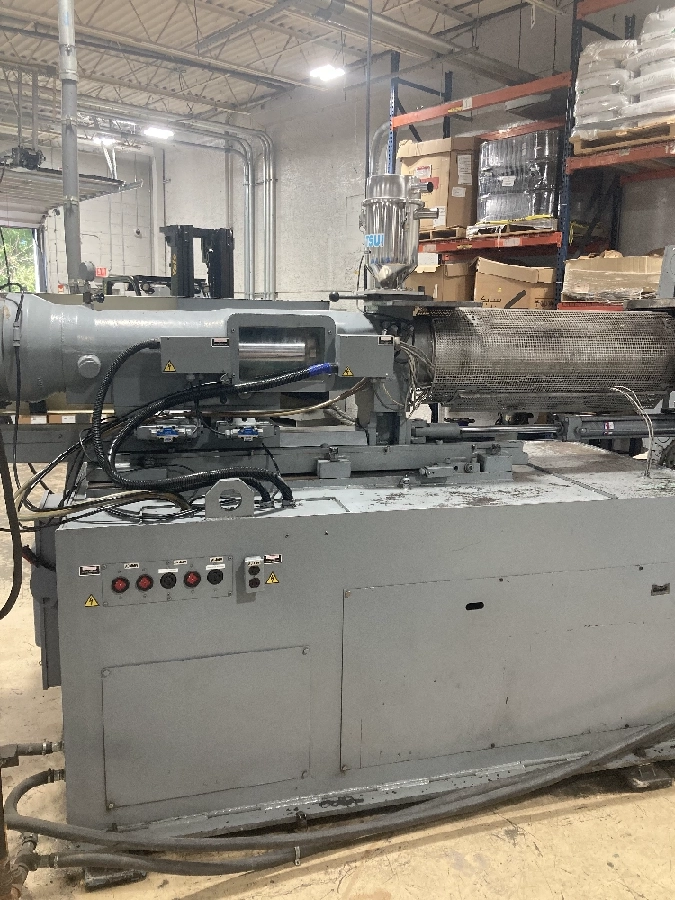

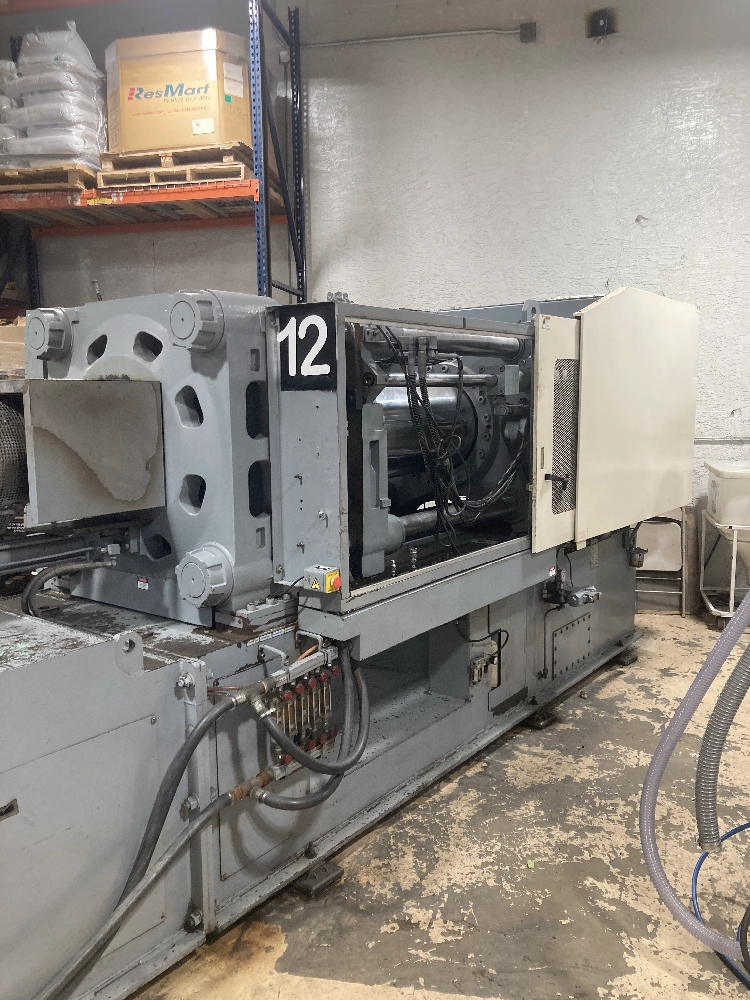

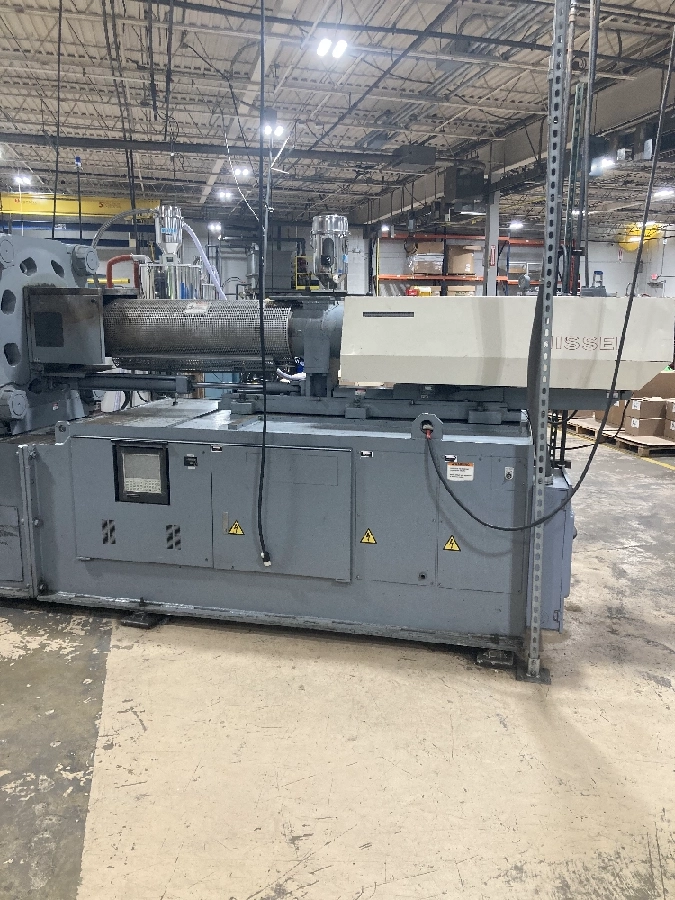

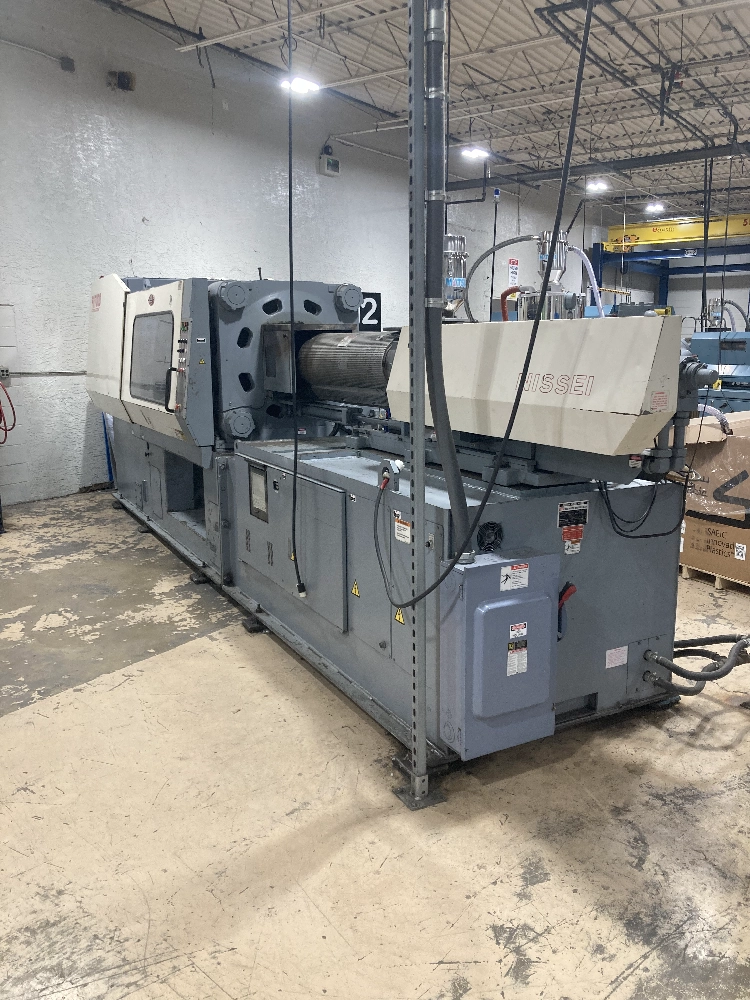

Used Nissei FN7000-100A (1997) Injection Molding Machine for Sale. This 400 ton press has a 41 oz shot size and a 71 mm screw diameter. Tie bar spacing measures 28.93″ x 28.93″ with platens of 41.5″ x 41.5″, minimum/maximum daylight of 52.8″, clamp stroke of 38.2″, and a minimum mold height of 13.8″. Power requirement is 460V and the machine runs a 9000G control. Equipped with core pull and hydraulic knockout. The press is under power and can be seen running for an inspection. See more plastic injection molding machines or browse additional Nissei equipment. Use Activate Pricing to view the price on this machine, or Request a Quote and we will follow up with details. This machine is located in Illinois.
Specifications
| Capacity |
400 Ton |
|---|---|
| Shot Size |
41 oz |
| Screw Diameter |
71 mm |
| Tie Bar Spacing |
28.93" x 28.93" |
| Platen Size |
41.5" x 41.5" |
| Min / Max Daylight |
52.8" |
| Clamp Stroke |
38.2" |
| Min Mold Height |
13.8" |
| Power Requirement |
460V |
| Control |
9000G |
Features
|
Core Pull |
Hydraulic Knockout |
|
Under Power |
