Year |
1997 |
|---|---|
Make |
Amada |
Model |
Pega 357 |
Description |
33 Ton Turret Punch |
Reference # |
8078549 |
Price |
$59,000 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

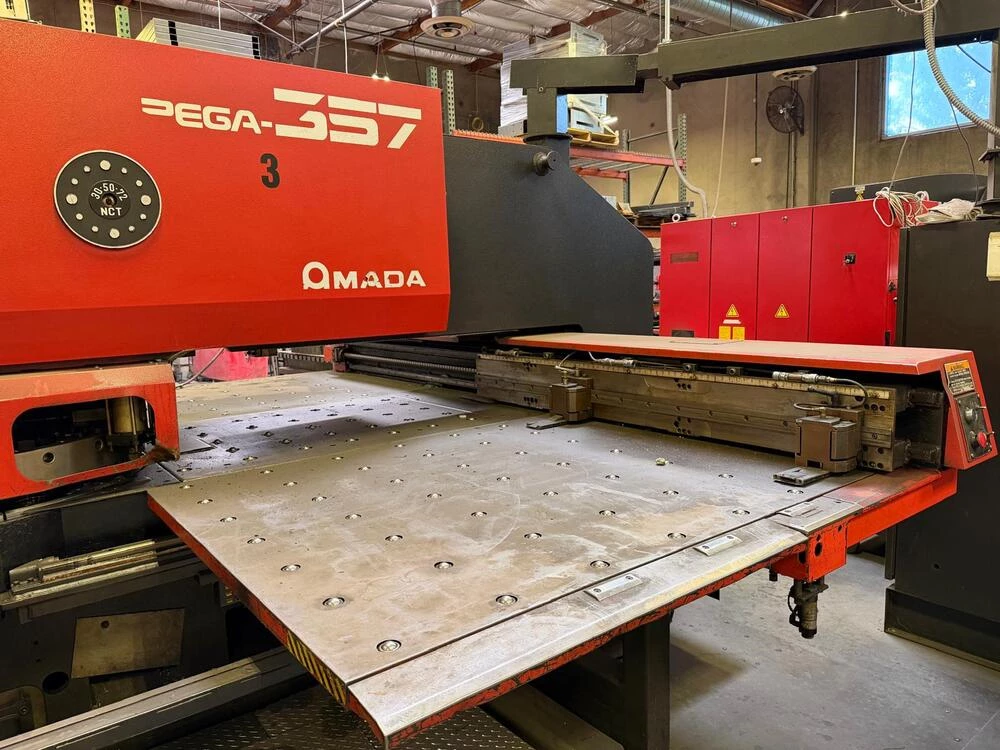

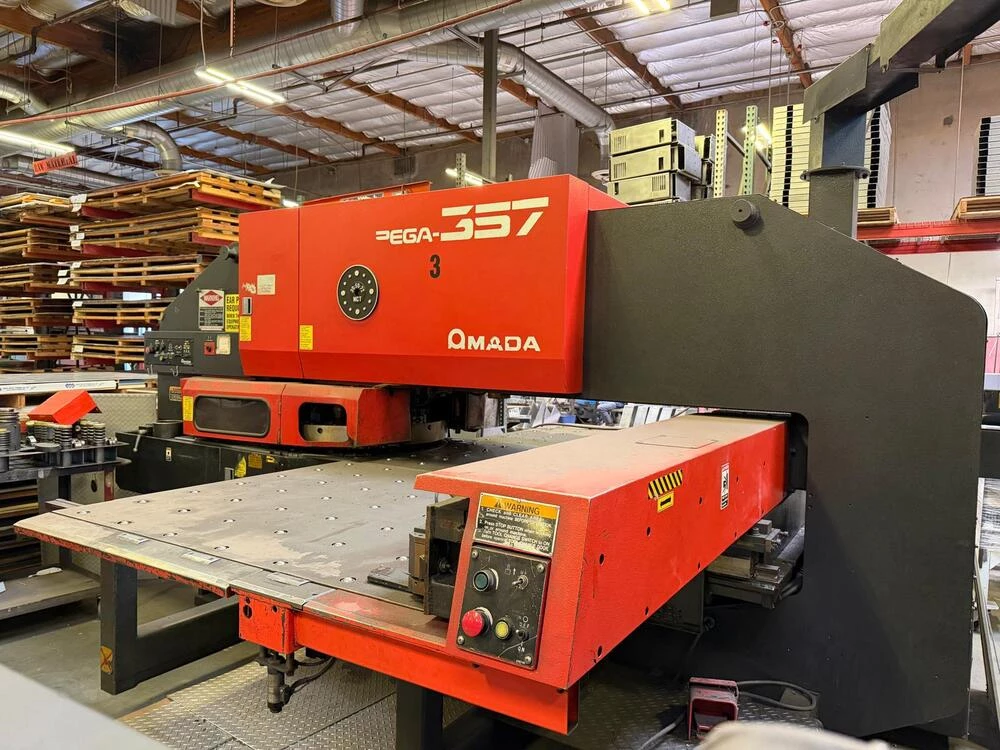

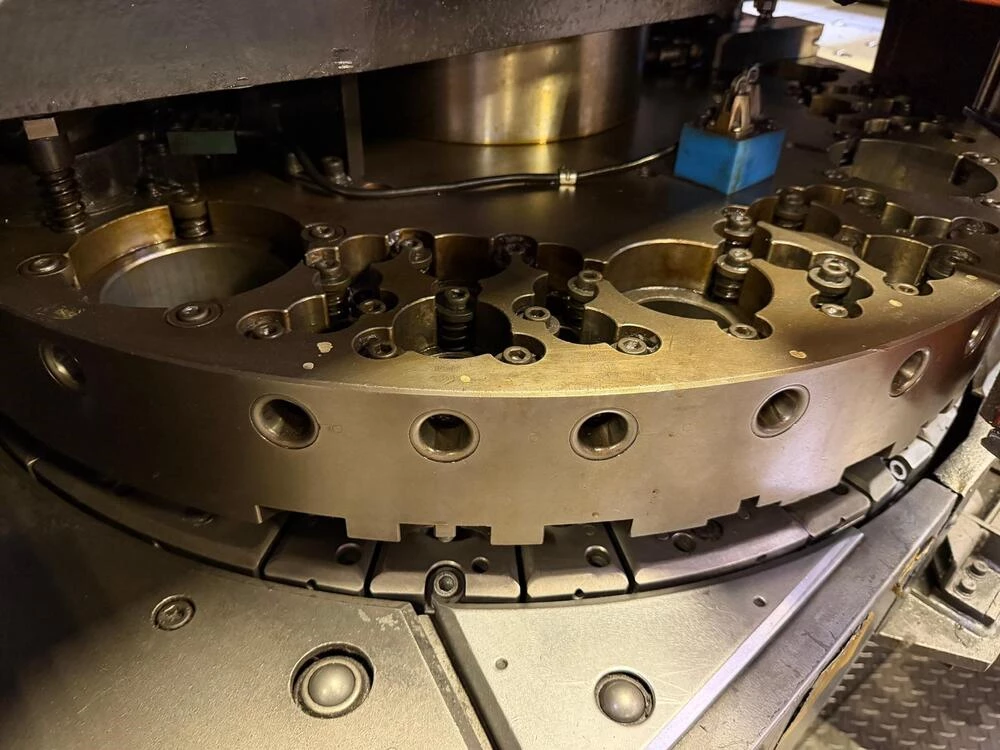

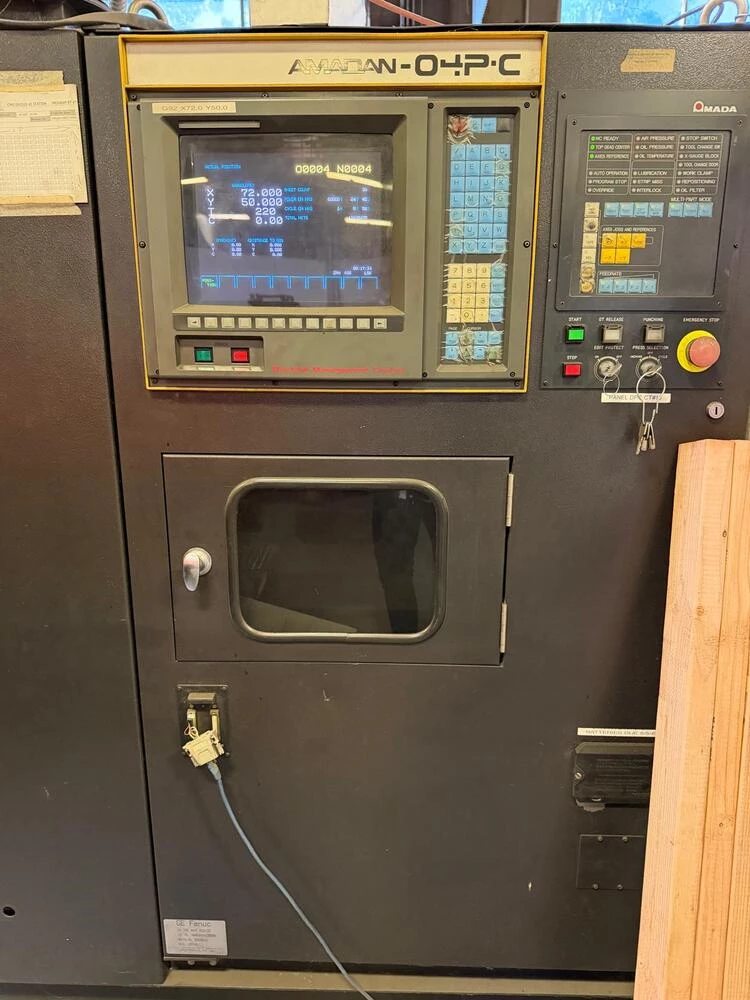

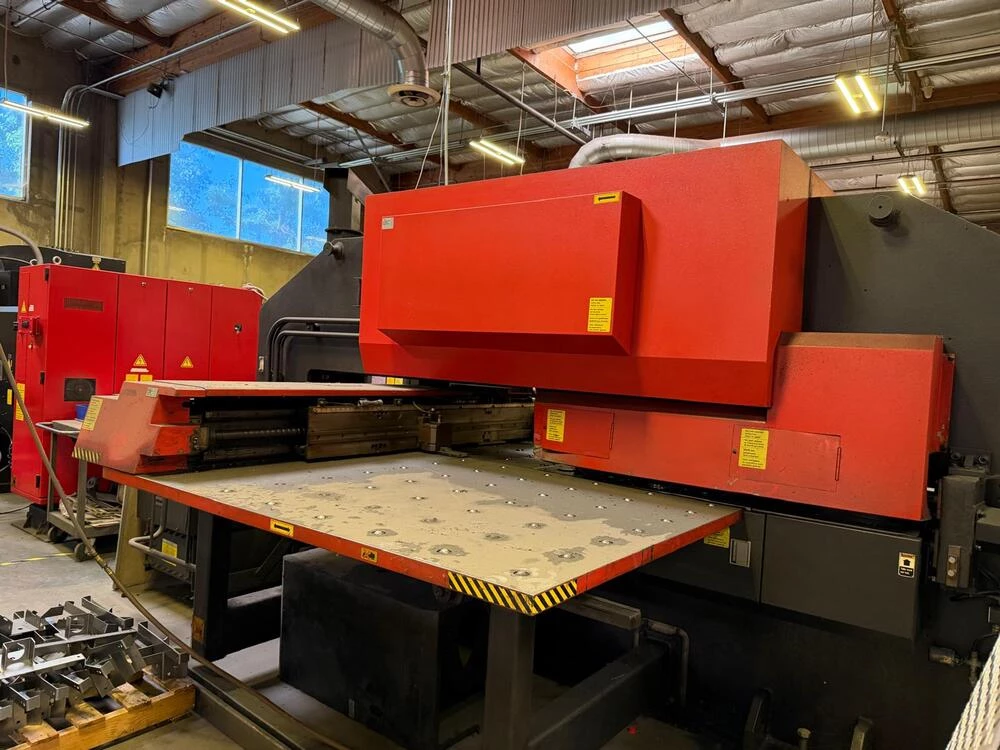

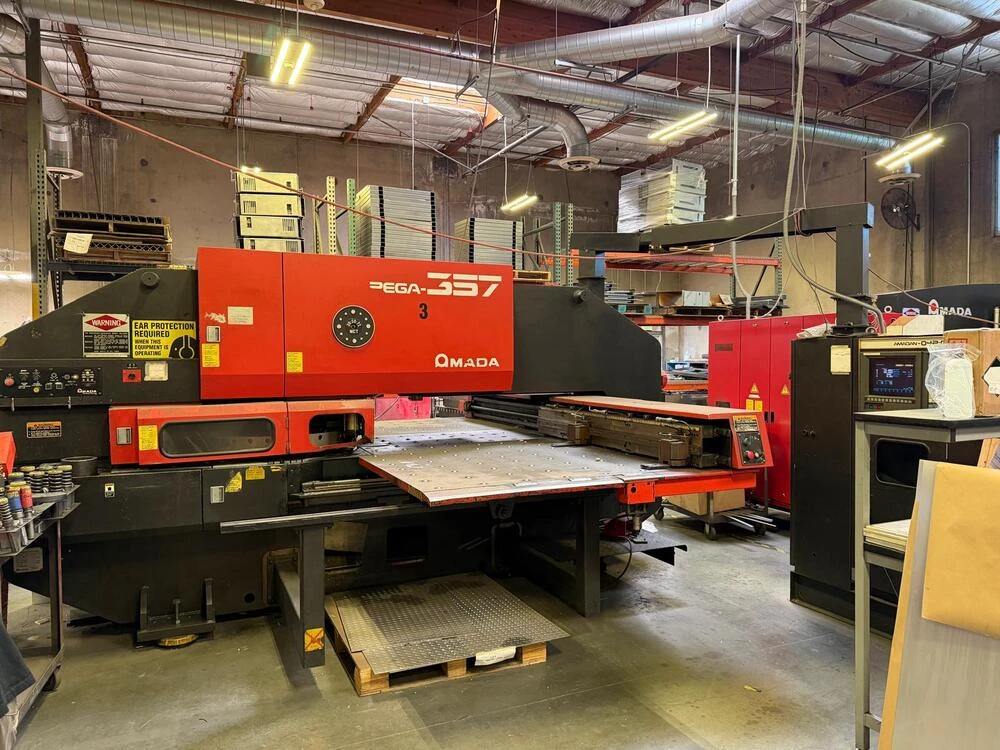

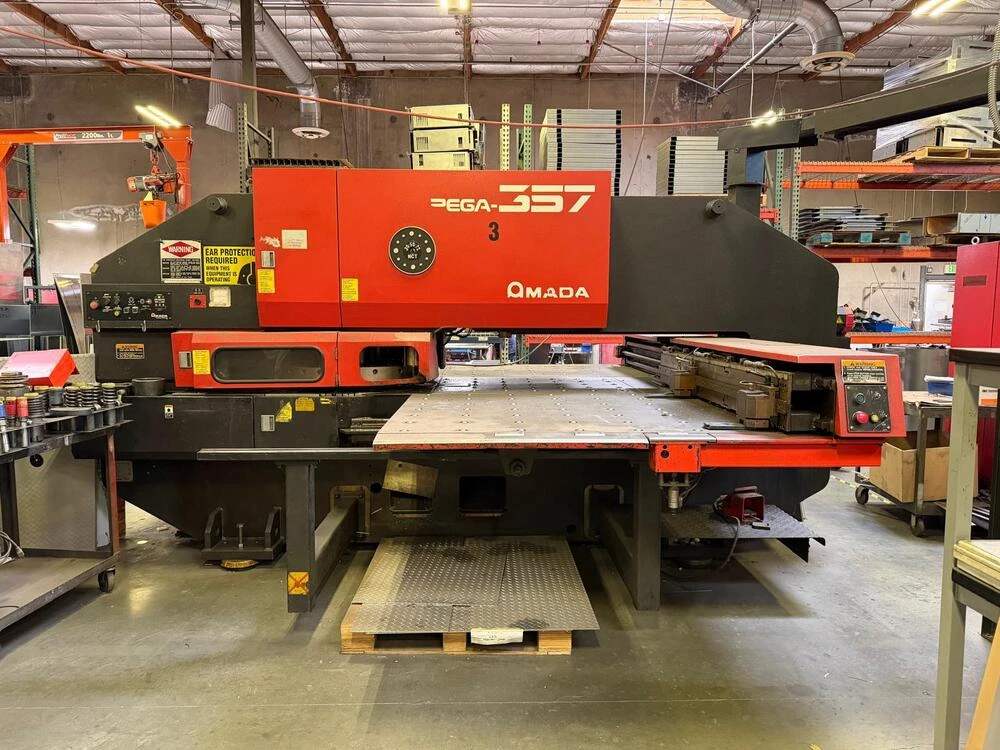

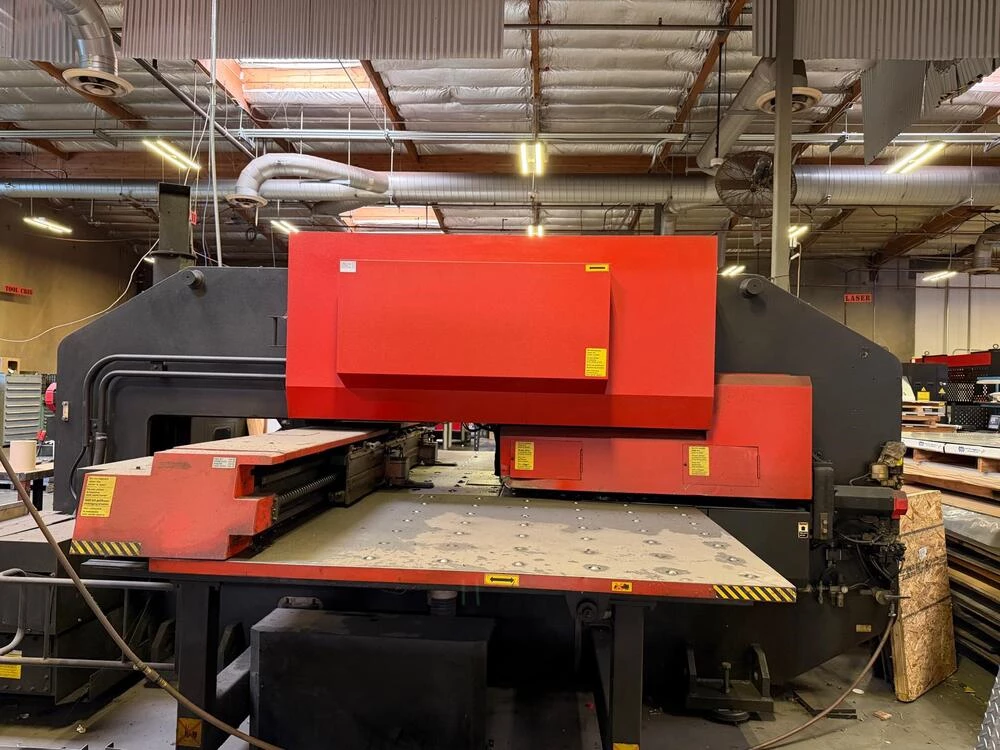

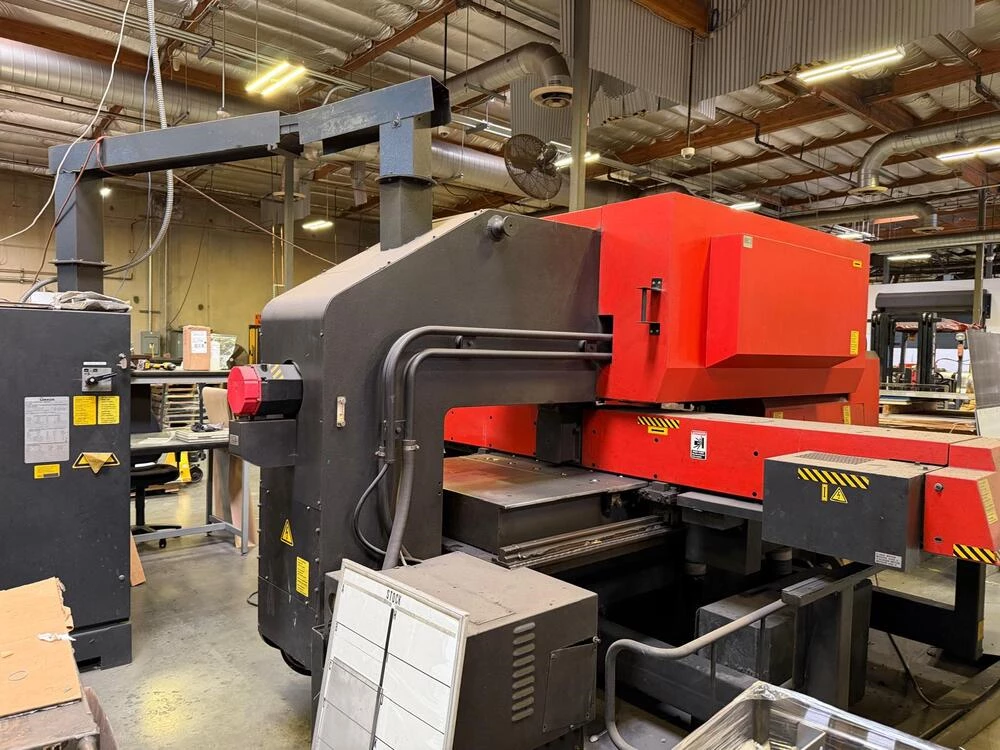

Used Amada Pega 357 (1997) Turret Punch for Sale. This 33 ton machine handles sheet sizes up to 50″ wide by 70″ long, with 50″ of X-axis travel and 72″ of Y-axis travel. It runs an 04PC control and a 58-station turret with 2 auto-index stations, set up for thick turret tooling. Maximum punching capacity is 1/4″, with a maximum hole size of 3.5″ in 10 gauge and 1.6″ in 1/4″ material. Rapid feedrates reach 3150 IPM and turret speed is 30 RPM. Equipped with a hydraulic wet clutch, two work clamps, and a ball transfer table. The machine can be seen under power for an inspection. See more used turret punches or other Amada machines, Activate Pricing, and Request a Quote. This machine is located in California.
Specifications
| Capacity |
33 Ton |
|---|---|
| Sheet Width |
50" |
| Sheet Length |
70" |
| Control |
04PC Control |
| Turret Stations |
58 w/ 2 A/I |
| X-Axis Travel |
50" |
| Y-Axis Travel |
72" |
| Type of Turret Tooling |
Thick |
| Max Punching Capacity |
1/4" |
| Max Hole Size (10 Gauge) |
3.5" |
| Max Hole Size (1/4") |
1.6" |
| Rapid Feedrates |
3150 IPM |
| Turret Speed |
30 RPM |
Features
|
Hydraulic Wet Clutch |

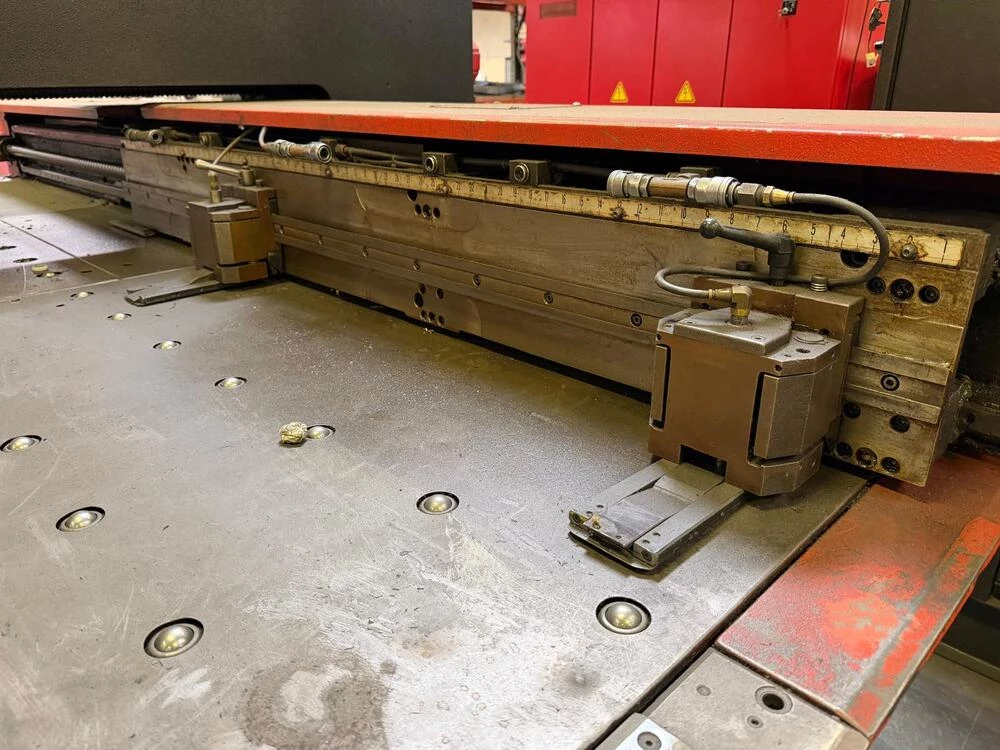

(2) Work Clamps |
|
Ball Transfer Table |
