Year |
1996 |
|---|---|
Make |
Torrington |
Model |
12"/4" Arbor |
Description |
Pull-Through Slitting Line |
Reference # |
8071458 |
Price |
Activate Pricing |

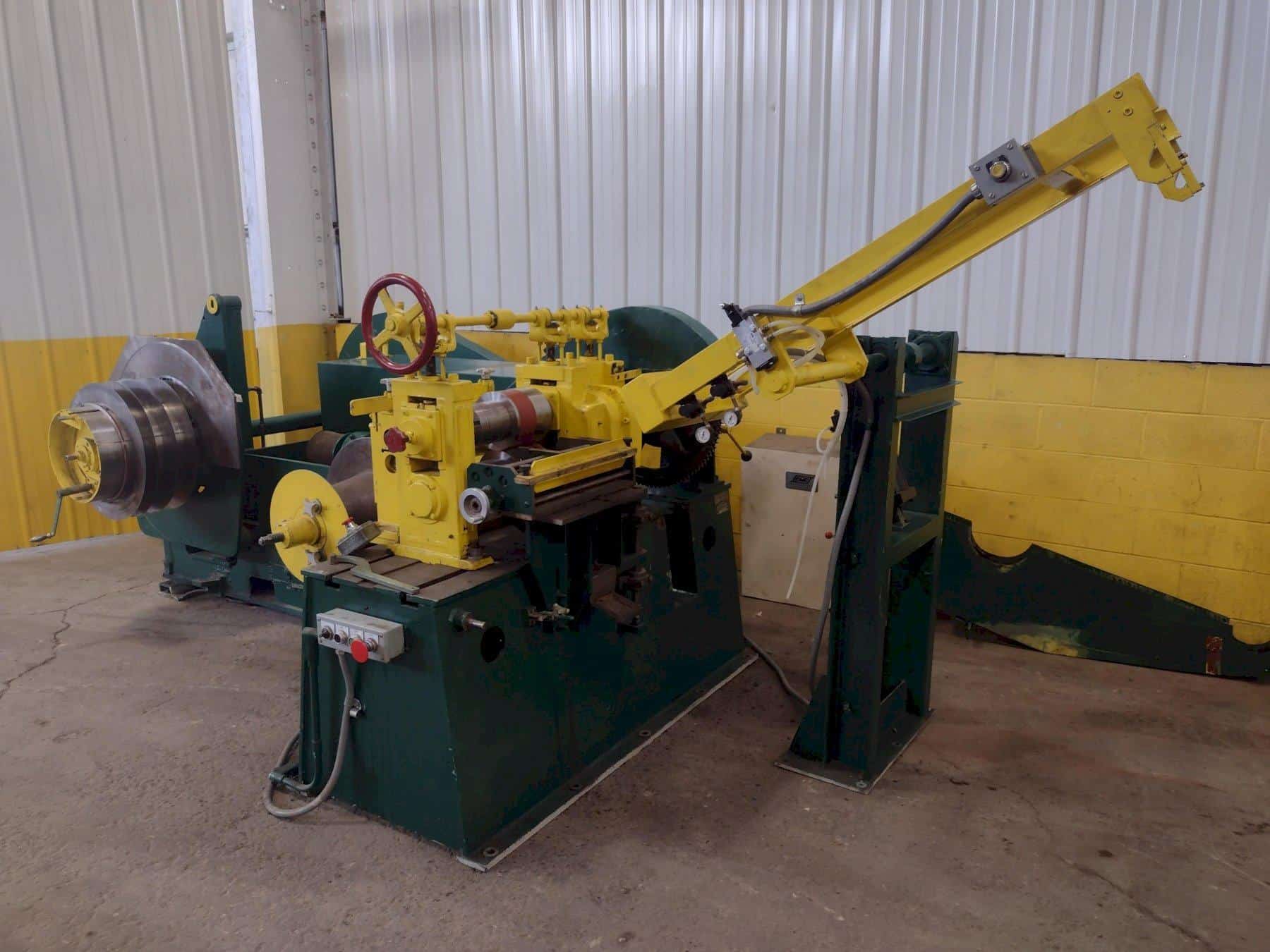

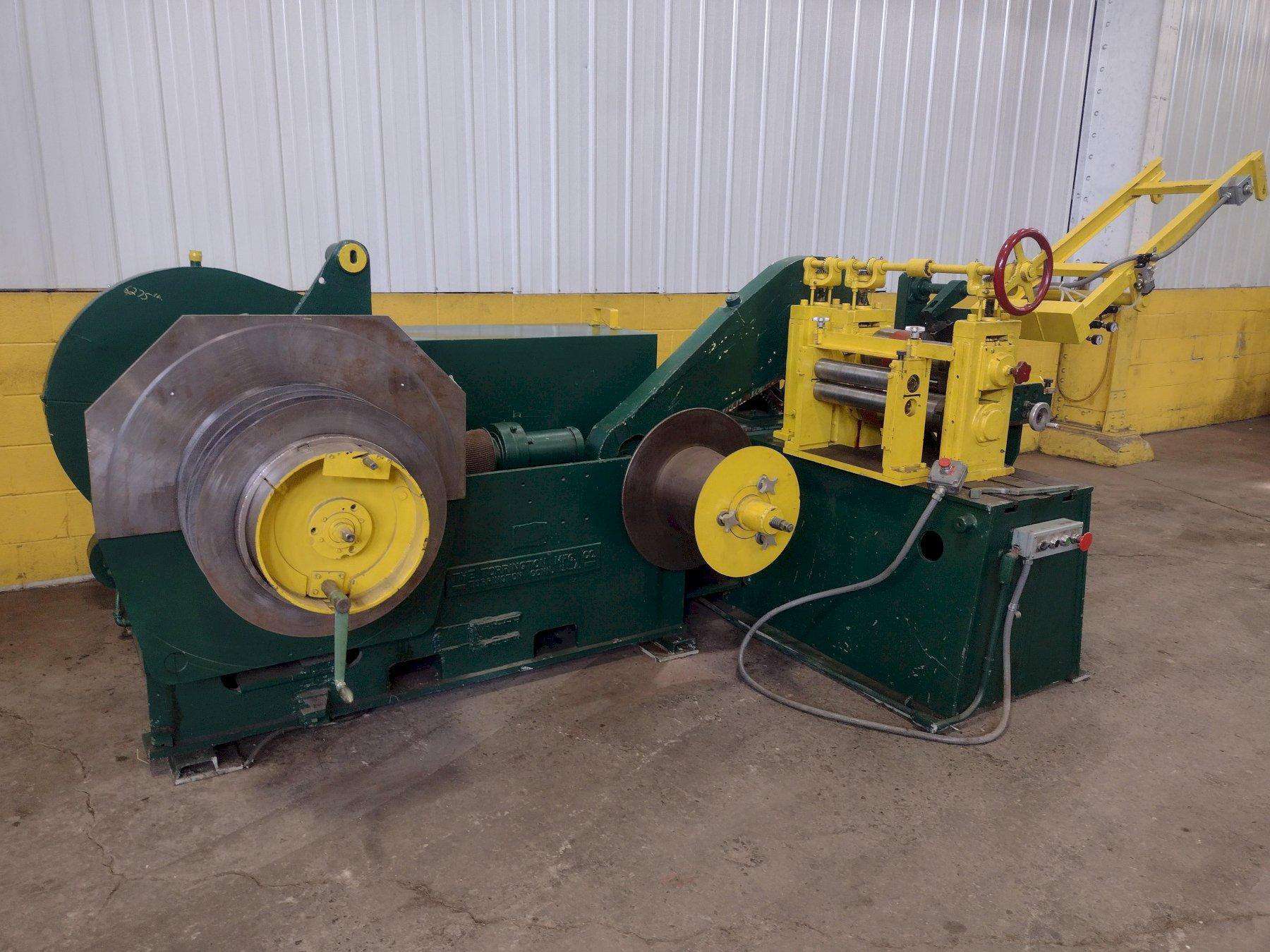

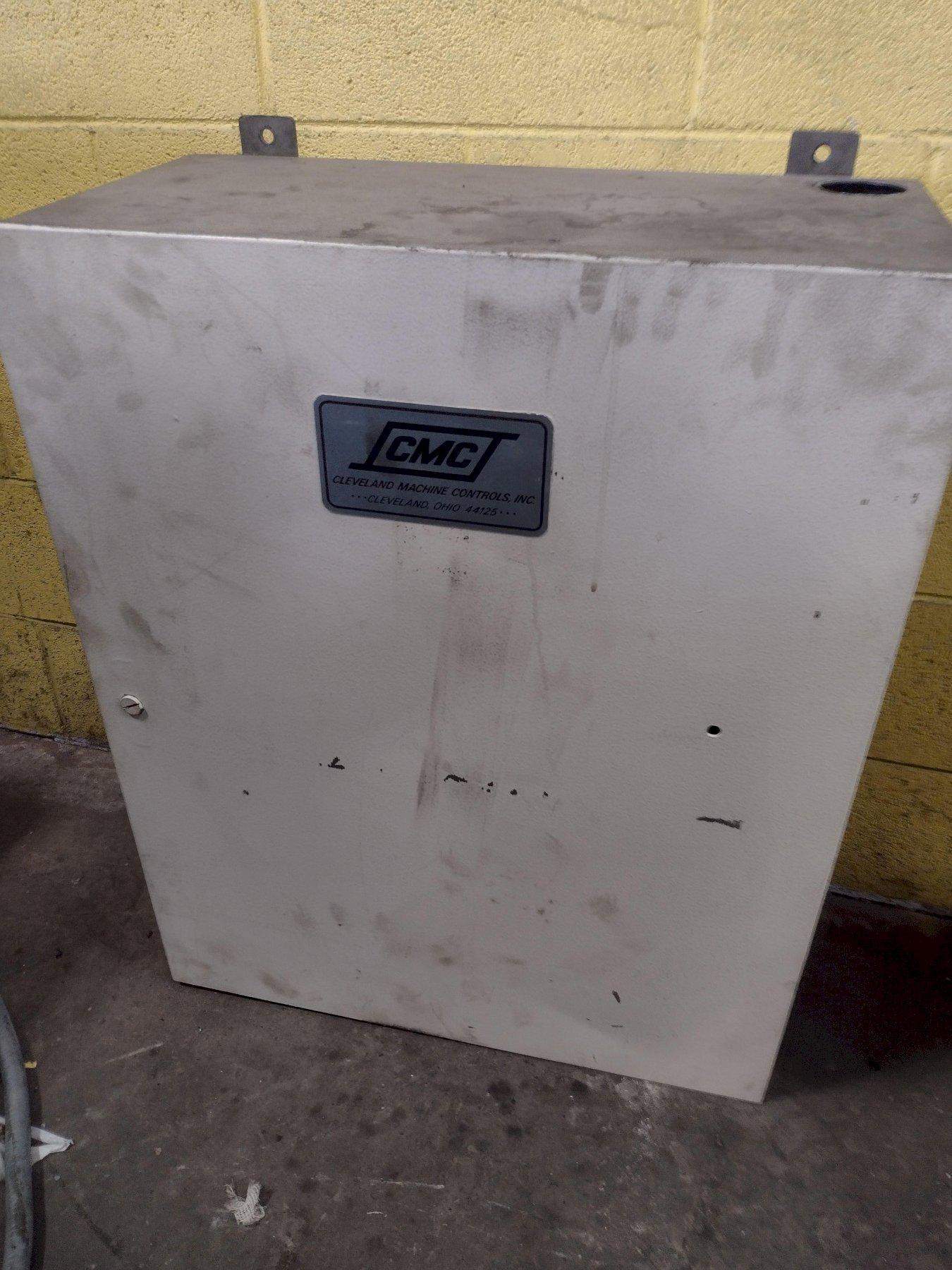

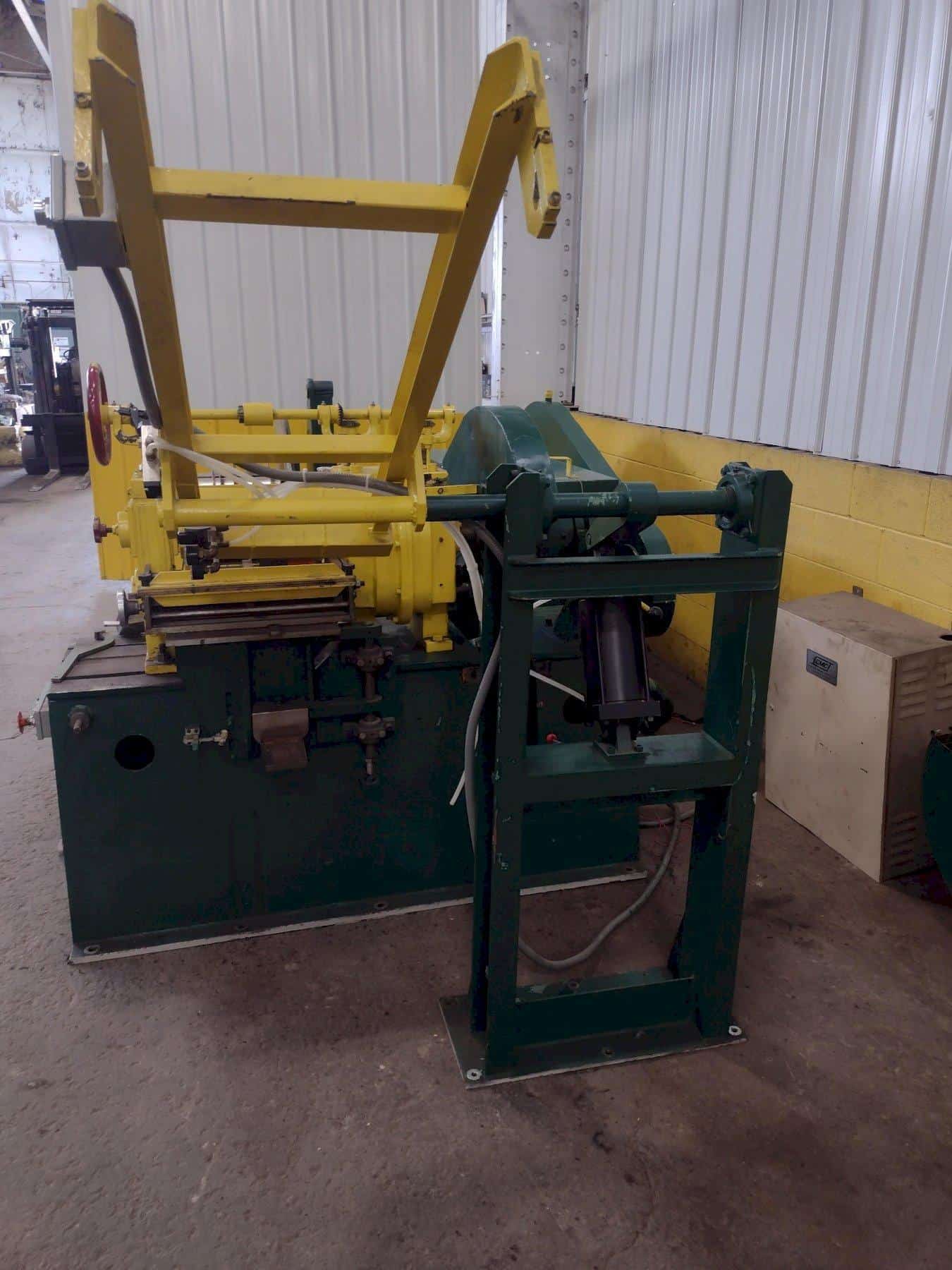

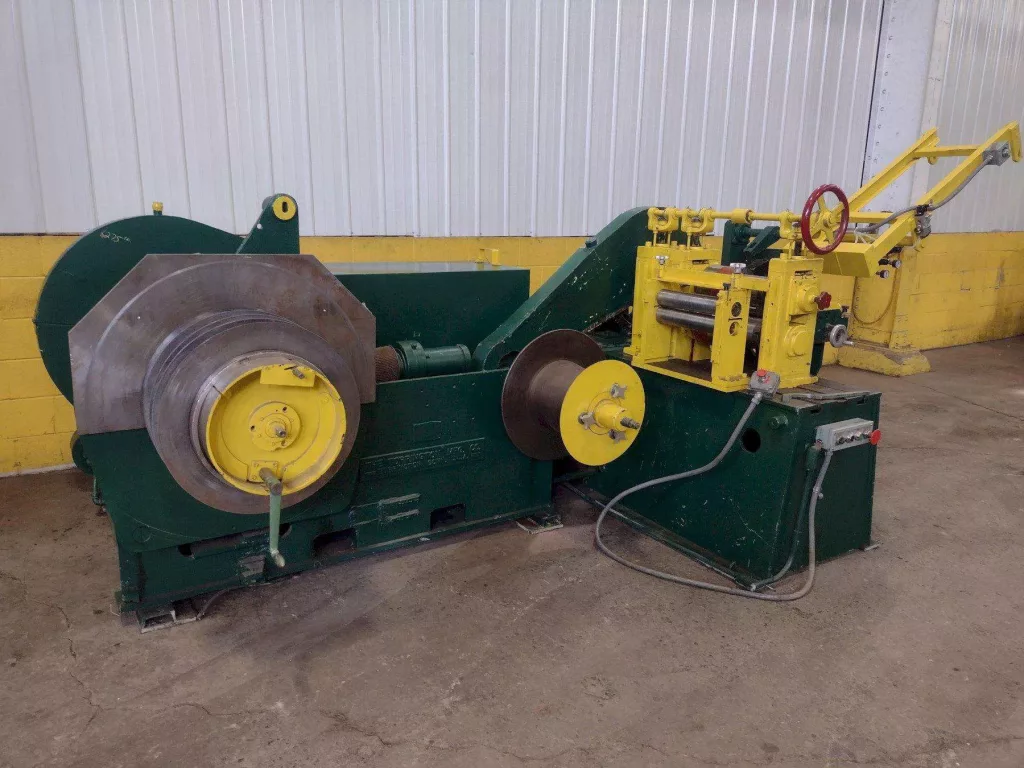

Used Torrington 12″/4″ Arbor (1996) Slitter for Sale. This line runs right to left with a nominal capacity of 12″ x 0.065″ and a coil weight rating of 5,000 lbs. Slitting width capacity is 12″, with arbors 14″ wide and manual expansion. Line speed is variable from 20 to 100 FPM through a variable speed drive, powered by a 5 HP motor. The scrap winder is 15″ wide and takes a 30″ diameter scrap ball. Equipped with run and jog operating modes, “pull-off” operation, AC control cabinet, adjustable entry edge guides, air clutch, air operated functions, coil gripper slot, common base and drive, E-stop button, exit pinch rolls, outboard retraction and parallel adjustment. Available to be seen under power for inspection. See more slitters and upenders, Activate Pricing, or Request a Quote. This machine is located in Ohio.
Specifications
| Nominal Capacity |
12" X 0.065" |
|---|---|
| Coil Weight |
5,000 Lbs |
| Line Direction |
Right to Left |
| Line Speed (Variable) |
20 to 100 FPM |
| Slitting Width Capacity |
12" |
| Width of Arbors |
14" |
| Motor |
5 HP |
| Diameter Scrap Ball (Scrap Winder) |
30" |
| Scrap Winder Width |
15" |
Features
|

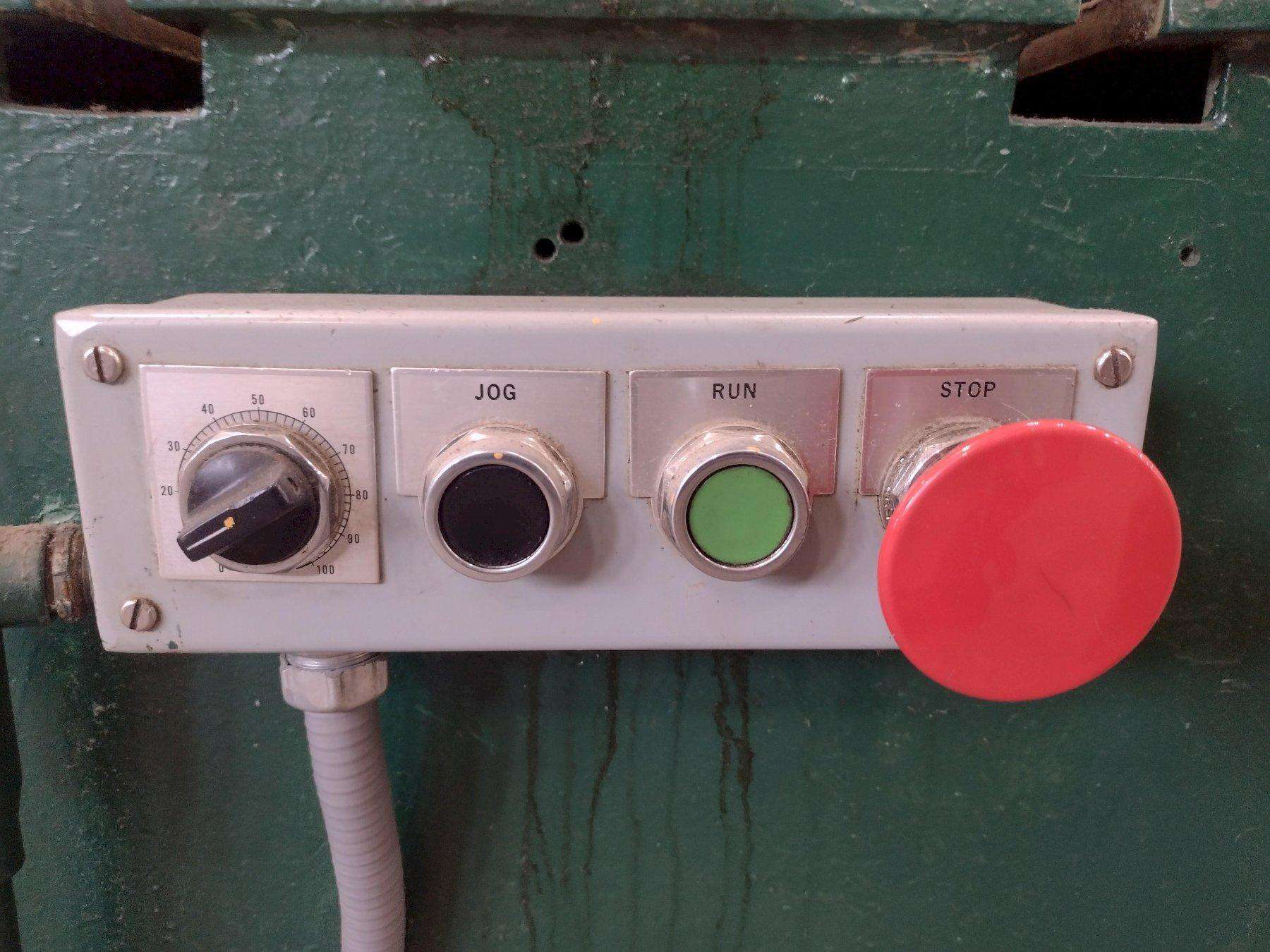

Run and Jog Operating Modes |
"Pull-Off" Operation |
|
AC Control Cabinet |

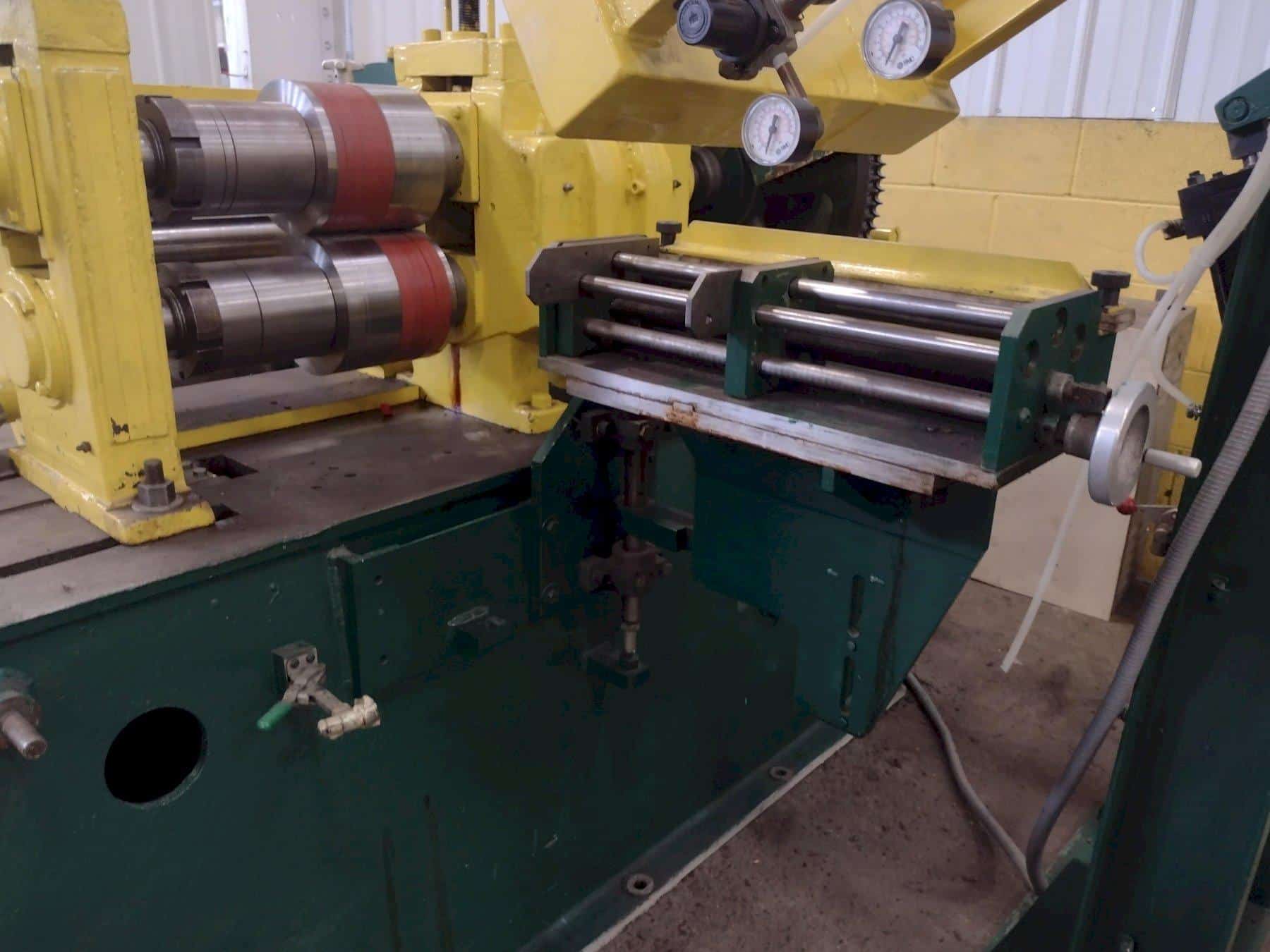

Adjustable Entry Edge Guides |
|

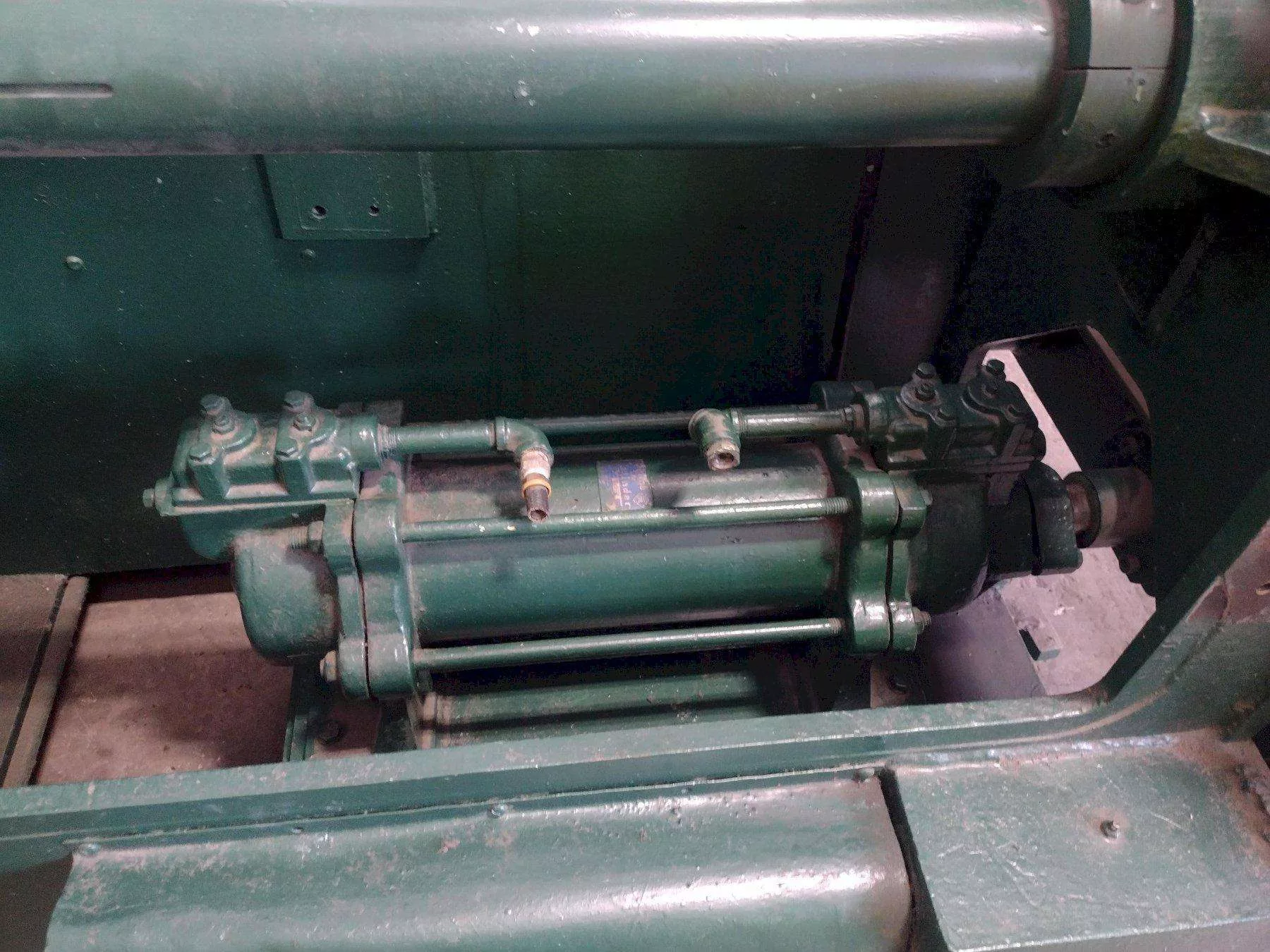

Air Clutch |
Air Operated |
|
Variable Speed Drive |
Coil Gripper Slot |
|
Common Base and Drive |
E-Stop Button |
|

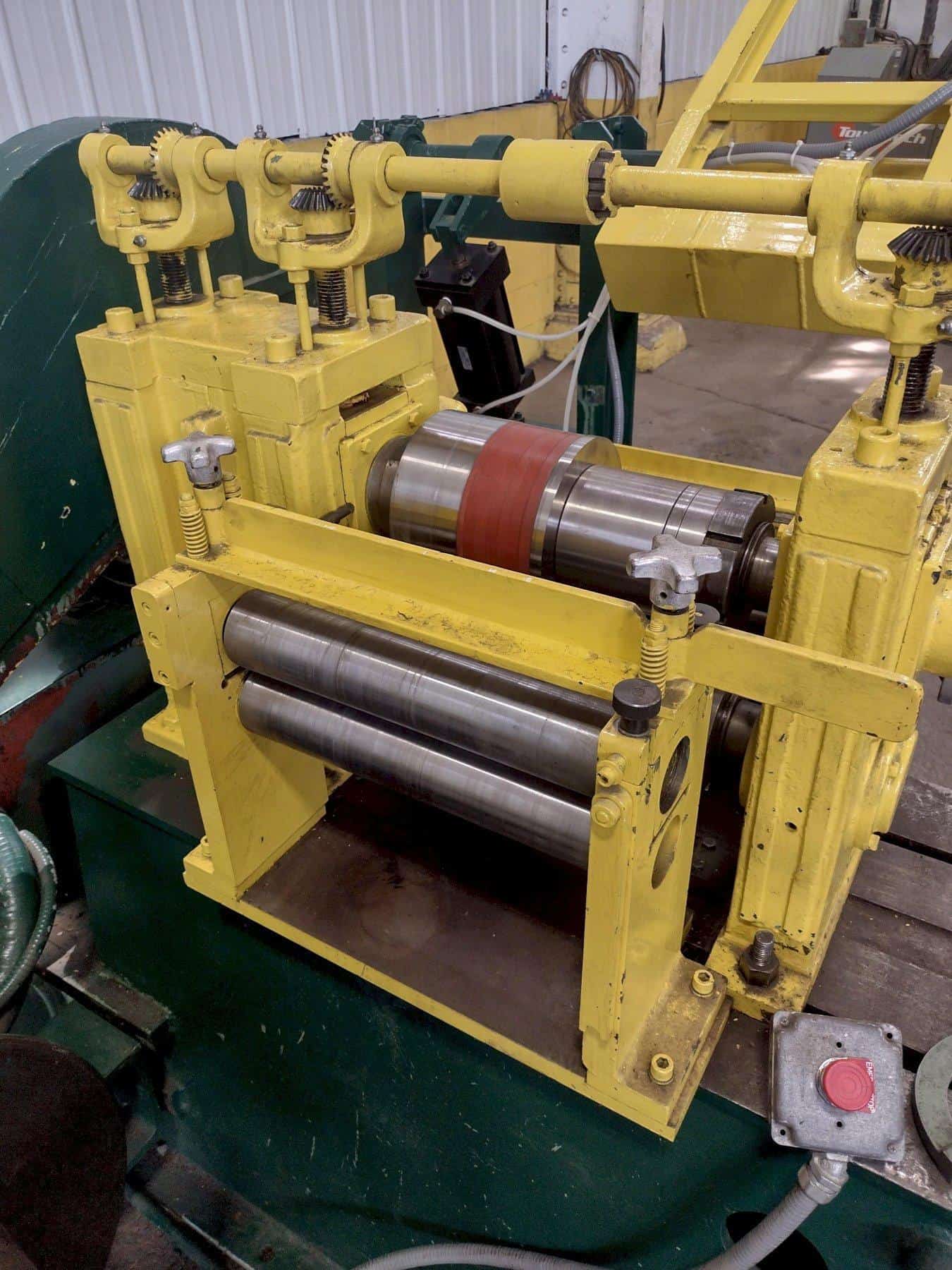

Exit Pinch Rolls |
Manual Expansion |
|
Outboard Retraction |
Parallel Adjustment |
