Make |
Ransome |
|---|---|
Model |
500P |
Description |
Welding Positioner |
Reference # |
8078420 |
Price |
Activate Pricing |

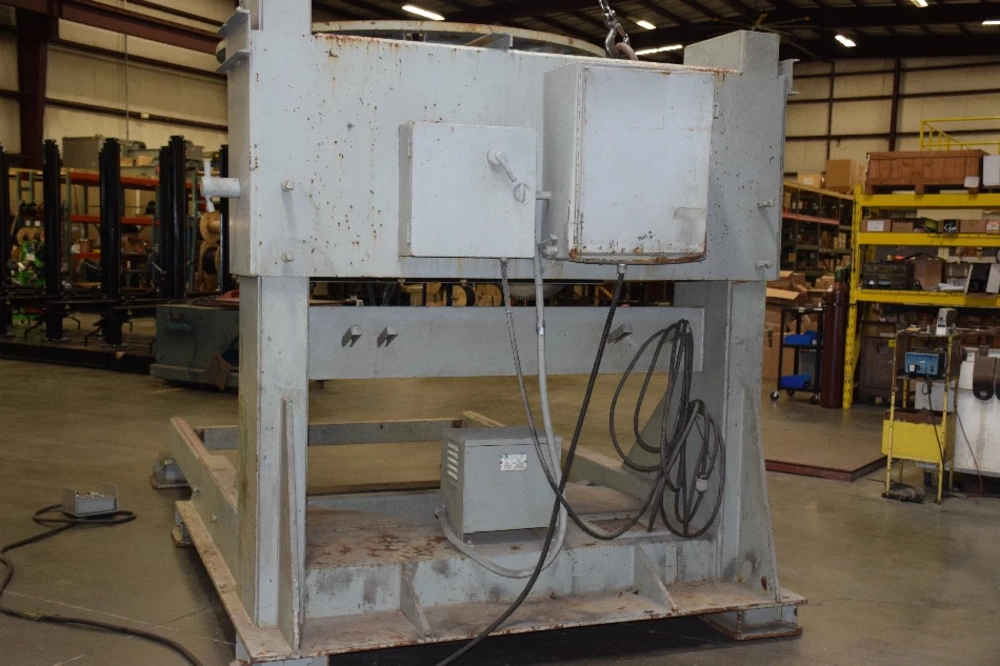

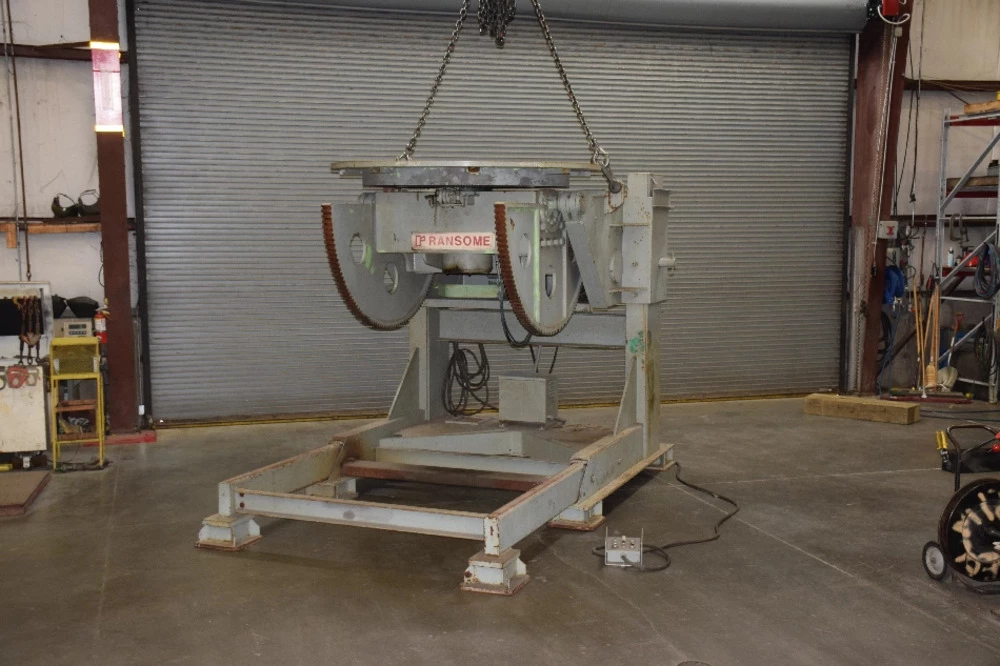

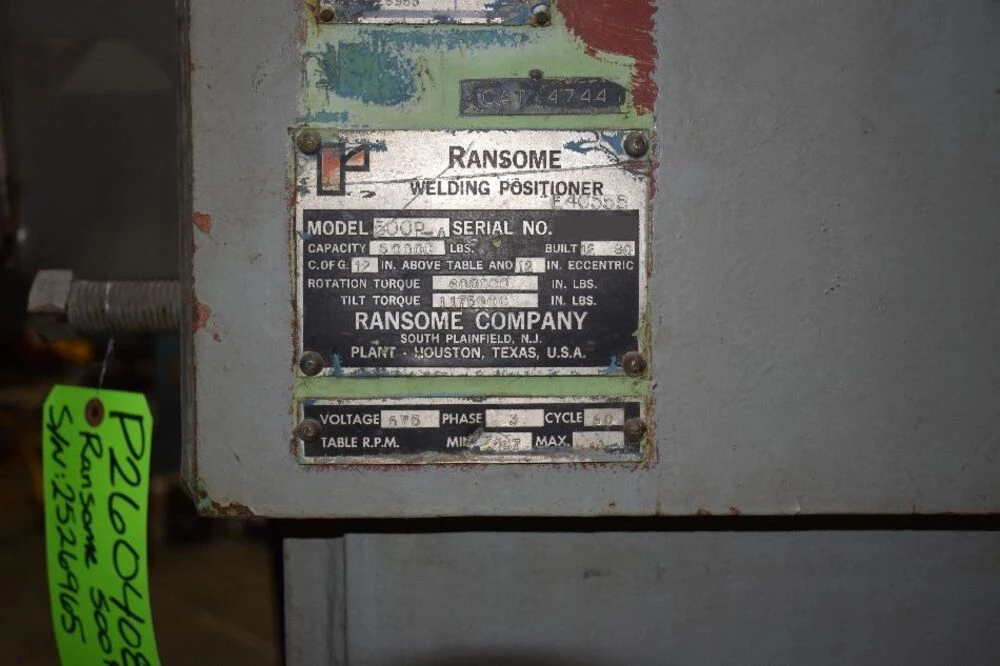

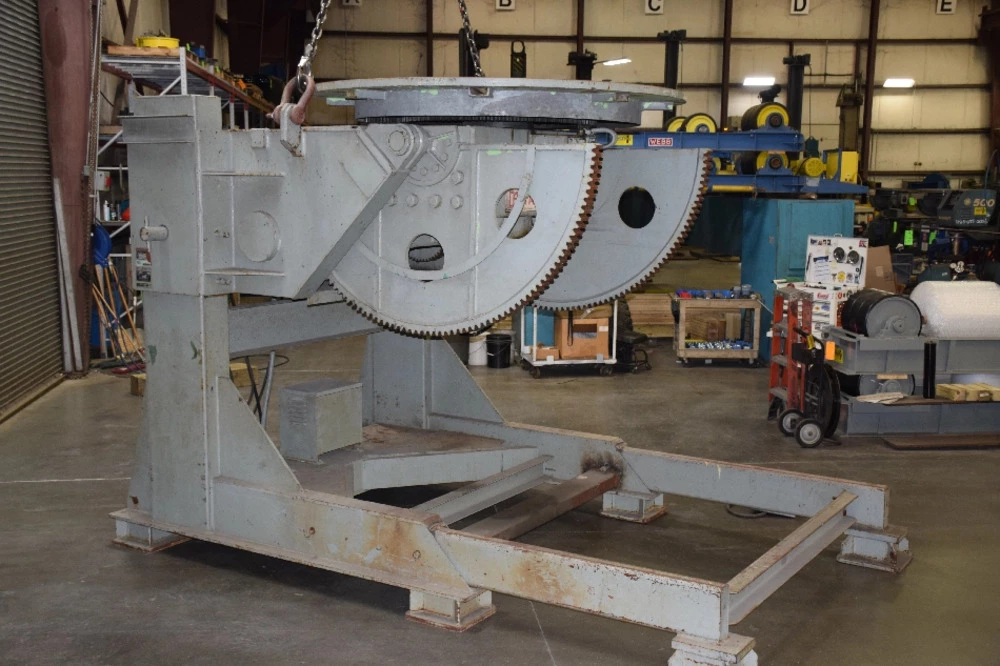

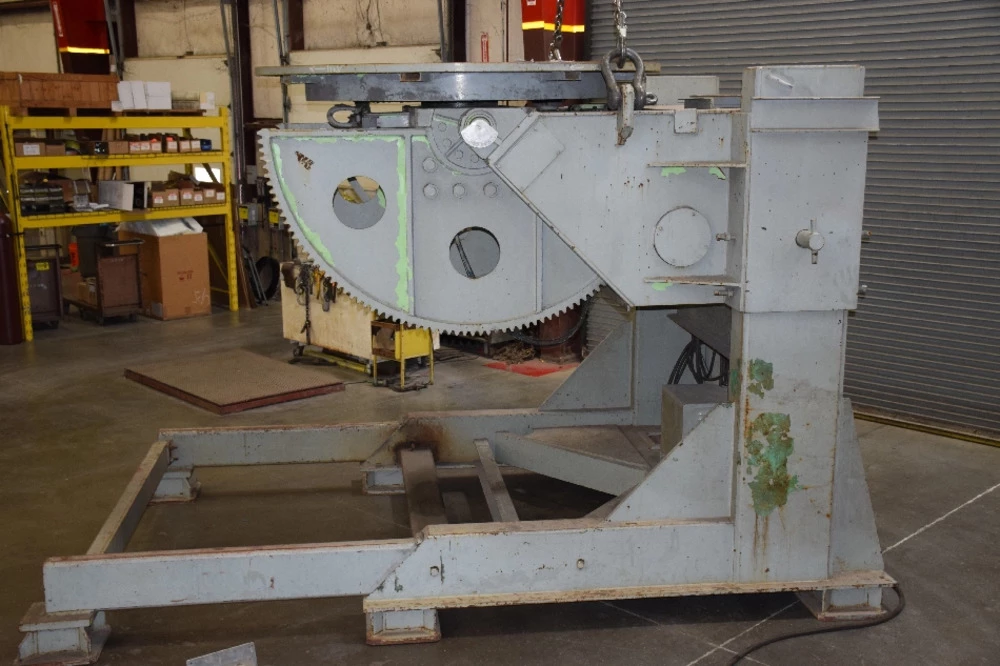

Used Ransome 500P Welding Positioner for Sale. This positioner is rated for 50,000 lbs at a 12” center of gravity, with constant speed power tilt through 135° and tilt torque of 1,175,000 in-lbs. Variable speed rotation runs from 0.007 to 0.30 RPM with 600,000 in-lbs of rotational torque, and the height is manually adjustable from 67” to 85”. Input power is 460V, 3-Phase. It is equipped with an 84” round table with 8 radial T-slots and a 6 ½” thru hole, plus a hand pendant controller. Approximate shipping dimensions are 159”L x 96”W x 107”H at roughly 32,000 lbs. The machine can be seen under power for an inspection. Use Activate Pricing or Request a Quote for full details. This machine is located in Ohio.
Specifications
| Capacity |
50,000 lbs at 12” Center of Gravity |
|---|---|
| Constant Speed Power Tilt |
135° |
| Tilt Torque |
1,175,000 in-lbs |
| Variable Speed Rotation |
From 0.007 – 0.30 RPM |
| Rotational Torque |
600,000 in-lbs |
| Manually Adjustable Height |
From 67” – 85” |
| Input Power |
460V, 3-Phase |
| Approx. Shipping Dimensions |
159”L x 96”W x 107”H |
| Approx. Shipping Weight |
32,000lbs |
Features
|

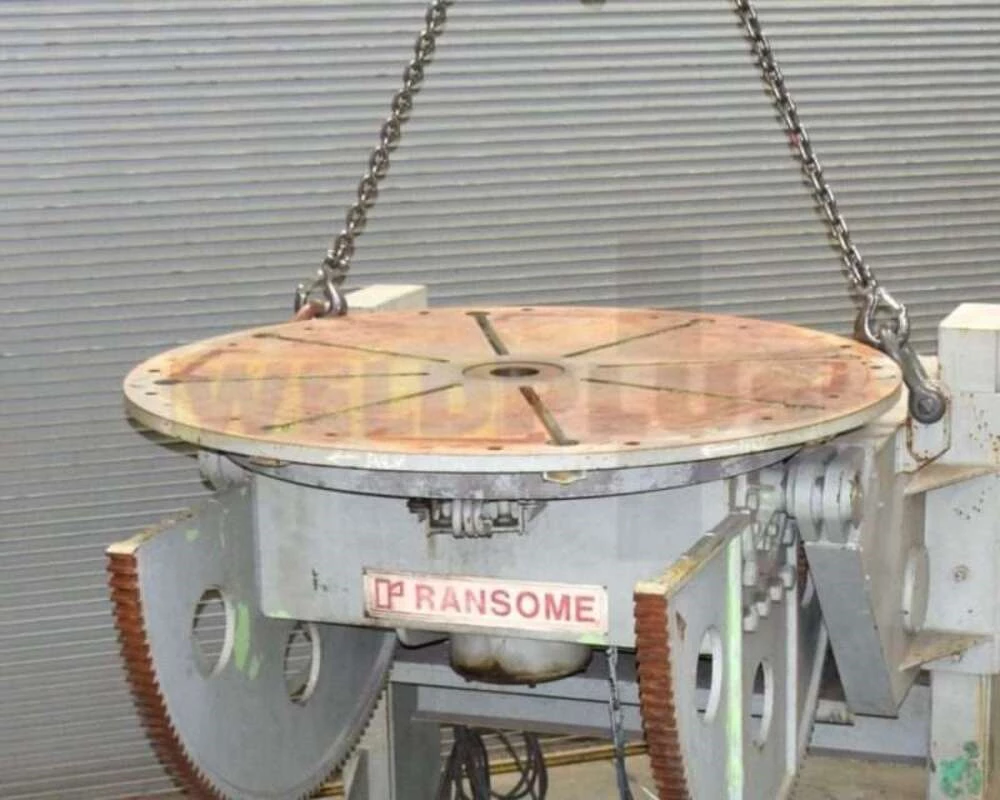

84” Round Table with 8 Radial T-Slots & 6 ½” Thru Gole |

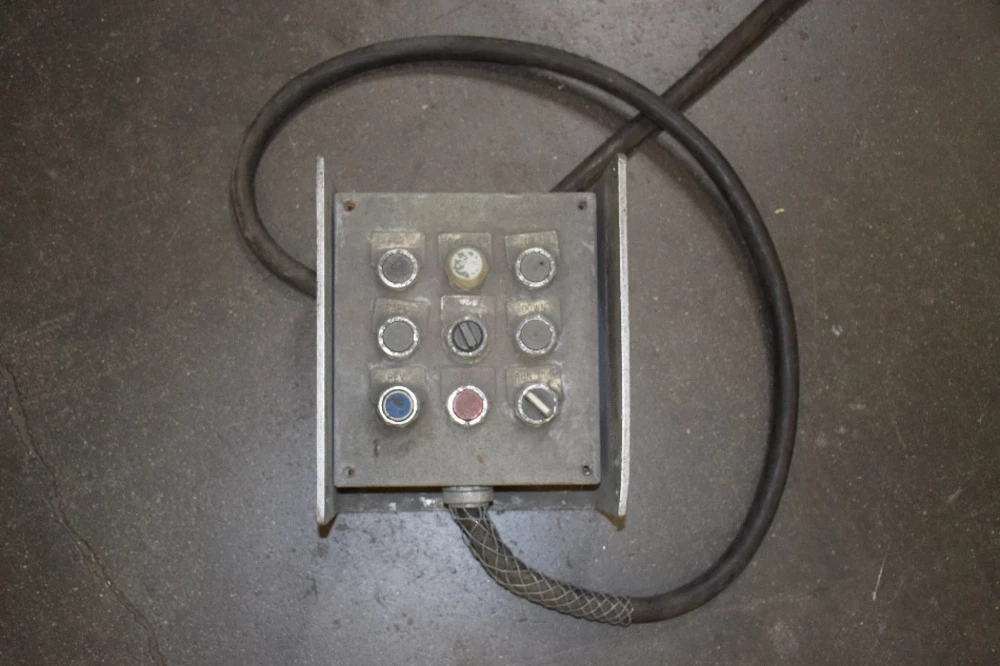

Hand Pendant Controller |
