Make |
Peddinghaus |
|---|---|
Model |
Peddiworker 1050 |
Description |
105 Ton Ironworker |
Reference # |
8078969 |
Price |
Activate Pricing |

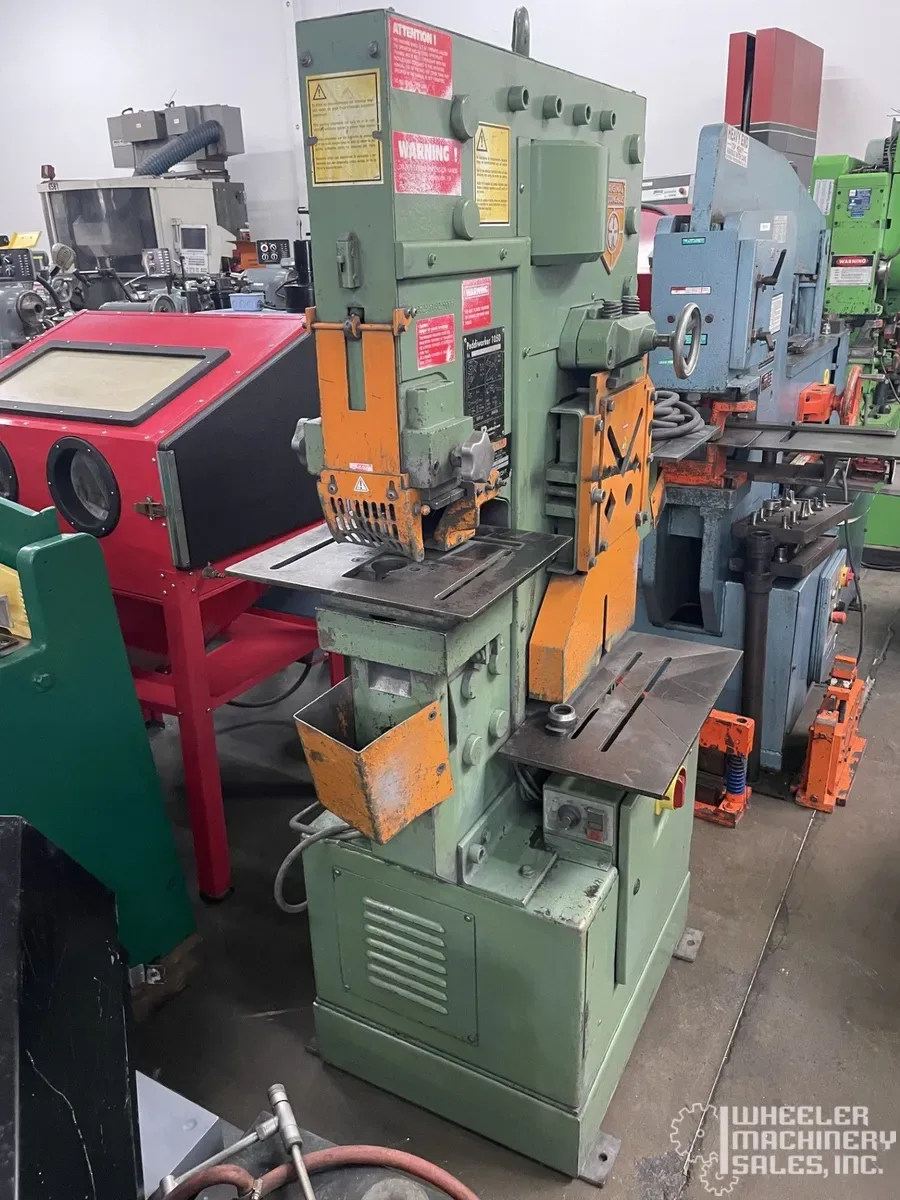

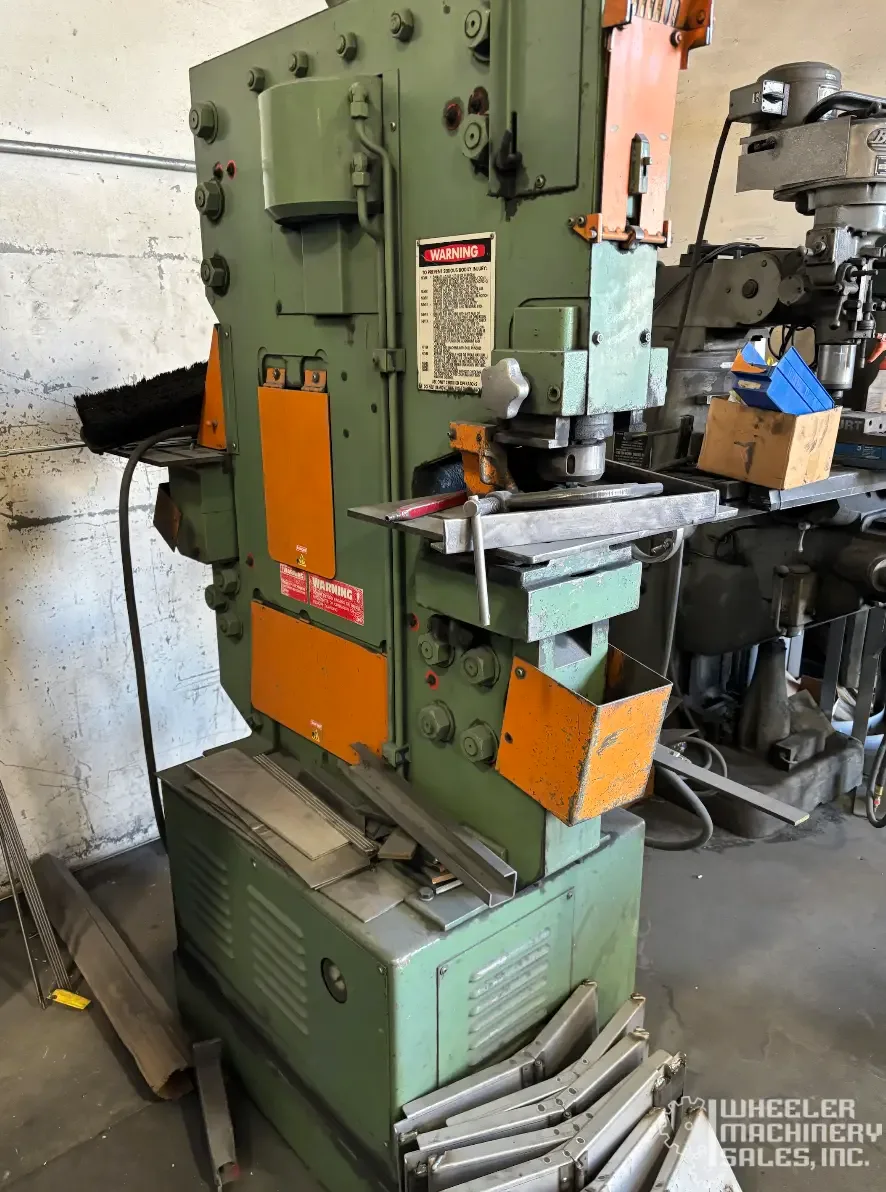

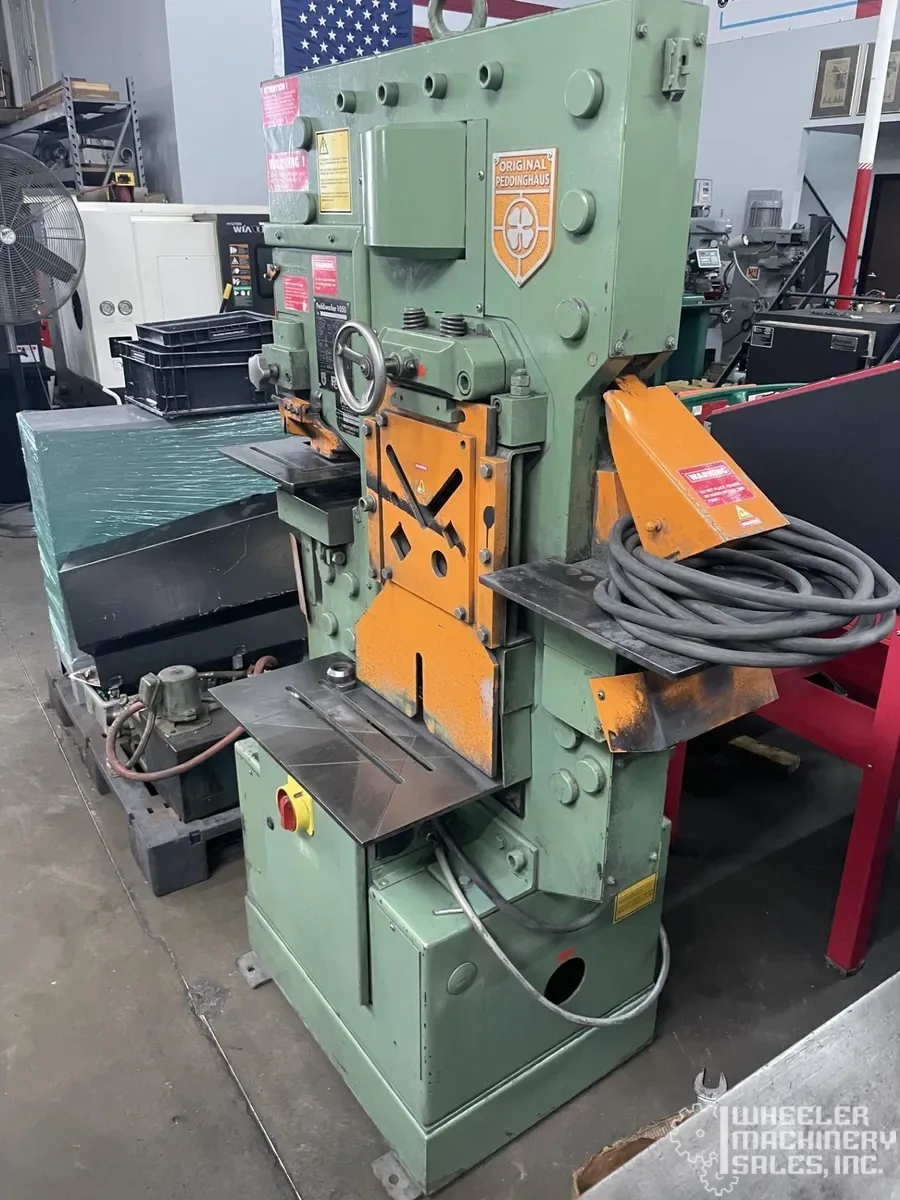

Used Peddinghaus Peddiworker 1050 Ironworker for Sale. This hydraulic ironworker offers 105 ton punching capacity with a 10″ throat depth, punching holes from 1-1/4″ to 3/4″ using 152 style punches and 131 style dies. It is equipped with a punching station attachment, bar stock shear, flat shear, and notcher. Shear cross section capacity is 3.31 sq. inches. The bar stock shear handles rounds at 3/4″ and 1-9/16″ and squares at 1″ and 1-9/16″, while the flat shear takes flat stock to 16″ x 3/4″ on a 16-3/4″ blade. With the square coper, the notcher cuts flats to 1/2″ thick, 2″ wide and 2-3/4″ deep, angles and tees 3″ x 3/8″, channels 3″ to 5″, and I-beams 3″ to 6″; triangular notchers cut to 2-3/8″ depth with angles and tees 2-1/2″ x 3/8″. Available for inspection under power. See our other used CNC ironworkers, then Activate Pricing or use the Inquire Now button.

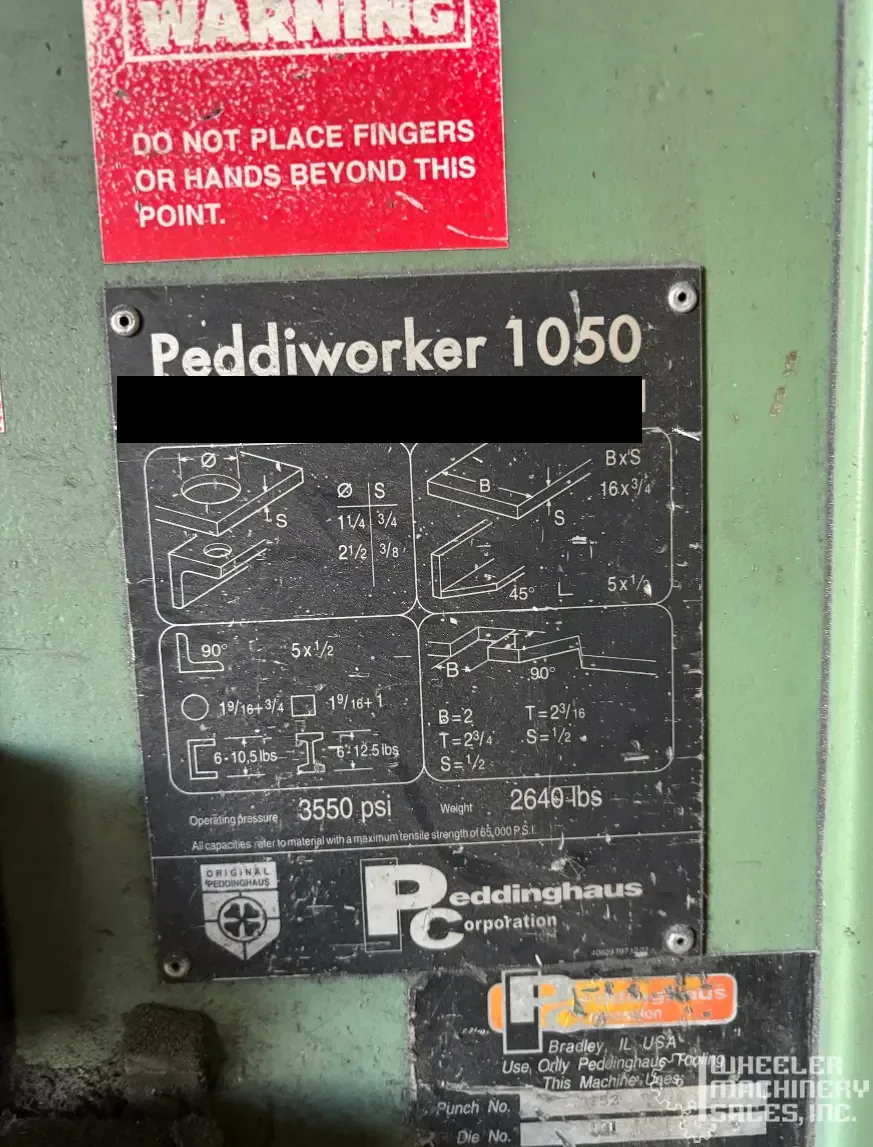

Specifications
| Punching Capacity |
105 Ton |
|---|---|
| Throat Depth |
10" |
| Hole Capacity |
1-1/4″ to 3/4″ |
| Punch Style |
152 |
| Die Style |
131 |
| Shear Cross Section Capacity |
3.31 sq. inches |
| Bar Stock Shear |
Rounds – 3/4″ and 1-9/16″, Squares – 1″ and 1-9/16″ |
| Flat Shear |
Flat Stock – 16″ x 3/4″, Blade Length – 16-3/4″ |
| Notcher with Square Coper |
Flats thickness up to – 1/2″, Width of cut – 2″, Depth of cut – 2-3/4″, Angles & Tees – 3″ x 3/8″, Channels – 3″ to 5″, I-Beams – 3″ to 6″ |
| Notcher with Triangular Notchers) |
Flats thickness up to – 1/2″, Depth of cut – 2-3/8″, Angles & Tees – 2-1/2″ x 3/8″, Channels – 3″ to 5″, I-Beams – 3″ to 6″ |
Features
|
Bar Stock Shear |
Flat Shear |
|
Punching Station Attachment |
Notcher |
