Year |
2005 |
|---|---|
Make |
Geka |
Model |
Hydracrop 55AD |
Description |
55 Ton Hydraulic Ironworker |
Reference # |
8074253 |
Price |
Activate Pricing |

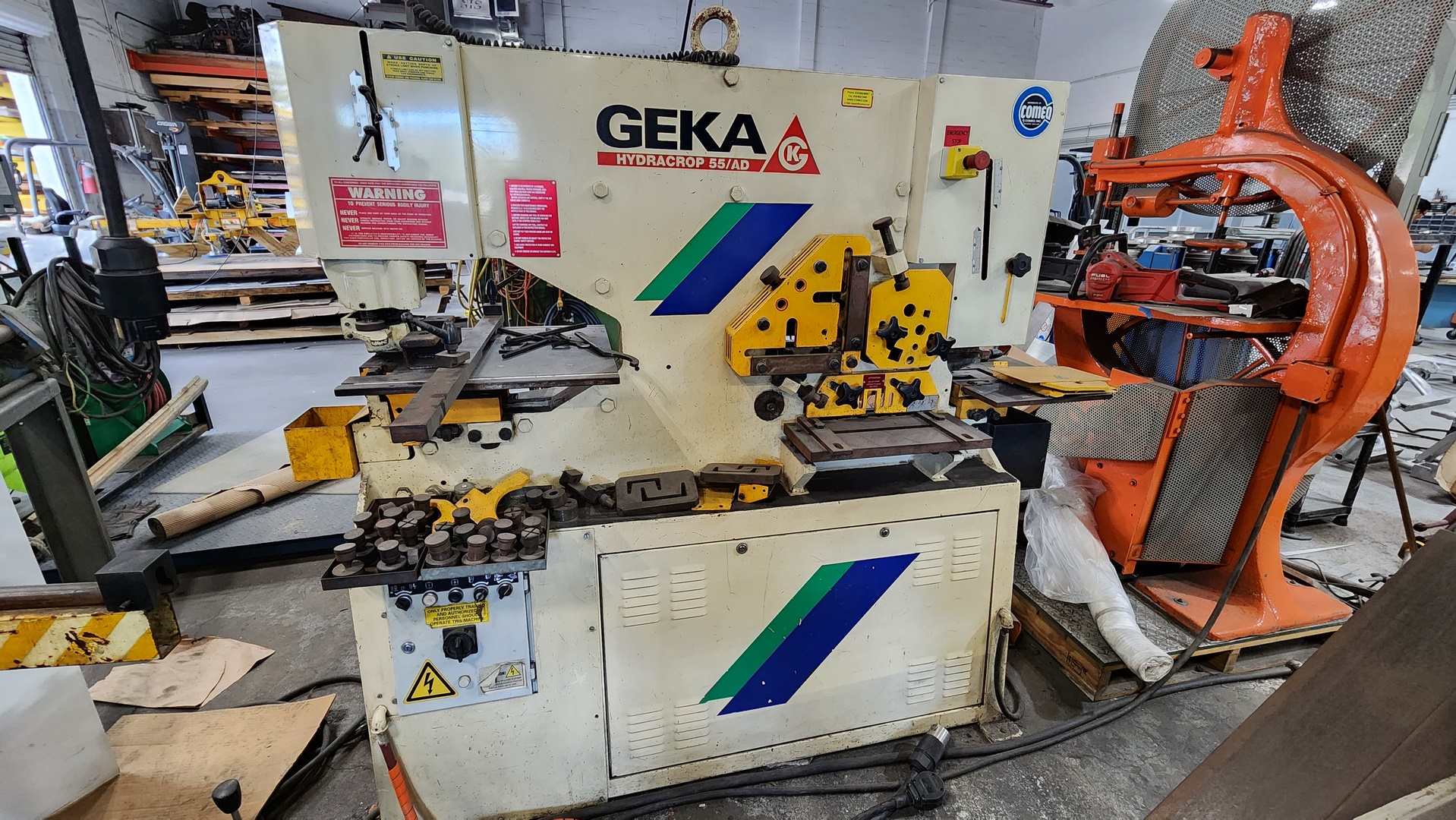

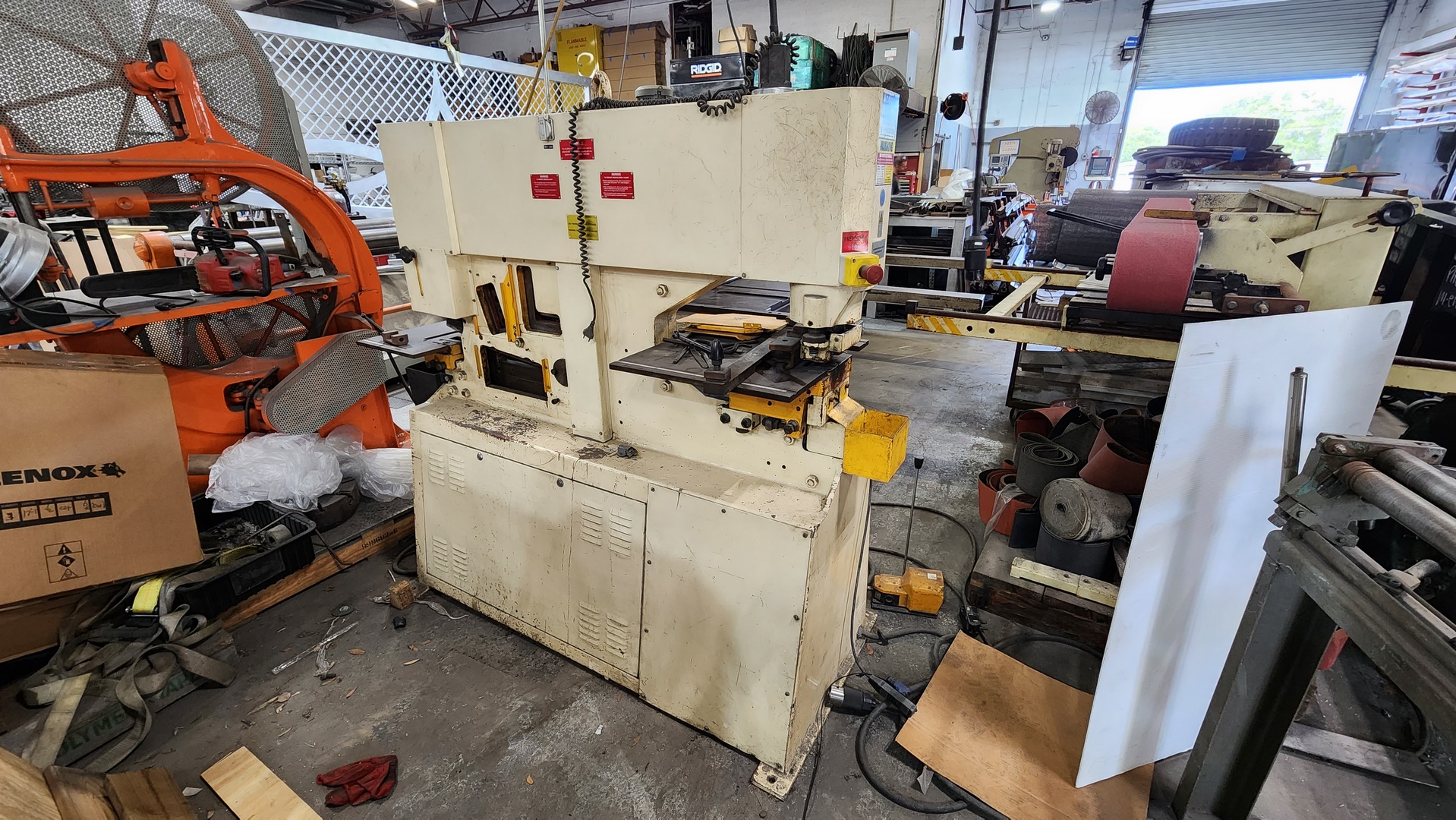

Used Geka Hydracrop 55AD (2005) Ironworker for Sale. This hydraulic ironworker is rated at 55 ton and punches 3/4″ through 3/4″ A36, with a 20″ punch throat depth. The flat plate shear handles 12″ x 5/8″, and angle cutting capacity at 90 degrees is 4-1/2″ x 4-1/2″ x 3/8″. Round bar shear capacity is 1-9/16″, and square bar capacity is also 1-9/16″. The notcher takes 1/8″ rectangular and 1/4″ triangular. Approximate weight is 5,000 lbs. The machine can be seen under power for an inspection, so you can verify each station and the hydraulic function before committing. If this Geka fits your fabrication work, Request a Quote and we will follow up with details and freight options.
Specifications
| Tonnage |
55 Ton |
|---|---|
| Punch Capacity |
3/4" through 3/4" A36 |
| Punch Throat Depth |
20" |
| Flat Plate Shear Cutting Capacity |
12" x 5/8" |
| Angle Cutting Capacity @ 90 deg |
4-1/2" x 4 1/2" x 3/8" |
| Round Bar Shear Capacity |
1-9/16" |
| Square Bar Capacity |
1-9/16" |
| Notcher Capacity |
1/8" Rectangular, 1/4" Trinagular |
| Approx. Weight |
5,000 Lbs |
