Make |
Greco |
|---|---|
Model |
VP 410-S |
Description |
Membrane Thermoforming Press |
Reference # |
8075622 |
Price |
Activate Pricing |

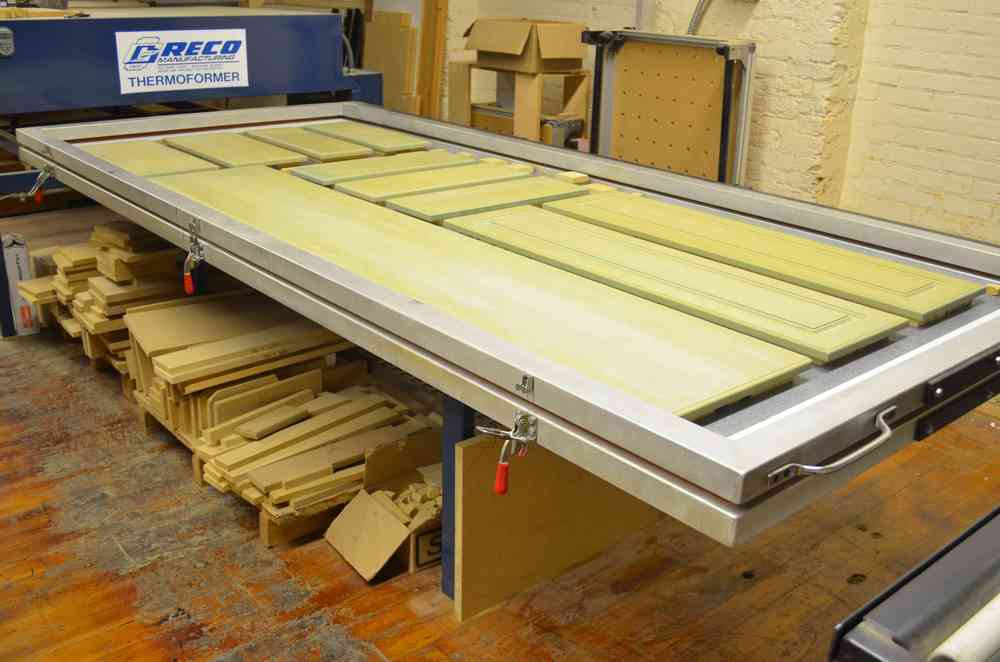

Used Greco VP 410-S Thermoformer for Sale. This double ended membrane vacuum press handles a maximum part size of 48″ W x 120″ L and uses a stationary/centered shared oven in a top only infrared configuration. Oven elements are 375-Watt infrared “Dura-Lamp” units, with non-contact RAYTEK thermal sensors monitoring temperature. Control is by PLC touch screen with 20 operating programs. Vacuum is supplied by a Busch rotary vane single stage pump. Power requirement is 240v – 3Ph – 60z (54 amps). The machine can be seen under power for an inspection by appointment. See more equipment in our used thermoforming category, use Activate Pricing for figures, or Request a Quote and we will follow up with details.
Specifications
| Style of Vacuum Former |
Double Ended Membrane Vacuum Press |
|---|---|
| Max. Part Size Allowed |
48" W x 120" L |
| Oven Type |
Stationary/Centered Shared Oven |
| Oven Configuration |
Top Only Infrared Oven |
| Oven Elements |
375-Watt Infrared "Dura-Lamp" |
| Oven Sensor |
RAYTEK Thermal Sensors (Non-Contact) |

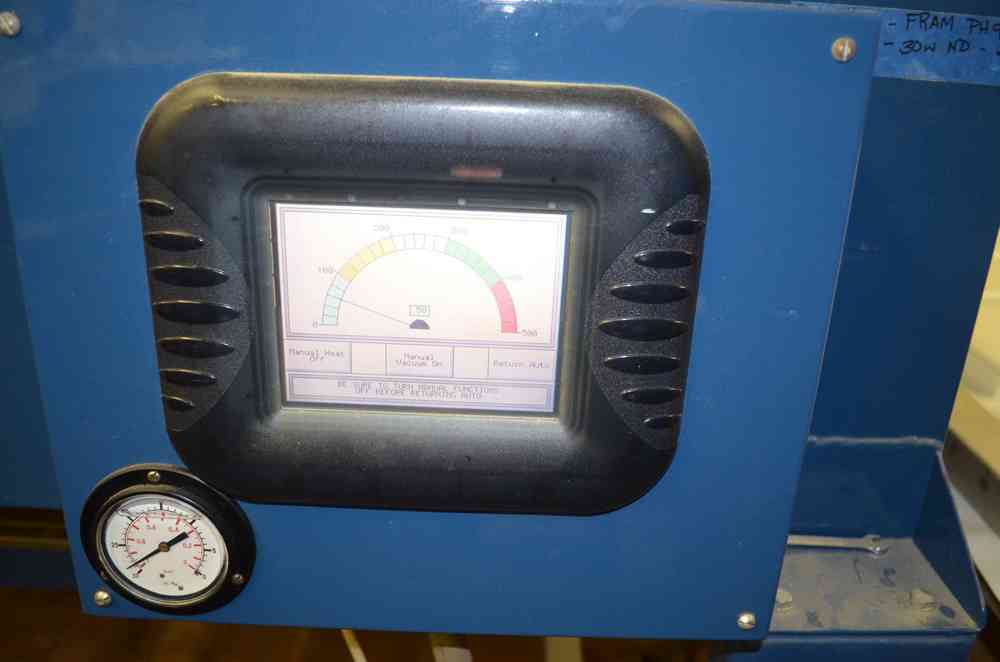

| Control |
PLC Touch Screen (20) Operating Programs |
| Vacuum Pump |
Busch Rotary Vane Single Stage |
| Power Requirement |
240v - 3Ph - 60z (54 amps) |
