Make |
Fasti |
|---|---|
Model |
215 50/4 |
Description |
Folding Machine |
Reference # |
8069763 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

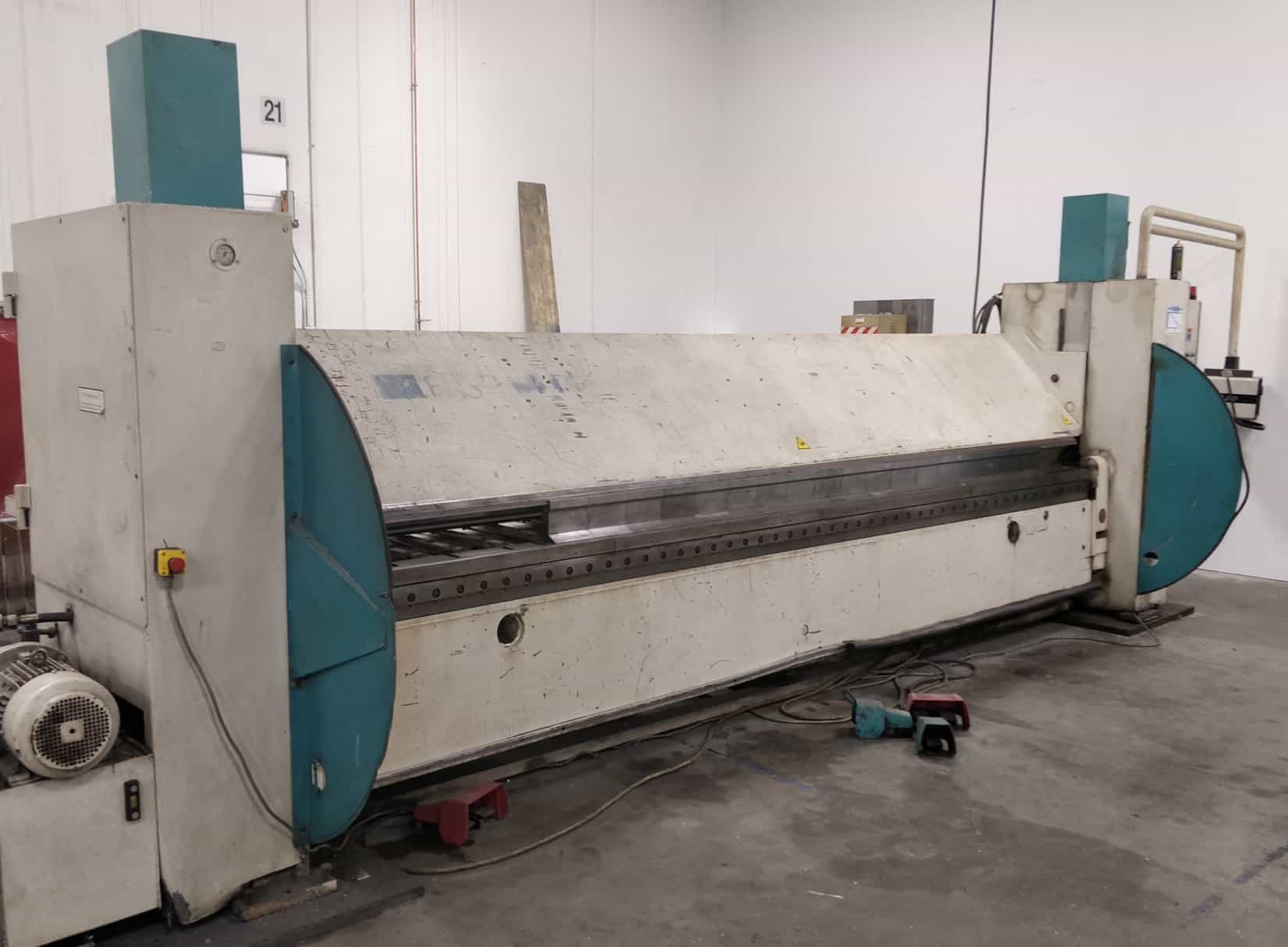

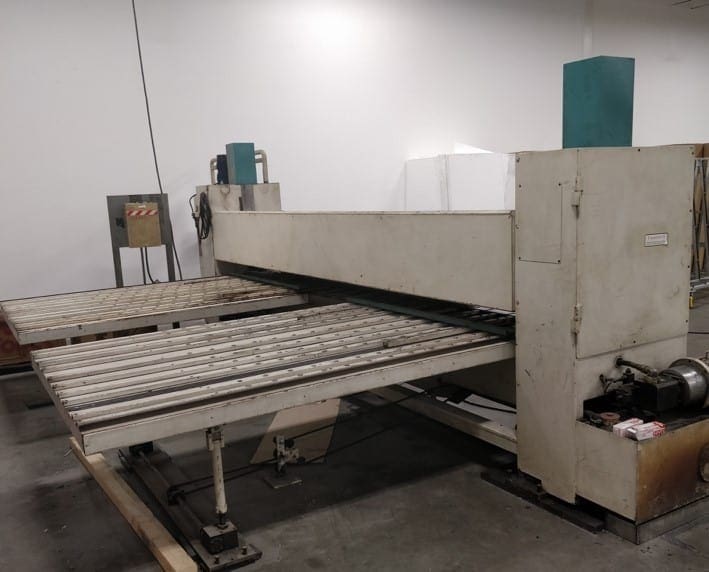

Used Fasti 215 50/4 Folding Machine for Sale. This pre-owned Fasti folding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Fasti Folding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Maximum Capacity |
Full Length MS .157” |
|---|---|
| Bending Length |
198” |
| Smallest Inner Bend Radius |
1.5 x Gauge |
| Minimum Flange Height |
7 x Gauge |
| Clamping Beam Profile |
45˚ |
| Clamping Beam Stroke (Extended) |
19.69” |
| Folding Beam Adjustment (Motorized) |
3.15” |
| Bottom Beam Adjustment (Motorized) |
3.15“ |
| Folding Beam Accuracy |
+/-1/2˚ |
| Folding Angle Range |
0 - 180˚ |
| Motor Drive Power |
10 HP |
| Range |
6-2000 mm |
| Control |

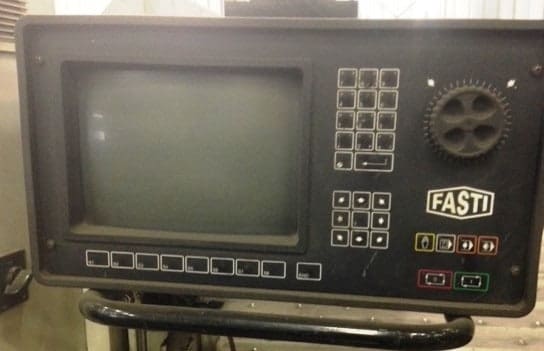

Delem FM 200 BH |
| Power Requirement |
3 Phase, 60 Hz |
| Approx Machine Weight |
24,000 lbs |
Features
|
Backgauge |
Profile 2D/3D |
|
Dual Drives |
DX Conversion |
|
Full Complement of Assorted Tooling |
Heavy Duty Motorized |
|
Manual Folding Beam Crowning |
