Make |
Bliss |
|---|---|
Model |
S2-125-72-36 |
Description |
125 Ton Straight Side Double Crank Press |
Reference # |
8076996 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

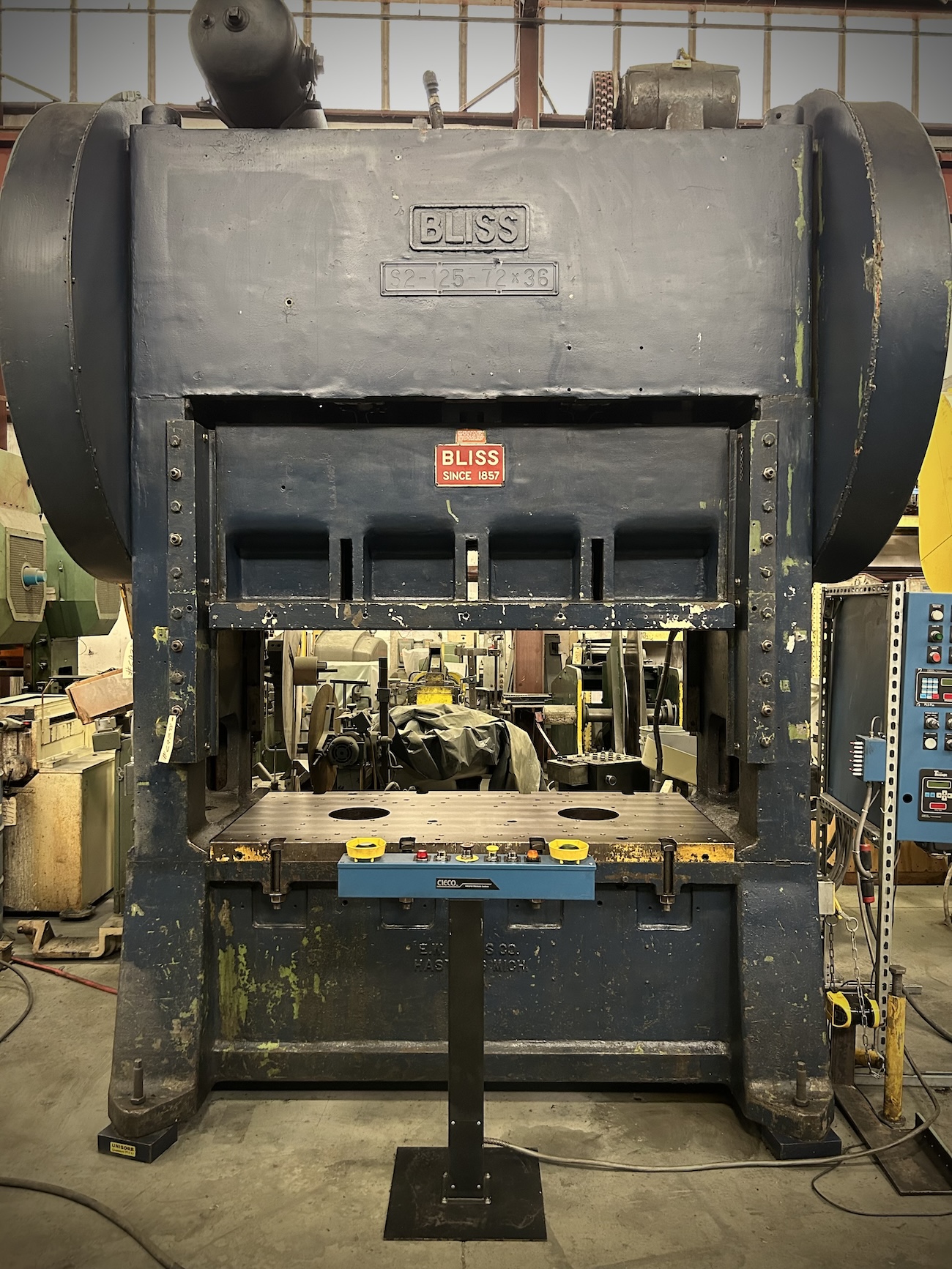

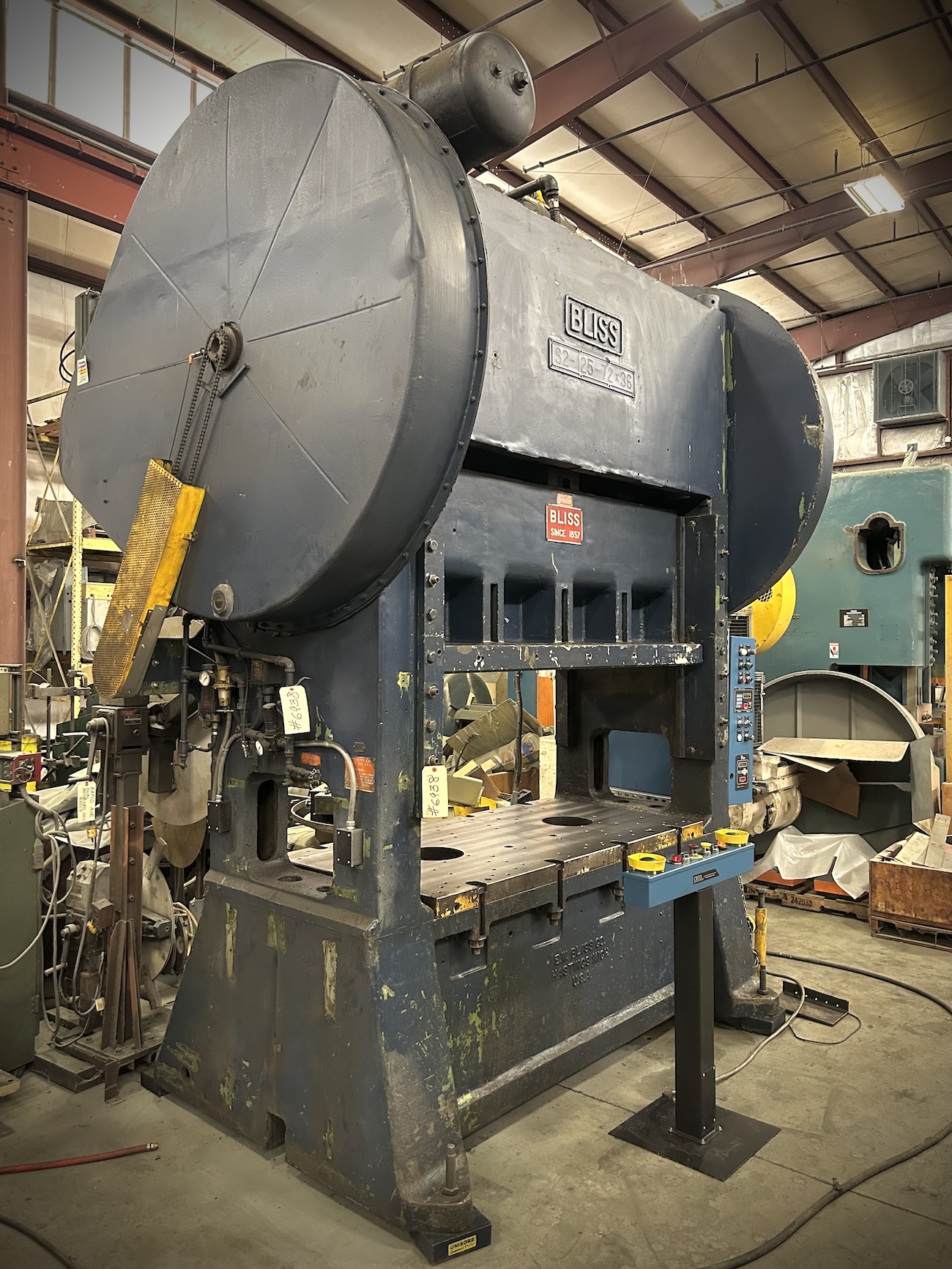

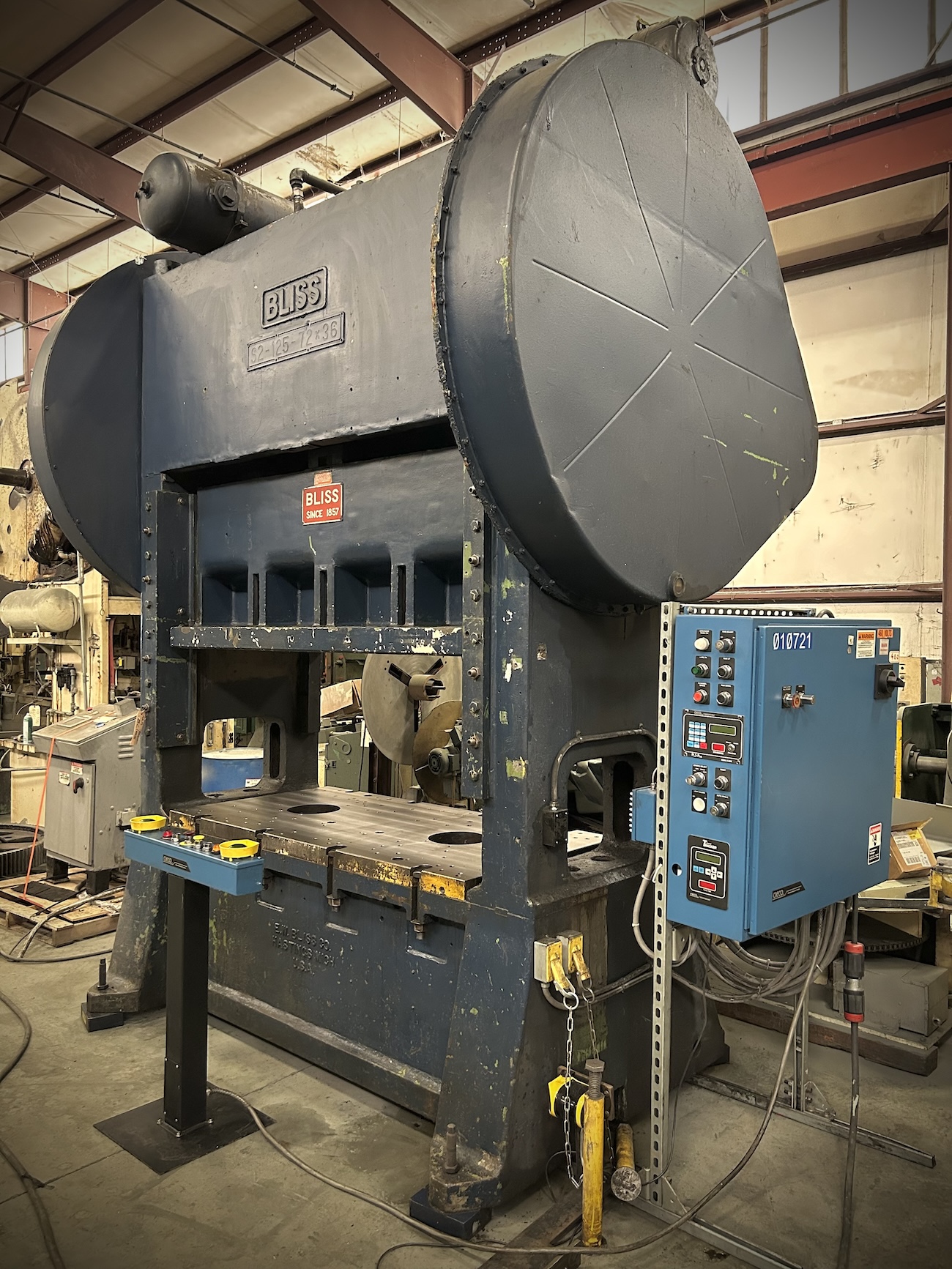

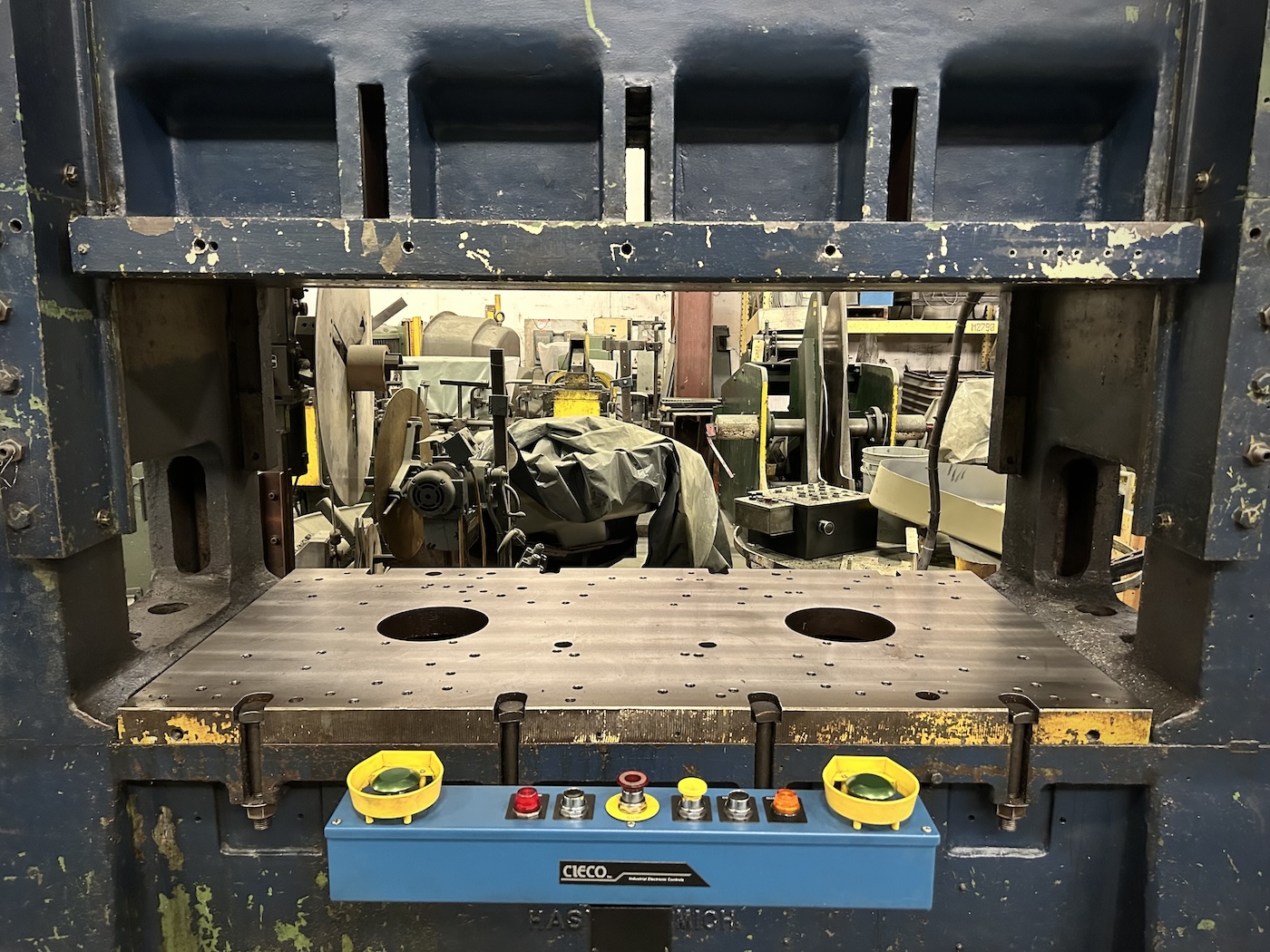

Used Bliss S2-125-72-36 Presses for Sale. This straight side press is rated at 125 ton capacity with a 10″ stroke and runs at 20 SPM. Bed area measures 72″ right-to-left x 36″ front-to-back, with a matching slide area of 72″ RL x 36″ FB and a solid bolster plate 3″ x 72″ RL x 36″ FB. Maximum shut height to bed is 22.5″ SDAU, with 8″ motorized slide adjustment. Distance between uprights is 77.5″, floor to bed is 32″, and window size is 18.5″ wide x 15″ high. Equipped with air counterbalanced ram, Bliss air clutch/brake combination, floor standing base, tie rod cast iron frame construction, and twin drive double back geared with gears in oil. Ask about reconditioned price. The press can be seen under power for an inspection. Activate Pricing or Request a Quote.

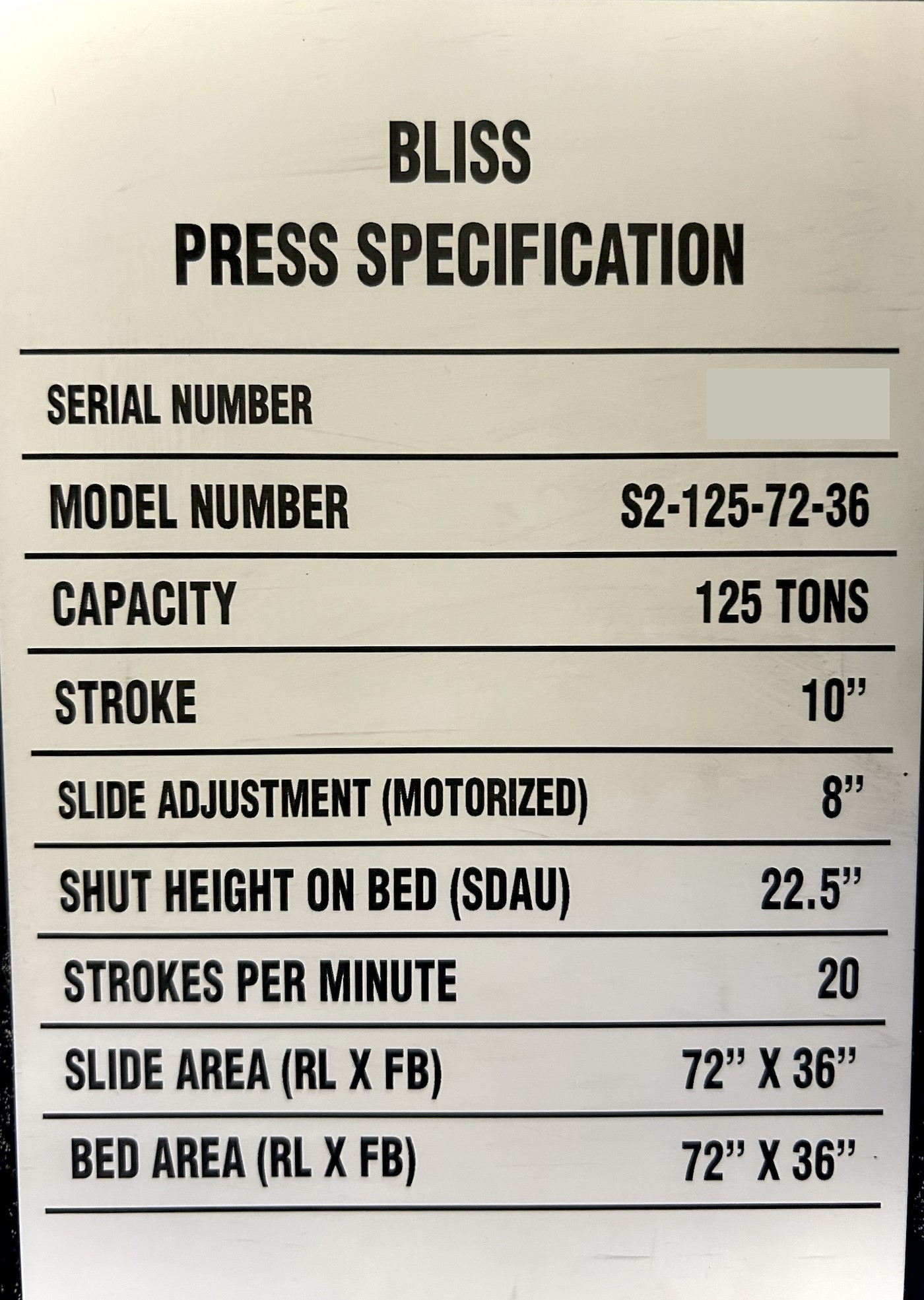

Specifications
| Capacity |
125 Ton |
|---|---|
| Stroke |
10" |
| Max Shut Height To Bed |
22.5" Sdau |
| Bed Area |
72" x 36" (Rl x Fb) |
| Speed |
20 SPM |
| Slide Adjustment |
8" (Motorized) |
| Slide Area |
72" Rl x 36" Fb |

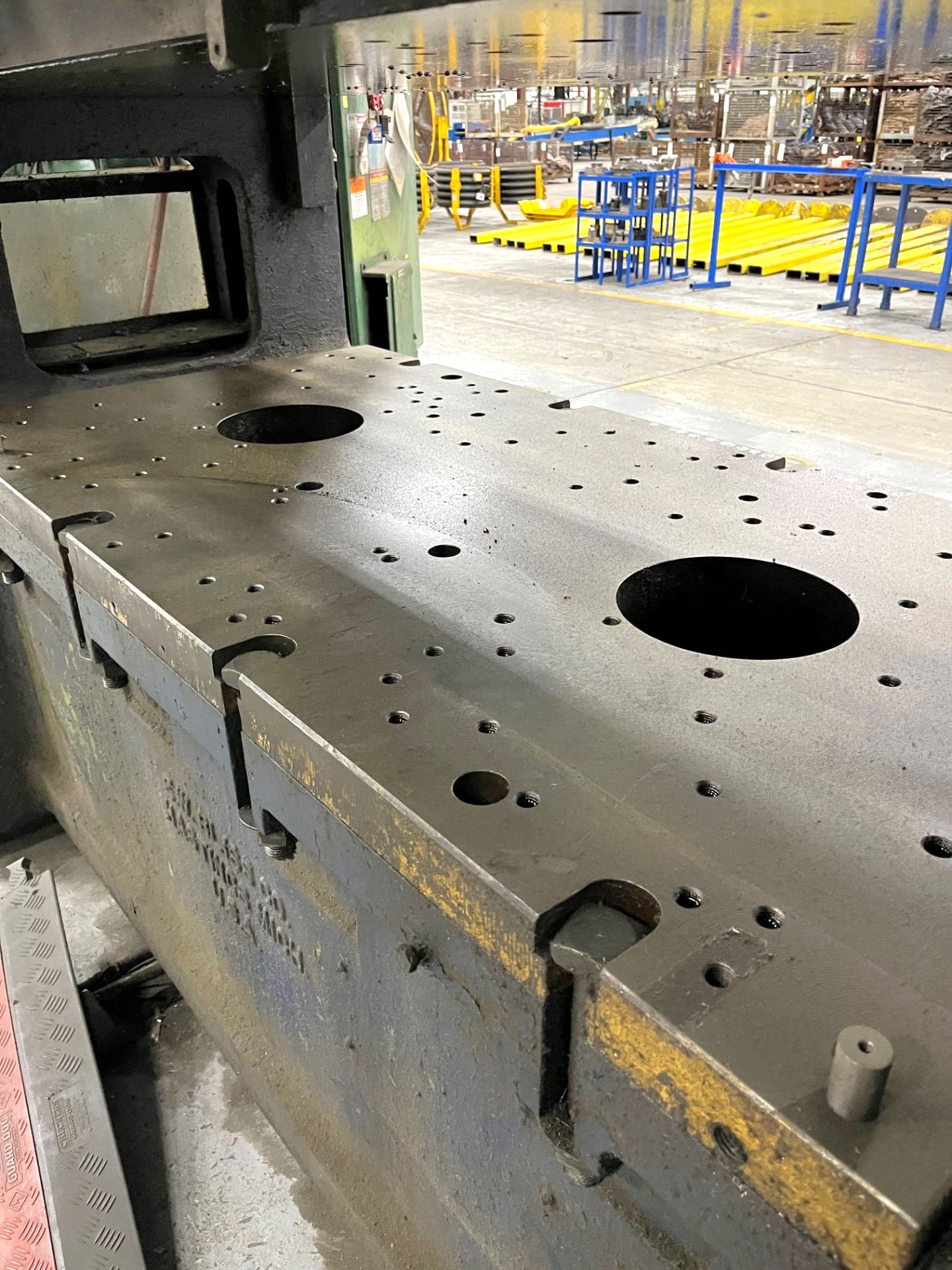

| Bolster Plate |
3" x 72" Rl x 36" Fb - Solid |
| Distance Between Uprights |
77.5" |
| Distance Floor To Bed |
32" |

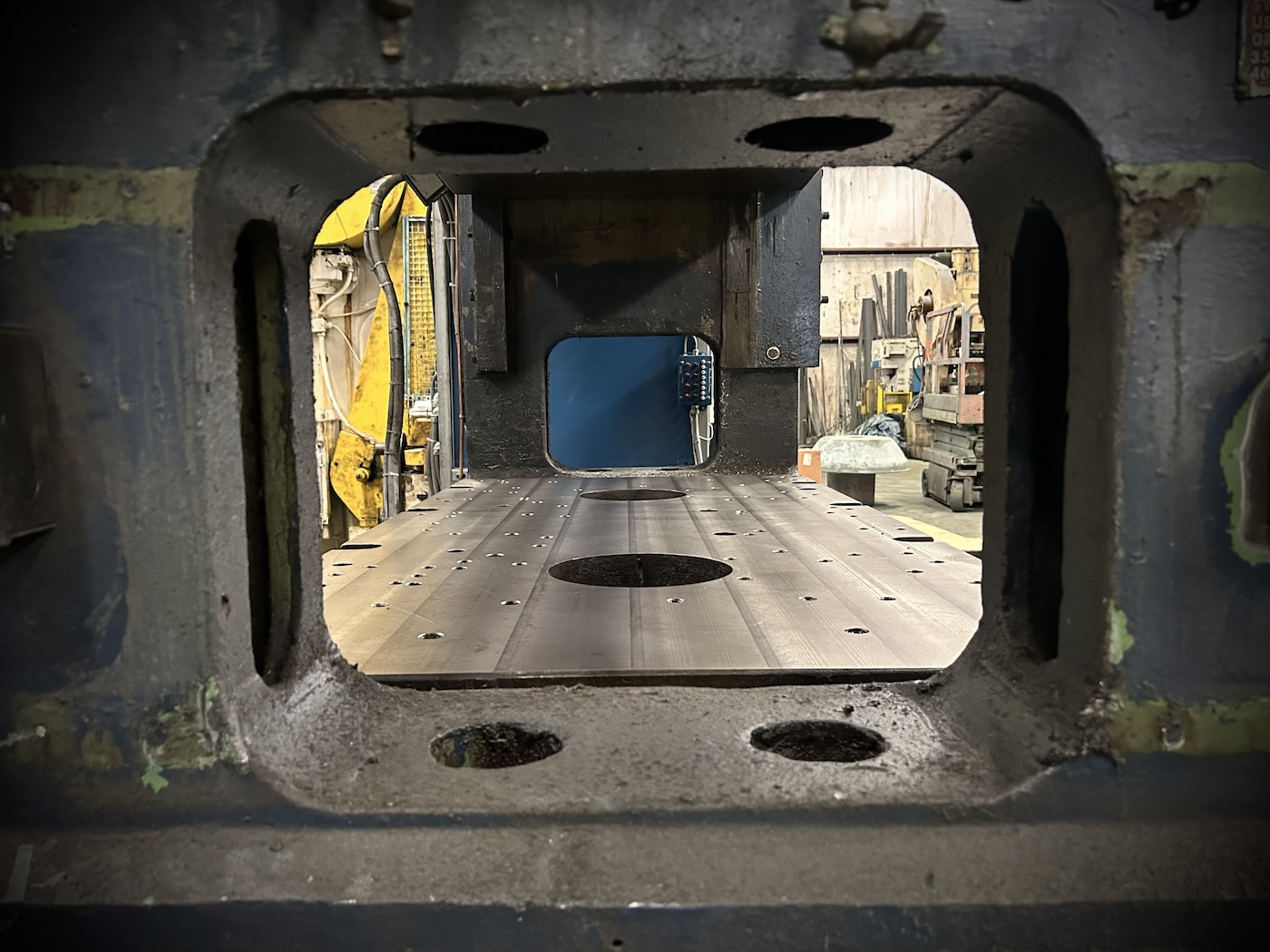

| Window Size |
18.5" Wide x 15" High |
| Note |
Ask About Reconditioned Price |
Features
|
Air Counterbalanced Ram |
Clutch Bliss Air Clutch / Brake Combination |
|
Floor Standing Base |
Tie Rod Cast Iron Frame Construction |
|

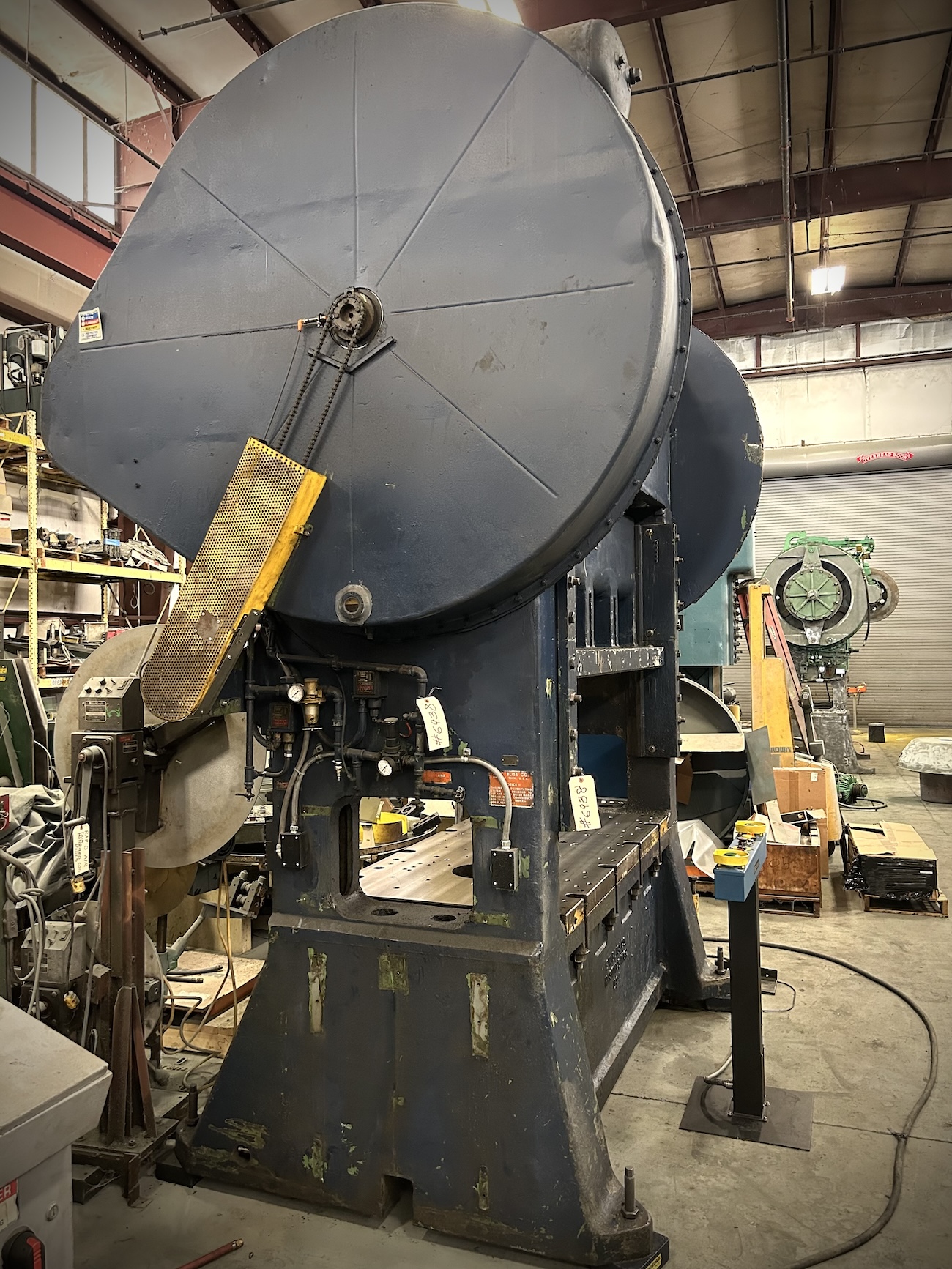

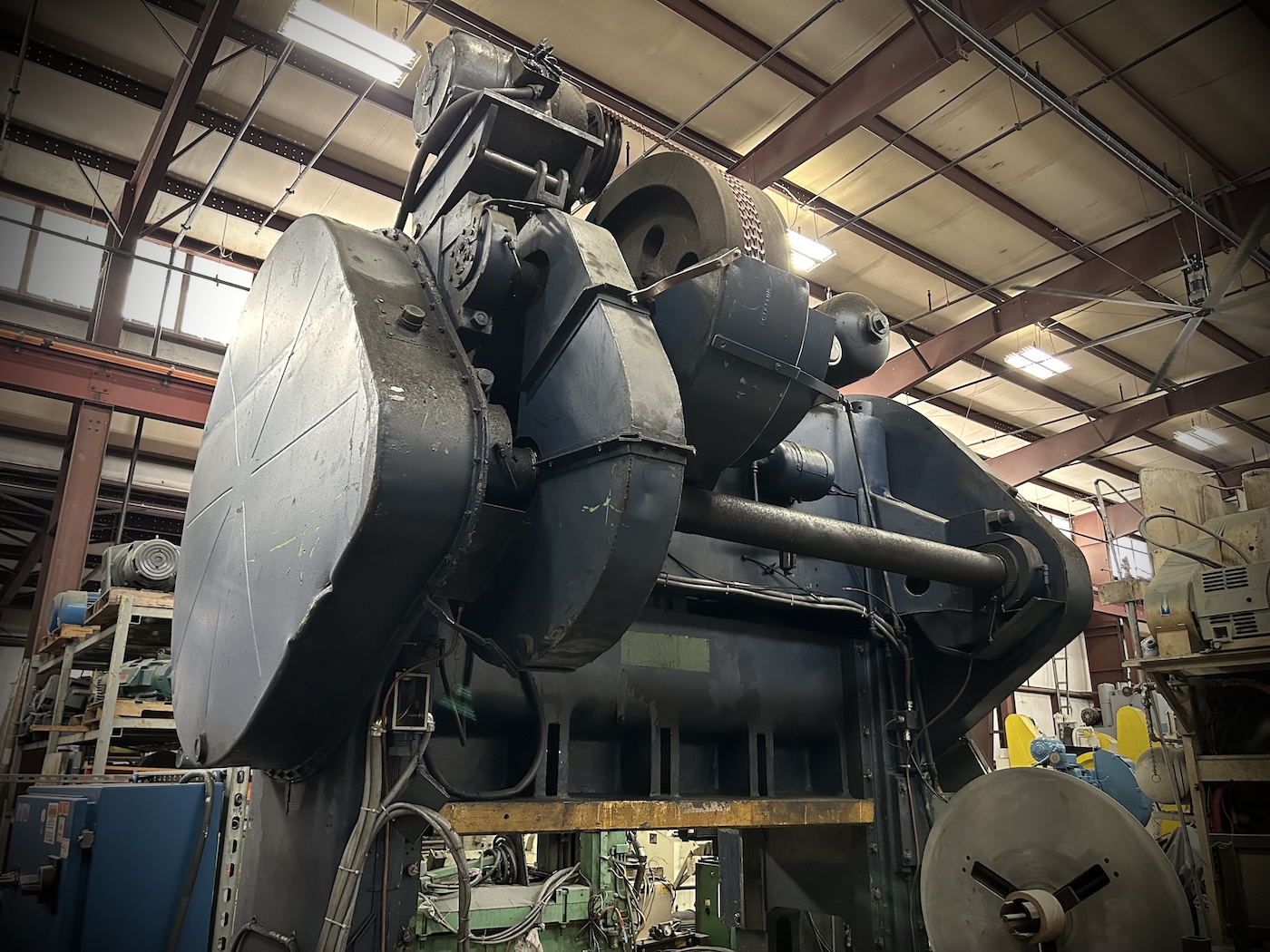

Twin Drive Double Back Geared with Gears in Oil |
