Year |
2000 |
|---|---|
Make |
Siempelkamp |
Model |
Down-Acting |
Description |
7,840 Ton Hydraulic Press |
Reference # |
8074456 |
Price |
Activate Pricing |

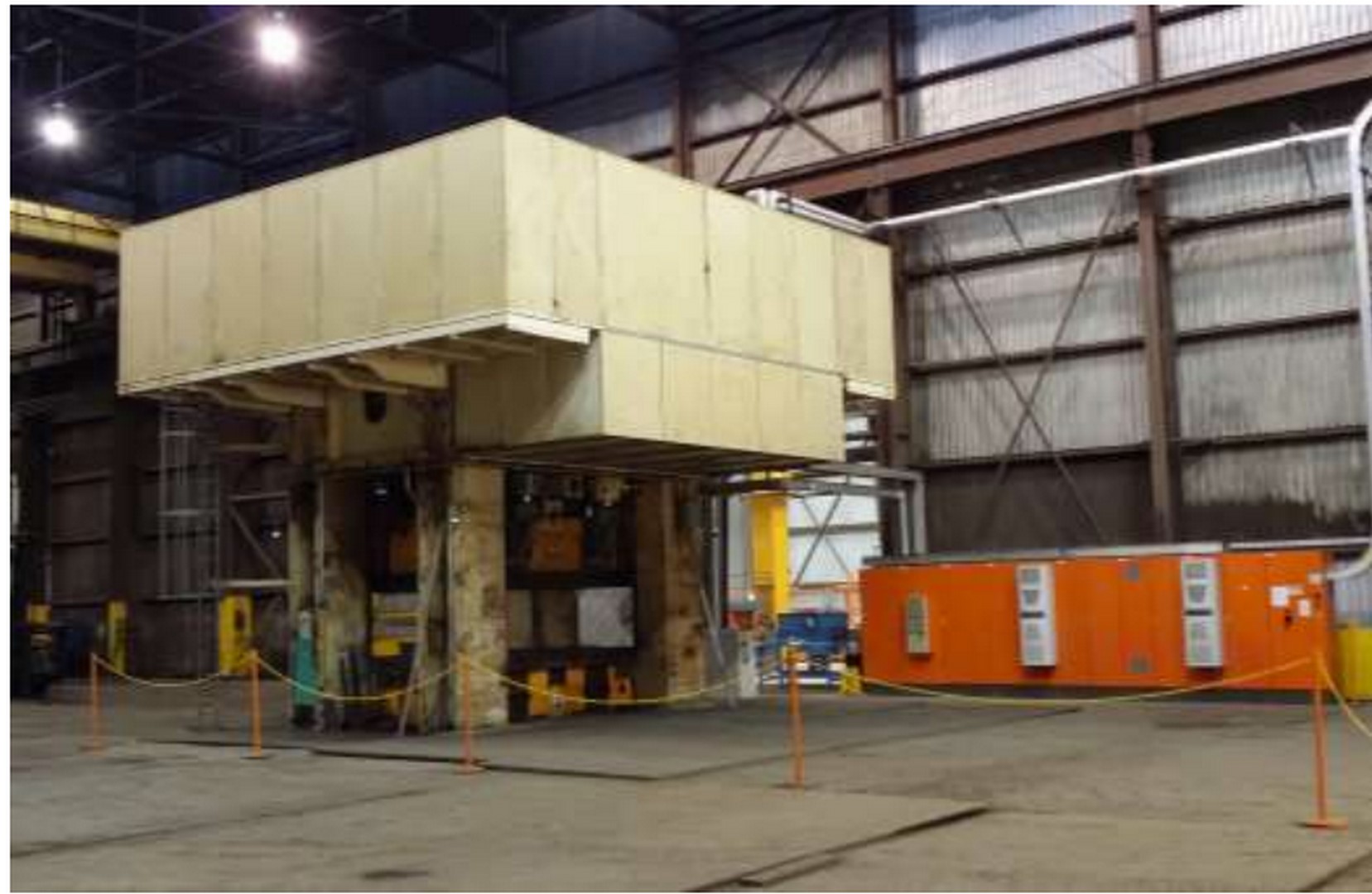

Used Siempelkamp Down-Acting (2000) Press for Sale. This down-acting hydraulic press is rated at 7,840 tons, with a 72.83″ daylight opening and a 39.37″ ram stroke. Ram speeds are 840 IPM approach, 96 IPM forming, and 400 IPM return. The pressing area measures 137.79″ x 78.74″ (11.48 ft x 6.56 ft) left-right by front-back, with a window opening of 139.76″ x 80.71″ (11.65 ft x 6.73 ft). Maximum height above floor is 301.18″ (25.10 ft), and total weight is 1,040,000 lbs. The press is equipped with (4) Rexroth top-mounted 200 HP power units. It can be seen under power for an inspection. See more inventory in used presses, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
7,840 Ton |
|---|---|
| Daylight Opening |
72.83" |
| Ram Stroke |
39.37" |
| Approach Ram Speed |
840 IPM |
| Forming Speed |
96 IPM |
| Return Speed |
400 IPM |
| Pressing Area, L-R x F-B |
137.79" x 78.74" (or 11.48 ft x 6.56 ft) |
| Window Opening, L-R x F-B |
139.76" x 80.71" (or 11.65 ft x 6.73 ft) |
| Max Height Above Floor |
301.18" or 25.10' |
| Total Weight |
1,040,000 Lbs |
Features
|

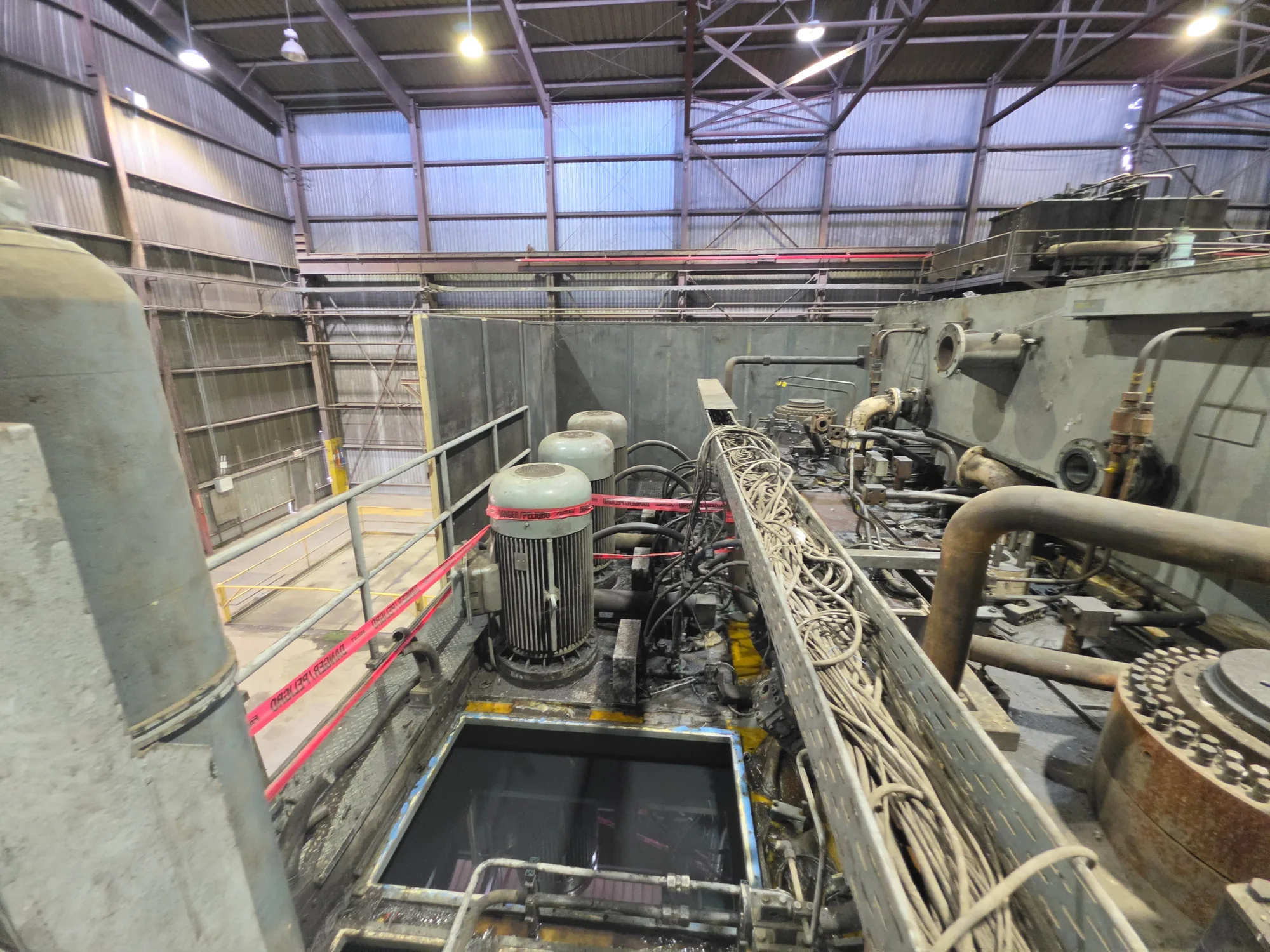

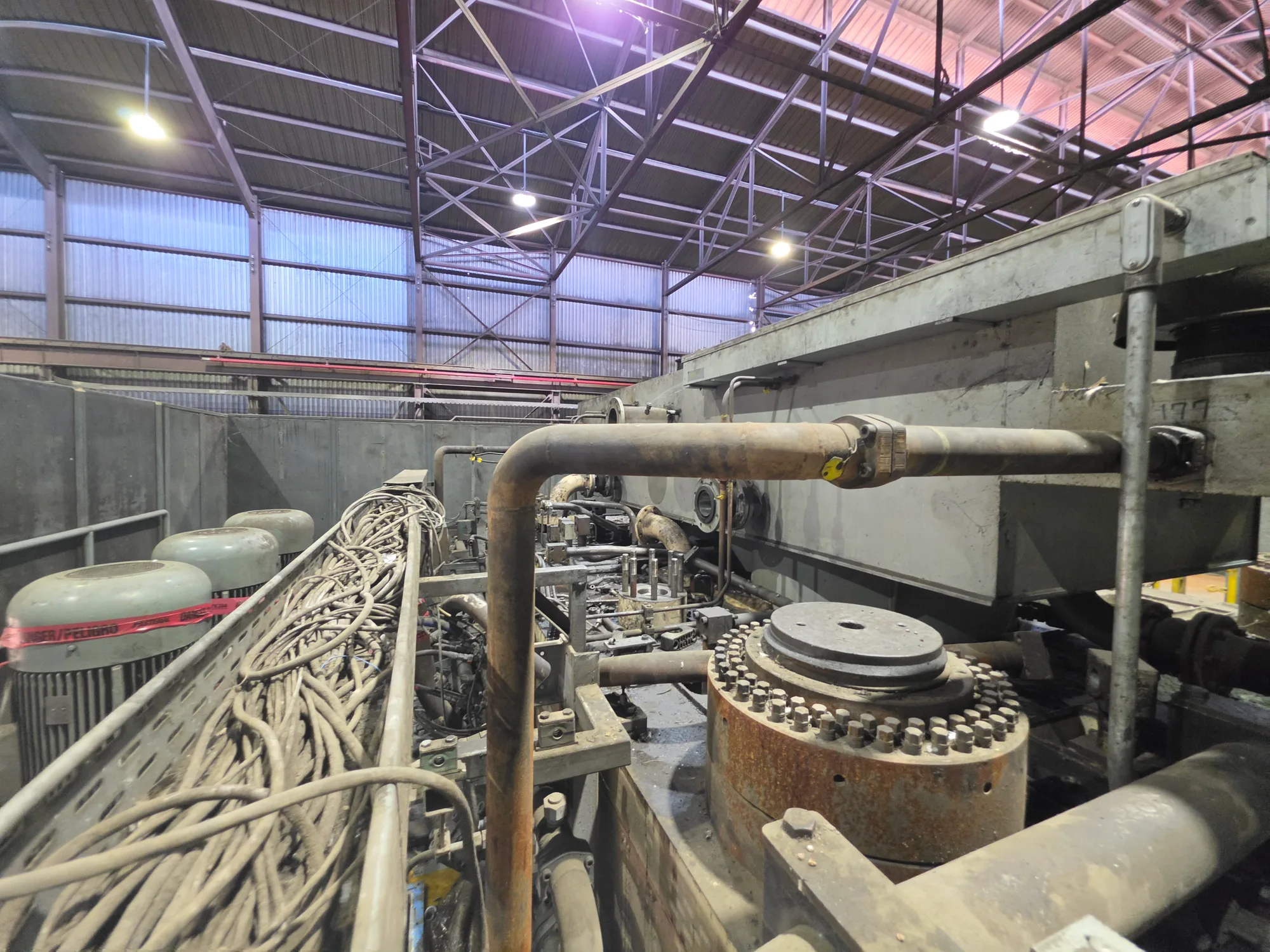

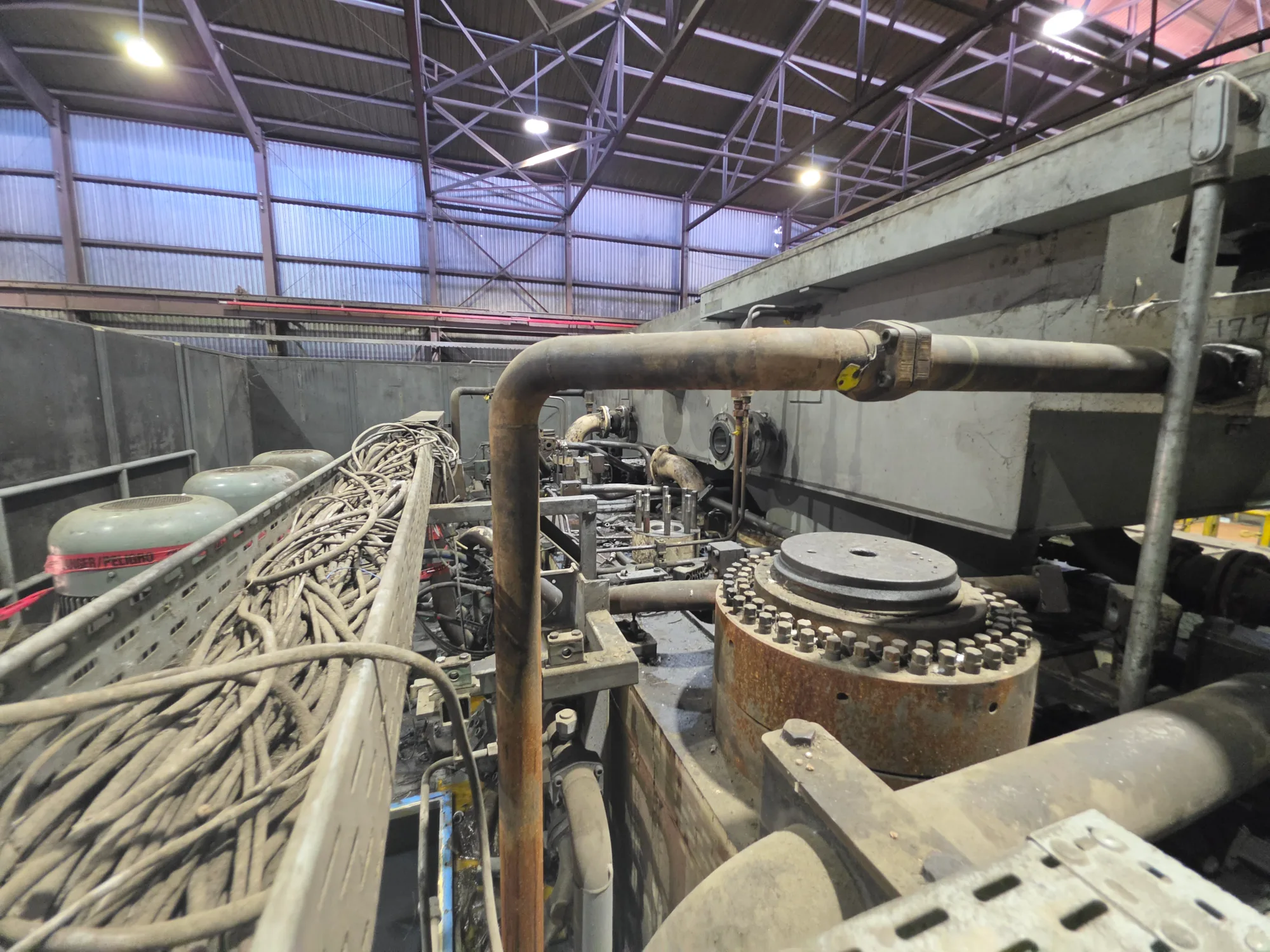

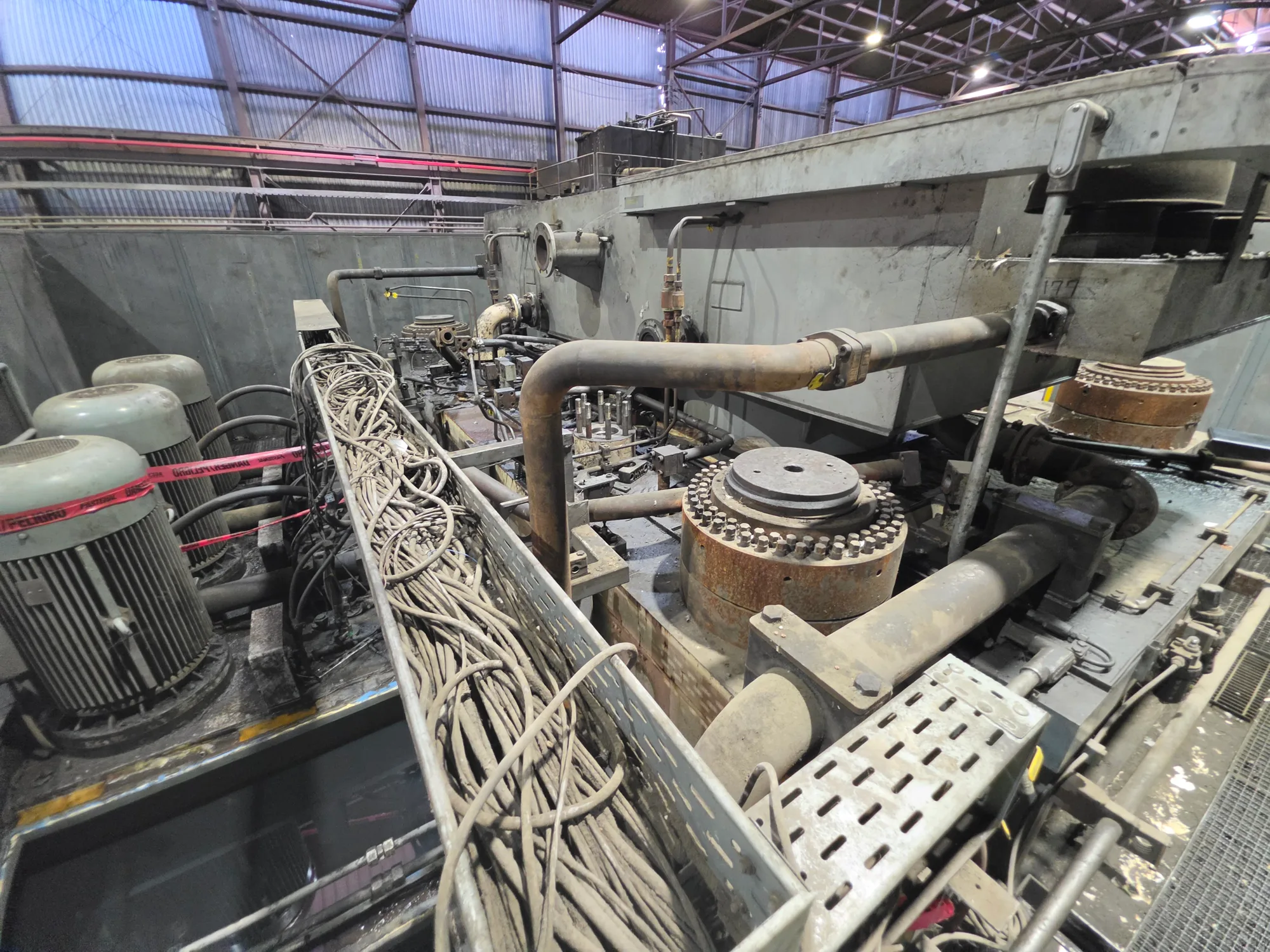

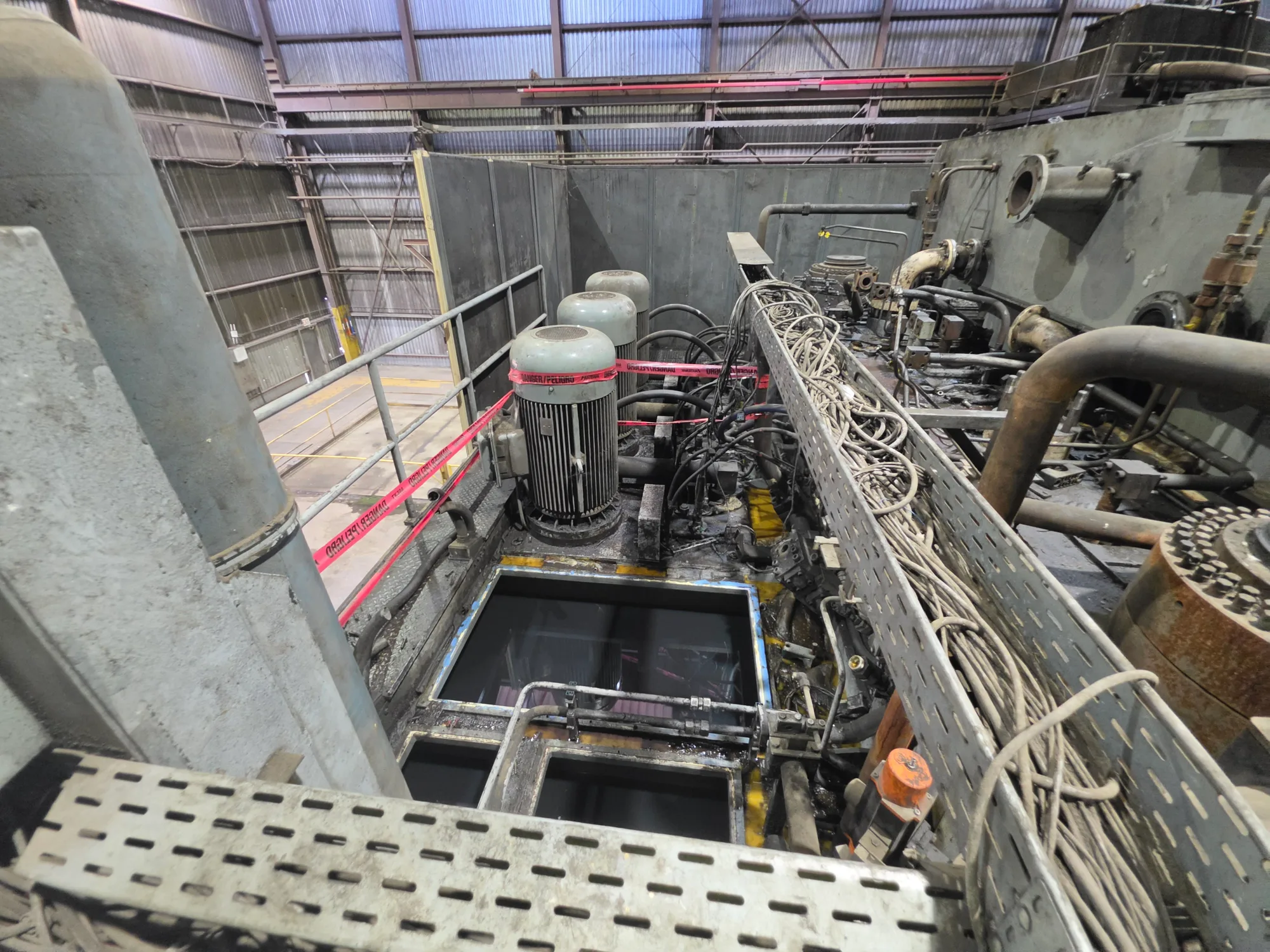

(4) Rexroth Top-Mounted 200 HP Power Units |
