Year |
2025 |
|---|---|
Make |
Haas |
Model |
EC-630 |
Description |
CNC Horizontal Machining Center |
Reference # |
8078953 |
Price |
Activate Pricing |

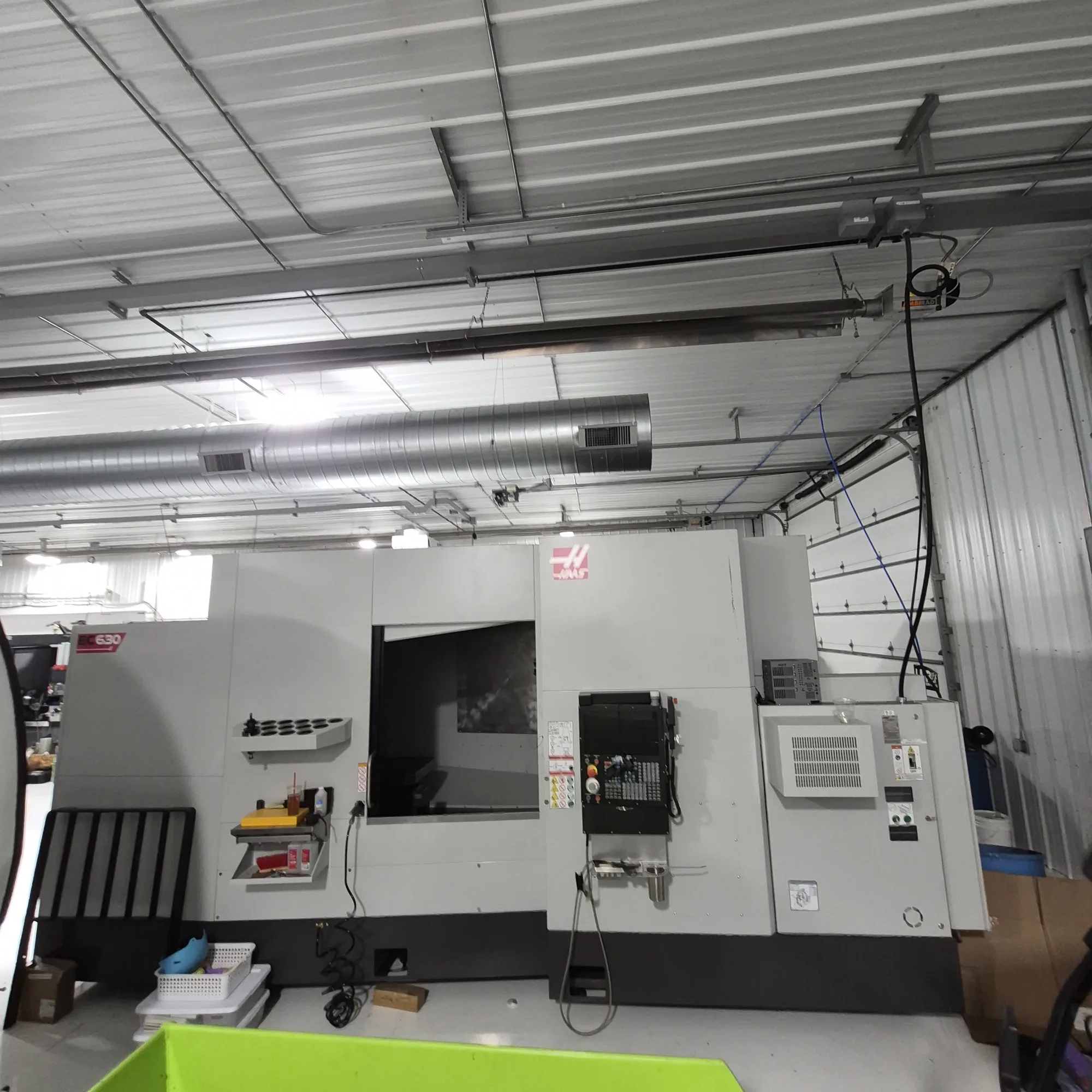

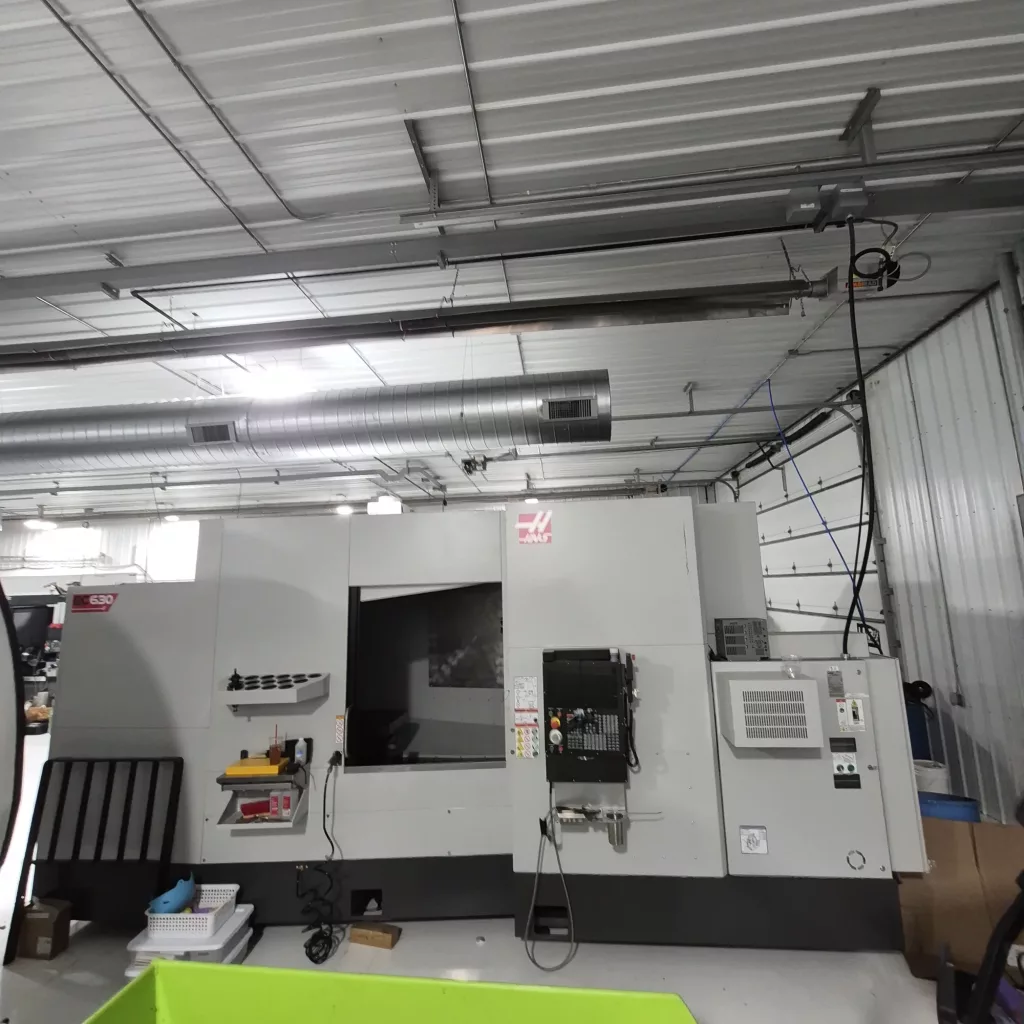

Used Haas EC-630 (2025) CNC Horizontal Machining Center for Sale. This machine has a 630 mm pallet measuring 24.8″ x 24.8″, with 40″ of X-axis travel, 37″ of Y-axis travel and 40″ of Z-axis travel. The CAT 50 spindle turns to 10,000 RPM and is served by a 70-tool ATC, through-spindle coolant at 1000 PSI and a chip conveyor. Equipment includes a wireless intuitive probing system, CNC control cabinet cooler, automatic coolant refill, coolant sanitizer, high-pressure flood coolant, through-tool air blast, 32 GB expanded memory, dynamic work offsets and tool center point control, high-speed machining, internal high-voltage isolated transformer, auxiliary coolant filter, and 630 mm cast iron square, T and cross plain tombstones. It can be seen under power for an inspection. See our other used CNC horizontal machining centers and used Haas machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
630 |
|---|---|
| Pallet Size |
24.8" x 24.8" |
| X-Axis Travel |
40" |
| Y-Axis Travel |
37" |
| Z-Axis Travel |
40" |
| Tool Magazine Capacity |
70 ATC |
| Spindle Speed |
10,000 RPM |
| Spindle Taper |
CAT 50 |
| Coolant |
Through-Spindle Coolant, 1000 PSI |
| Chip Removal |
Chip Conveyor |
Features
|
630mm Cast Iron Cross Plain Tombstone |
630mm Cast Iron Square Plain Tombstone |
|
630mm Cast Iron T Plain Tombstone |
Coolant Sanitizer |
|
High-Pressure Flood Coolant |
32 GB Expanded Memory |
|
Wireless Intuitive Probing System |
Through-Tool Air Blast |
|
Automatic Coolant Refill |
Auxiliary Coolant Filter |
|
CNC Control Cabinet Cooler |
Dynamic Work Offsets and Tool Center Point Control |
|
High-Speed Machining |
Internal High-Voltage Isolated Transformer |
