Year |
2000 |
|---|---|
Make |
Matsuura |
Model |
ES-450HII |
Description |
CNC Horizontal Machining Center |
Reference # |
8076026 |
Price |
Activate Pricing |

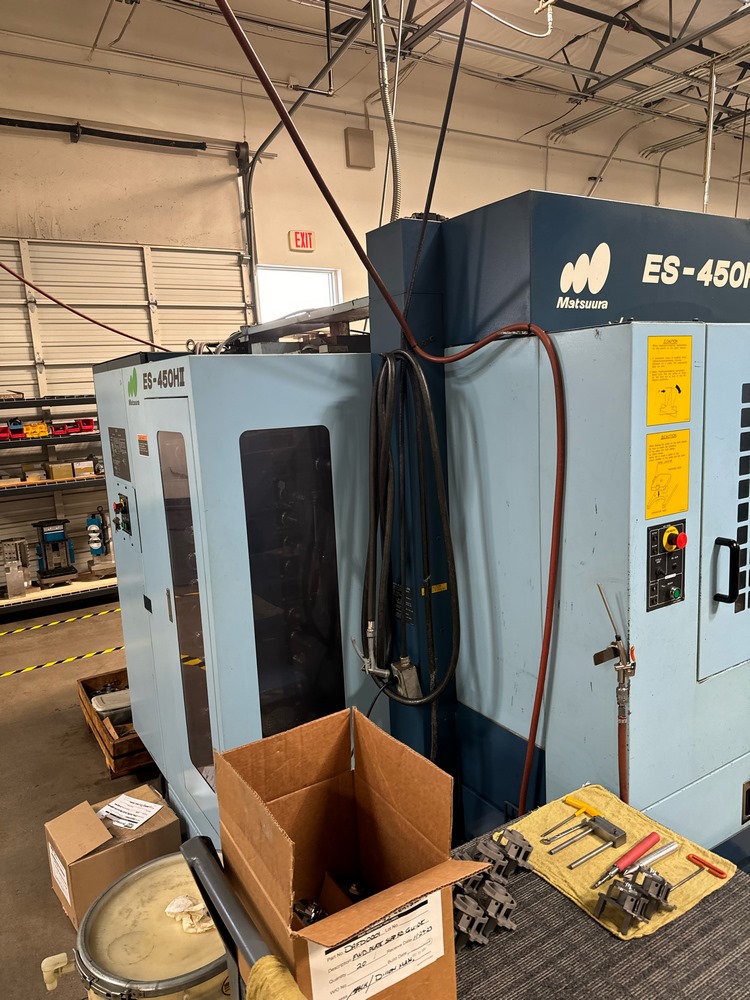

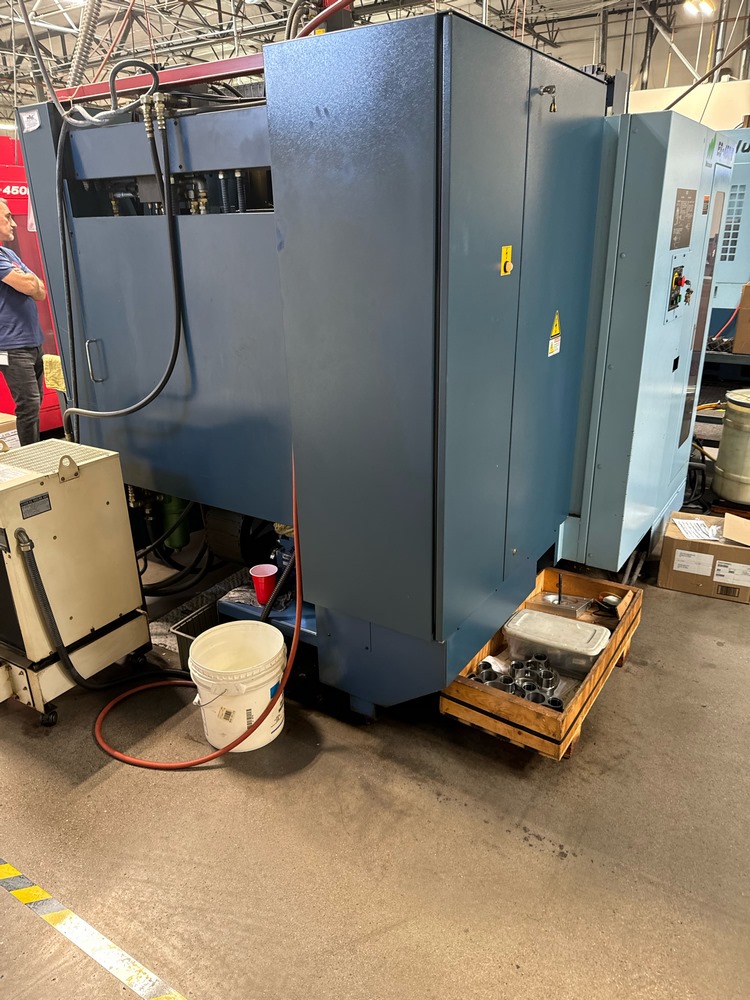

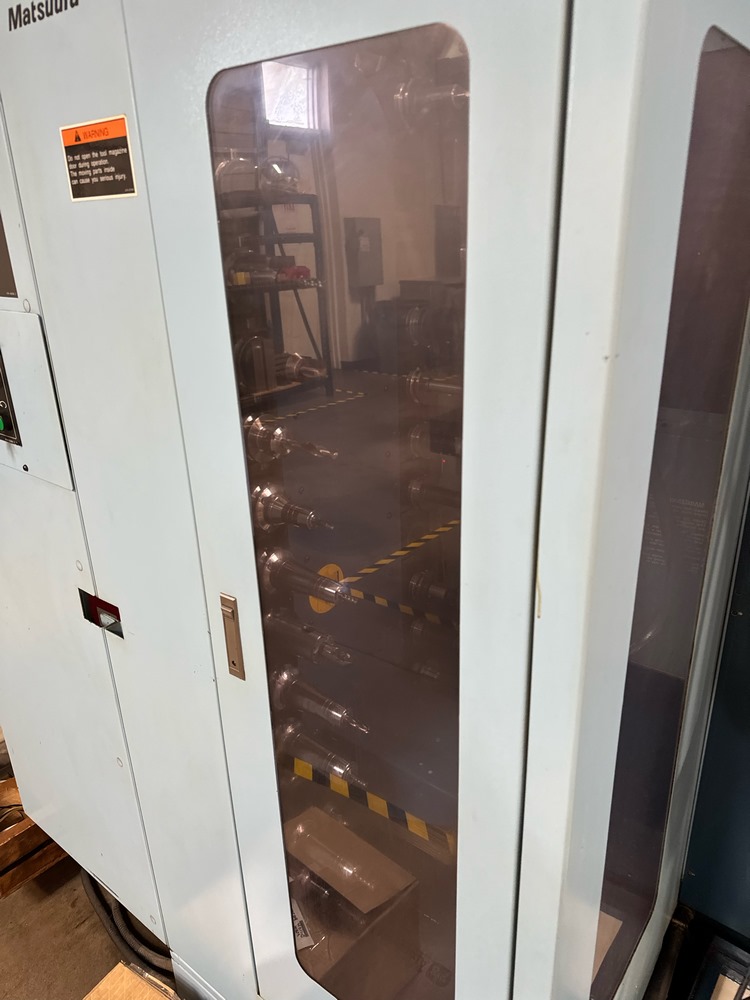

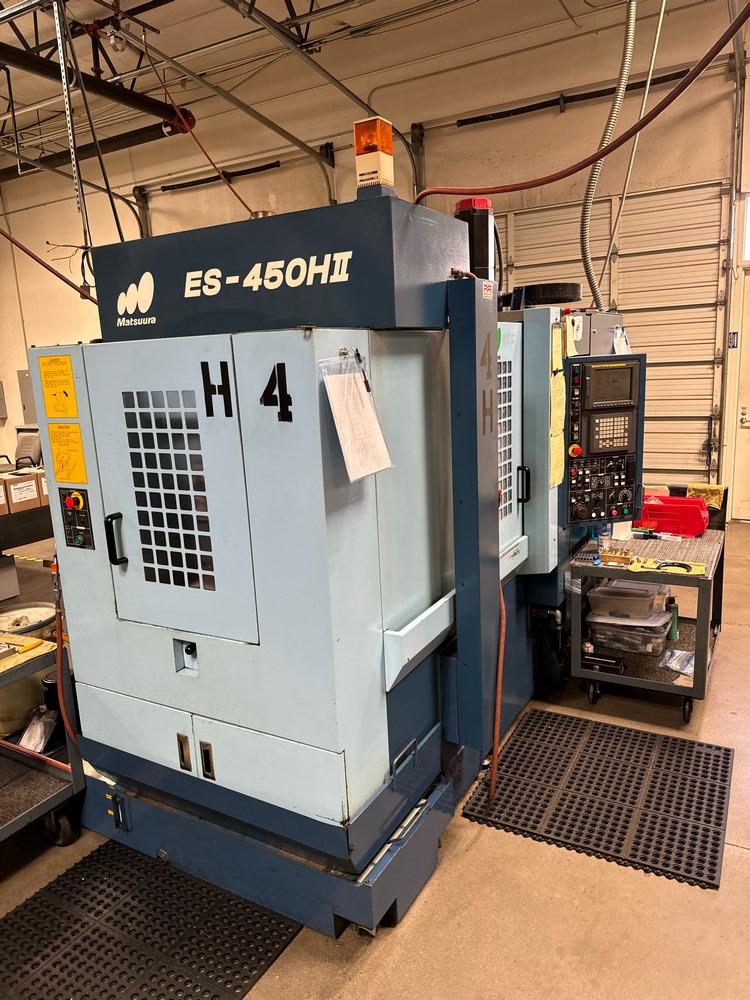

Used Matsuura ES-450HII (2000) CNC Horizontal Machining Center for Sale. This twin-pallet machine has a 450 millimeter pallet size measuring 11.8″ x 11.8″, with pallet indexing in 1 degree increments. Travels measure 17.71″ in X, 15.74″ in Y and 15.74″ in Z. The spindle runs to 15,000 RPM with a BT 40 taper, served by a 40-tool ATC, and the machine is run by a Fanuc 18i-M control. It can be seen under power for an inspection, so buyers are able to verify axis motion, tool changes and control function before committing. See our other CNC horizontal machining centers or browse additional Matsuura equipment. Use Activate Pricing to view the figure on this listing, then Request a Quote for freight and availability details.
Specifications
| Pallet Size (Millimeters) |
450 |
|---|---|
| Pallet Size |
11.8" x 11.8" |
| X-Axis Travel |
17.71" |
| Y-Axis Travel |
15.74" |
| Z-Axis Travel |
15.74" |
| Tool Magazine Capacity |
40 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
BT 40 |
| Control |
Fanuc 18i-M |
| Pallet Indexing |
1 Degree |
