Year |
2025 |
|---|---|
Make |
Brother |
Model |
Speedio M200XD1 |
Description |
CNC Vertical Machining Center |
Reference # |
8079281 |
Price |
Activate Pricing |

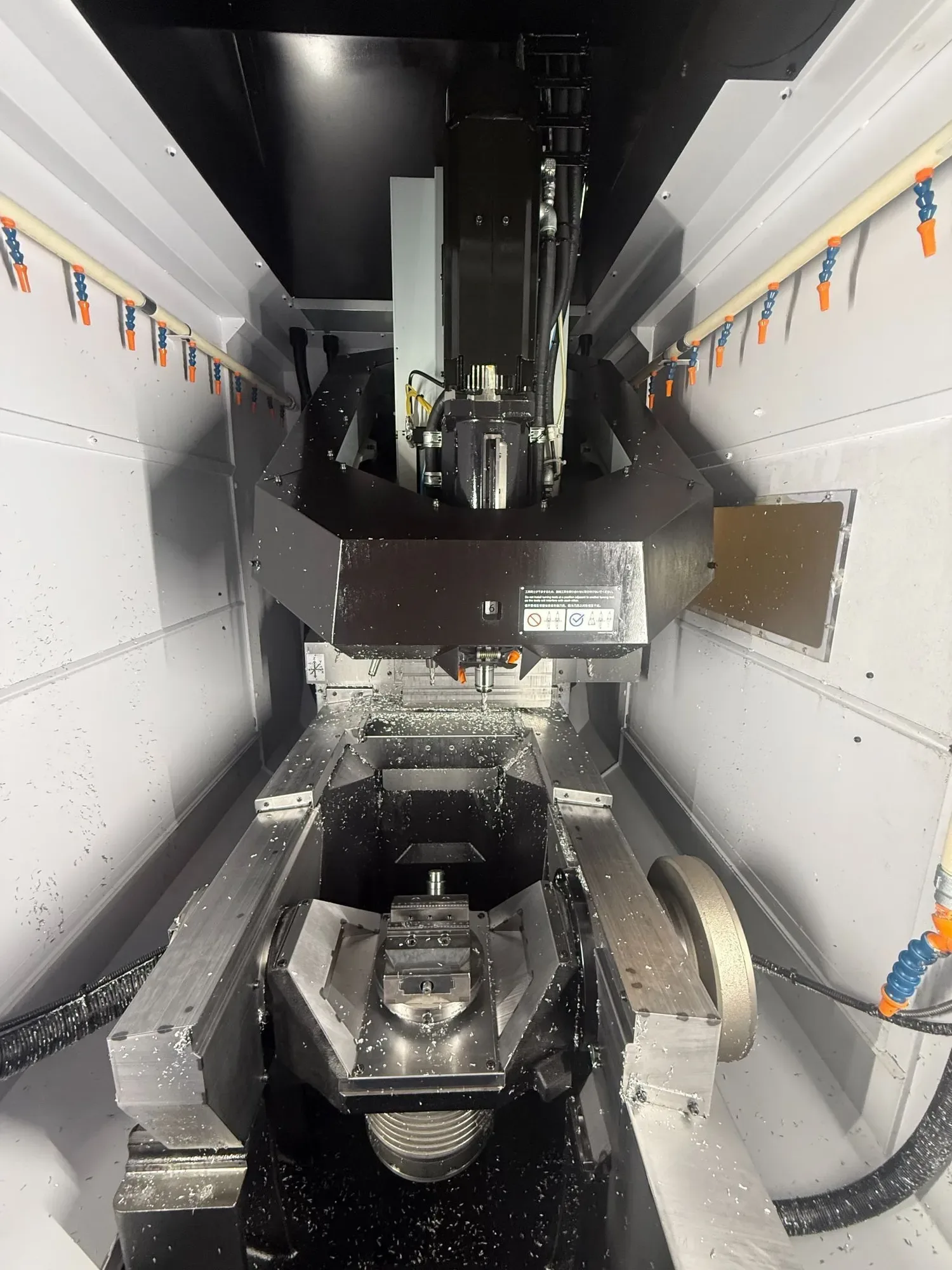

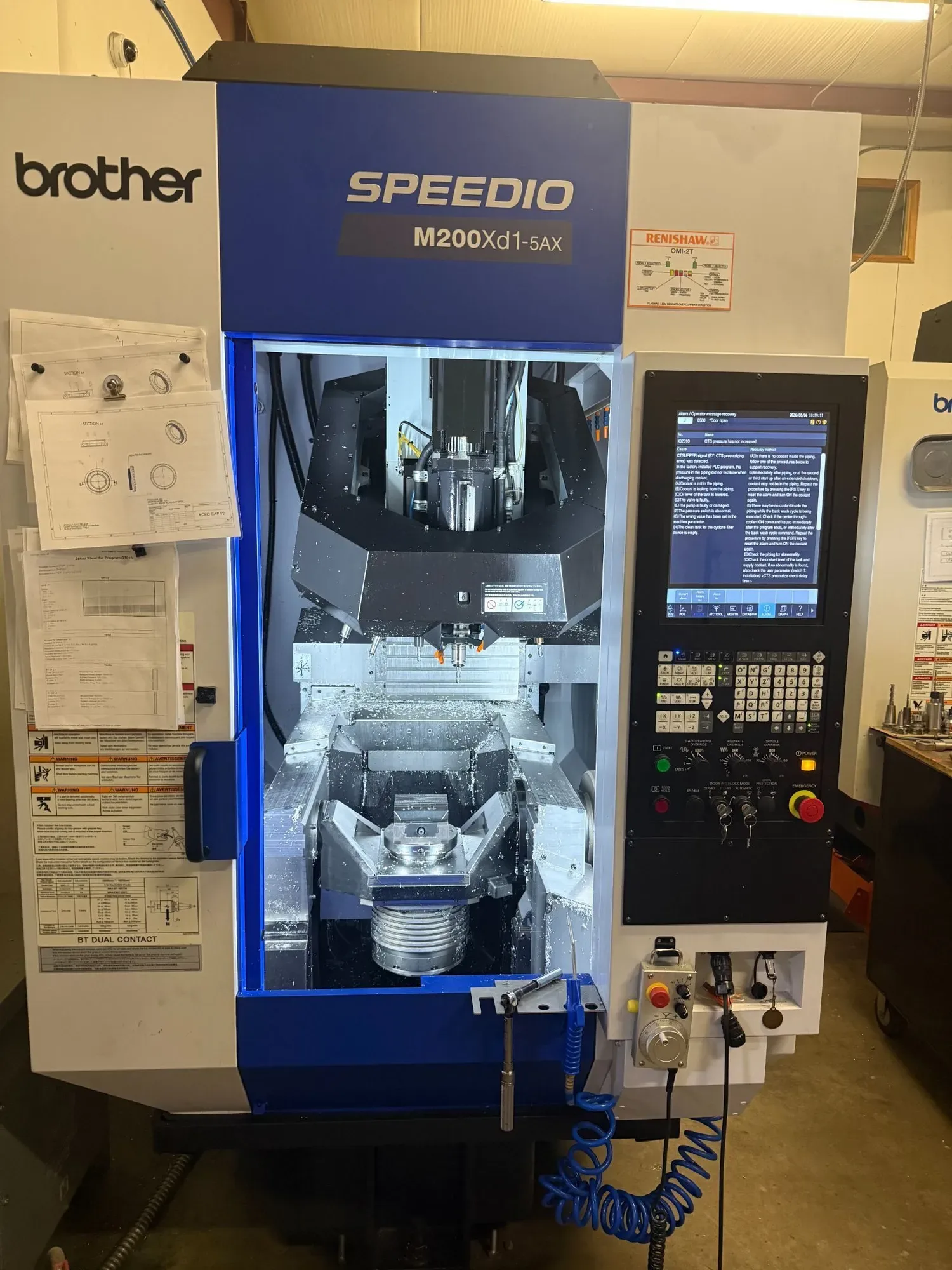

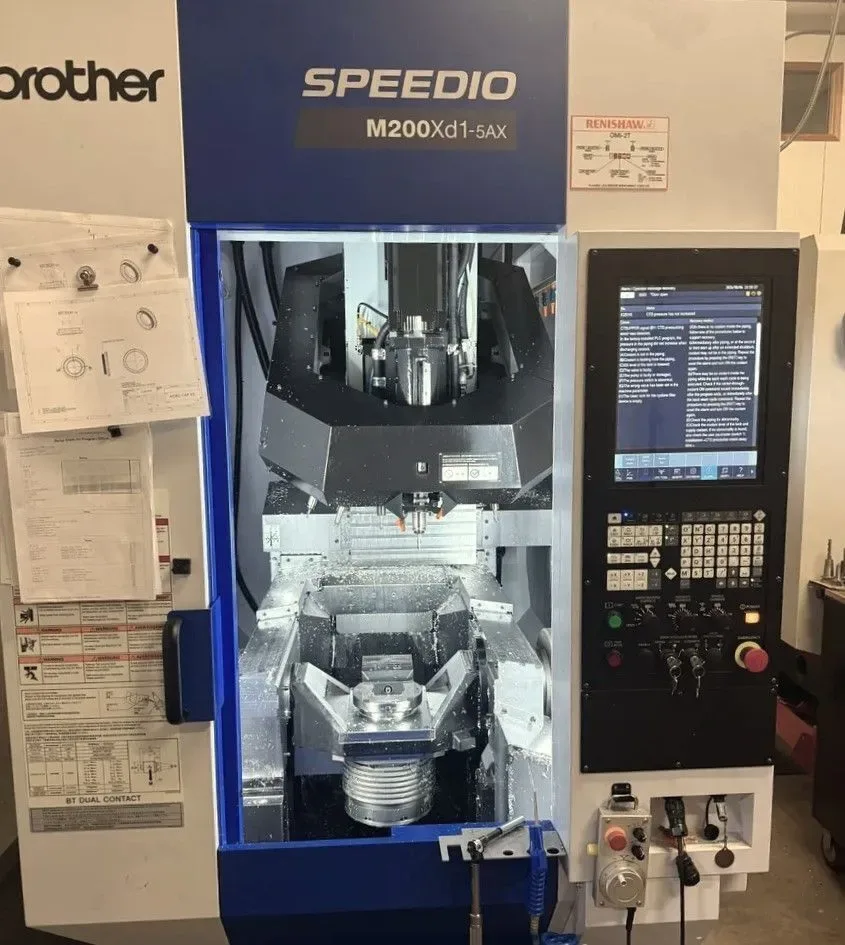

Used Brother Speedio M200XD1 (2025) CNC Vertical Machining Center for Sale. This 5-axis machine offers travels of 7.9″ X, 17.3″ Y and 12″ Z, with A-axis travel from -30 to +120 degrees and full 360 degree C-axis. It runs a 16,000 RPM BBT BIG PLUS BT-30 coolant-through spindle driven by a 9.9/6.6 HP IPM motor, with a 28 tool high-speed ATC rated 0.8 seconds tool to tool and 1.4 seconds chip to chip. Rapid traverse is 1,969 IPM, max table load 88.2 lbs, and the Brother CNC-D00 control includes built-in PLC, tool center point control, 3Gbyte memory expansion and submicron command. Also fitted with a Renishaw OMP400 probe, Blum Z-Nano, AxiSet Checkup Kit and 150L coolant tank. 256 hours. Can be seen under power for inspection. Browse our other used CNC vertical machining centers, then Activate Pricing or click Inquire Now.
Specifications
| X-Axis Travel |
7.9" |
|---|---|
| Y-Axis Travel |
17.3" |
| Z-Axis Travel |
12" |
| Tool Magazine Capacity |
22 or 28 tools |
| Spindle Speed |
16,000 RPM |
| Spindle Taper |
BT30 Big Plus |
| XYZ Axis Travels |
7.9¨ x 17.3¨ x 12.0¨ |
| Spindle Motor |
9.9 HP |
| Number of Axis |
5 |
| A - Axis Travels |
-30° To +120° |
| C-Axis |
360° |
| Rapid Traverse Rate |
1,969 Inches Per Minute (IPM) |
| Cutting Feedrates |
0.04 To 1,181 Inches Per Minute (IPM) |
| Tool Shank Size |
MAS-BT30 |
| Max Tool Length |
9.8 Inches |
| Max Tool Diameter |
3.1 Inches |
| Max Tool Weight |
6.6 lbs |
| Tool to Tool |
0.8 Seconds |
| Chip to Chip |
1.4 Seconds |
| Max Table Load |
88.2 lbs |
| Control |
Brother CNC-D00 Control With Built-In PLC |

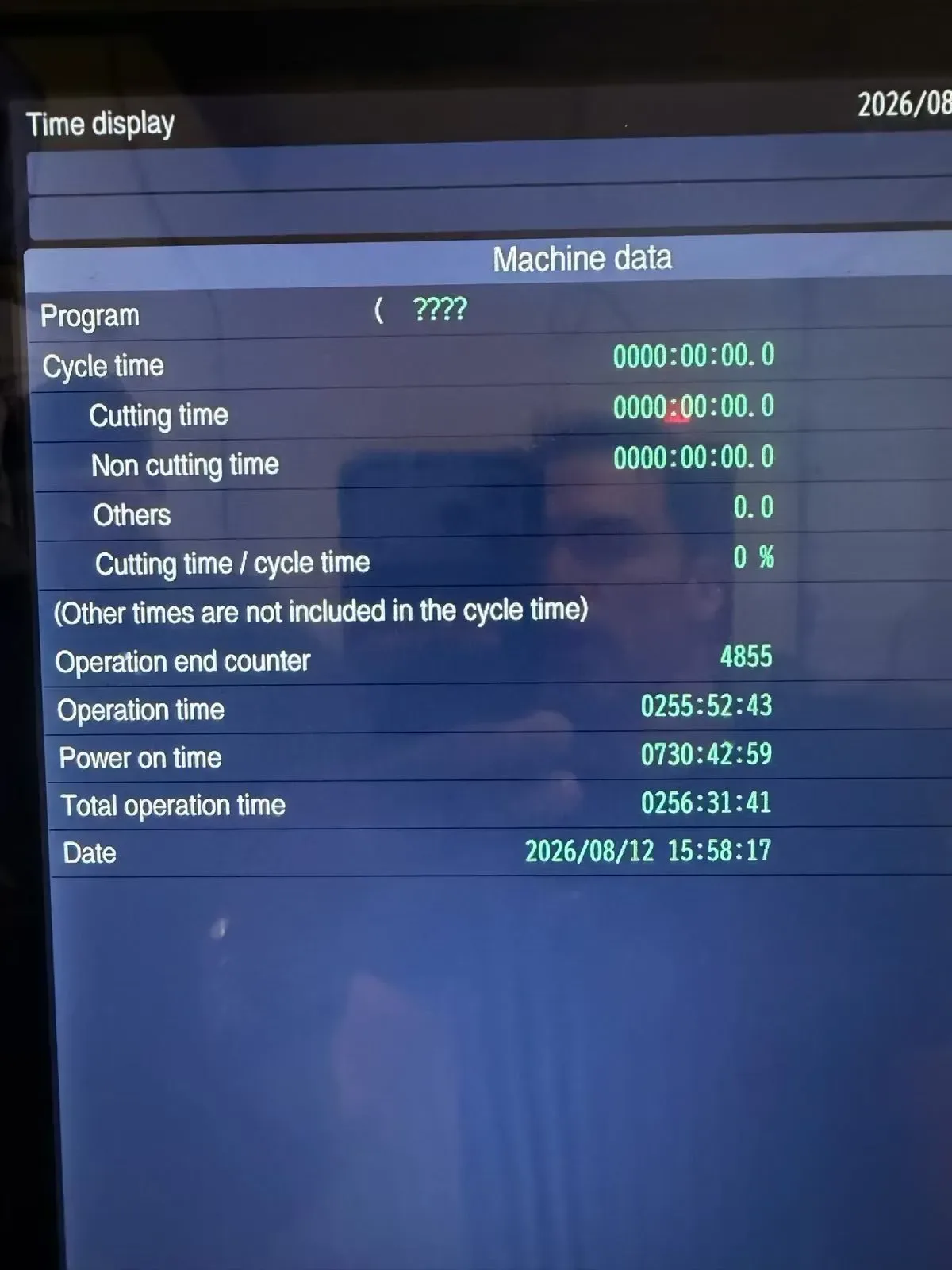

| Hours |
256 Hours |
| Coolant Tank |
150L Coolant Tank With Chip Shower |
Features
|
150L Coolant Tank With Chip Shower |
16 |
|
000 RPM BBT CTSI Spindle (Coolant Through Spindle Interface - No Pump) |
2 |
|
000 RPM Turning Spindle With 5.5¨ Diameter Table |
28 Tool High-Speed ATC |
|
9.9/6.6 HP Main Spindle Motor - IPM Motor Type |
AxiSet Checkup Kit |
|
BIG PLUS BT-30 Taper |
Blum Z-Nano W/ Chip Protection |
|
Brother CNC-D00 Control With Built-In PLC |
Double A-Axis Clamp Complete Covers With Ceiling Cover And Safety Door Interlock |
|
Feature Coordinates Settings |
Memory Expansion (3Gbytes) |
|

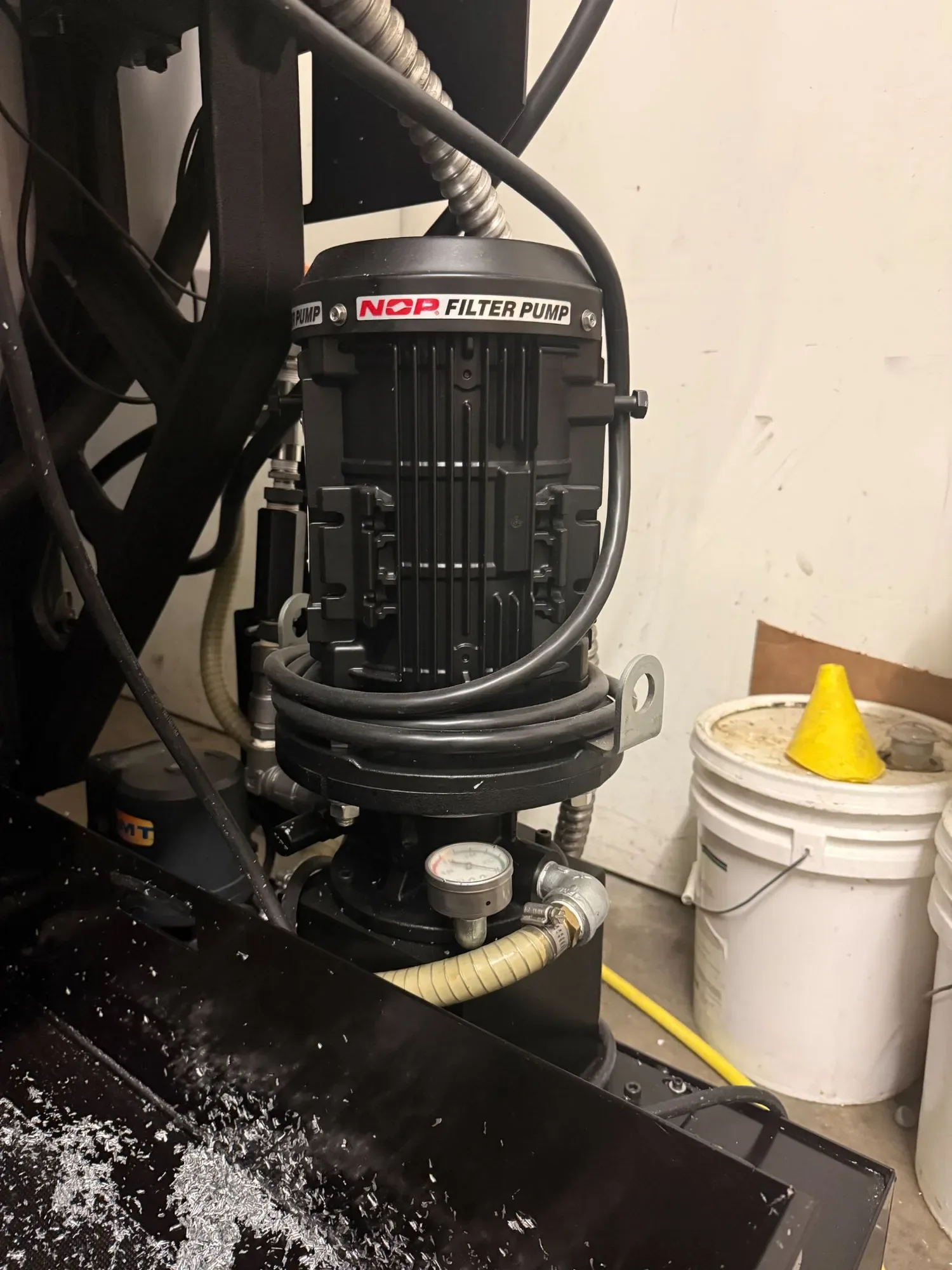

NOP 1000 PSI Brother CTS Pump With Bag Filter Kit |
Renishaw OMP400 Spindle Probe |
|
Submicron Command |
Tool Center Point Control (Look Ahead 1 |
|
000 Blocks) |
Work Light Kit (2-Lights) W/Brackets |
|
Air Assisted Tool Wash |
Simultaneous 5-Axis Control |
|
Manual Pulse Generator |
Spindle Override |
|
Automatic Grease Lubrication System |
