Make |
Bridgeport |
|---|---|
Model |
Series 1 |
Description |
Knee Mill |
Reference # |
8079131 |
Price |
Activate Pricing |

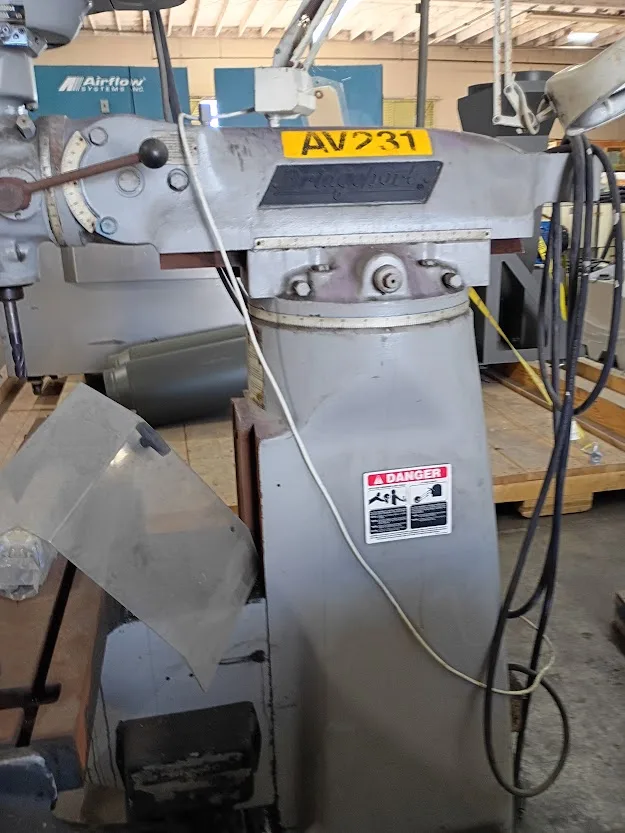

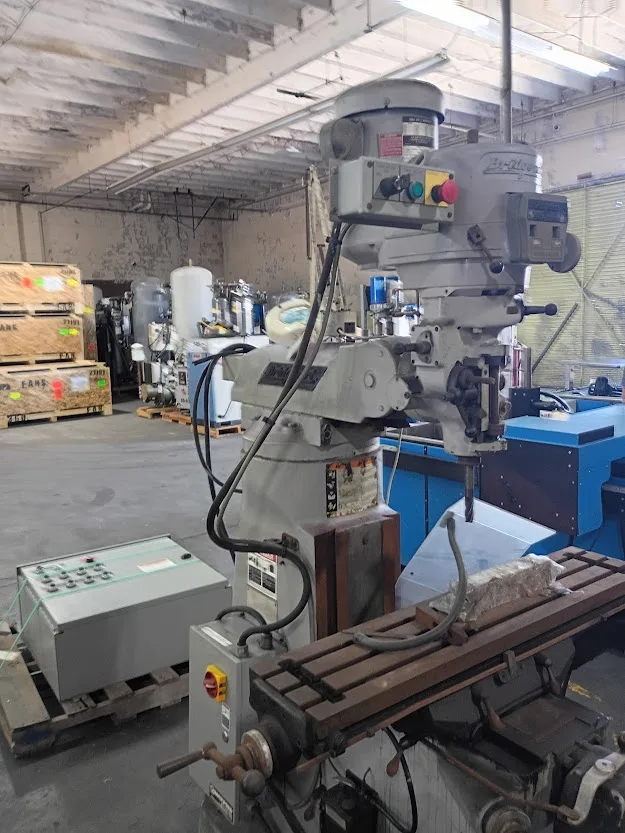

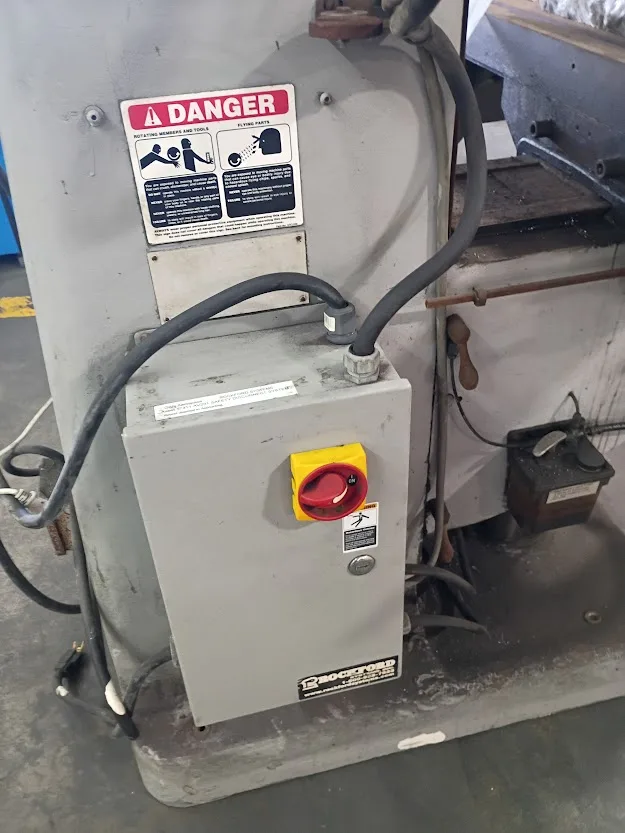

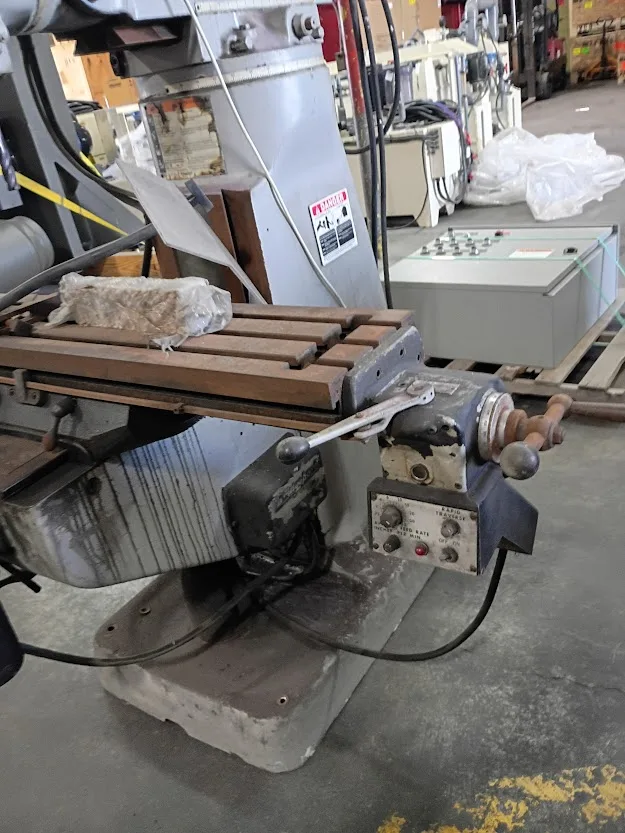

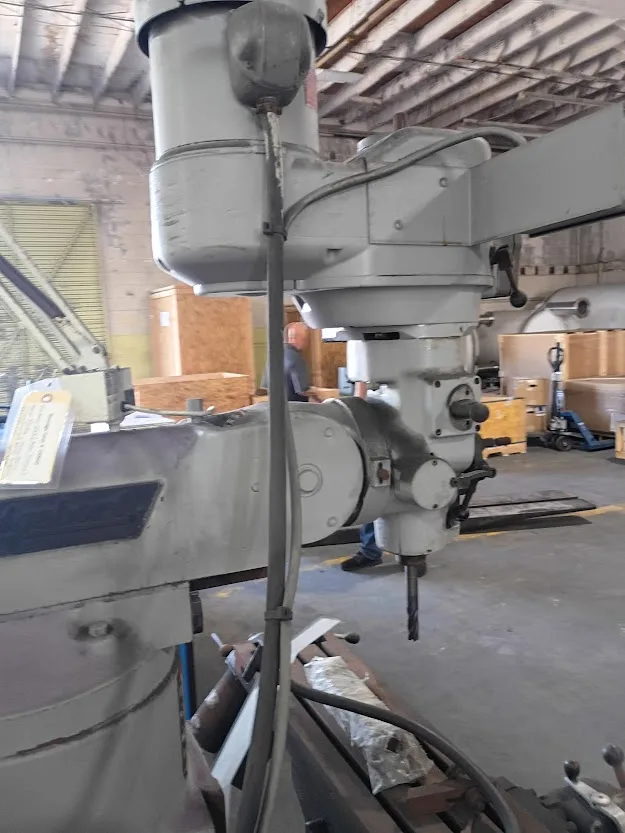

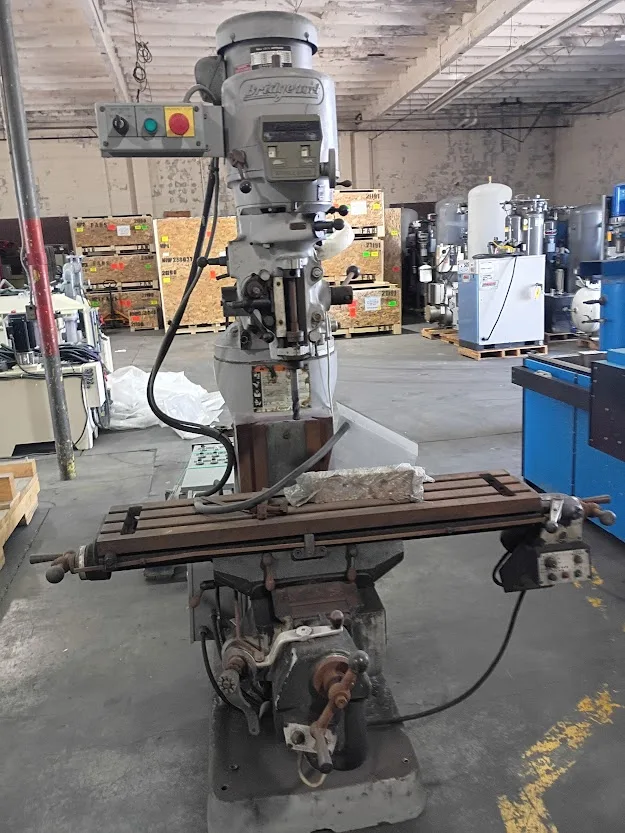

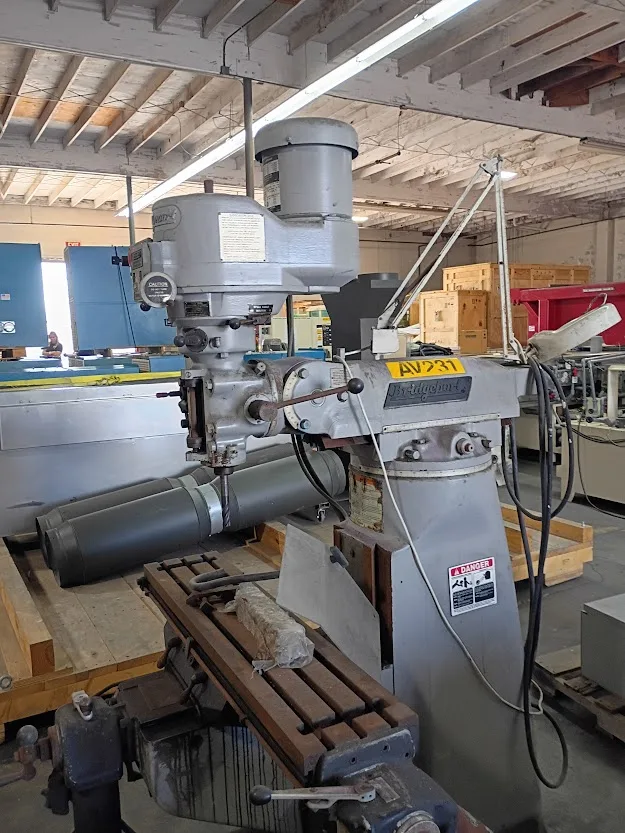

Used Bridgeport Series 1 Knee Mill for Sale. This Series 1 offers 33″ of X-axis travel, 12″ of Y-axis travel, and 16″ of Z-axis travel, with a throat distance ranging from 6.75″ minimum to 18.75″ maximum. Spindle nose to table clearance runs from 2.5″ to 18.25″, and maximum quill travel is 5″. The machine carries an R8 spindle taper, a spindle speed of 4,200 RPM, and a 2 HP spindle motor. The machine can be seen under power for an inspection. Buyers comparing similar equipment can review our other used knee mills as well. To see the number on this Bridgeport, Activate Pricing or send us a message using the Inquire Now button and we will follow up.
Specifications
| X-Axis Travel |
33" |
|---|---|
| Y-Axis Travel |
12" |
| Z-Axis Travel |
16" |
| Throat Distance |
6.75" (min) - 18.75" (Max) |
| Spindle Nose to Table Clearance |
2.5" (min) - 18.25" (Max) |
| Max Quill Travel |
5" |
| Spindle Taper |
R8 |
| Spindle Speed |
4,200 RPM |
| Spindle Motor |
2 HP |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
