Year |
2025 |
|---|---|
Make |
Baleigh |
Model |
BS-20SA-DM |
Description |
Dual-Mitering Semi-Automatic Band Saw |
Reference # |
8078407 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

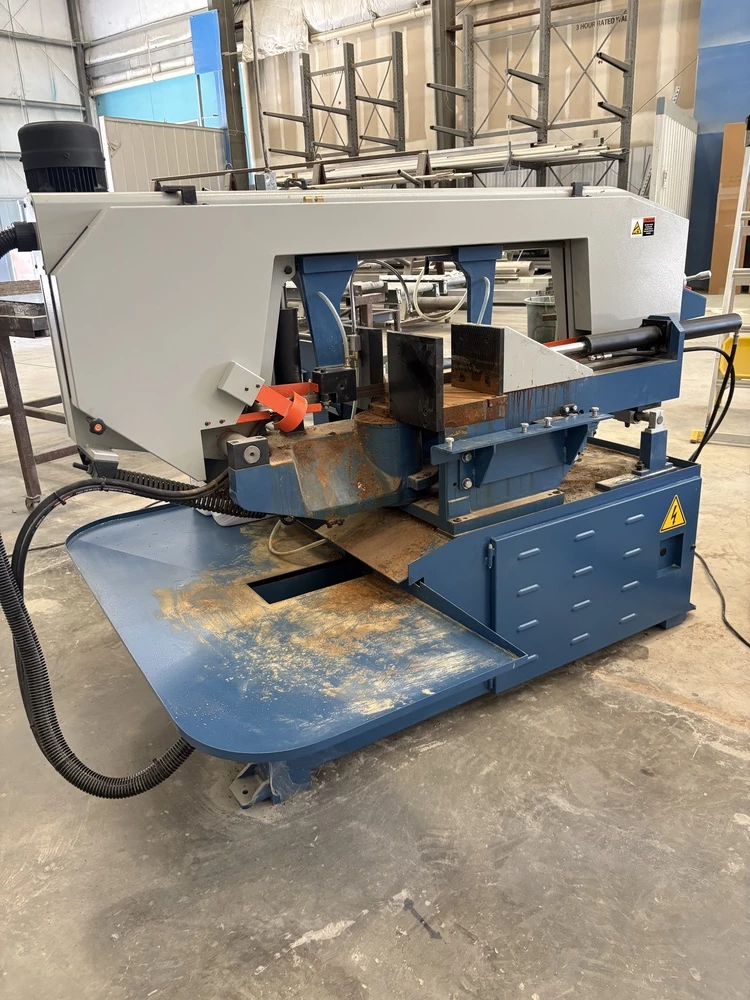

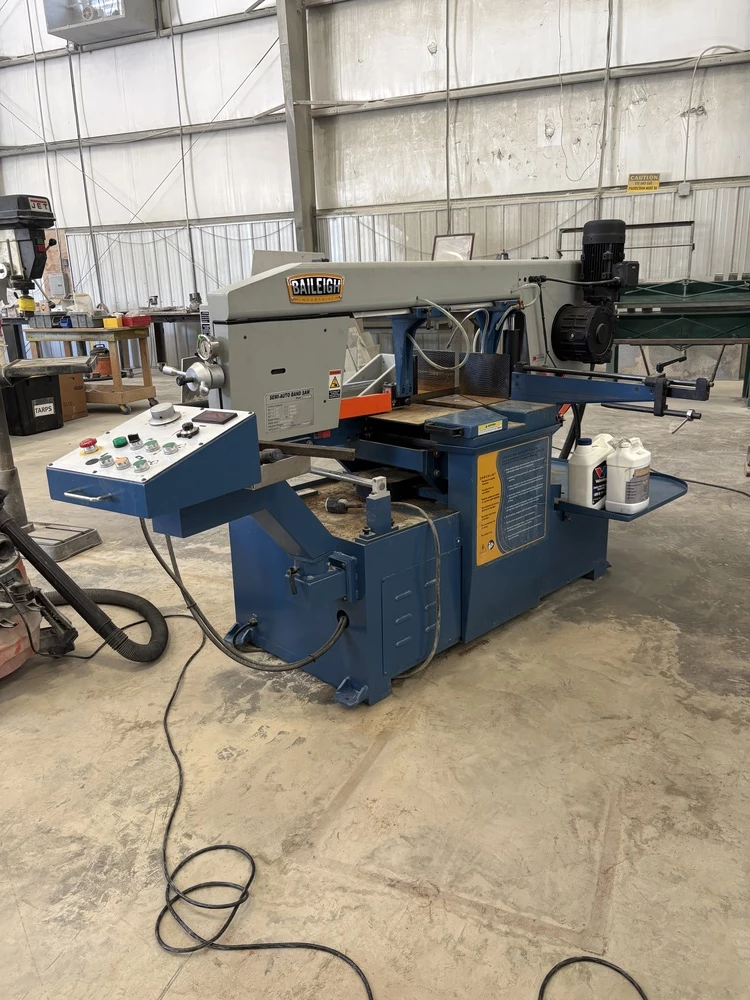

Used Baleigh BS-20SA-DM (2025) Other Equipment for Sale. This horizontal band saw features a swivel head for miter cutting, with miter angles of 0-45° left and 0-60° right. Rectangular capacity is 13″ x 18.1″ at 90°, 13″ x 10.6″ at 45° left and right, and 8.5″ at 60° right. Round capacity is 13″ at 90°, 12″ at 45° left and right, and 8.5″ at 60° right. The saw uses a hydraulic return and takes a blade measuring 1.33″ H x 0.043″ T x 162.2″ L, with blade speeds from 82 to 285 fpm. Power requirement is 220V/3ph/60 Hz. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
Specifications
| Capacity Rectangular (90°) |
13" x 18.1" |
|---|---|
| Capacity Rectangular (45° L) |
13" x 10.6" |
| Capacity Rectangular (45° R) |
13" x 10.6" |
| Capacity Rectangular (60° R) |
8.5" |
| Capacity Round (90°) |
13" |
| Capacity Round (45° L) |
12" |
| Capacity Round (45° R) |
12" |
| Capacity Round (60° R) |
8.5" |
| Return |
Hydraulic |
| Miter Adjustment |
Swivel Head |
| Miter Angle |
O-45° L / 0-60° R |
| Blade Size |
1.33" H x 0.043" T x 162.2" L |
| Blade Speeds |
82-285 fpm |
| Power Requirement |
220V/3ph/60 Hz |
