Year |
2023 |
|---|---|
Make |
Durma |
Model |
PBF 30200 |
Description |
200 Ton x 10' Hydraulic Press Brake |
Reference # |
8077870 |
Price |
Activate Pricing |

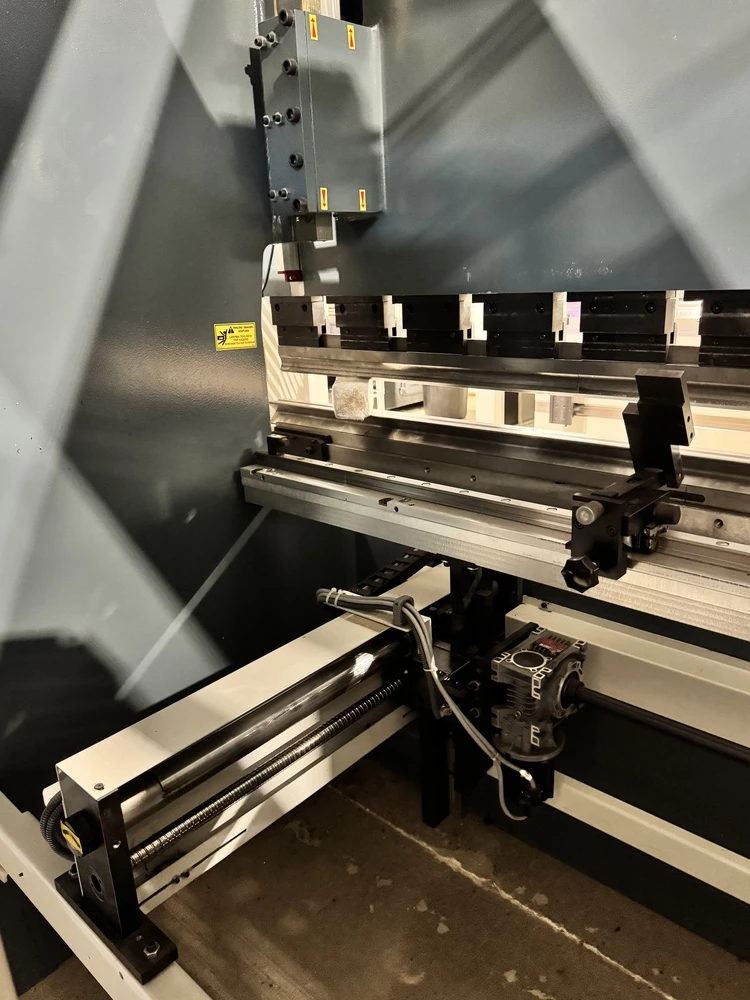

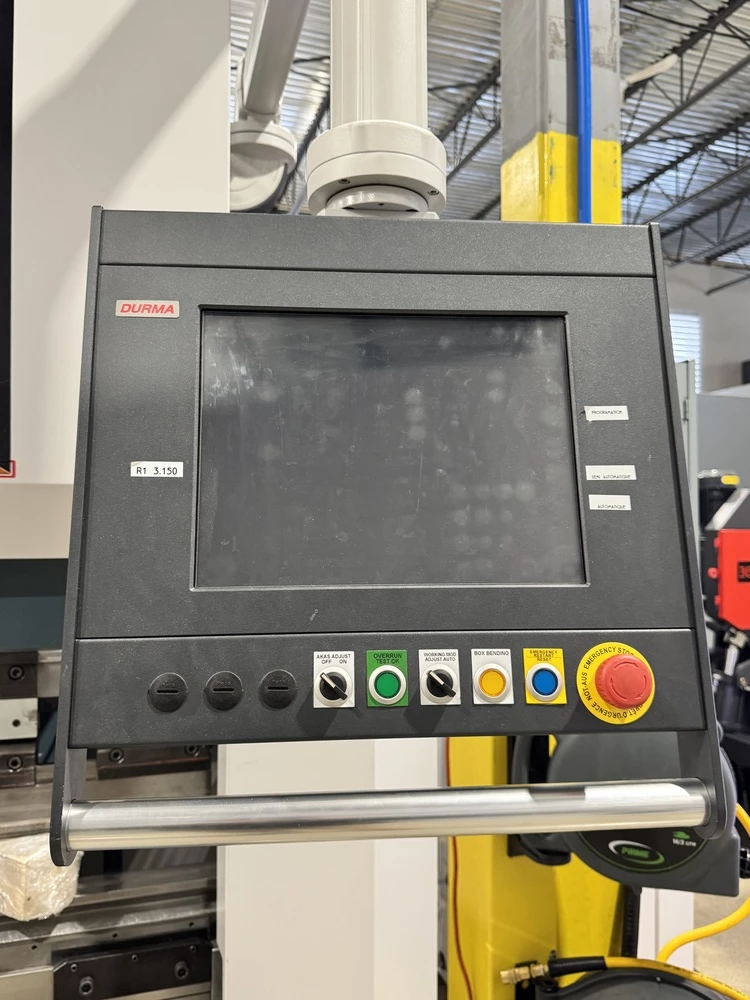

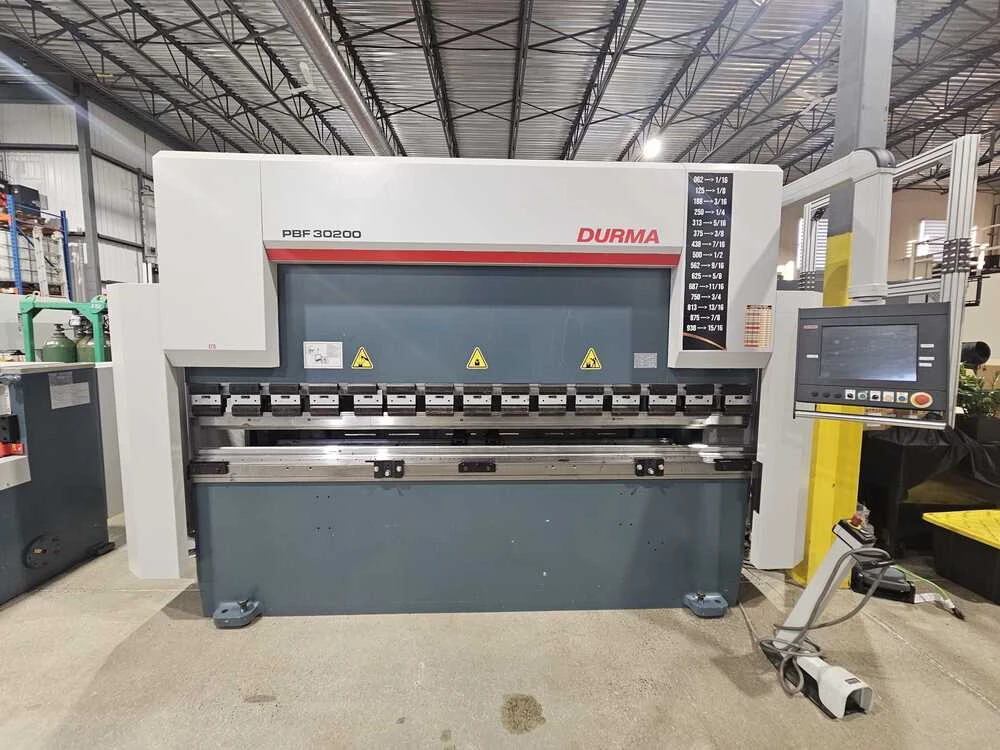

Used Durma PBF 30200 (2023) Press Brake for Sale. This hydraulic press brake offers 200 Ton capacity with a 10′ overall bed length, 100.39″ distance between housings, and 9.84″ throat depth. Ram stroke is 8.27″ with 17.52″ open height. It is fitted with a DT-15 control and a 2-axis back gauge. Equipped with manual crowning and the tooling shown in the photos, including a standard 4-way V-die (max 1/4″) and a standard punch. The machine can be seen under power for a full inspection prior to purchase. Additional details and comparable machines are listed under our used press brakes. Use Activate Pricing to view the current figure, or Request a Quote and we will follow up with freight and rigging information. This machine is located in Canada.

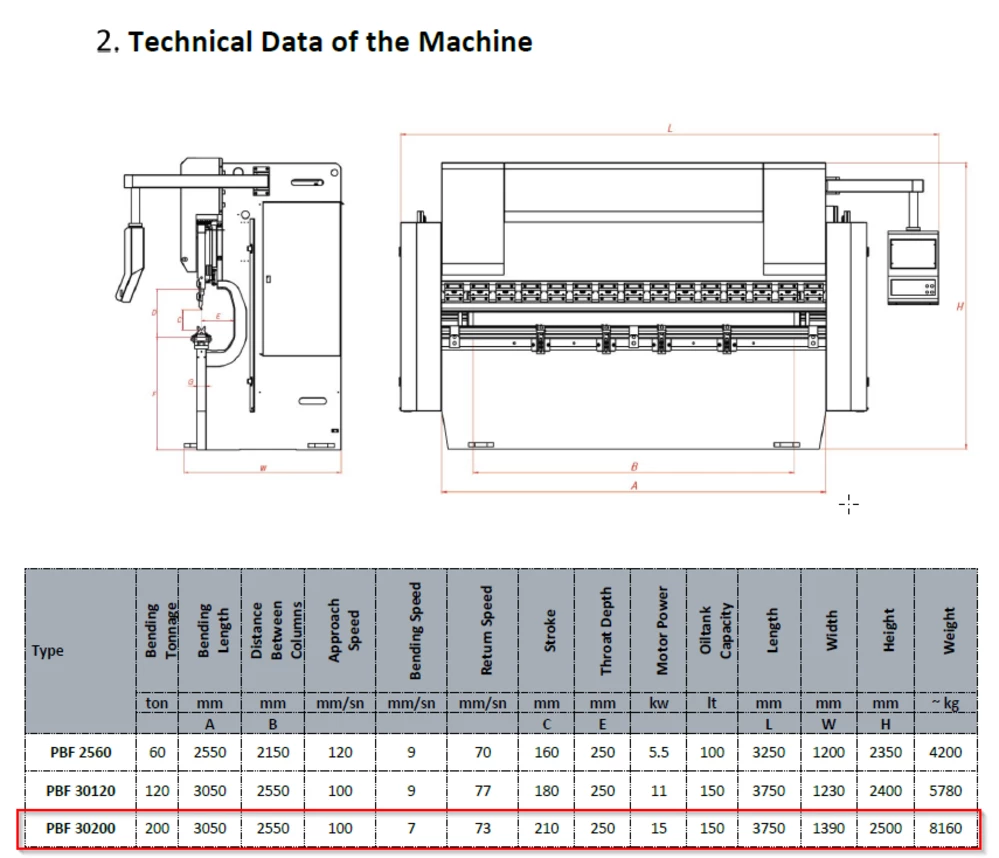

Specifications
| Capacity |
200 Ton |
|---|---|
| Overall Length of Bed |
10' |
| Control |
DT-15 Control |
| Back Gauge |
2-Axis |
| Distance Between Housings |
100.39" |
| Stroke |
8.27" |
| Throat Depth |
9.84" |
| Open Height |
17.52" |
Features
|
Tooling on Picture Included (Standard 4-Way V-Die (Max 1/4") and Standard Punch) |
Manual Crowning |
