Year |
2022 |
|---|---|
Make |
Zeiss |
Model |
DuraMax 5/5/5 |
Description |
Coordinate Measuring Machines |
Reference # |
8079022 |
Price |
Activate Pricing |

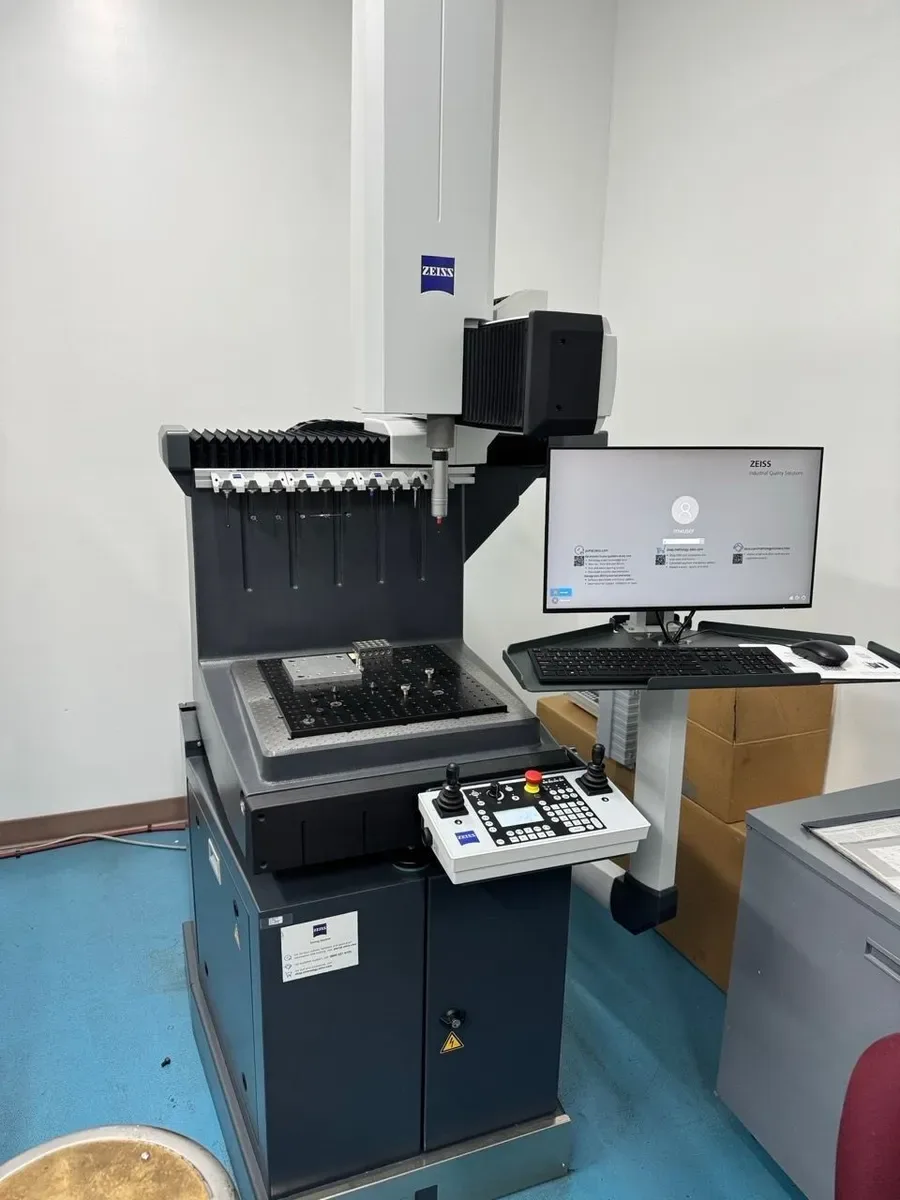

Used Zeiss Duramax 5/5/5 (2022) Coordinate Measuring Machine for Sale. This CMM offers 19.68″ of travel in X, Y, and Z, and runs on a C99M control paired with an HP Z4 V4 workstation (Windows 10, Intel 3.6 GHz, 64GB DDR4 RAM). It is equipped with glass ceramic scales, fully enclosed guideways, integrated passive vibration damping, a VAST XXT TL3 tactile passive scanning probe rated IP53, and 2022 Calypso software. The machine can be seen under power for an inspection. It is listed alongside our other used CMM machines and the balance of our used Zeiss machines. Activate Pricing to see the current asking price, or use the Inquire Now button to reach us with questions or to arrange a viewing.
Specifications
| X-Axis Travel |
19.68" |
|---|---|
| Y-Axis Travel |
19.68" |
| Z-Axis Travel |
19.68" |
| Computer |
HP Z4 V4 Workstation (Windows 10, Intel 3.6 Ghz, 64gb DDR4 RAM) |
| Control |
C99M |
Features
|
2022 Calyspo Software |
Fully Enclosed Guideways |
|
Glass Ceramic Scales |
Integrated Passive Vibration Damping |
|

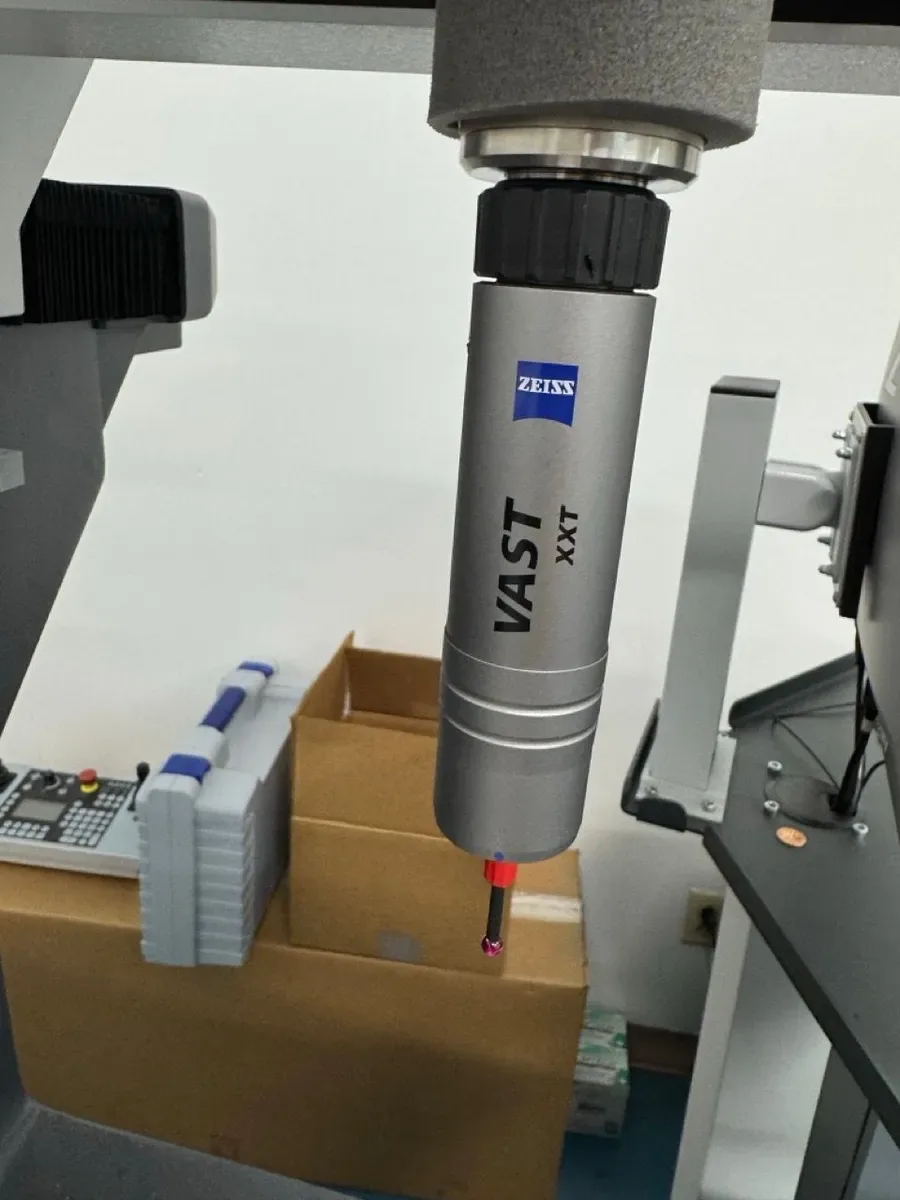

VAST XXT TL3 Tactile Passive Scanning Probe (IP53 Rated) |
