Year |
2008 |
|---|---|
Make |
Mitutoyo |
Model |
BRM507 |
Description |
Cooridnate Measuring Machine |
Reference # |
8072464 |
Price |
Activate Pricing |

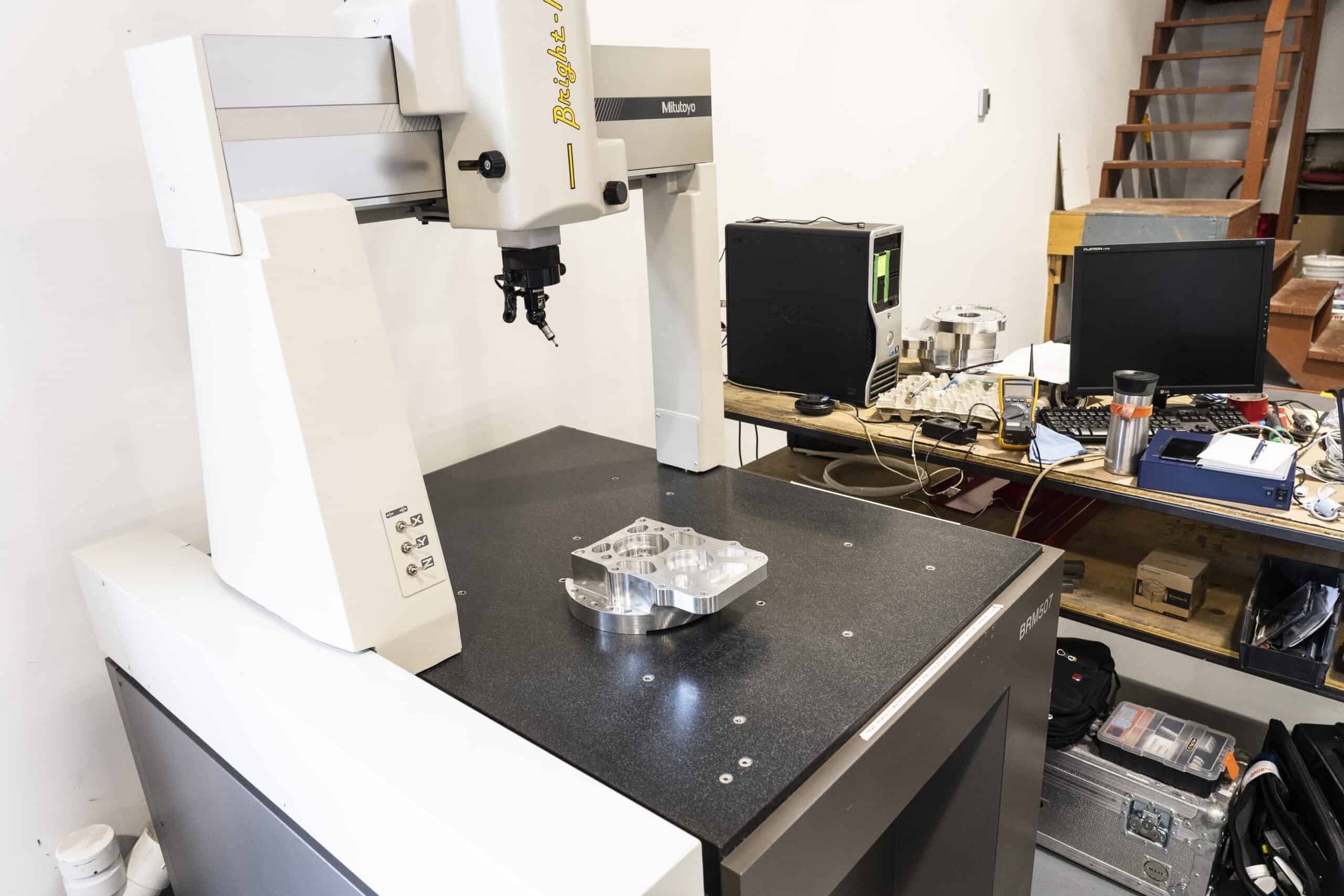

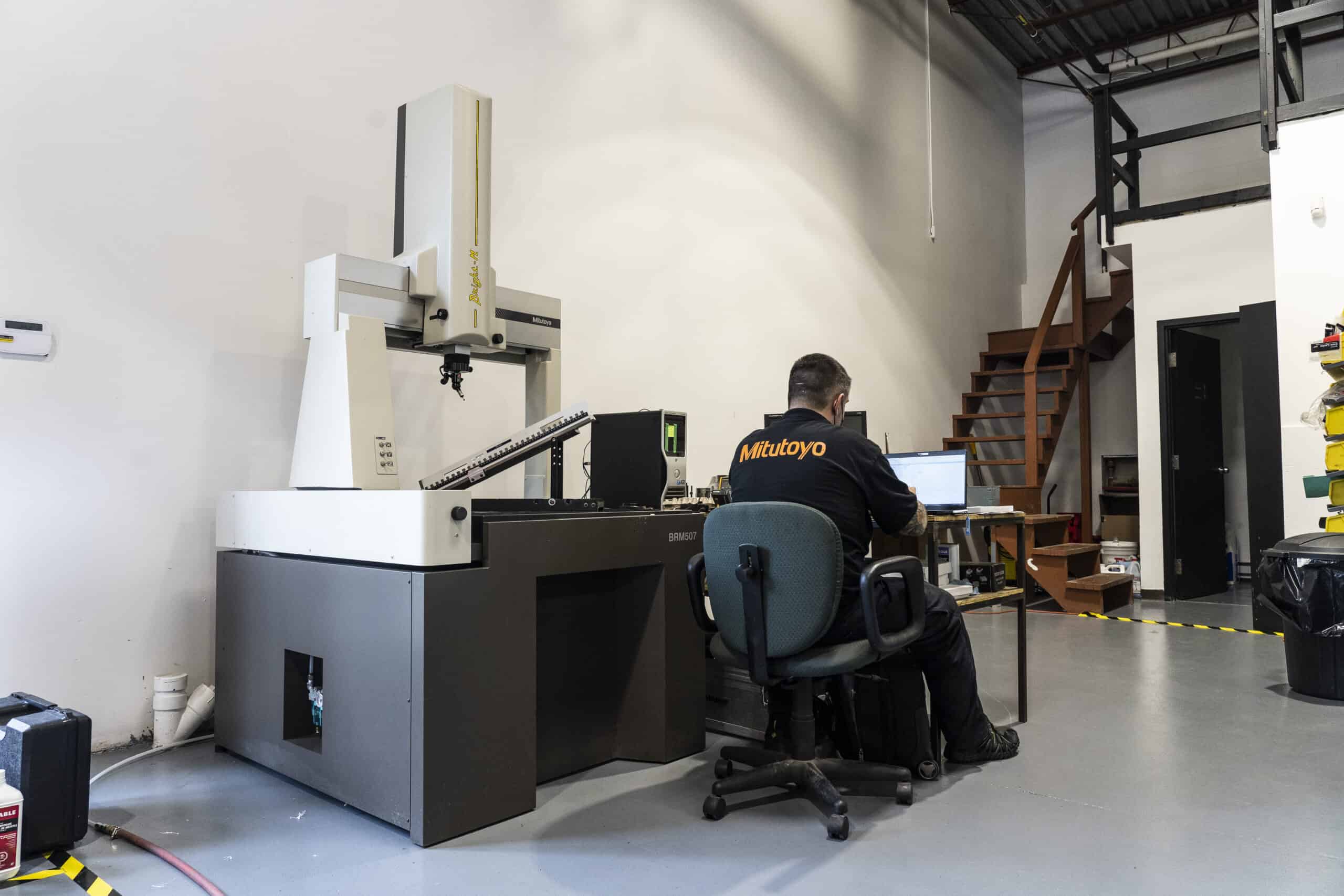

Used Mitutoyo BRM507 (2008) Other Equipment for Sale. This bridge-type unit offers travels of 20″ x 28″ x 16″, repeatability of 2.5μm linear, and accuracy of 3.0 + 4L / 1000 μm. The footprint measures 49″ L x 42″ W x 88″ H, with a total weight of 1,240 lbs including the stand. Equipped with a choice of any Renishaw manual probe – MH20, an IM USB scale and probe interface unit, and MCosmos software with computer included (no monitor). Listed among our used CMM machines, the machine can be seen under power for an inspection. Use [Activate Pricing](#activate-pricing) to view current figures, then Request a Quote and we will follow up with availability and details.
Specifications
| Travels |
20" x 28" x 16" |
|---|---|
| Repeatability |
2.5μm Linear |
| Accuracy (μm) |
3.0 + 4L / 1000 |
| Footprint |
49" L x 42" W x 88" H |
| Total Weight |
1,240 Lbs (Including Stand) |
Features
|
Choice of Any Renishaw Manual Probe – MH20 |
IM USB Scale and Probe Interface Unit |
|
MCosmos (Computer Included Without Monitor) |
