Year |
2022 |
|---|---|
Make |
Timesavers |
Model |
2231-45-000 |
Description |
Deburring Machine |
Reference # |
8077650 |
Price |
Activate Pricing |

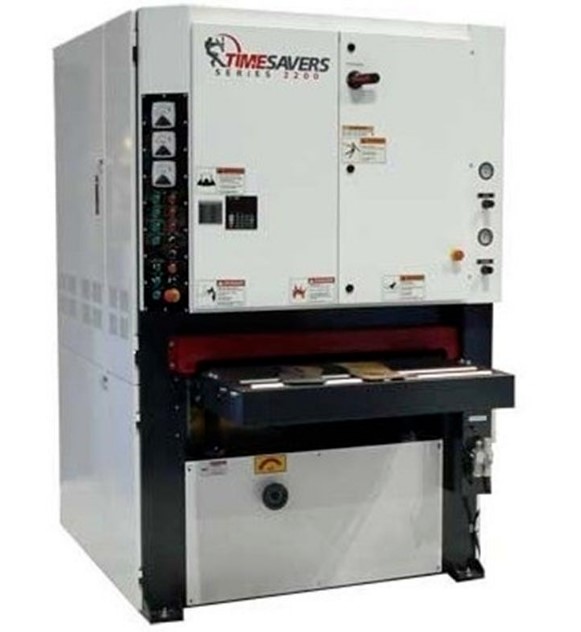

Used Timesavers 2231-45-000 (2022) Other Equipment for Sale. This dry-process wide belt machine takes a 52″ x 103″ abrasive belt and handles stock up to 51″ wide with a minimum part length of 10″. Machine opening runs 0 – 5″, with a variable passline height of 33″ – 38″ and feed speeds of 15 – 45 FPM A/C. Infeed loading area is 14″ and inlet size is 10″. Exhaust requirement is 5,250 CFM at 5″ static pressure, with compressed air usage of 6 CFM at 90 PSI. Power is 460/3/60 at approximately 103 full load amps. Shipping weight is approximately 8,500 lbs. Equipped with (3) contact drums, (3) motors, and a Timesavers Niagara-15 wet type dust collector. The machine can be seen under power for an inspection. Request a Quote for further details.
Specifications
| Process Type |
Dry |
|---|---|
| Abrasive Belt Size |
52” x 103” |
| Max Stock Width |
51" |
| Min Part Length |
10" |
| Infeed Loading Area |
14" |
| Inlet Size |
10" |
| Machine Opening |
0 - 5" |
| Feed Speed |
15 – 45 FPM A/C |
| Passline Height |
33” - 38” Variable |
| CFM Exhaust Requirements |
5,250 CFM (5” Static Pressure) |
| Compressed Air Usage |
6 CFM @ 90 PSI |
| Voltage/Phase/Frequency |
460/3/60 |
| Approx. Full Load Amps @ 460 Volt |
103 |
| Approx Shipping Weight |
8,500 Lbs |
Features
|
(3) Contact Drums |
(3) Motors |
|

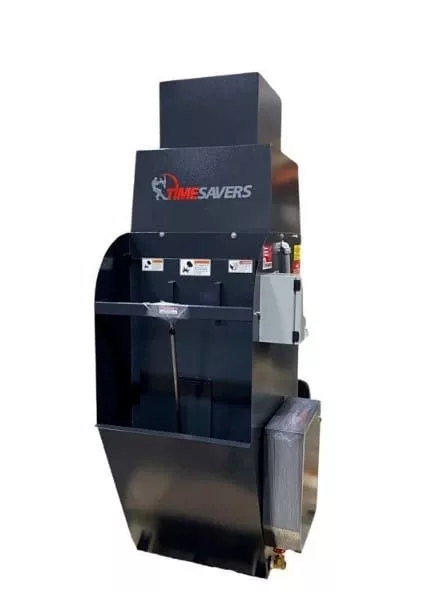

Timesavers Dust Collector Niagara-15 |
Wet Type Dust Collector |
