Year |
2008 |
|---|---|
Make |
Stoelting |
Model |
CSW-123 |
Description |
Parts Washing Machine |
Reference # |
8072781 |
Price |
Activate Pricing |

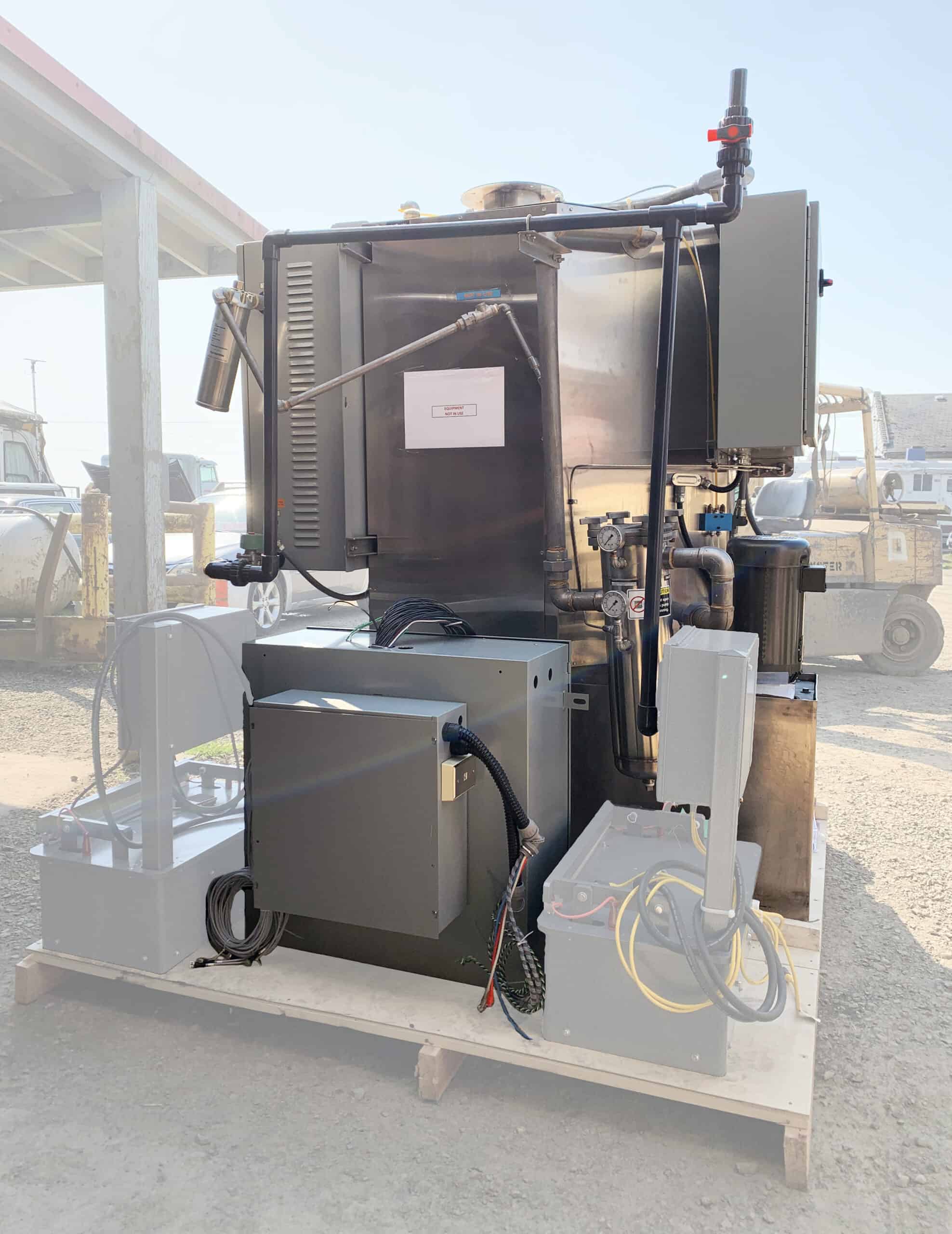

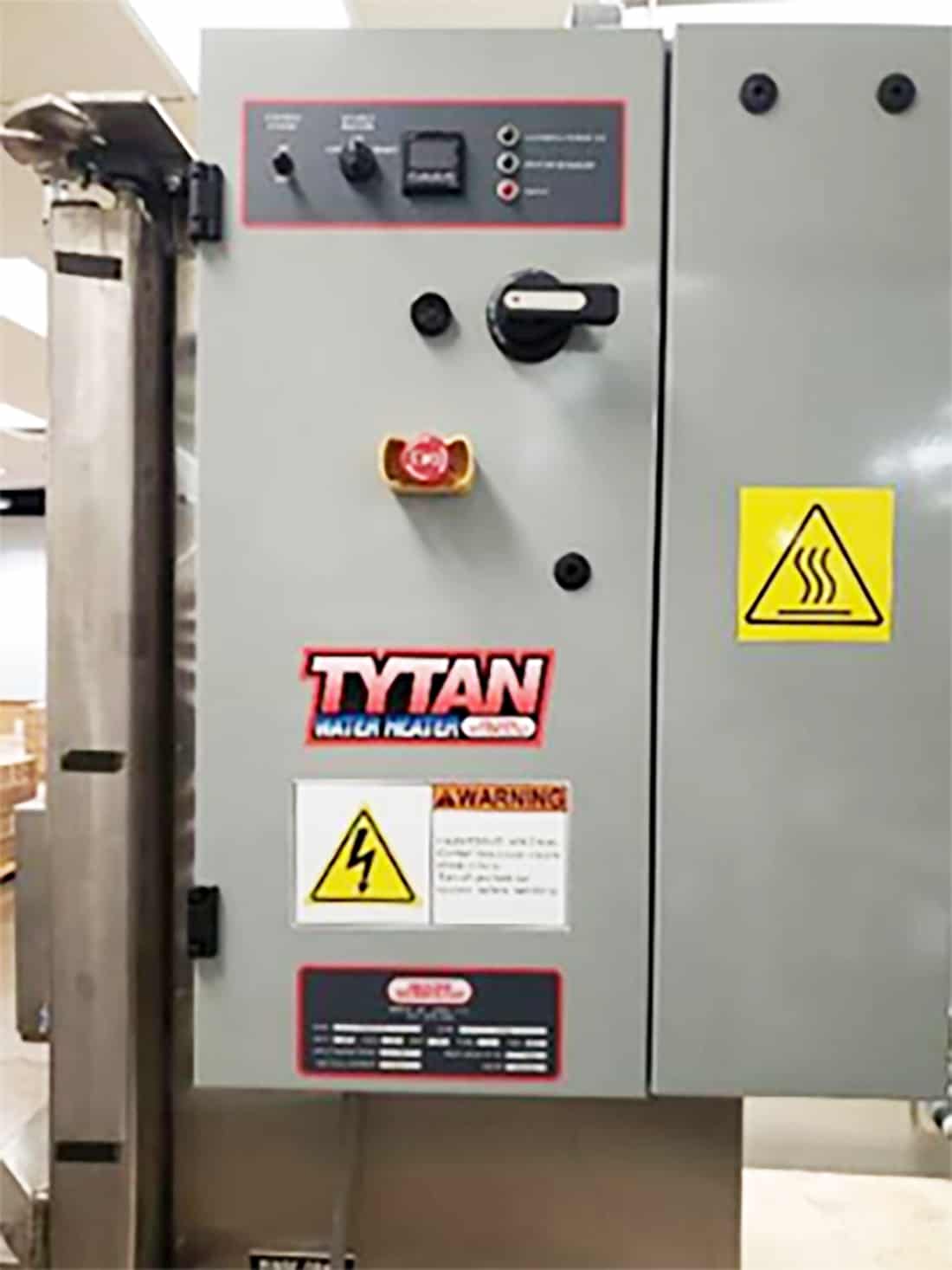

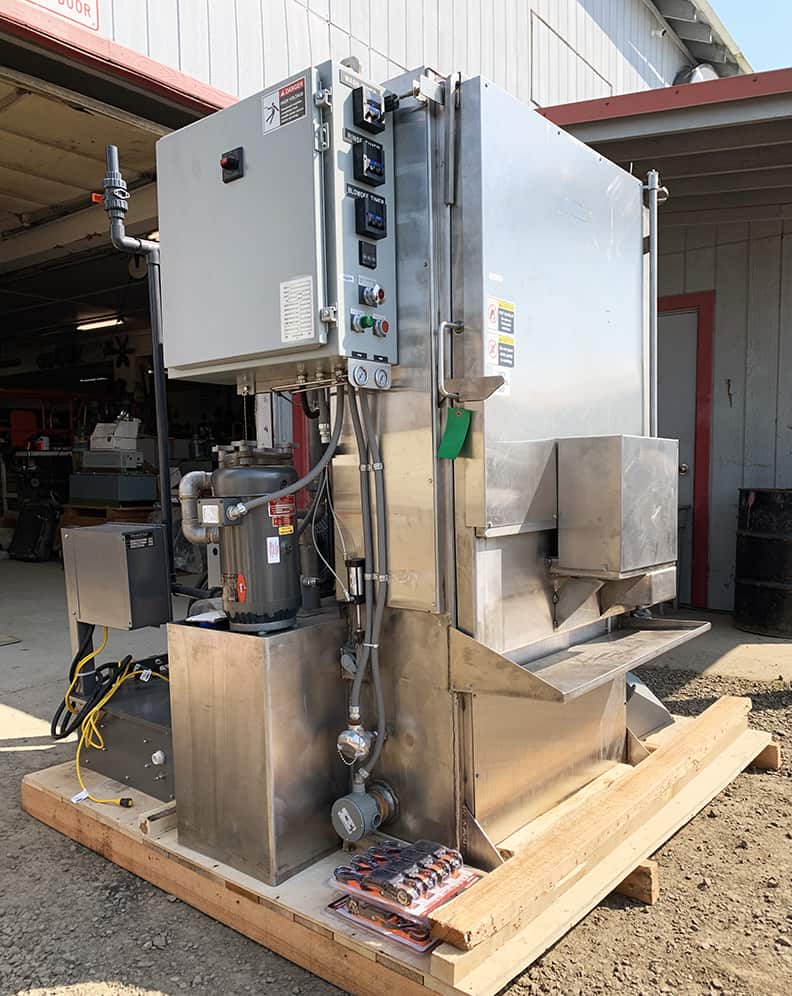

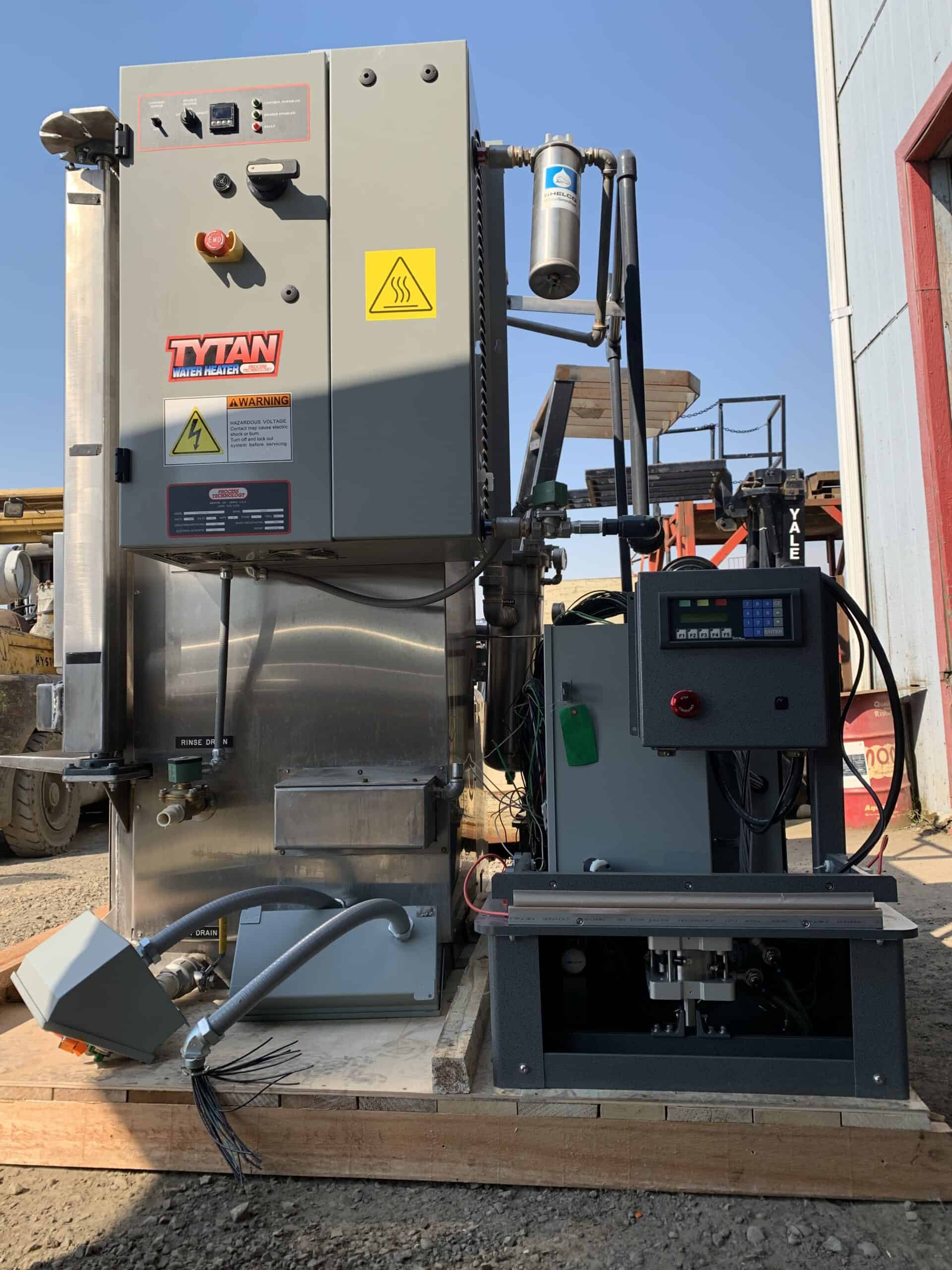

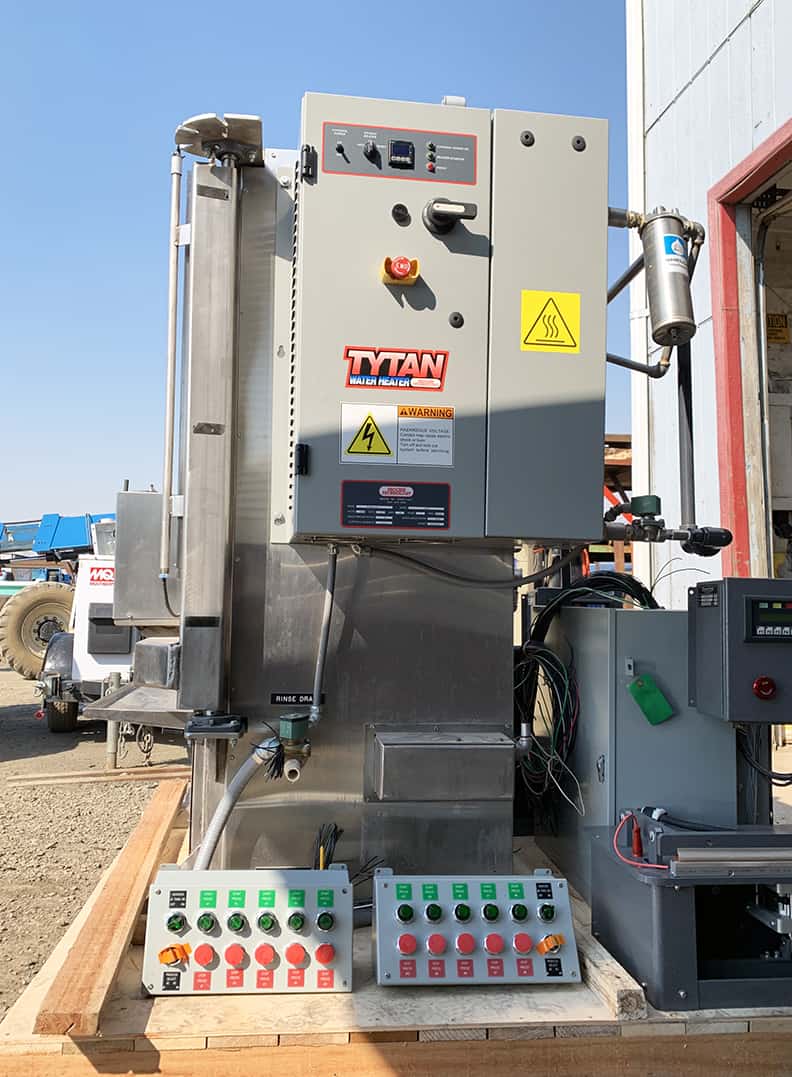

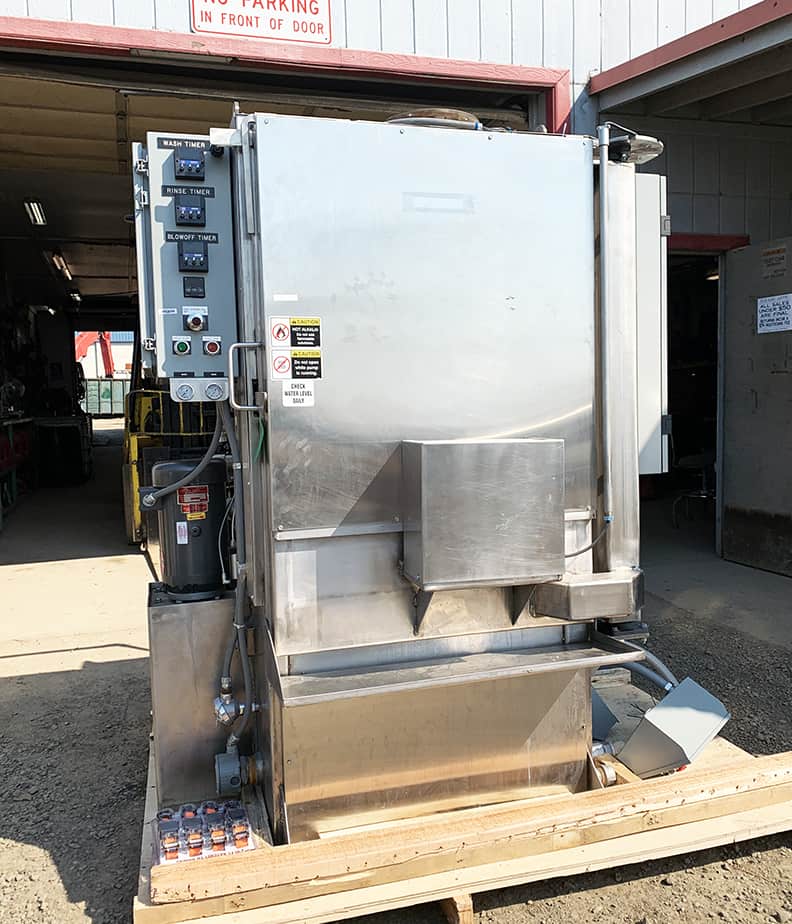

Used Stoelting CSW-123 (2008) Other Equipment for Sale. This rotary parts washer has a 26″ turntable with a 40″ working height and an 800 lb working load limit. The wash pump is driven by a 5 HP motor rated at 90 GPM at 50 PSI, with a 1/15 HP turntable motor and a 70 gallon wash tank. Equipped with 12 wash nozzles, a 12kw electric wash tank heater, 8 blowoff nozzles, 8 rinse and RP nozzles, and a Tytan inline water heater system. Overall dimensions are 66″ x 59″ x 83″ with an approximate weight of 1,200 lbs. The machine can be seen under power for an inspection. Request a Quote for pricing and further details.
Specifications
| Working Height |
40" |
|---|---|
| Turntable Diameter |
26" |
| Wash Pump Motor |
5 HP |
| Turntable Motor |
1/15 HP |
| Wash Pump Capacity |
90 GPM @ 50 PSI |
| Wash Tank Capacity |
70 Gallons |
| Working Load Limit |
800 Lbs |
| Dimensions |
66" x 59" x 83" |
| Approximate Weight |
1,200 Lbs |
Features
|
12 Wash Nozzles |
12kw Electric Wash Tank Heater |
|
8 Blowoff Nozzles |
8 Rinse & RP Nozzle |
|
Tytan Inline Water Heater System |
