Year |
2022 |
|---|---|
Make |
CSD |
Model |
EB-75J2 |
Description |
Blow Molder |
Reference # |
8078227 |
Price |
Activate Pricing |

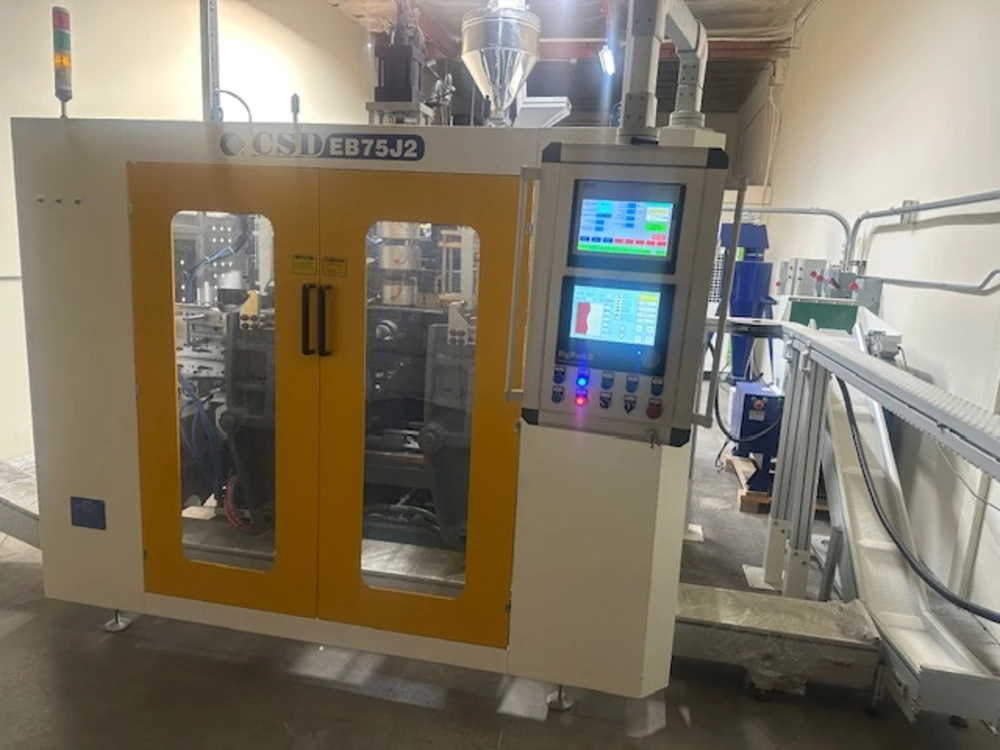

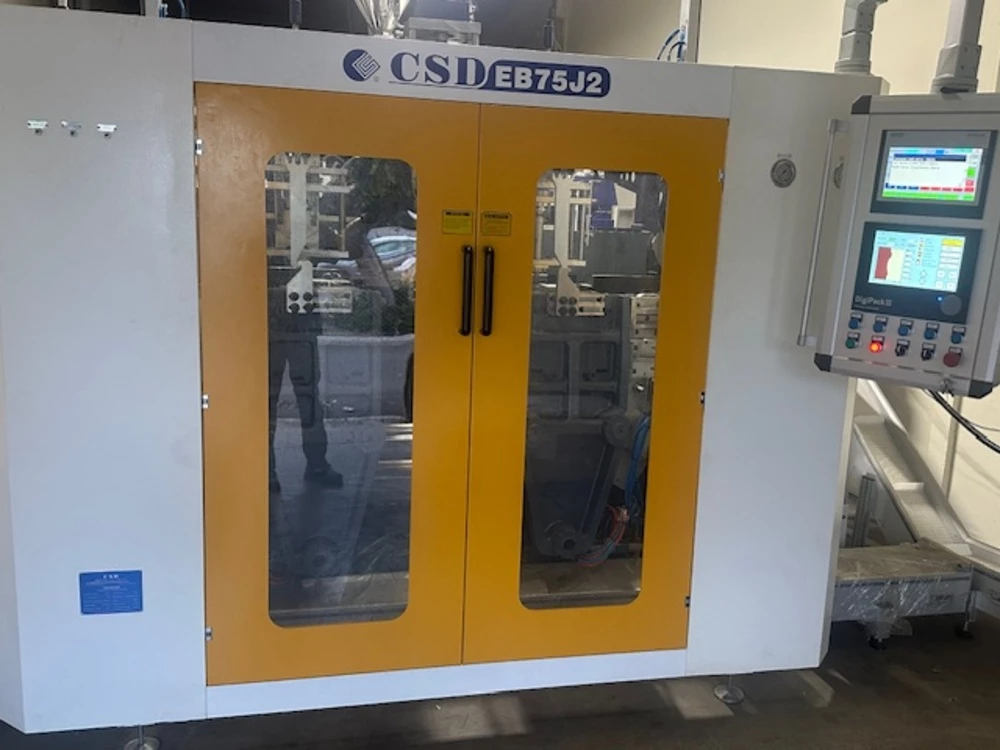

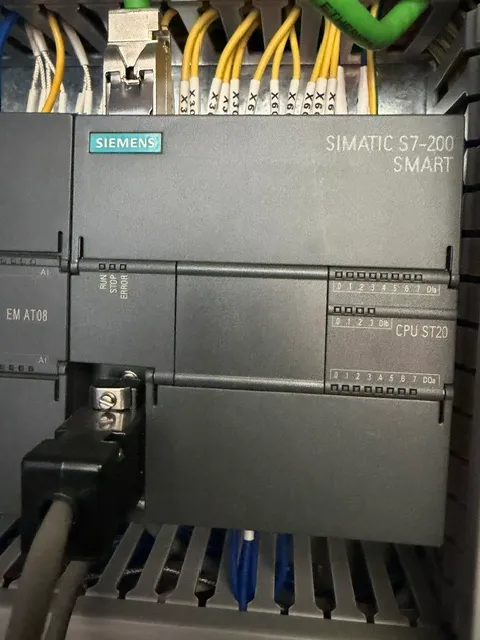

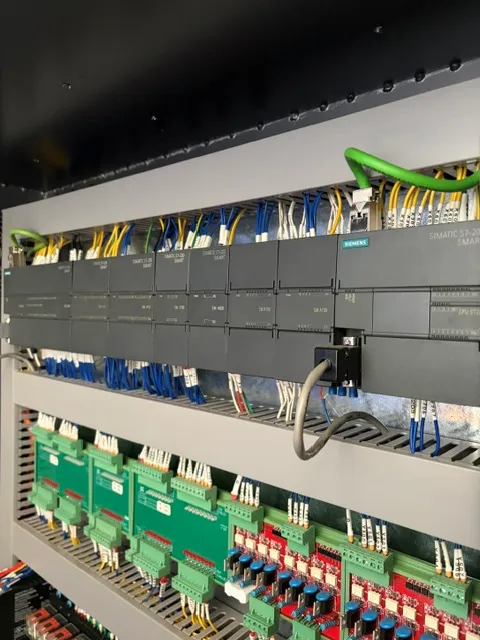

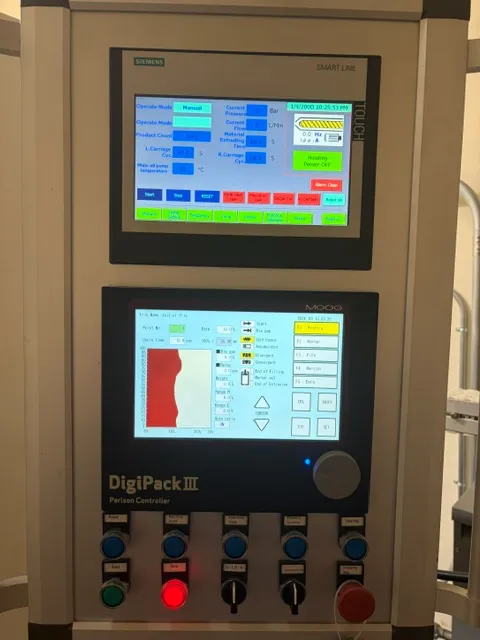

Used CSD EB-75J2 (2022) Blow Molder for Sale. This shuttle style, continuous extrusion machine has two stations and is set up for single head (1.5 Gal.), dual head (M180) 6.5″ wide, or triple head (M115) 4.125″ wide work, and has run HDPE. Platen size is 29.52″ x 29.52″ with 7 ton clamp tonnage and a 75 mm screw, rated at 90 Kw / 120 HP, controlled by a Siemens PLC and requiring 480v – 3 ph – 60hz. Equipped with (3) heads, (2) conveyors for flash removal, chilling unit, color blender, hopper loader / material blender, hot knife and pre-pinch knife, material grinder, robots with synchronized conveyor, air compressor, and spare parts including hydraulic cylinders and heater bands. Currently in operation with only 50 hours of use and can be seen under power for an inspection. See more used blow molding machines, Activate Pricing, or Request a Quote.
Specifications
| Type of Blow Molder |
Shuttle Style / Continuous Extrusion |
|---|---|
| Number of Stations |
(2) Two |
| Number of Heads |
Single (1.5 Gal.) / Dual (M180) 6.5" Wide / Triple (M115) 4.125" Wide |
| Material Ran |
HDPE |
| Platen Size |
29.52" x 29.52" |
| Clamp Tonnage |
7 Ton |
| Screw Size |
75 mm |
| Rated Power |
90 Kw / 120 HP |

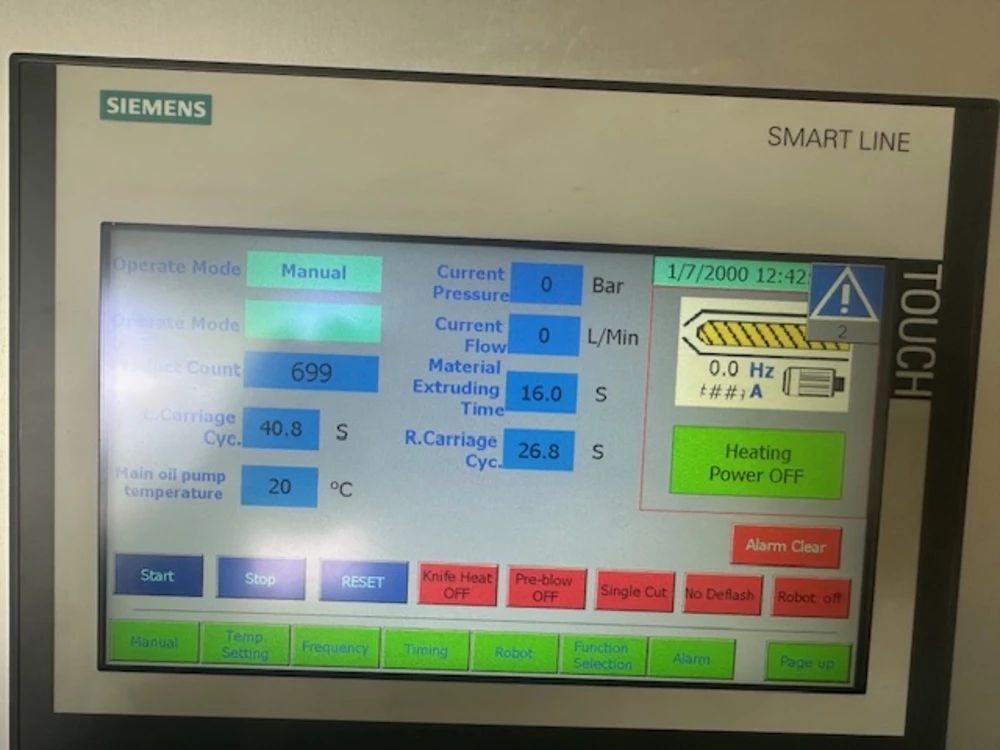

| Control |
Seimens PLC |
| Power Requirement |
480v - 3 ph - 60hz |
Features
|
(2) Conveyors for Flash Removal |

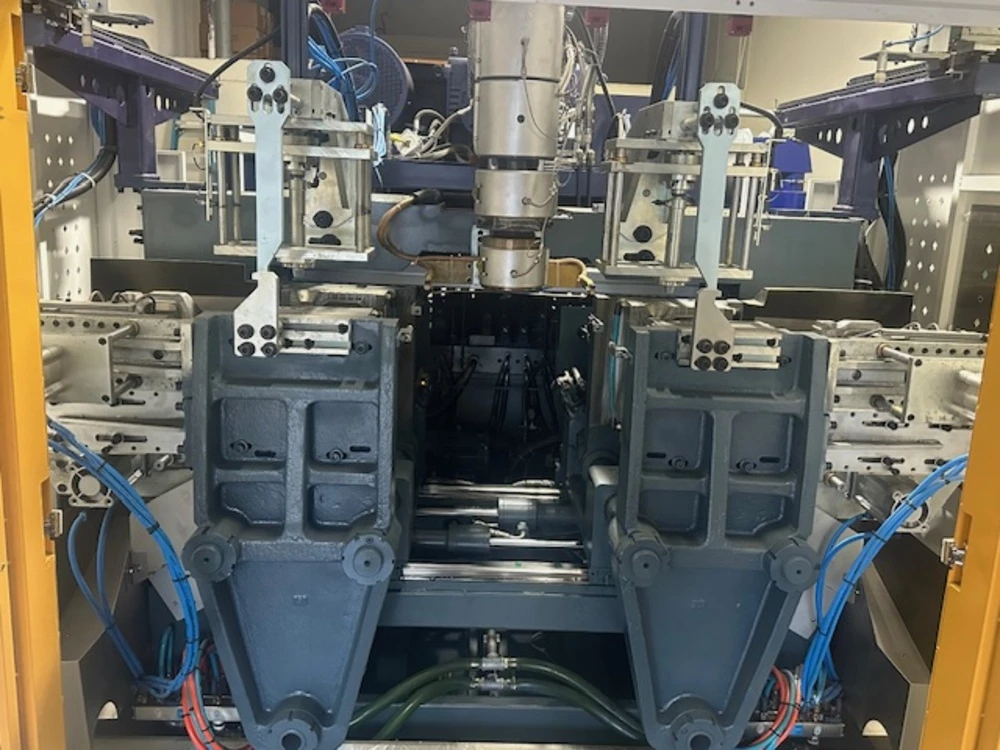

(3) Heads |
|

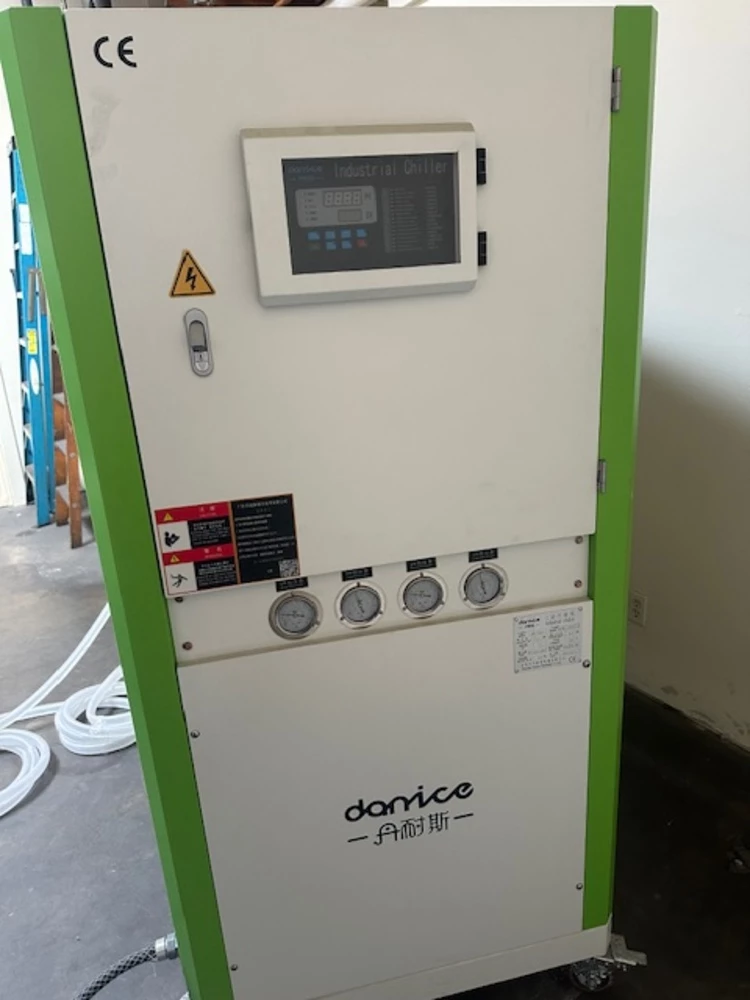

Chilling Unit |
Color Blender |
|
Currently in Operation & Only 50 Hours of Use |

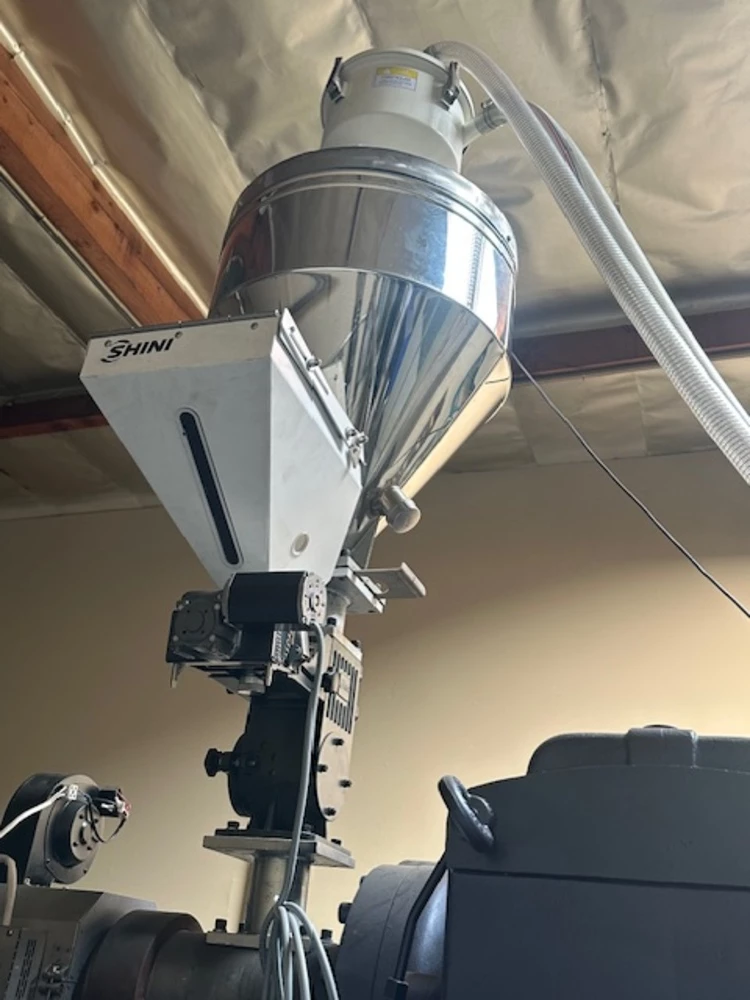

Hopper Loader / Material Blender |
|
Hot Knife & Pre-Pinch Knife |
Lots of Spare Parts (Hyd. Cylinders |
|
Heater Bands |
etc.) |
|

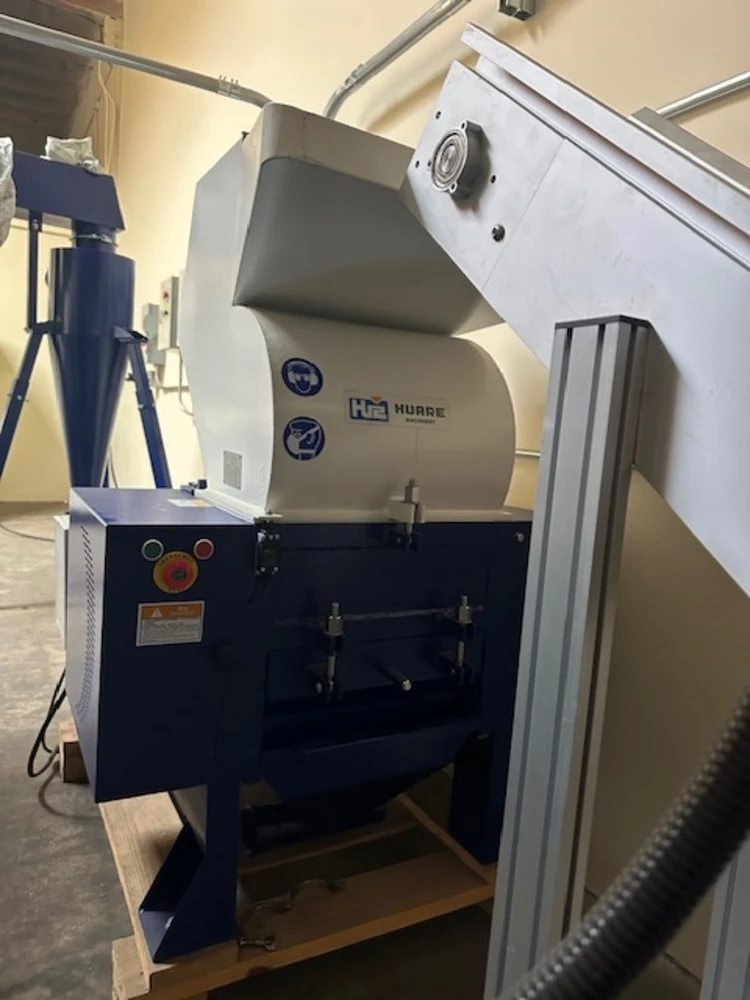

Material Grinder |
Robots w/ Synchronized Conveyor |
|
Air Compressor |
