Year |
2021 |
|---|---|
Make |
Okuma |
Model |
Multus U30002SW/1500 |
Description |
CNC Lathe |
Reference # |
8078742 |
Price |
Activate Pricing |

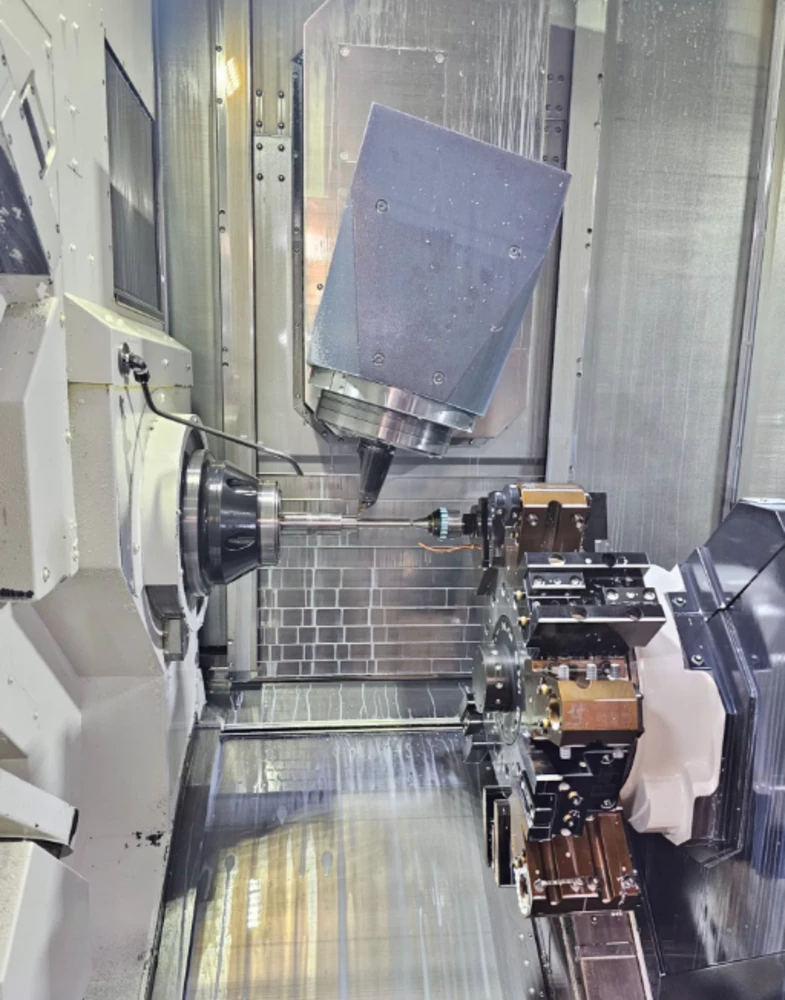

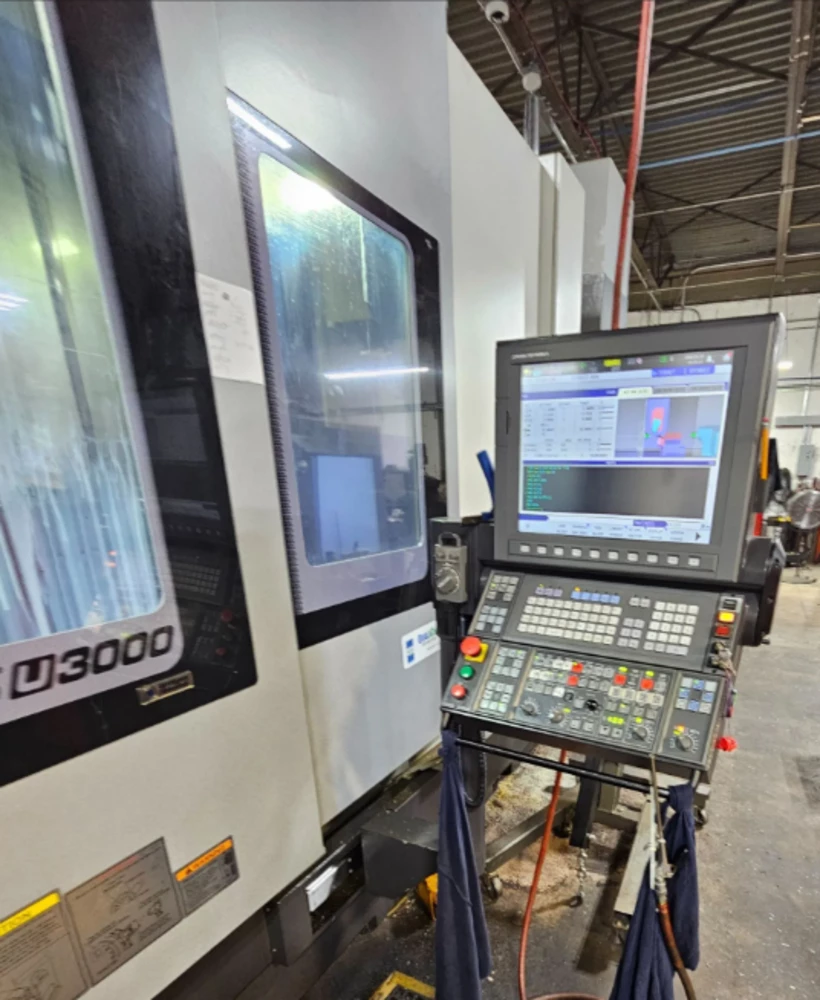

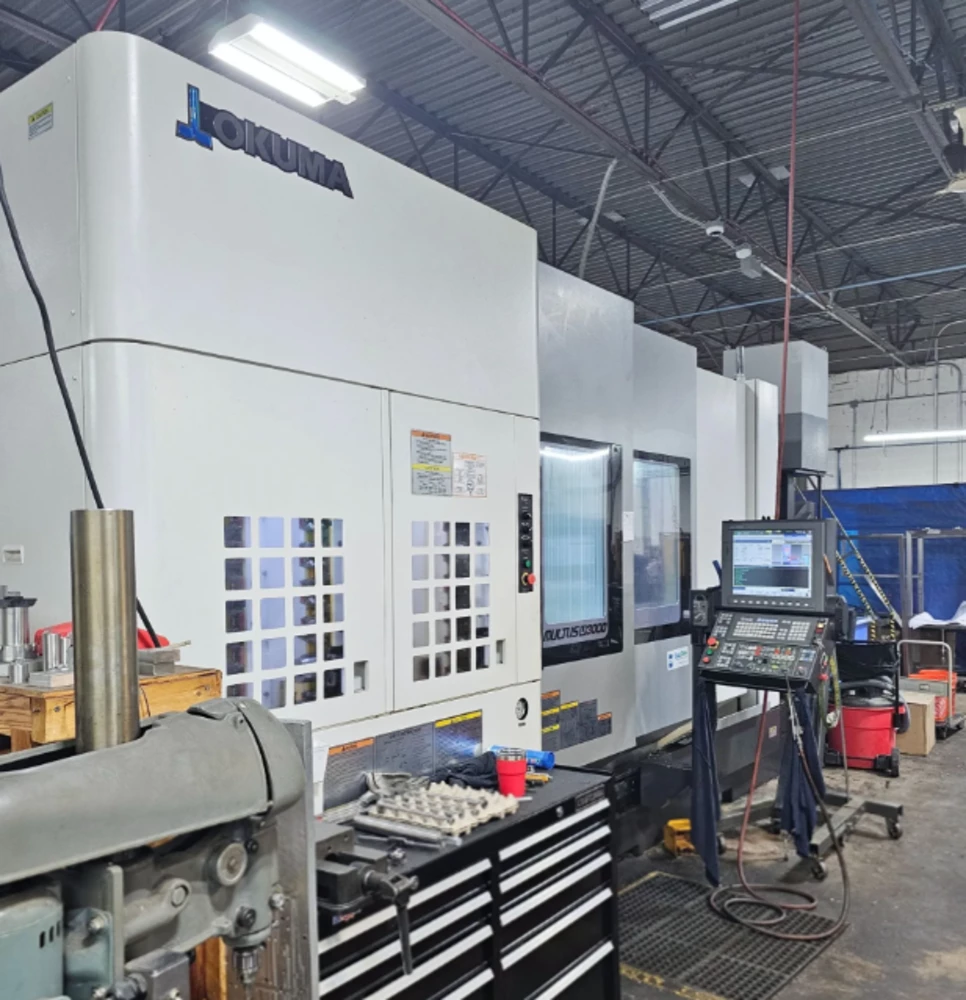

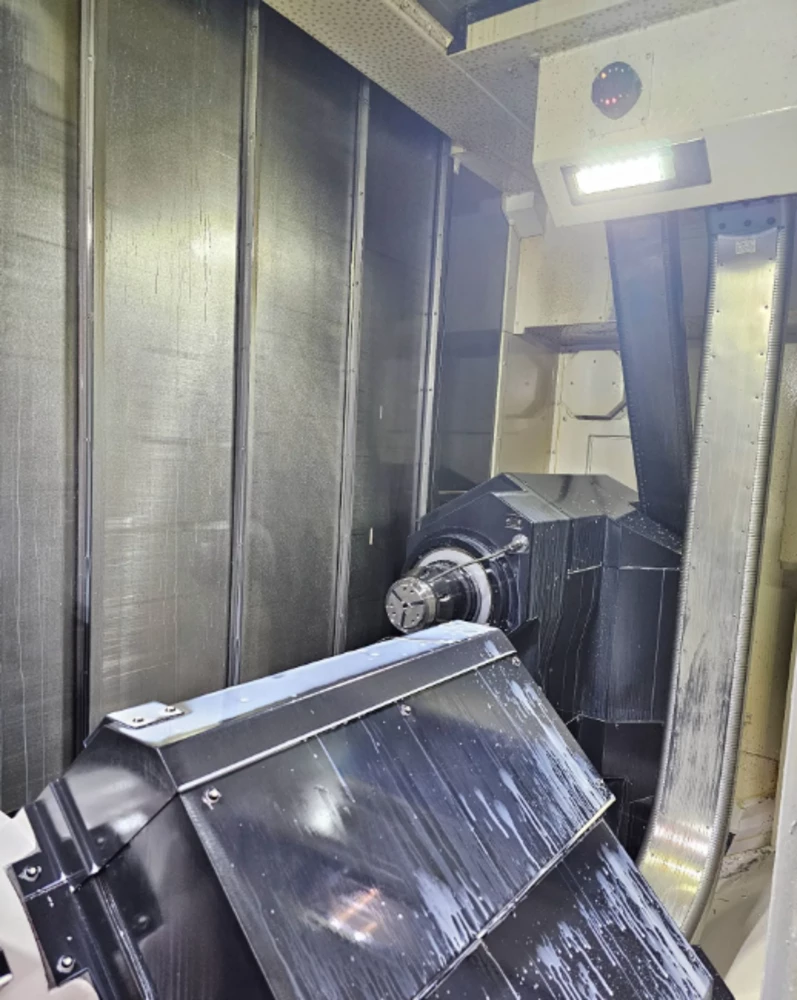

Used Okuma Multus U30002SW/1500 (2021) CNC Lathe for Sale. This multitasking machine runs an Okuma OSP-P300SA-L control with a 10″ chuck, 3.1″ bar capacity, 25.59″ swing and turning diameter, and 59.06″ distance between centers. Spindle speed is 4,200 RPM with a 5000 RPM, 30 HP sub-spindle. Travels are 25.39″ X, 9.84″ Y (+/- 4.92″) and 62.99″ Z, with a 12 station turret, C-axis live tooling and Y-axis. Equipped with 80 tool positions (Capto C6), full 5-axis contouring B-axis milling spindle, Advanced One-Touch IGF, Super NURBS, Renishaw RMP600 auto-gauging probe, MP Systems VF-8 high-pressure coolant, Niagara shower coolant, Exo-Mist mist collector, Royal QG-80 and QG-65 collet chucks, auto tool presetter, 2-speed gearbox and chip conveyor. Available for inspection under power. See more used CNC lathes and Okuma machines, Activate Pricing, or Request a Quote.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3.1" |
| Swing |
25.59" |
| Turning Diameter |
25.59" |
| Spindle Speed |
4,200 RPM |
| Control |
Okuma OSP-P300SA-L |
| Distance Between Centers |
59.06" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
5000 RPM 30 HP |
| Chip Removal |

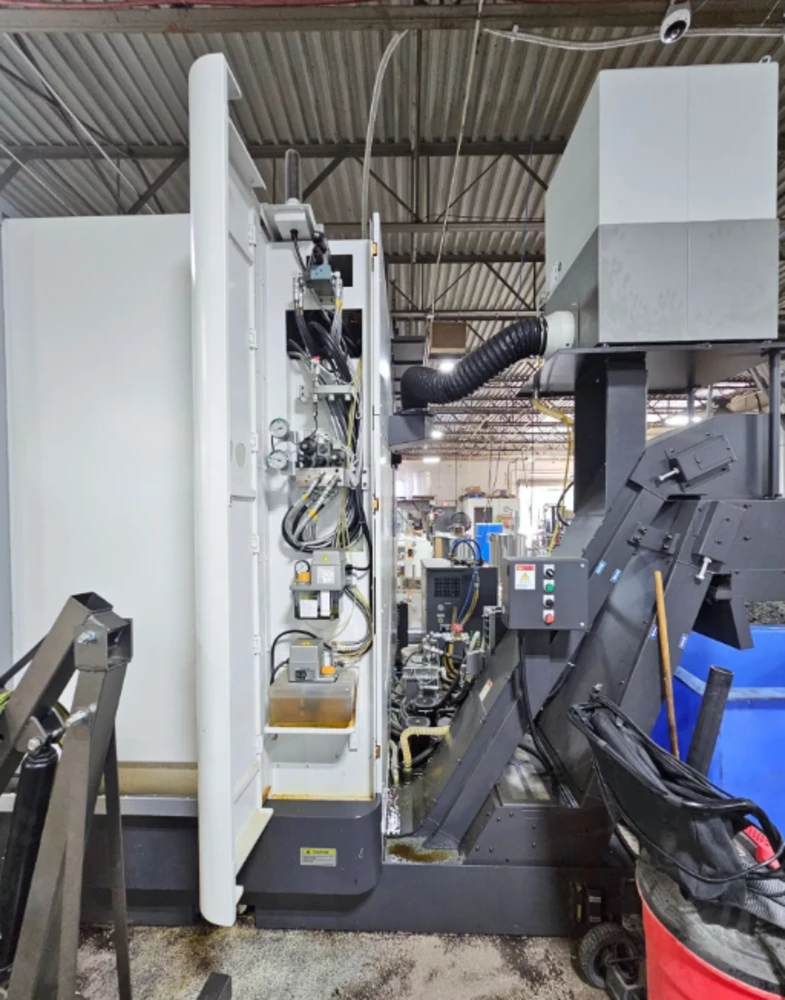

Chip Conveyor |
| X-Axis Travel |
25.39" |
| Y-Axis Travel |
9.84" (+/- 4.92") |
| Z-Axis Travel |
62.99" |
Features
|

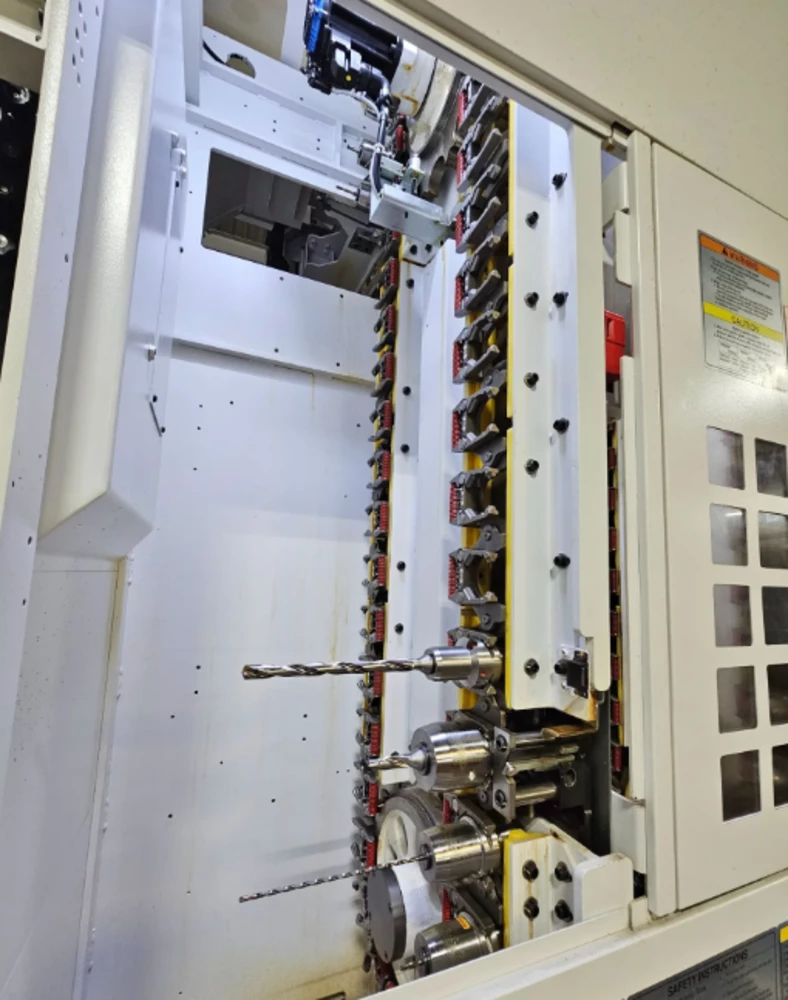

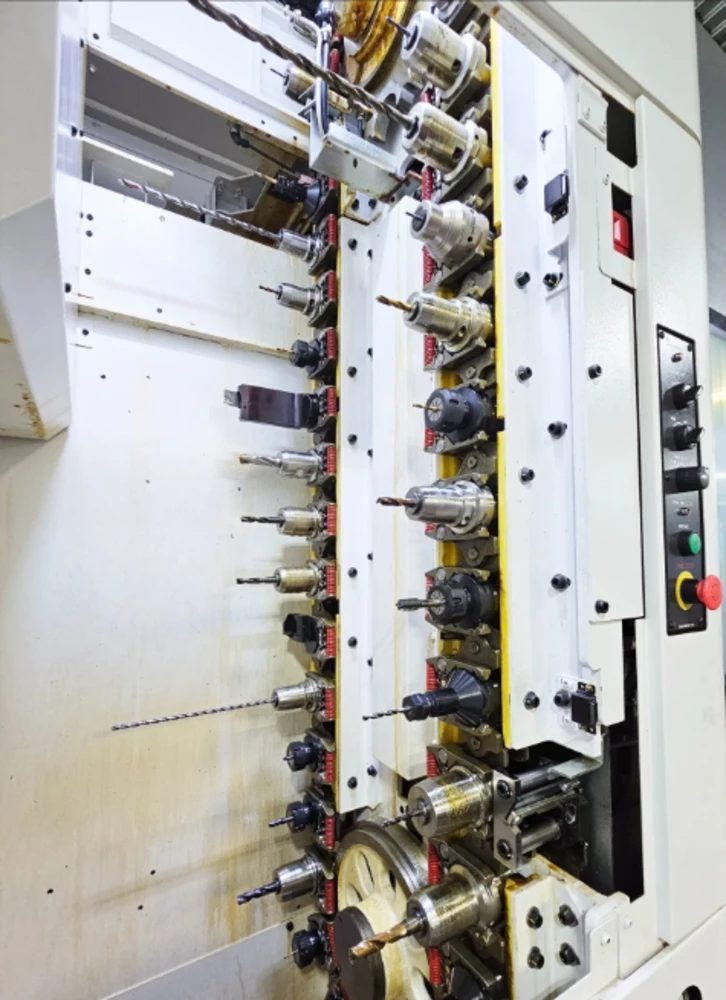

80-Tool Positions (Capto C6) |
Advanced One-Tough IGF |
|
C-Axis Auto Zero Offset Function (Both Spindles) |
C-Axis Sync (Both Spindles) |
|

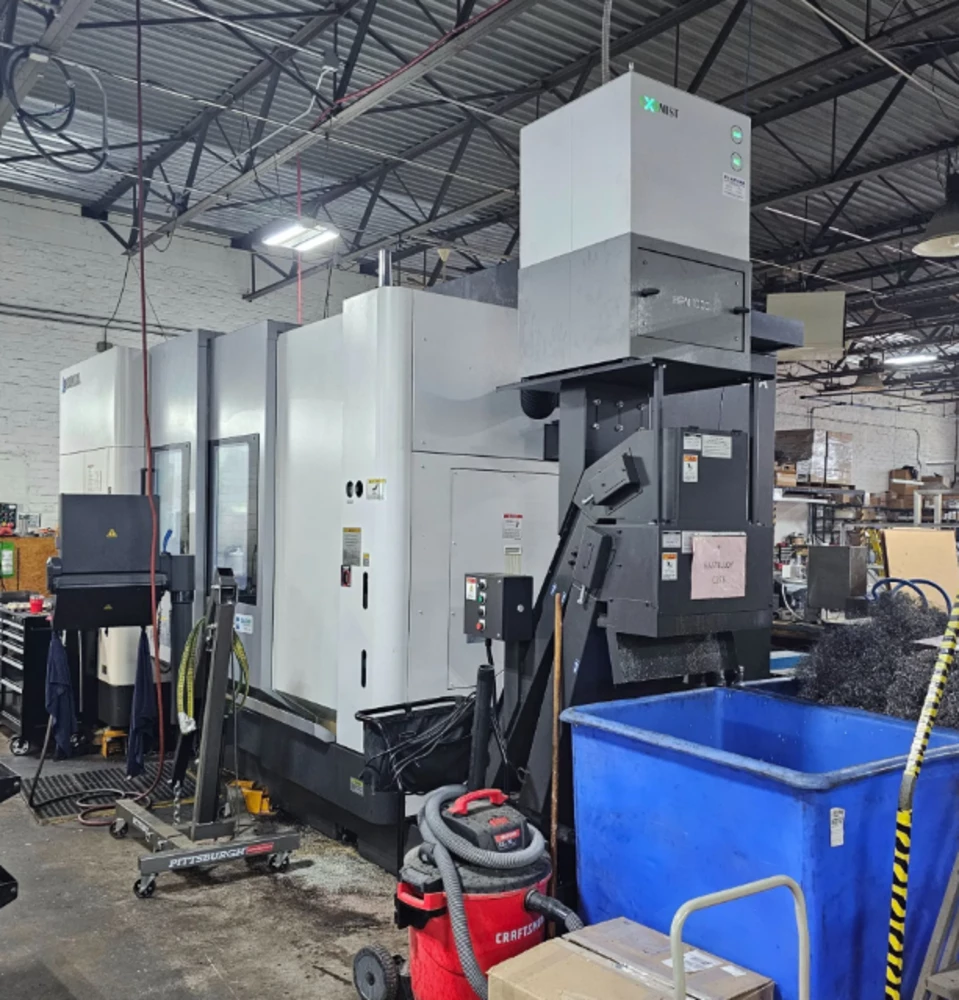

Exo-Mist Mist Collector |
Full 5-Axis Contouring B-Axis Milling Spindle |
|
Lower Turret Static |

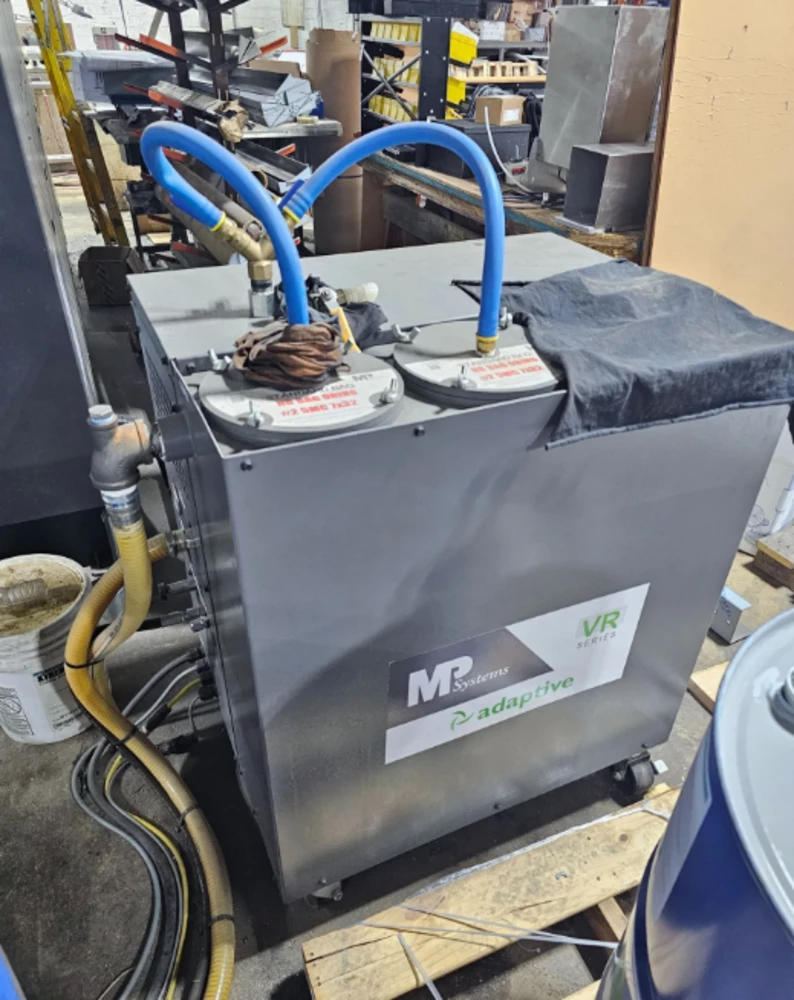

MP Systems (Vf-8) High-Pressure Coolant Unit |
|
Multi-Edge Lathe Tool Index Function |
Negative Tool Radius Compensation |
|
Niagara Shower Coolant |
Renishaw Rmp600 Auto-Gauging Probe |
|
Royal Qg-65 Collet Chuck (Sub) |
Royal Qg-80 Collet Chuck (Main) |
|
Super Nurbs (X+/Y+/Z+/C+/B) |
Thermo Friendly Concept (Spindles & Casting) |
|
Y-Axis Gauging With Slope Gauging |
Z-Axis Auto Zero Offset Function (Both Spindles) |
|
2-Speed Gearbox |
Auto Tool Presetter |
|
Big Bore |
