Year |
2020 |
|---|---|
Make |
V-Shapes |
Model |
Alpha |
Description |
Automatic Liquid Vertical Form Fill Sealing Machine |
Reference # |
8077443 |
Price |
Activate Pricing |

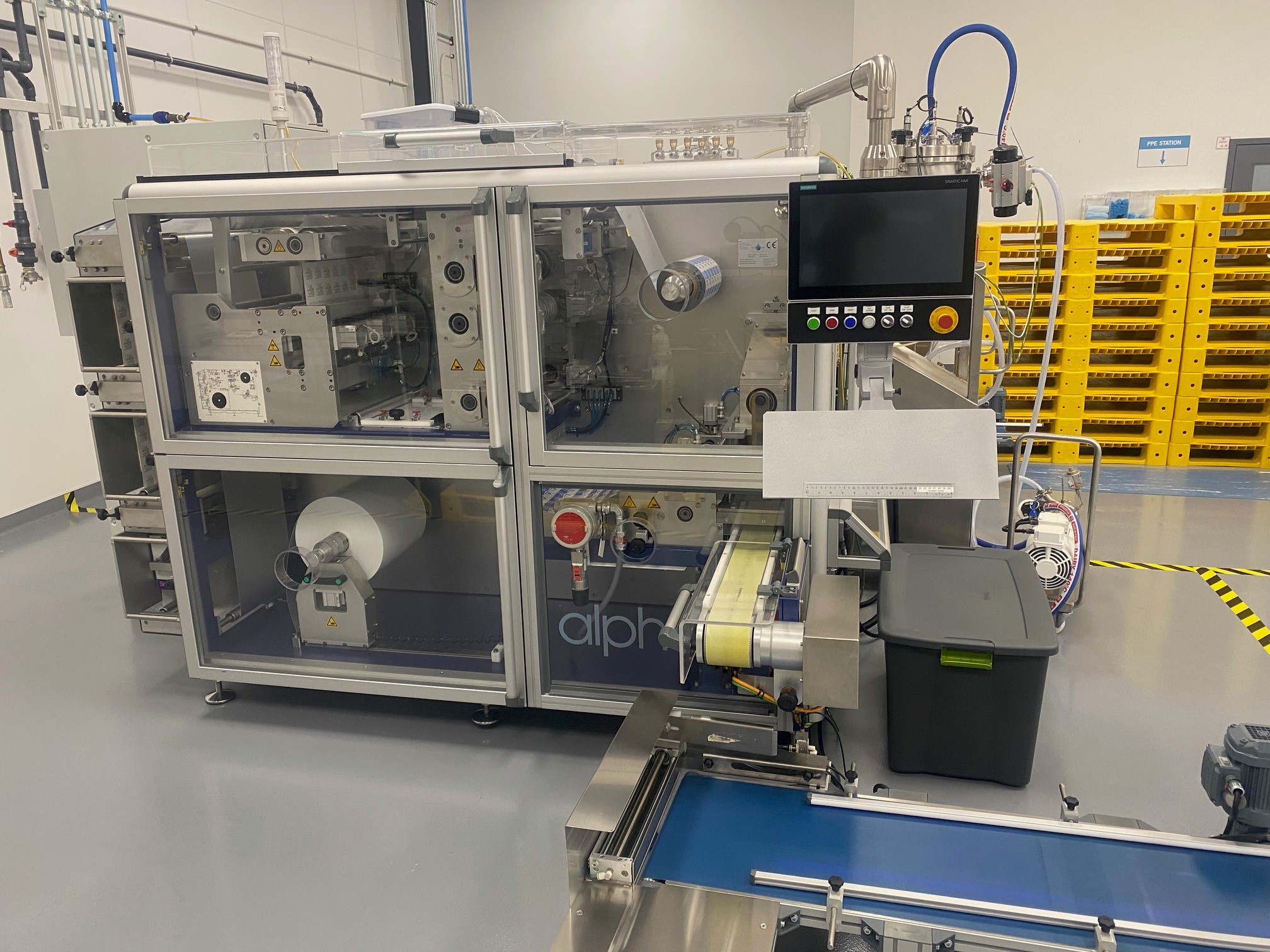

Used V-Shapes Alpha (2020) Other Equipment for Sale. This six-lane sachet filling and sealing machine handles fill volumes from 0.2 mm (0.0068 fl oz) up to 30 mm (1.014 fl oz), with packet dimensions ranging from 40mm W x 50mm H (1.57 in x 1.97 in) to 100mm W x 100mm H (3.94 in x 3.94 in). Film reel speed runs up to 5,000 mm/Min (196.85 IPM), and the product hopper holds 15 Liters (3.96 Gallons). Air requirement is 7 Bar and power requirement is 50/60hz 400V. The unit is equipped with stainless steel touch points. The machine can be seen under power for an inspection. If the specifications suit your application, Request a Quote and we will follow up with details.
Specifications
| Min/Max Fill Volume |
0.2 mm ( 0.0068 fl oz) / 30mm (1.014 fl oz) |
|---|---|
| Min/Max Packet Dimensions |
40mm W x 50mm H (1.57 in x 1.97 in) / 100mm W x 100mm H (3.94 in x 3.94 in) |
| Number of Lanes |
6 |
| Film Reel Speed |
up to 5,000 mm/Min (196.85 IPM) |
| Product Hopper Capacity |
15 Liters (3.96 Gallons) |
| Air Requirements |
7 Bar |
| Power Requirement |
50/60hz 400V |
Features
|
Stainless Steel Touch Points |
