Year |
2020 |
|---|---|
Make |
RMT |
Model |
S-Smart CS 22-24 |
Description |
Fully Automatic Twin Pillar Horizontal Band Saw |
Reference # |
8077327 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

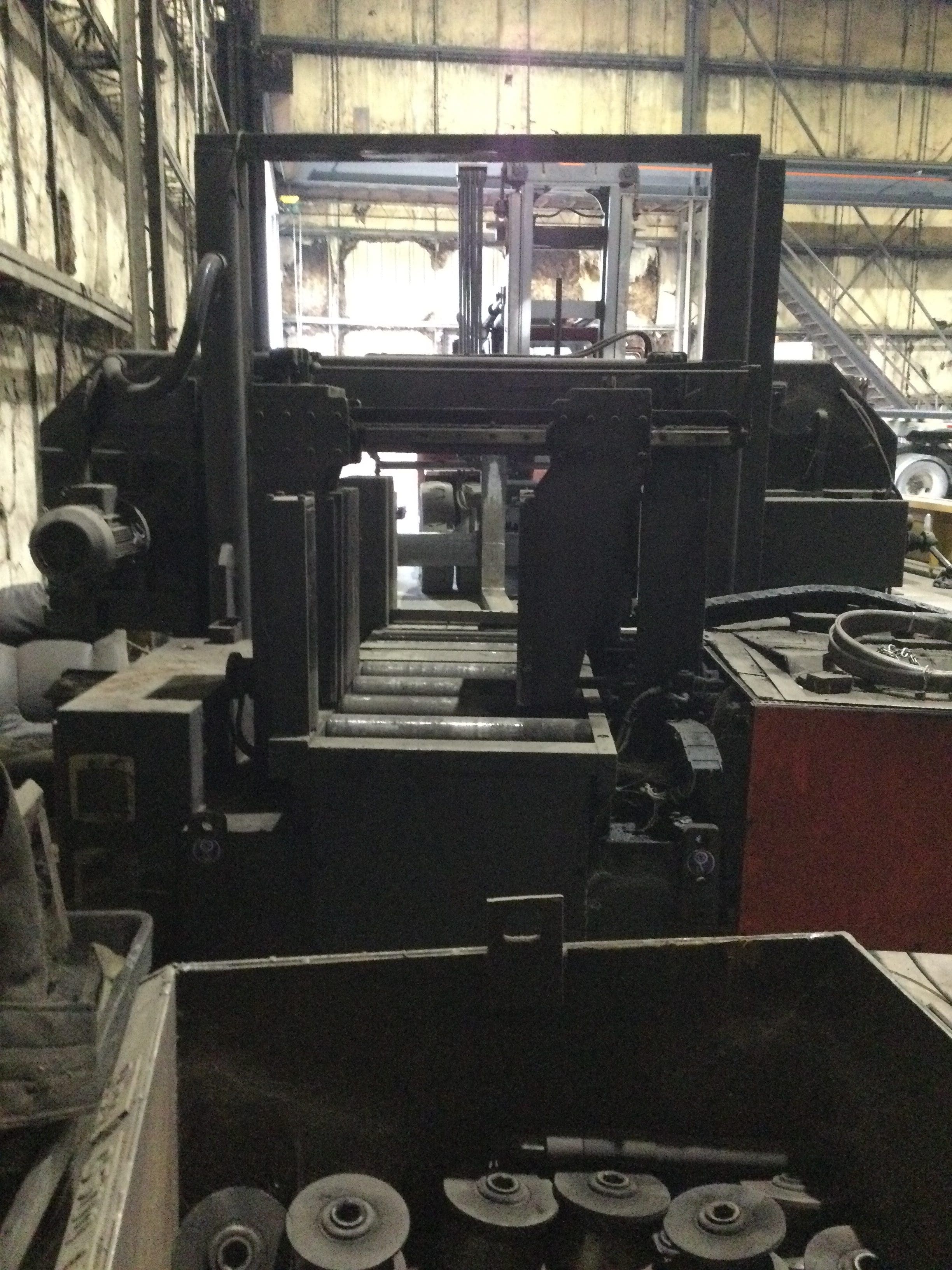

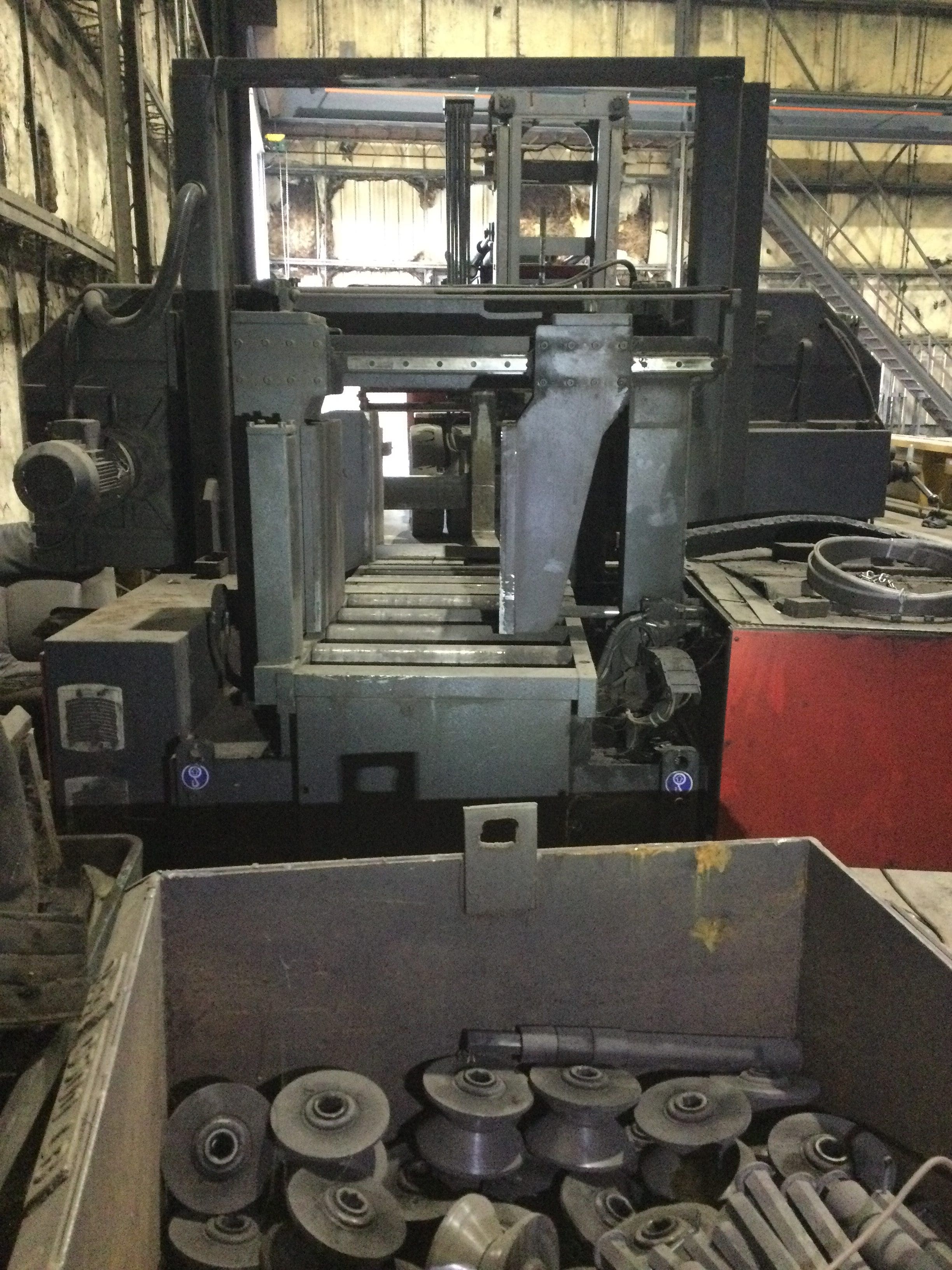

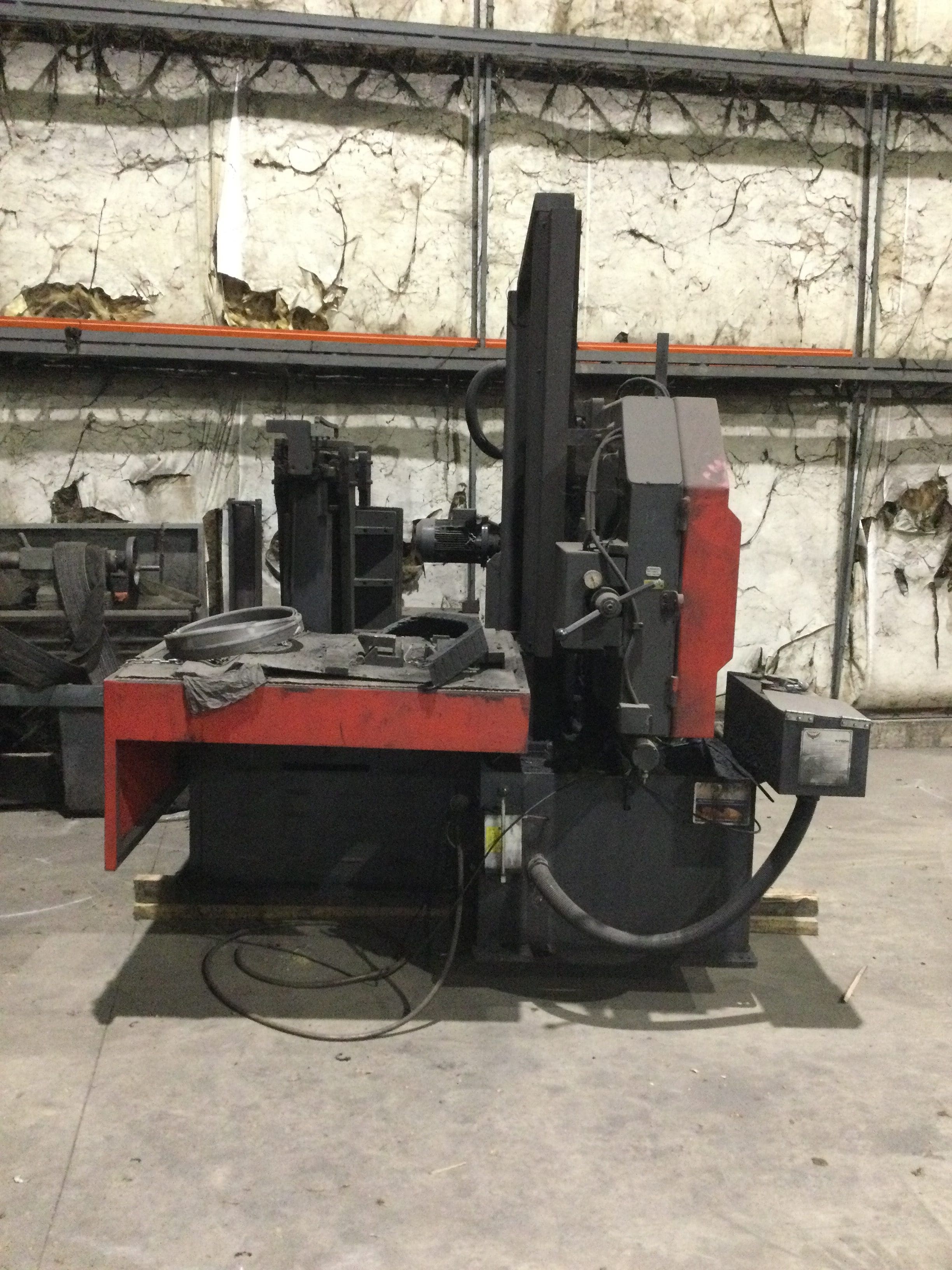

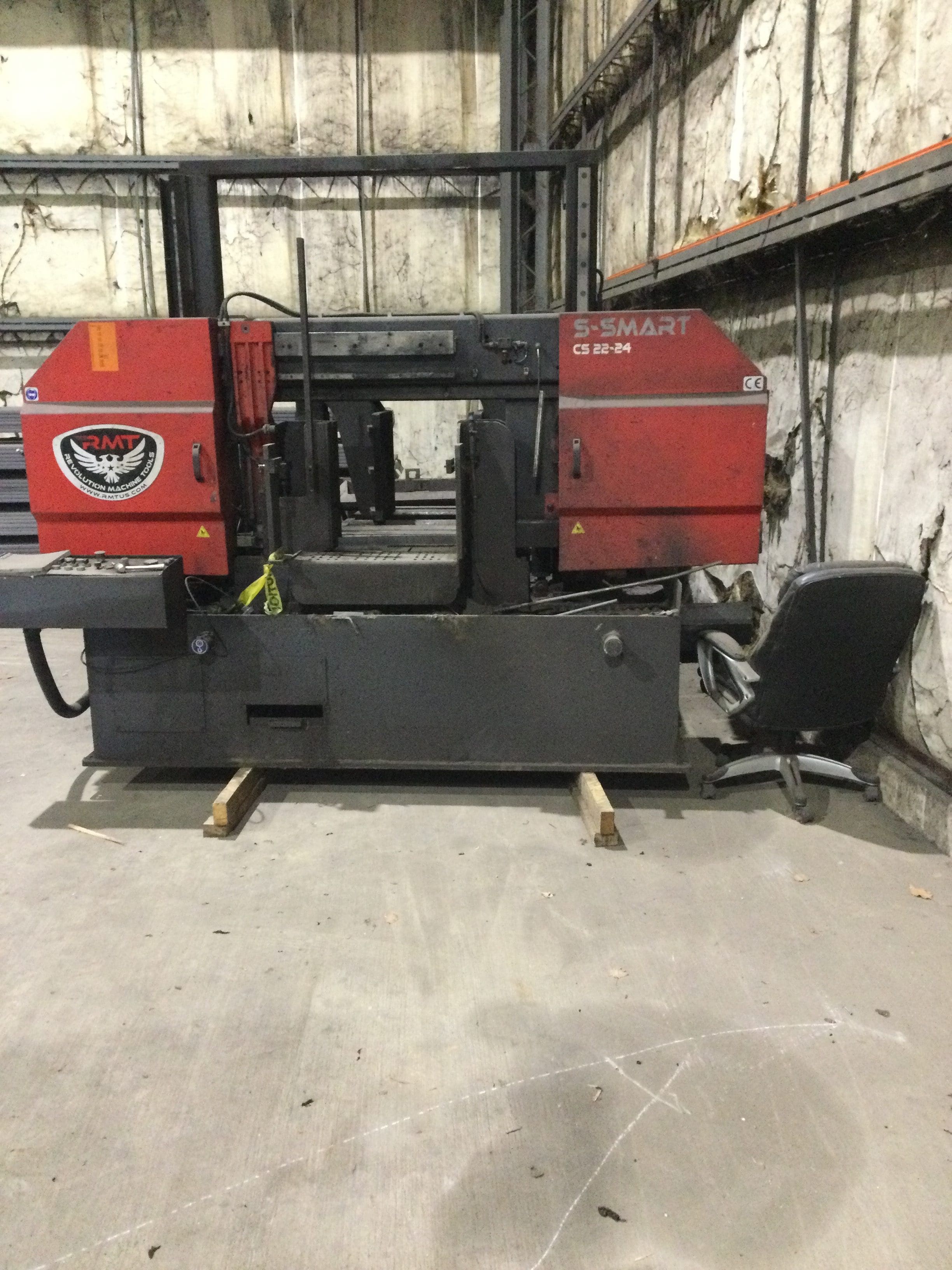

Used RMT S-Smart CS 22-24 (2020) Bandsaw for Sale. This double column saw cuts 22″ x 24″ square capacity and 22″ rounds, with blade speed variable from 42 to 200 FPM. Blade dimensions are 236.2″ x 1.5″, driven by a 10 HP motor on 460v – 3 – 60 Hz power. Working height of the saw is 31.8″. Equipped with linear way double column saw motion, a user friendly touch screen control, coolant pump, and chip conveyor for chip removal. Machine dimensions are 128″ x 87″ x 94″ with a machine weight of 9,680 lbs. The saw can be seen under power for an inspection. See more listings in our used saws category, [Activate Pricing](#activate-pricing) to view the figure, and Request a Quote for full details.
Specifications
| Capacity Square |
22" x 24" |
|---|---|
| Capacity Rounds |
22" |
| Blade Speed |
42-200 FPM |
| Blade Dimensions |
236.2" x 1.5" |
| Motor |
10 HP |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
460v - 3 - 60 Hz |
| Working Height of Saw |
31.8" |
| Machine Weight |
9,680 Lbs |
| Machine Dimensions |
128" x 87" x 94" |
Features
|
Linear Way Double Column Saw Motion |
User Friendly Touch Screen Control |
|
Coolant Pump |
