Year |
2020 |
|---|---|
Make |
Baileigh |
Model |
PR-509-4 |
Description |
Plate Roll |
Reference # |
8078261 |
Price |
Activate Pricing |

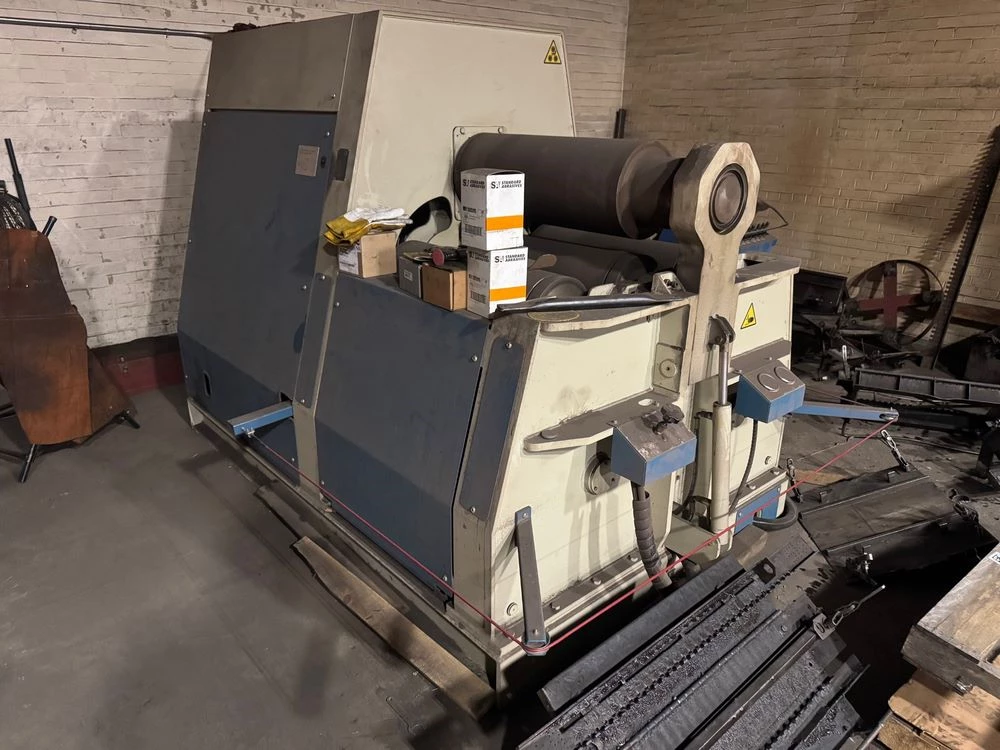

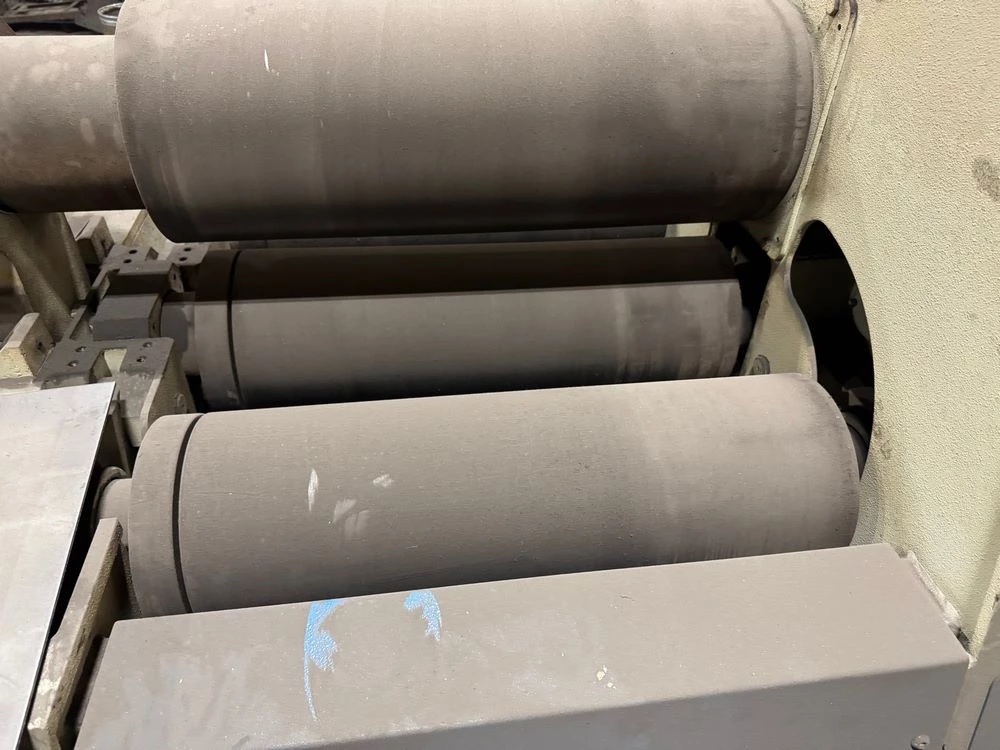

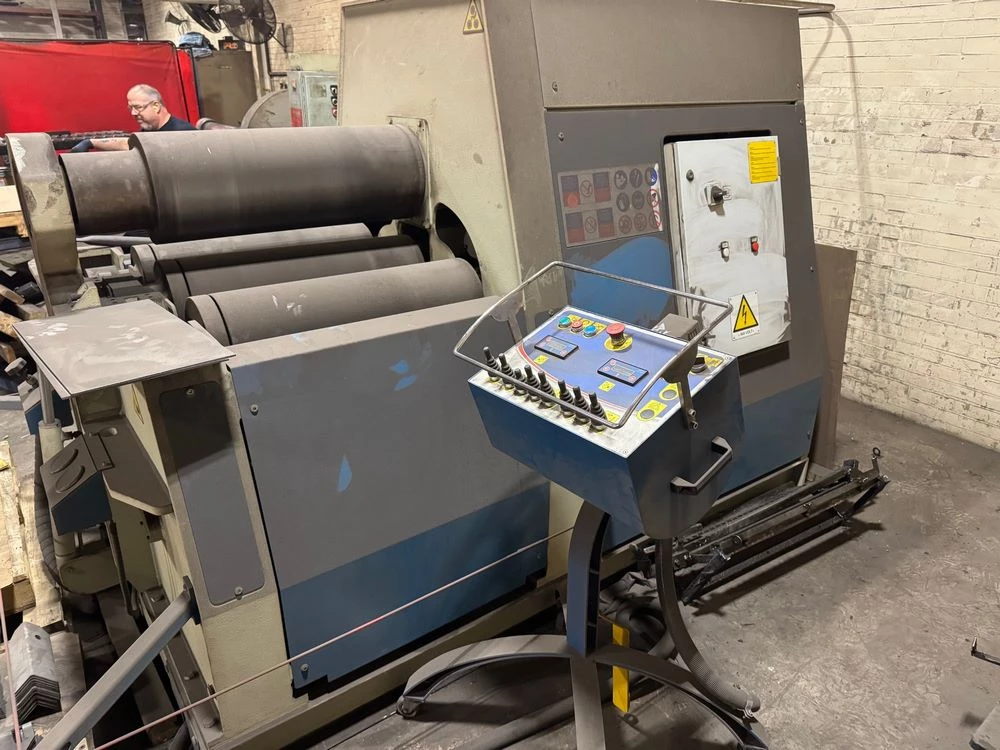

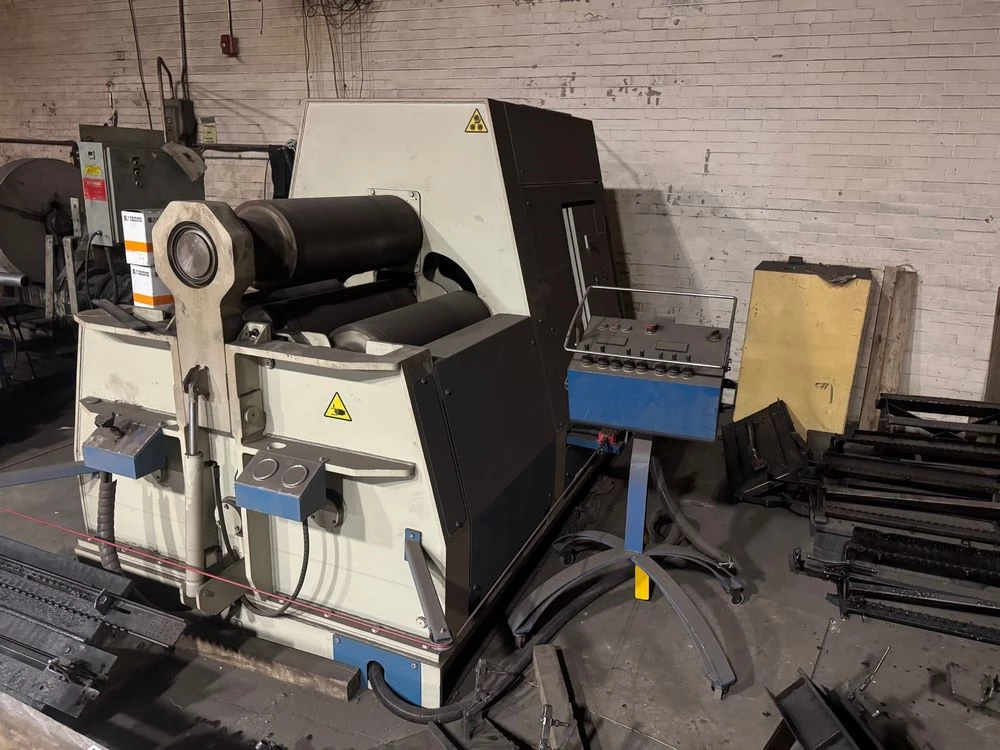

Used Baileigh PR-509-4 (2020) Plate Rolls for Sale. This is a four-roll plate roll with a maximum rolling width of 59″ and a working speed of 16 Ft/Min. Maximum bending thickness is listed at 157″, with maximum pre-bending thickness of .118″. Roll diameters are 5.11″ on the top roll, 4.72″ on the lower roll, and 4.13″ on the side rolls. The four-roll configuration handles pre-bending and rolling in a single setup, which suits shops running repeat cylinder and radius work in sheet and light plate. The machine can be seen under power for an inspection, so you can verify operation and roll travel before committing. If this Baileigh PR-509-4 fits your requirements, Request a Quote and we will follow up with details.
Specifications
| Number of Rolls |
4 |
|---|---|
| Max Rolling Width |
59" |
| Max Bending Thickness |
157" |
| Max Pre-Bending Thickness |
.118" |
| Top Roll Diameter |
5.11" |
| Lower Roll Diameter |
4.72" |
| Side Roll Diameter |
4.13" |
| Working Speed |
16 Ft/Min |
