Year |
2019 |
|---|---|
Make |
Shopsabre |
Model |
IS510 |
Description |

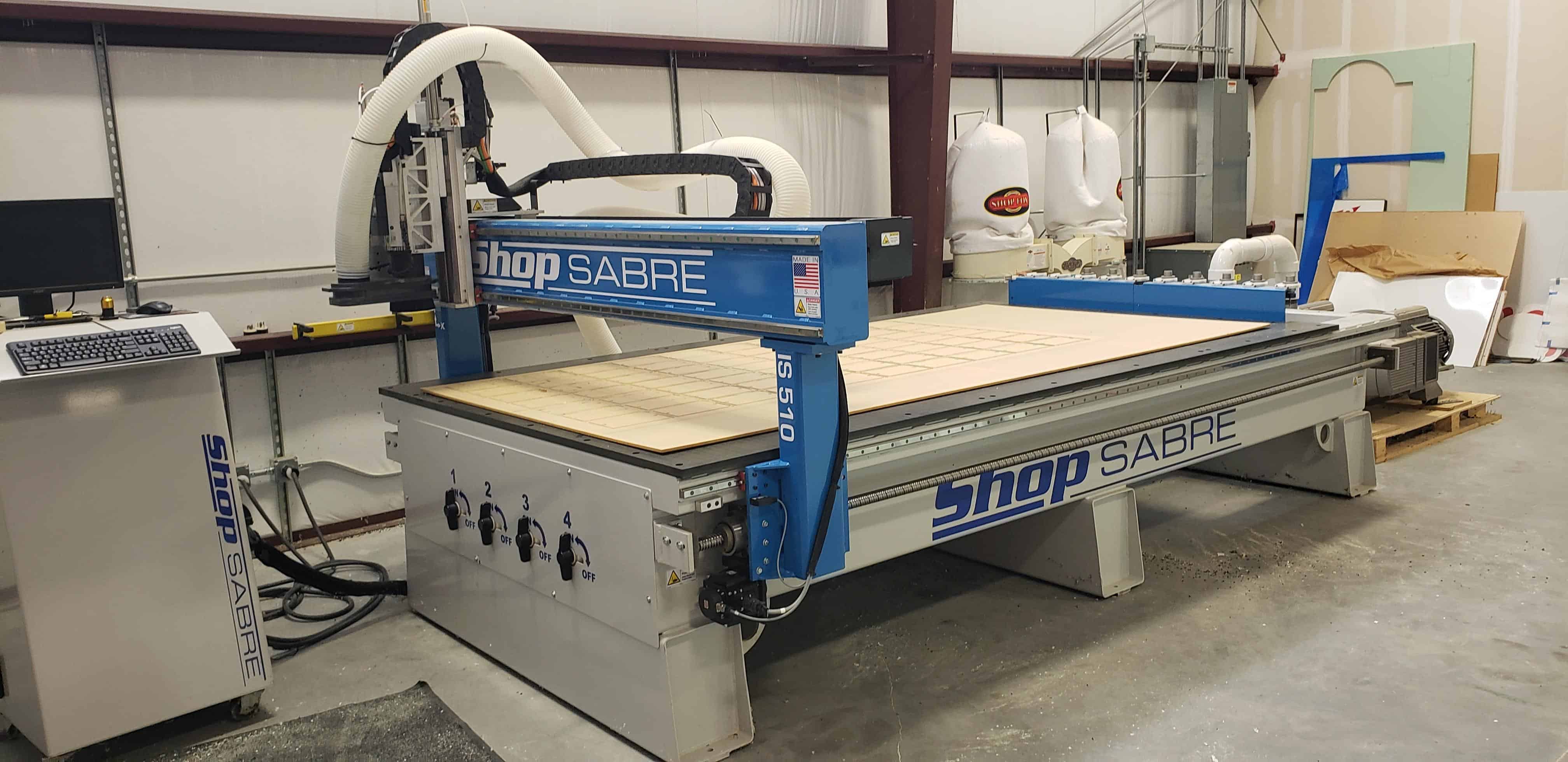

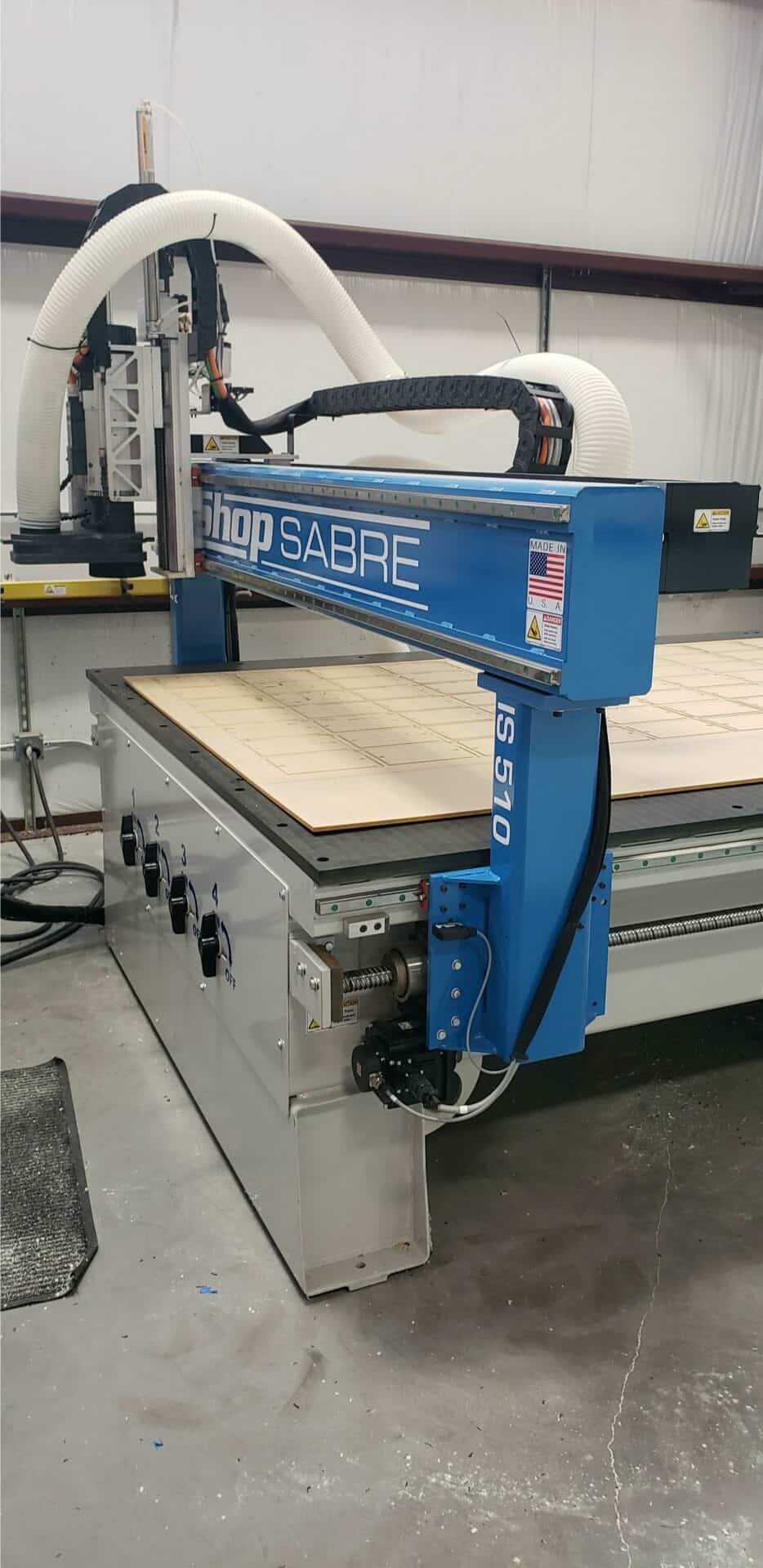

CNC Router |
Reference # |
8070233 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
65" |
|---|---|
| Table Length |
125" |
| Tool Changer |
(10) Position, ER32 Collets, HSK Cones, Tool Forks |
| Phenolic Table w/ Vacuum |
(4) Zone Vacuum Manifold |
| Industrial Pop-up Table Ref. Pins |
(3) on Left Side & (2) Along Front |
| Y-Axis |
Dual Drive |
| Anti-Backlash Mounted Ball Screws |
X, Y & Z |
| Drives |
Digital A/C Brushless Servo Motors |
| Spindle |

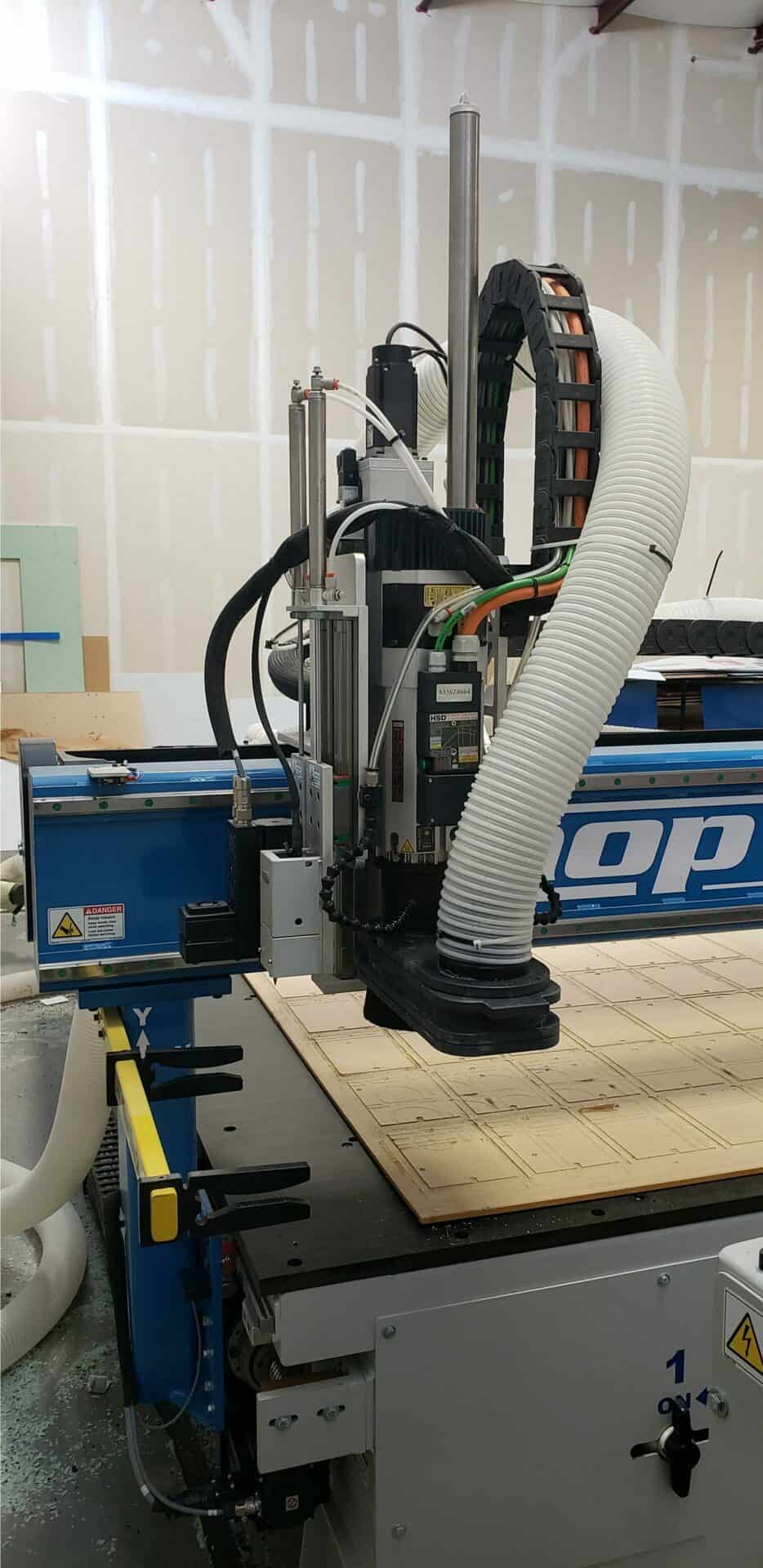

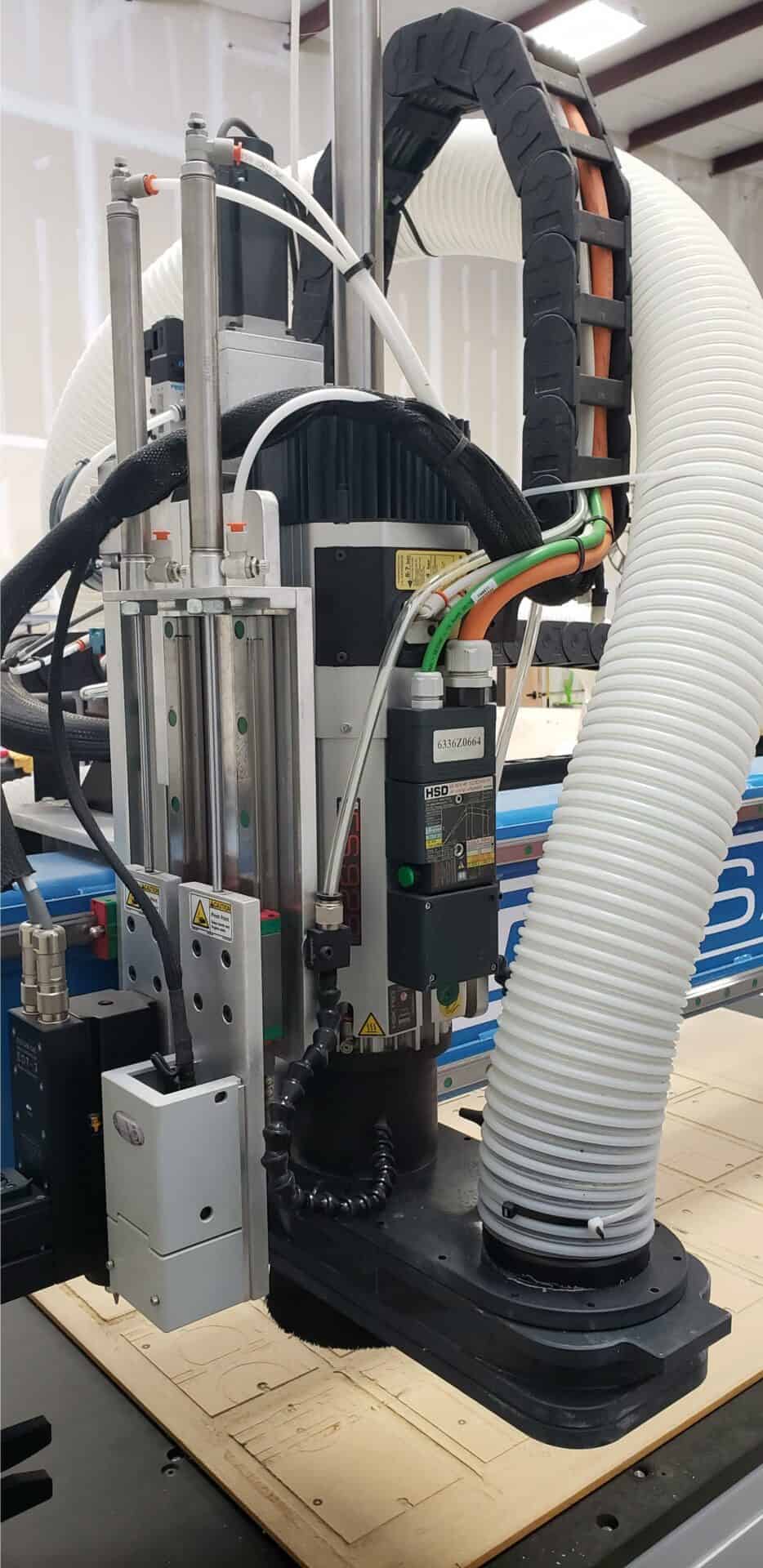

HSD HSK F63 ATC Spindle |
| Horsepower |
10 hp @ 24,000 rpm |
Features
|

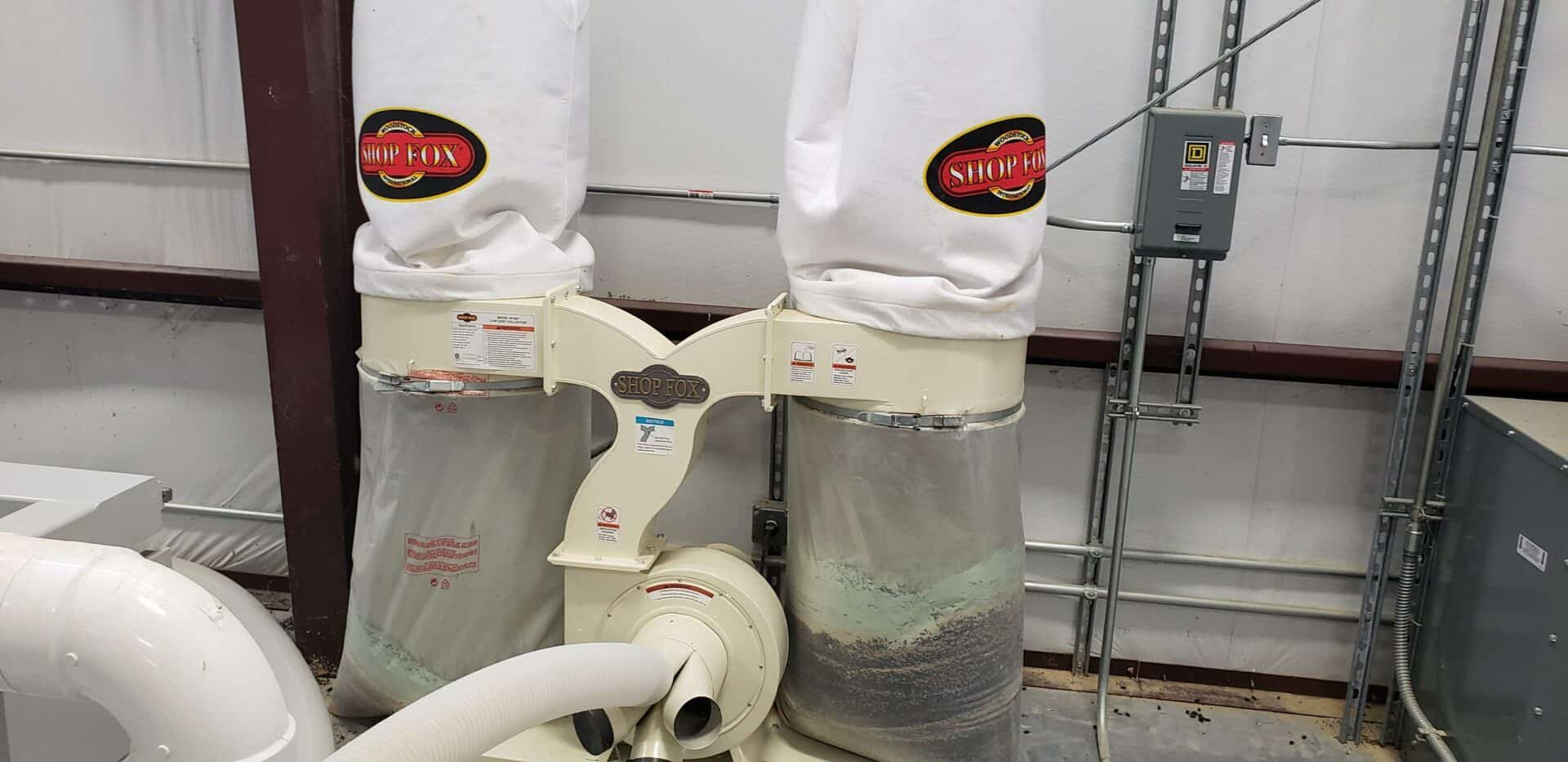

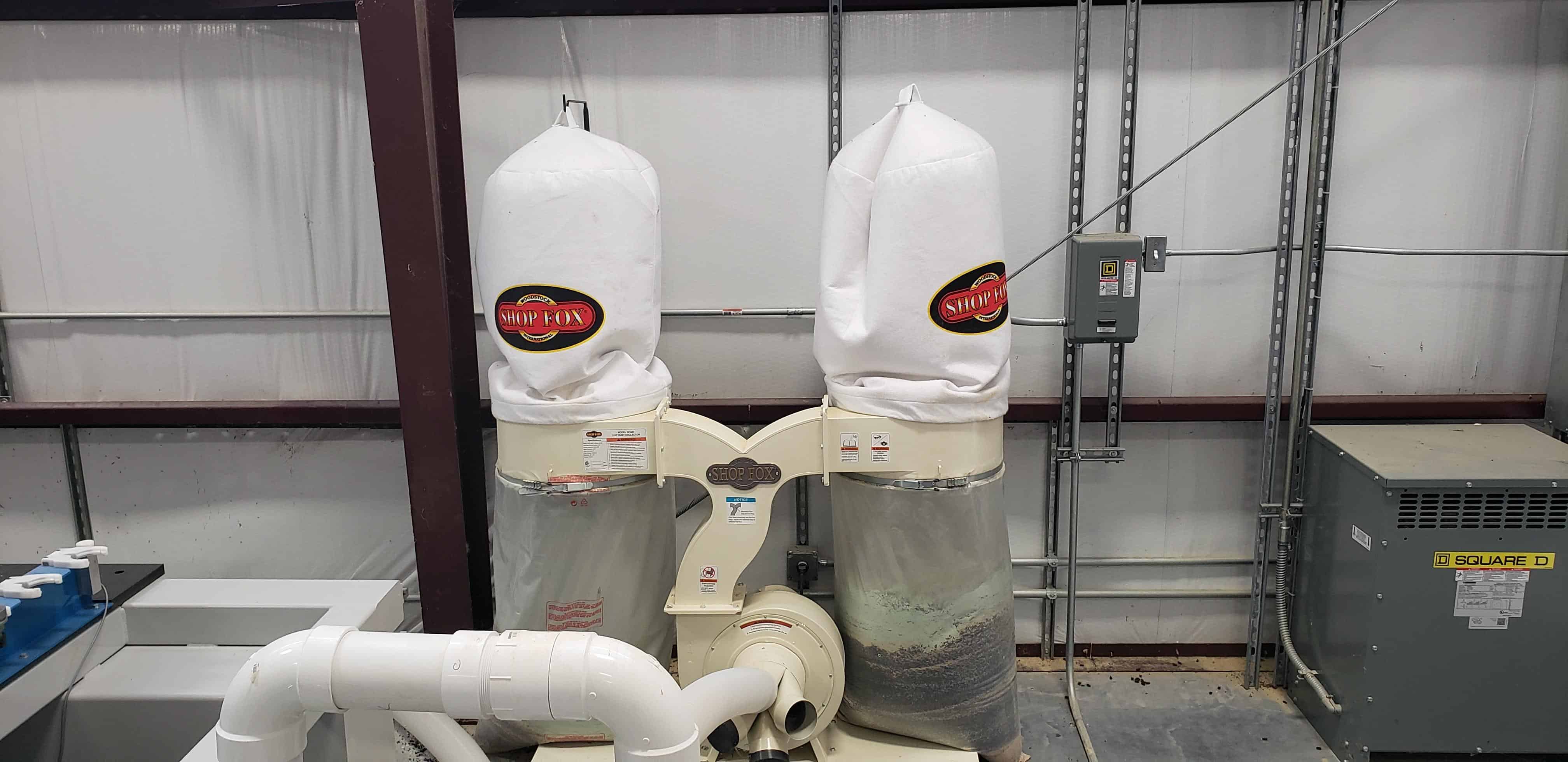

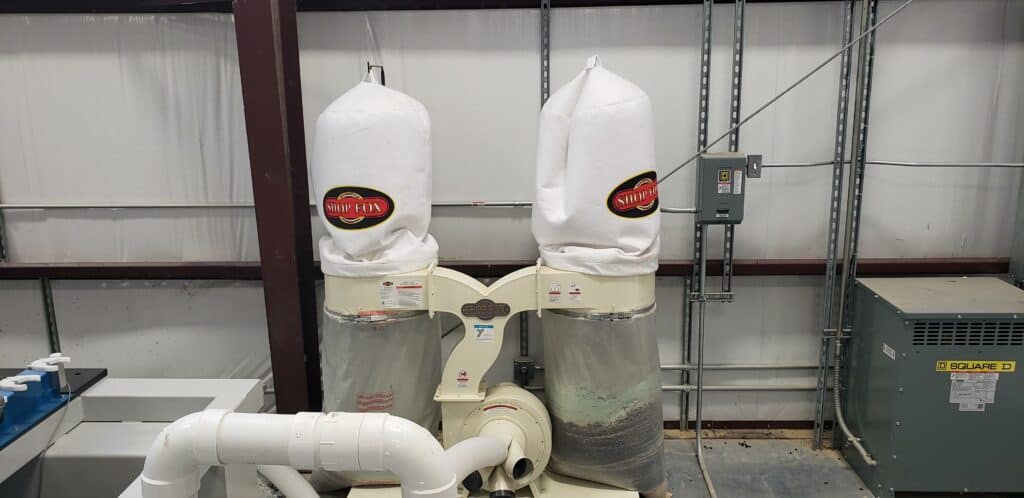

Quick Release Dust Skirt - 4" Outlet for Connecting to Dust Collector |

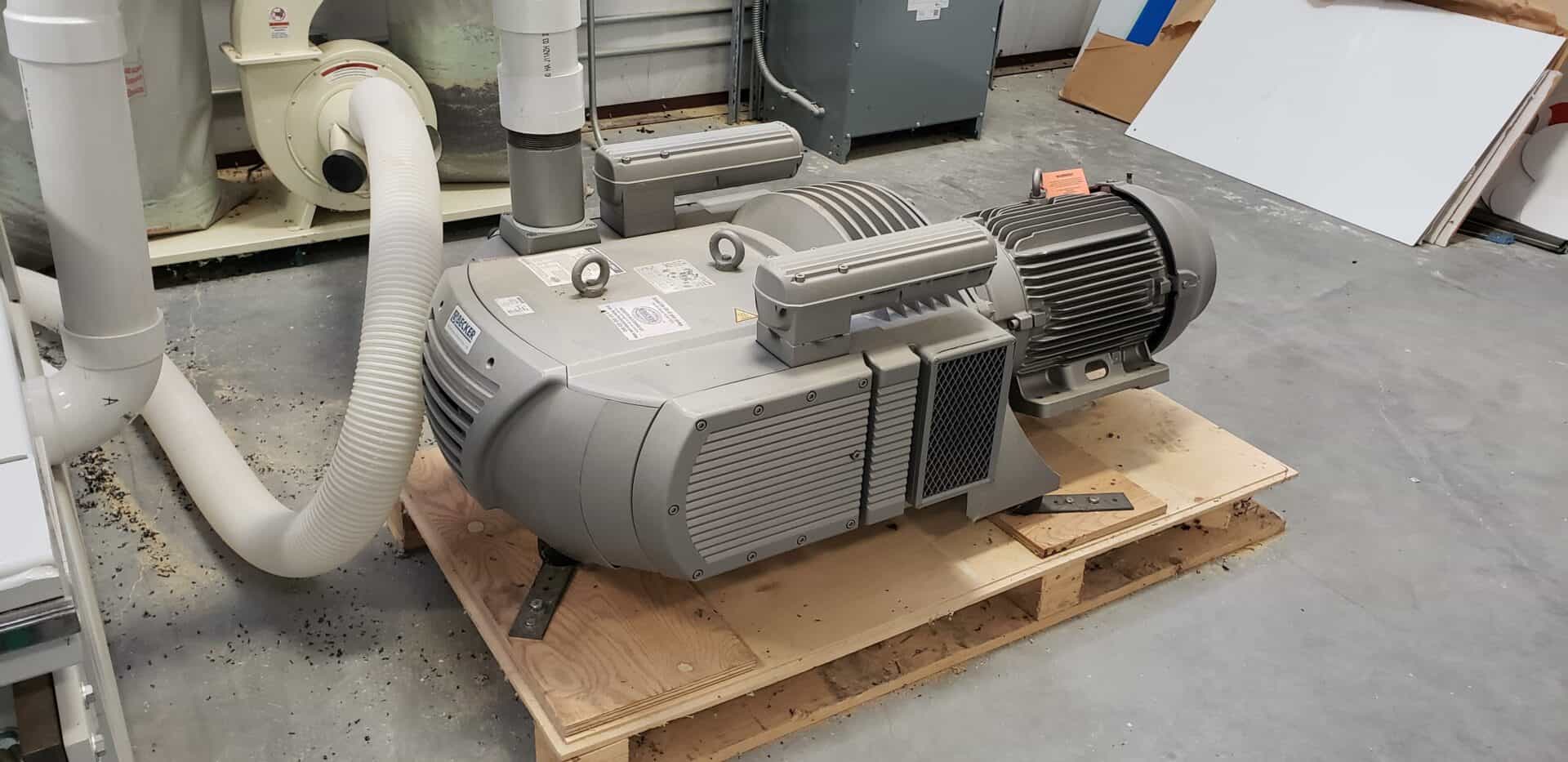

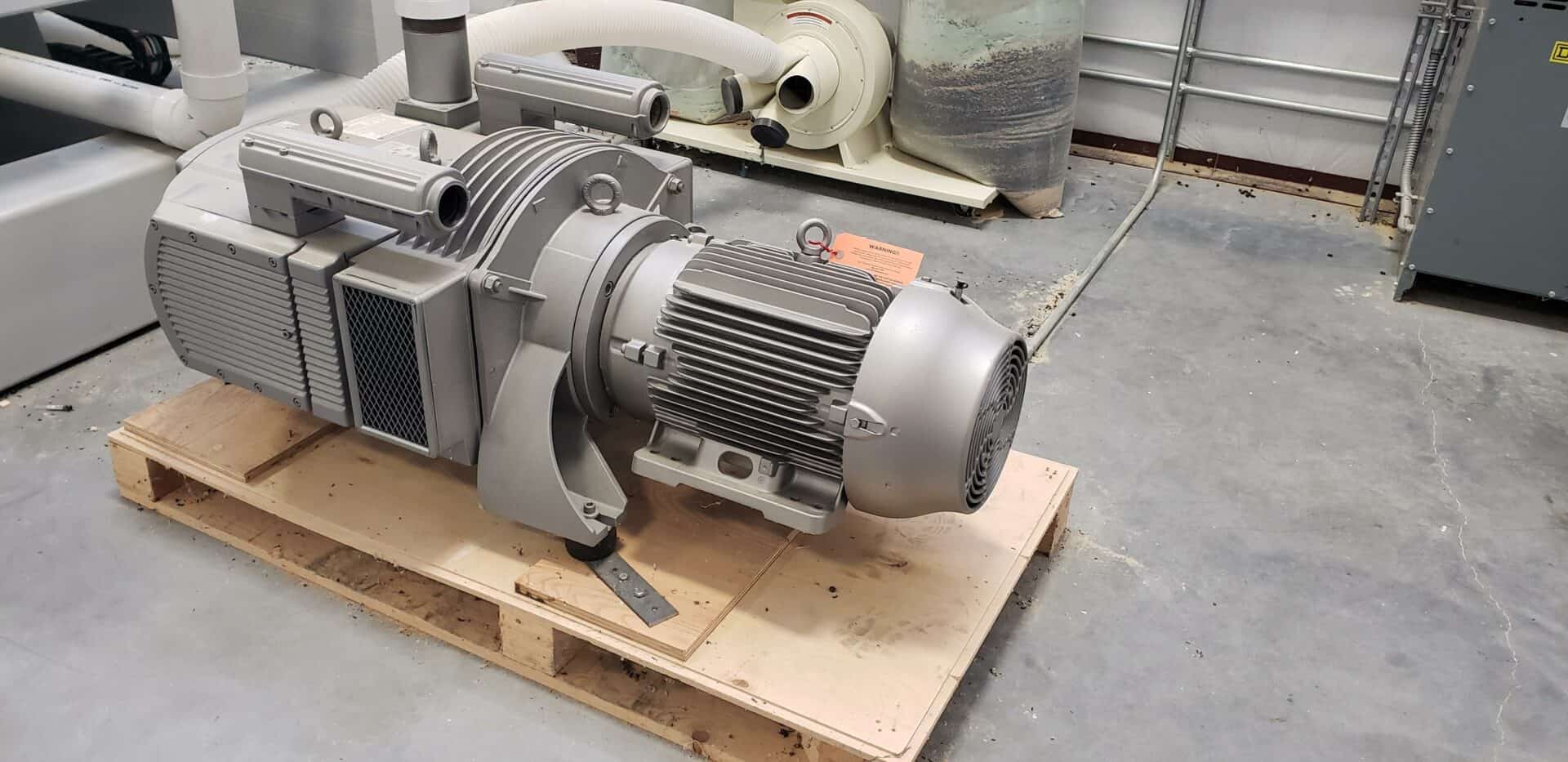

15HP Becker Model VTLF 2.400 Rotary Vane Vacuum Pump |
|
ShopSabre CNC Tangential Oscillating Knife |

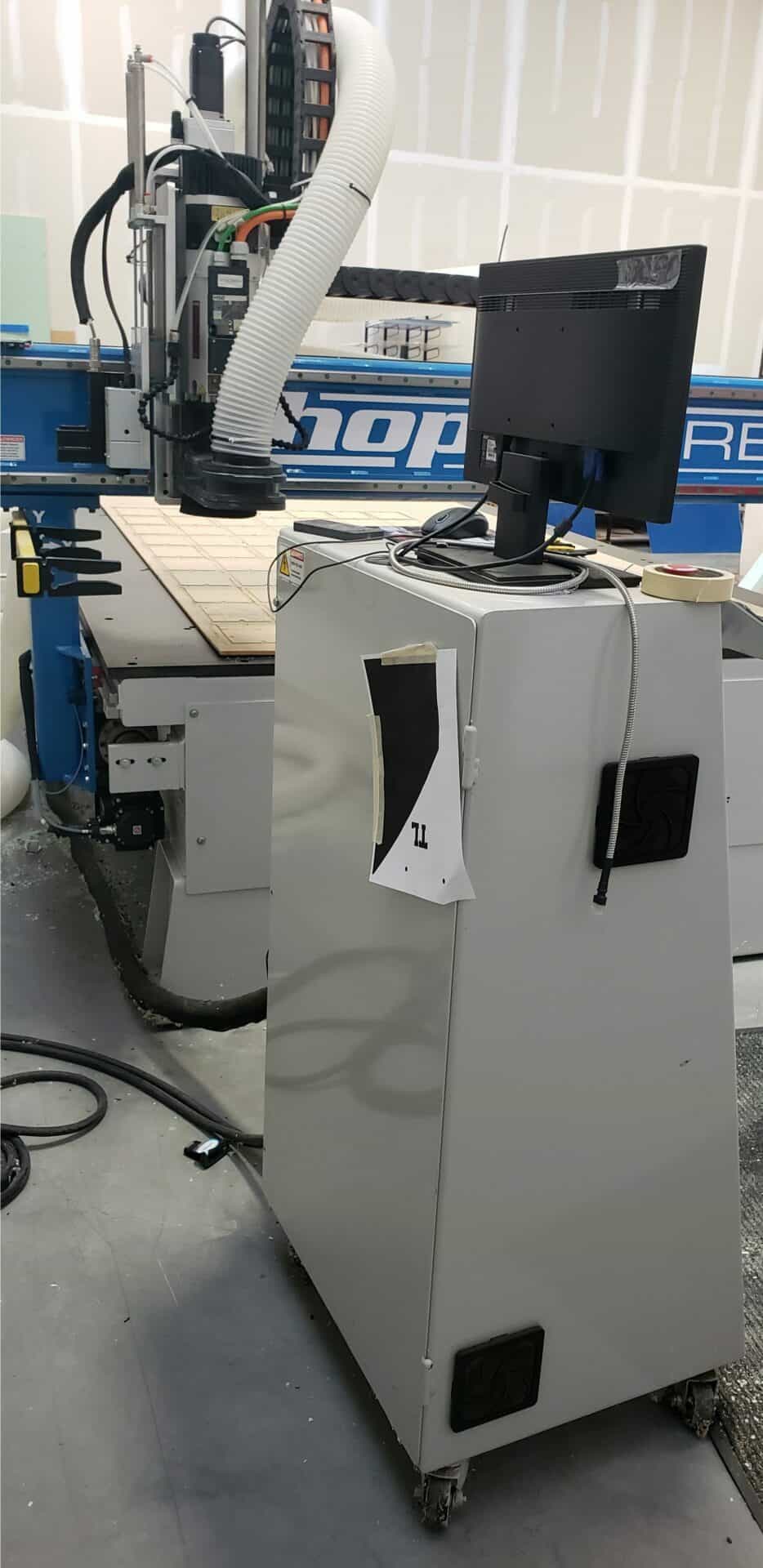

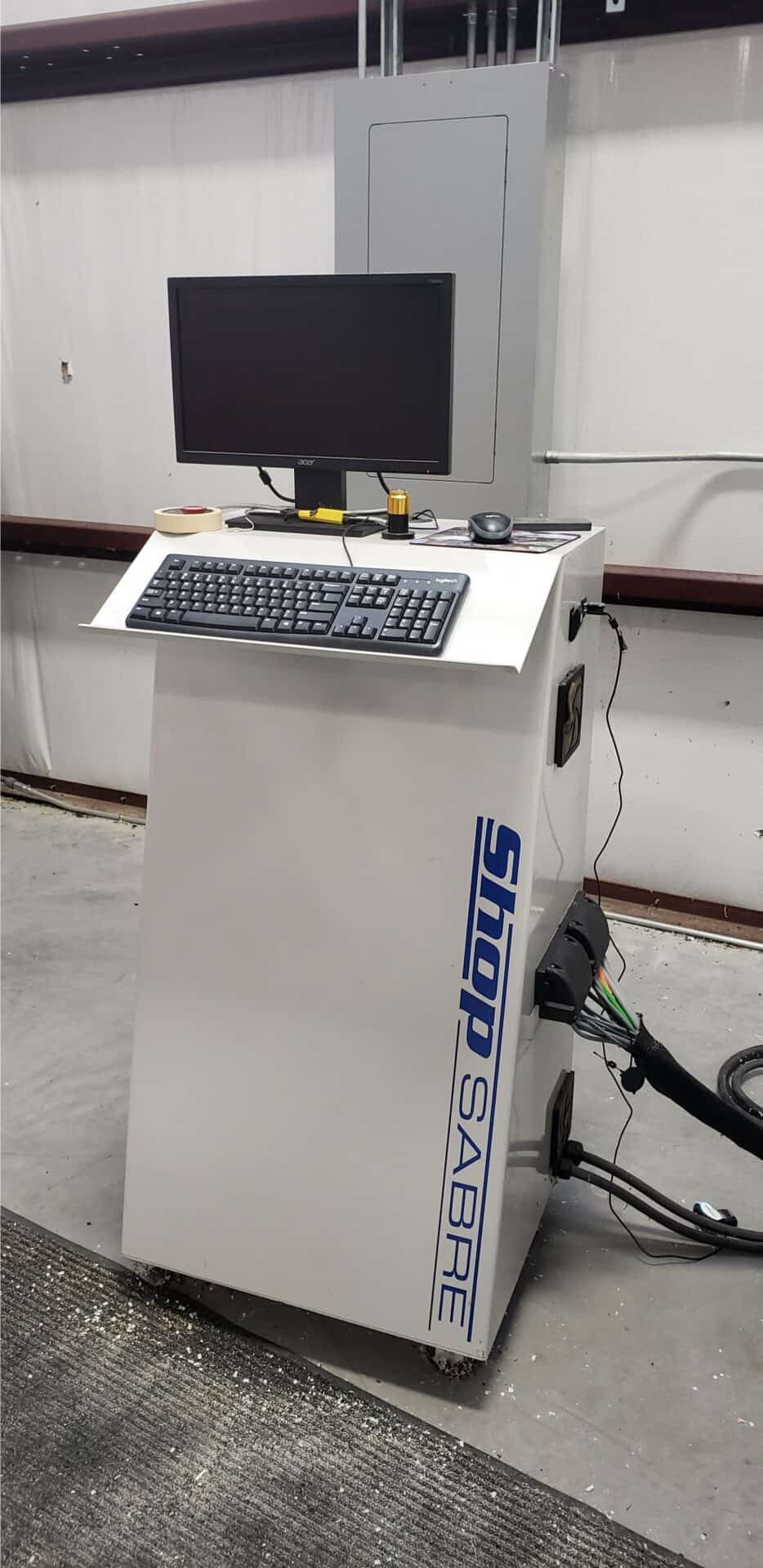

ShopSabre Computer System - Full Size Desktop System with Solid State Hard Drive/ 8GB Memory/ 19" Flat Screen Monito/ Keyboard/Mouse |
|
ShopSabre WINCNC Industrial Controller Hardware & Software |
Unist Coolant System for Lubricating Tooling while Cutting Aluminum |
|
Vectric Vcarve Pro CAD/CAM Software |
Digitizing Touch Probe - Requires 10mm Collet |
|
Dual 1 Kilowatt Digtial Brushless A/C Servo Motors with Amplifiers on Y Axis - Closed Loop |
OptiScout Vision System - Includes Camera System with Machine Mounting Hardware/ Controller/ and Install |
