Year |
2019 |
|---|---|
Make |
Omax |
Model |
80X |
Description |
6.8' x 13.4' CNC Waterjet |
Reference # |
8077585 |
Price |
Activate Pricing |

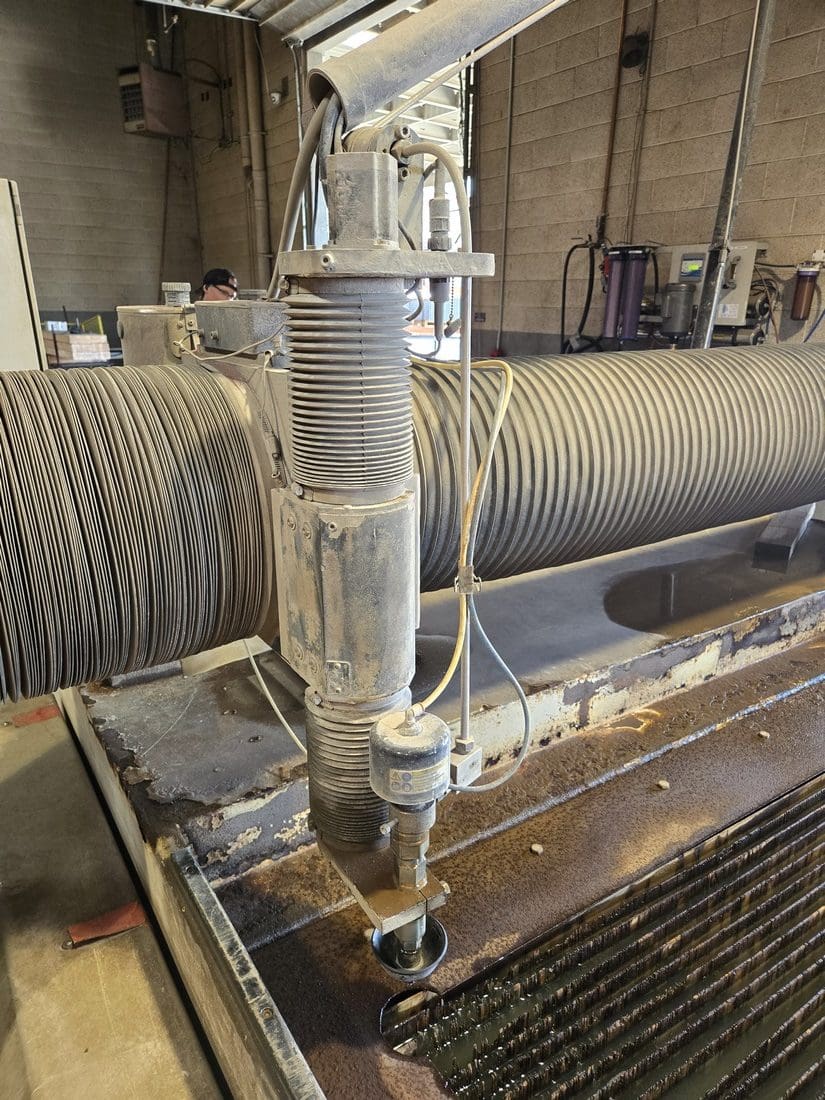

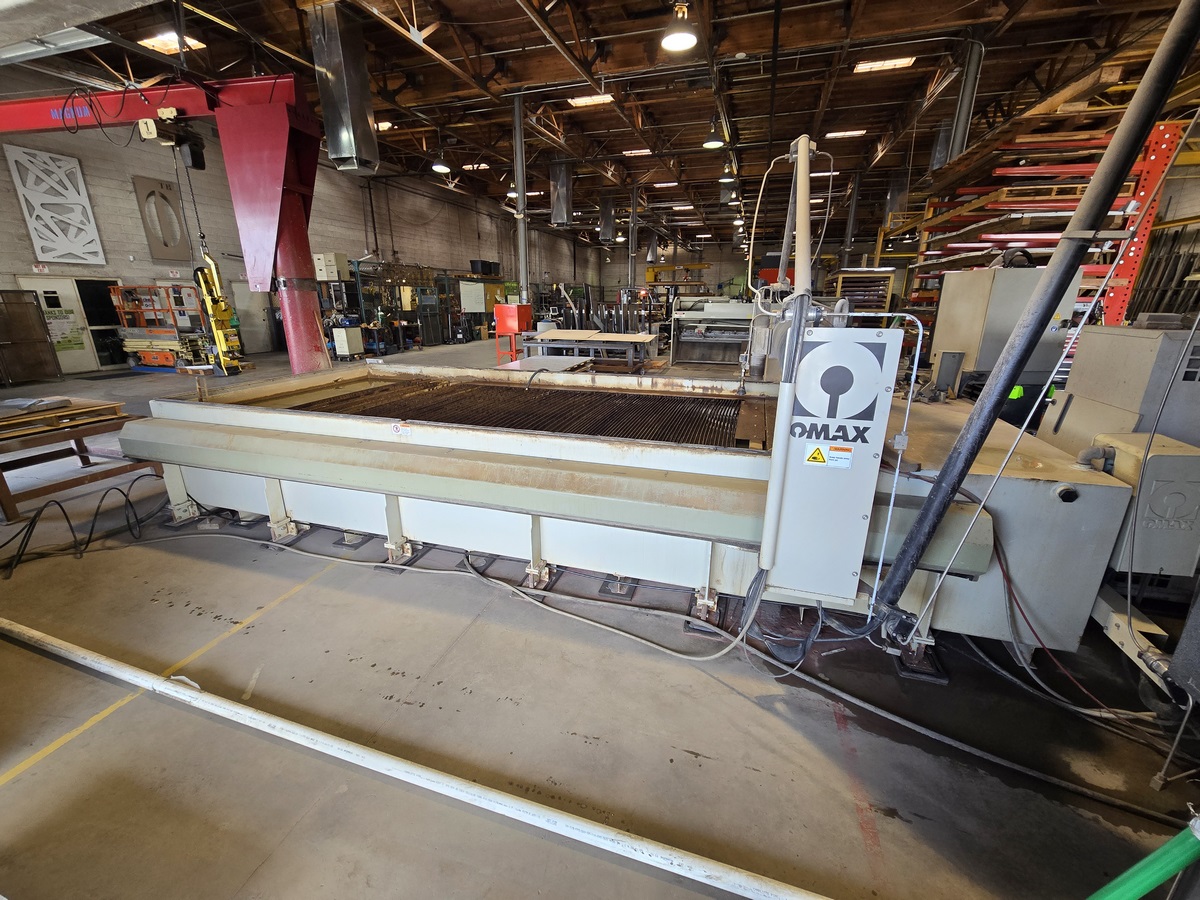

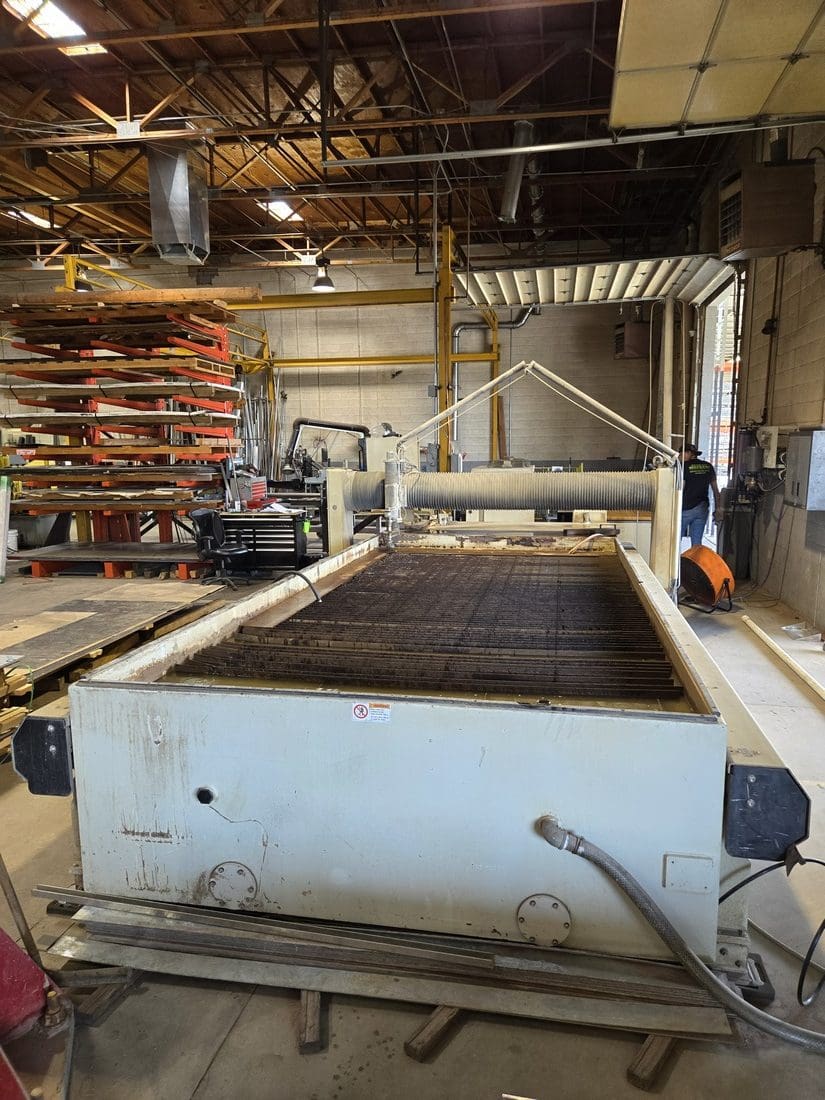

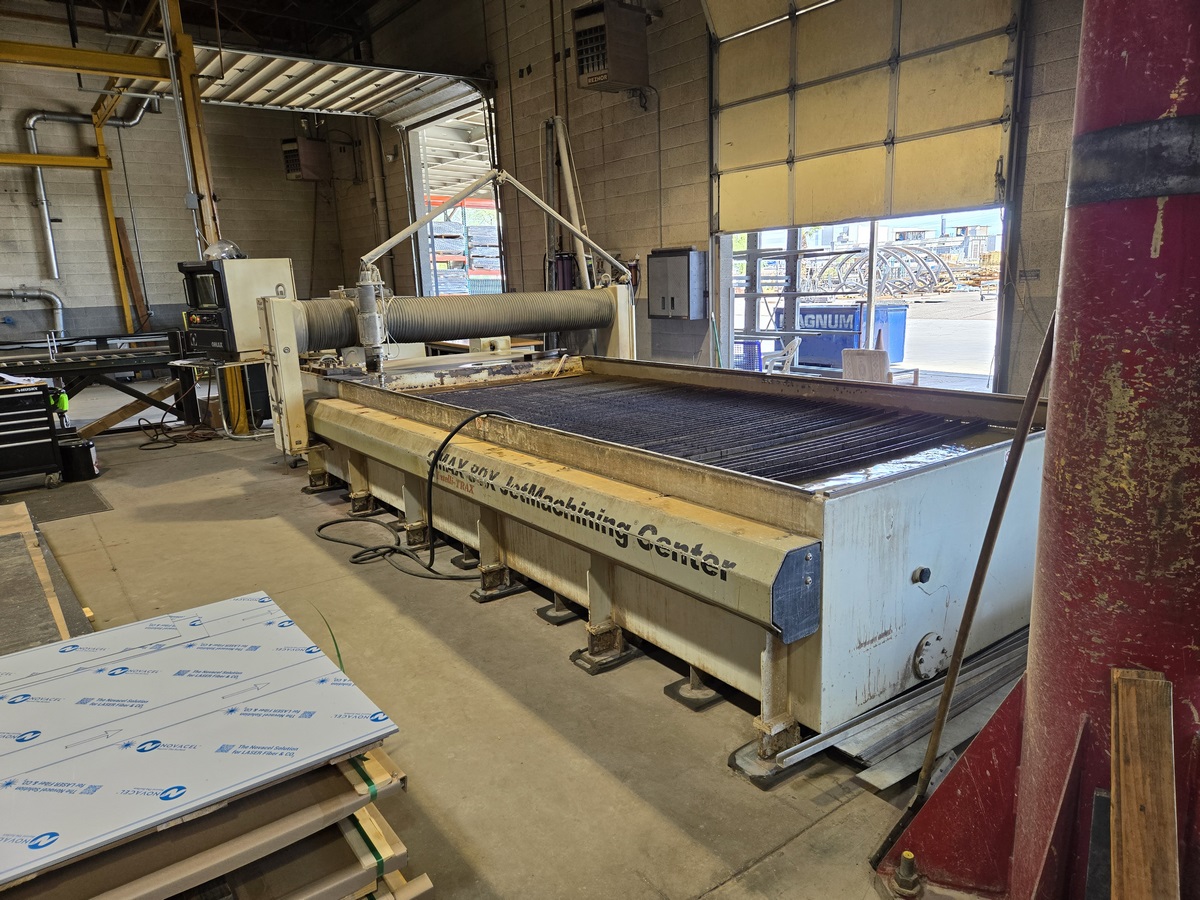

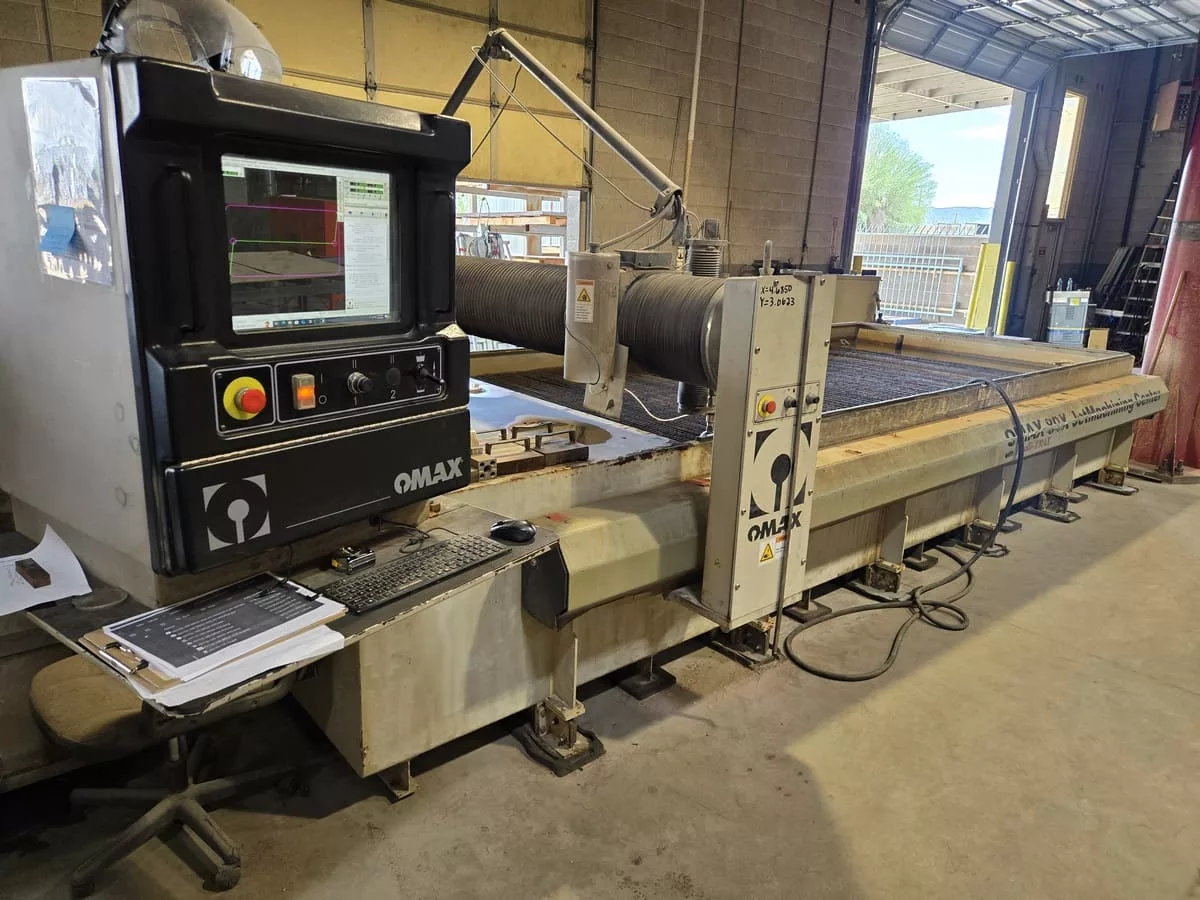

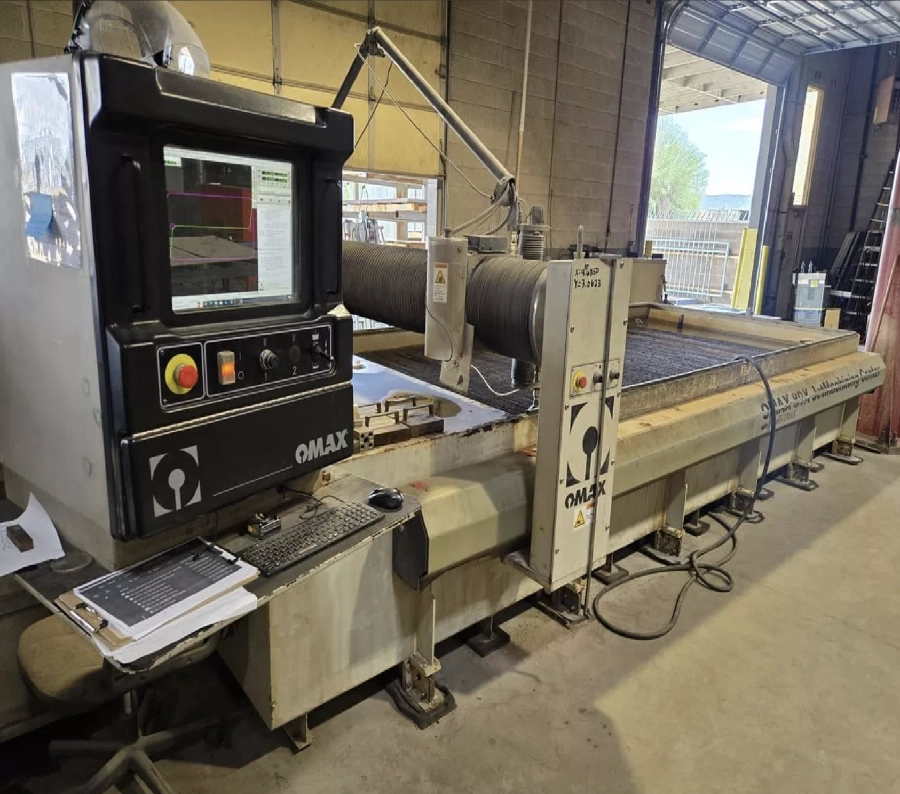

Used Omax 80X (2019) Waterjet for Sale. This machine offers a 6.8′ x 13.4′ cutting table with the Omax Intelli-MAX control and Intelli-MAX software. It runs a 50 HP Enduromax pump with a maximum cutting pressure of 60,000 PSI and approximately 5000 hours on the pump. Motion is handled by an Intelli-Trax drive with a linear encoder in the X-axis and a preloaded ball screw on the Y-axis. Also included are a 2500 lb abrasive hopper, a 3 ton chiller, and a Maxjet 5 cutting nozzle. Power requirement is 480/3/60. The machine can be seen under power for an inspection. See more used waterjets or other Omax machines. Activate Pricing or Request a Quote for details.
Specifications
| Table Width |
6.8' |
|---|---|
| Table Length |
13.4' |
| Control |
Omax Intelli-MAX |
| Pump |
50 HP |
| Max Cutting Pressure |
60,000 PSI |
| Power Requirement |
480/3/60 |
Features
|

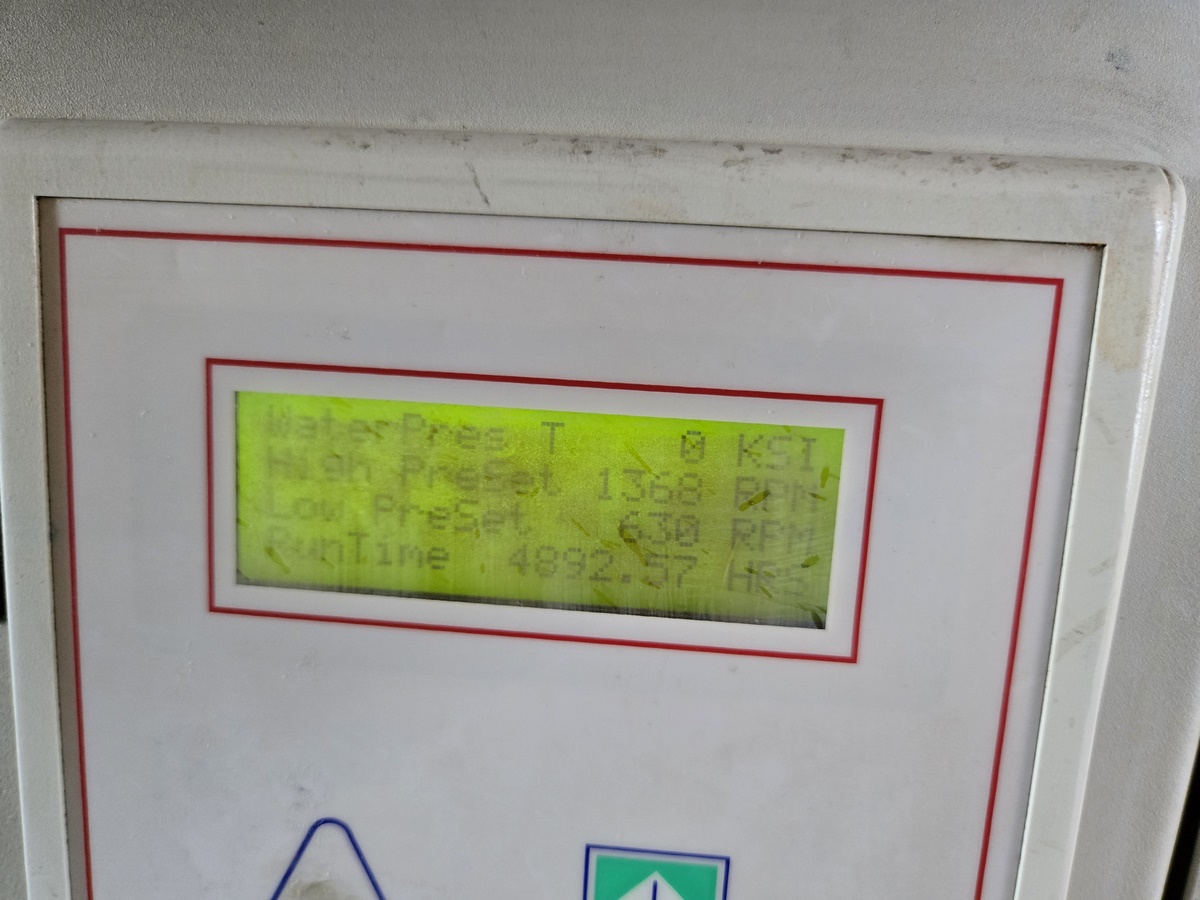

Approximately 5000 Hours on Pump |
Intelli-Trax Drive with Linear Encoder in X-Axis |
|
Preloaded Ball Screw on Y-Axis |
2500 Lb Abrasive Hopper |
|
3 Ton Chiller |
50 HP Enduromax Pump |
|
Intelli-MAX Software |
Maxjet 5 Cutting Nozzle |
