Year |
2019 |
|---|---|
Make |
Engel |
Model |
e-Speed 720/90 |
Description |
720 Ton 55.65 oz Shot Size Electric Injection Molding Machine |
Reference # |
8072638 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

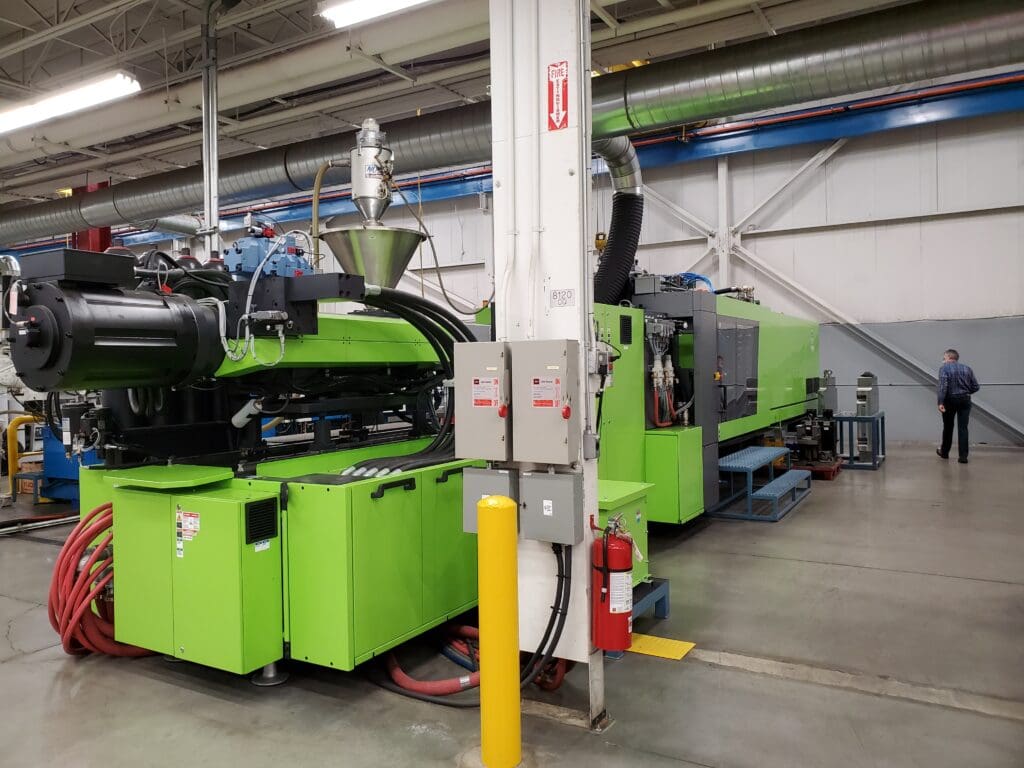

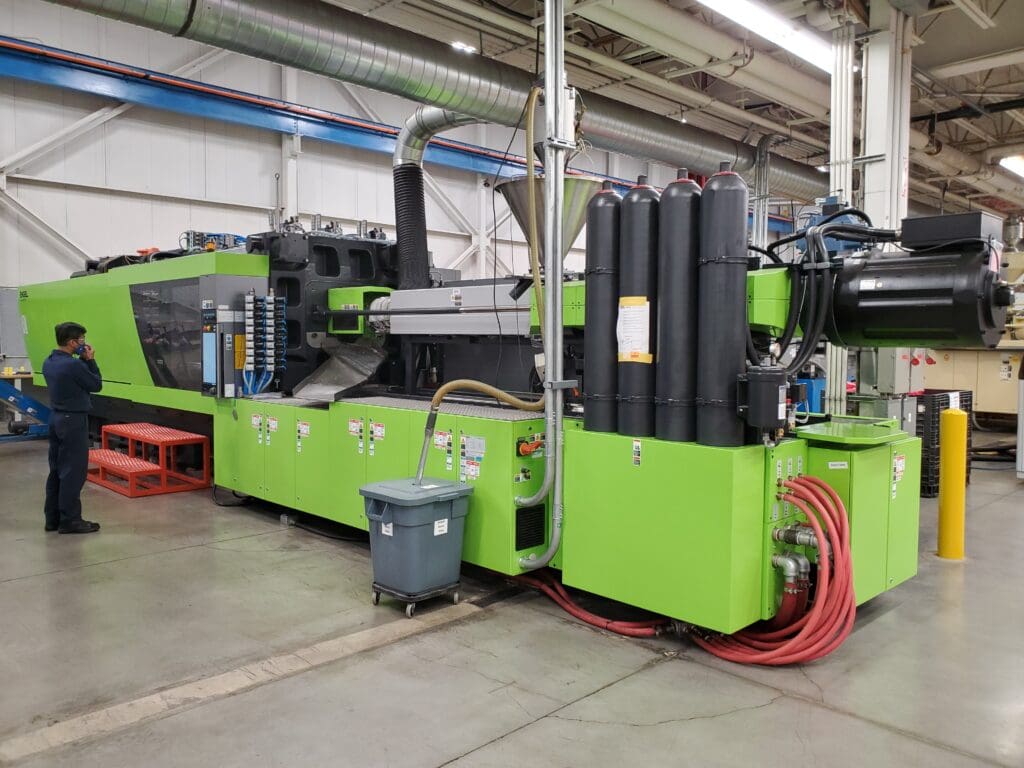

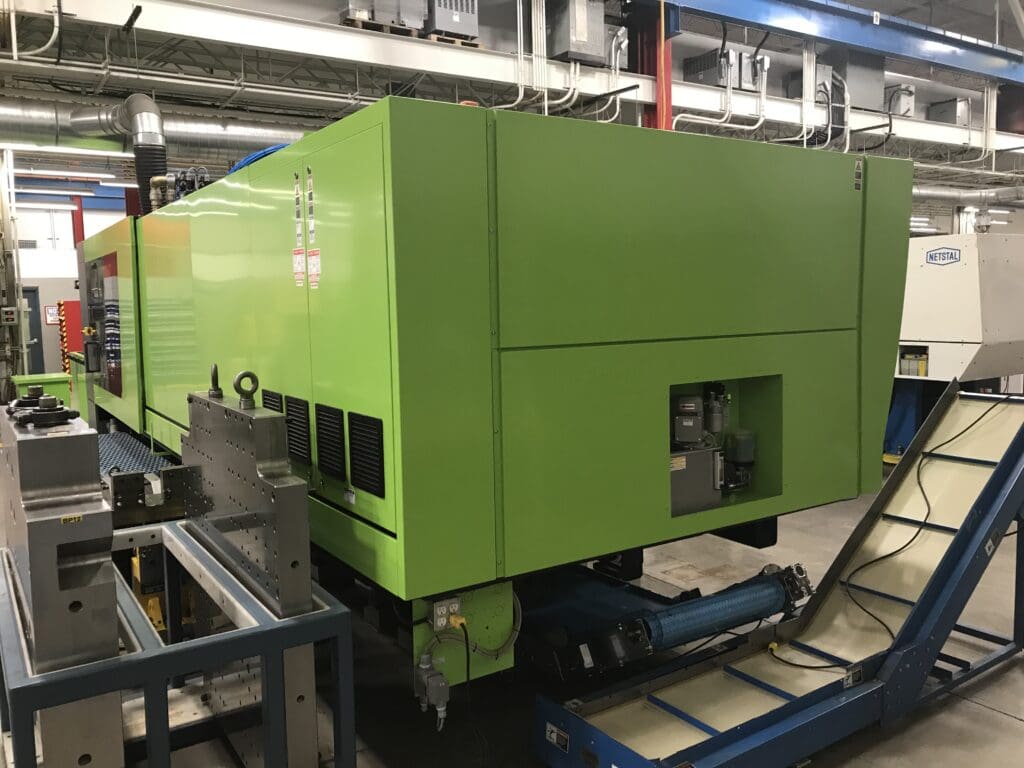

Used Engel e-Speed 720/90 (2019) Injection Molding Machine for Sale. This pre-owned Engel plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Engel Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button
Specifications
| Capacity |
720 Ton |
|---|---|
| Shot Size |
55.65 oz |
| Tie Bar Spacing |
60.24" x 60.24" |
| Platen Size |
41.3" x 41.34" |
| Opening Stroke |
55.12" x 70.87" |
| Ejector Stroke |
10.63" |
| Control |
EC 300 |
| Clamp Weight and Dimensions |
302"L x 113"W x 112"H - 82,700 Lbs |
| Injection Weight and Dimensions |
213"L x 147"W x 76"H - 26,500 Lbs |
Features
|
90 mm Screw |
Core Pull |
|
Hydraulic Knockout |
Loaded w/ Options |
