Year |
2012 |
|---|---|
Make |
Arburg |
Model |
570S-2200-800 |
Description |
242 Ton 10 oz Shot Size Injection Molding Machine |
Reference # |
8078159 |
Price |
Activate Pricing |

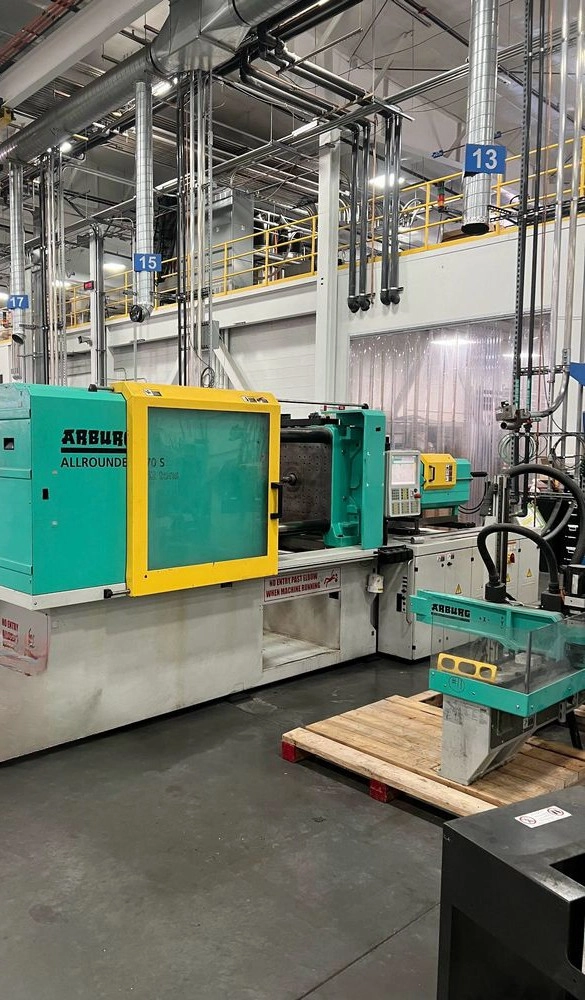

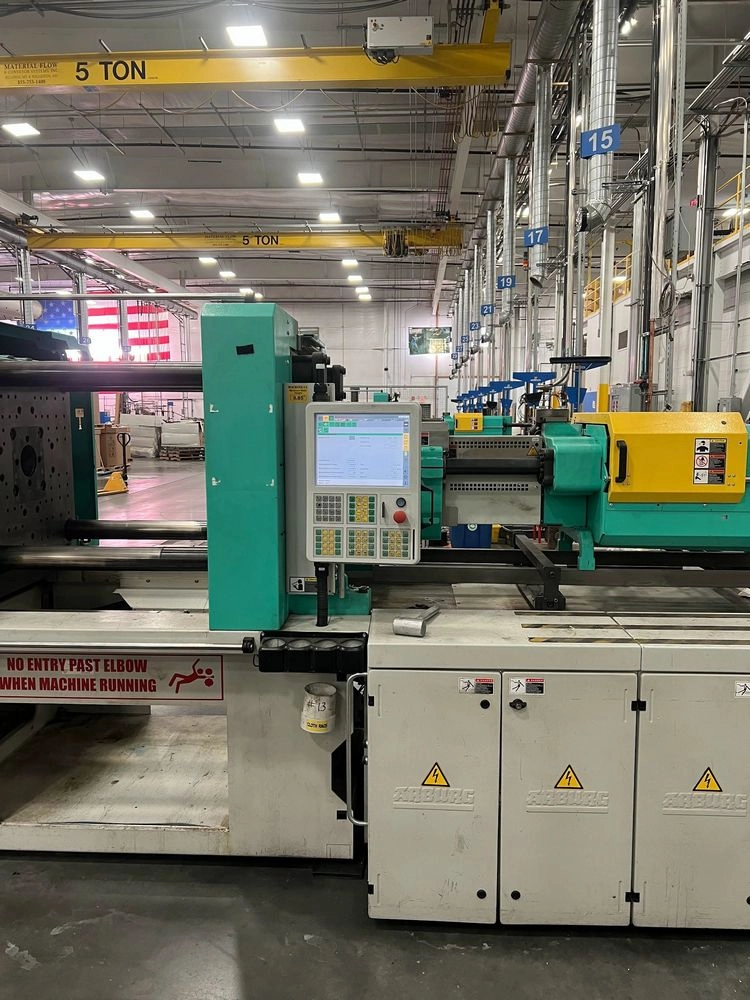

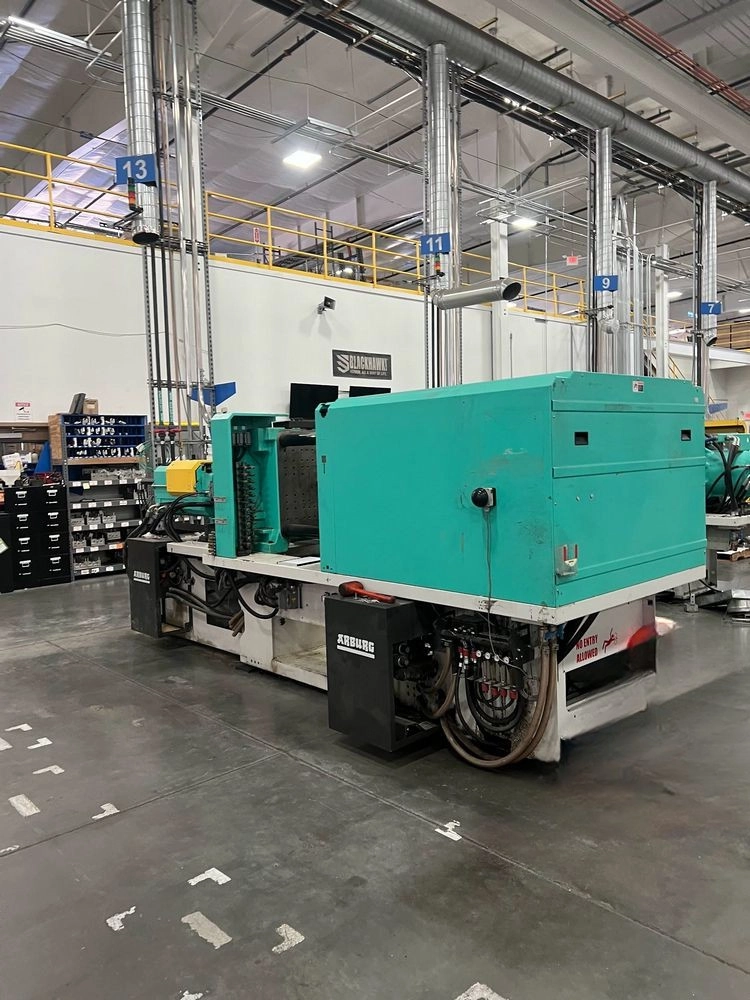

Used Arburg 570S-2200-800 (2012) Injection Molding Machine for Sale. This Arburg press is rated at 242 ton clamp capacity with a 10 oz shot size, 22.4″ x 22.4″ tie bar spacing and 31.2″ x 31.2″ platens. Maximum daylight is 35.4″ with a 25.5″ clamp stroke, and the machine runs on Arburg Selogica control. Equipped with CP, HKO and a robot interface, and the Arburg robot is included. The machine is under power and can be run for an inspection prior to purchase. It is listed with our other plastic injection molding machines, and you can use Activate Pricing to see the current asking price. Request a Quote for freight, rigging or further details on this Arburg. This machine is located in Michigan.
Specifications
| Capacity |
242 Ton |
|---|---|
| Shot Size |
10 oz |
| Tie Bar Spacing |
22.4" x 22.4" |
| Platen Size |
31.2" x 31.2" |
| Max Daylight |
35.4" |
| Clamp Stroke |
25.5" |
| Control |
Selogica Control |
Features
|

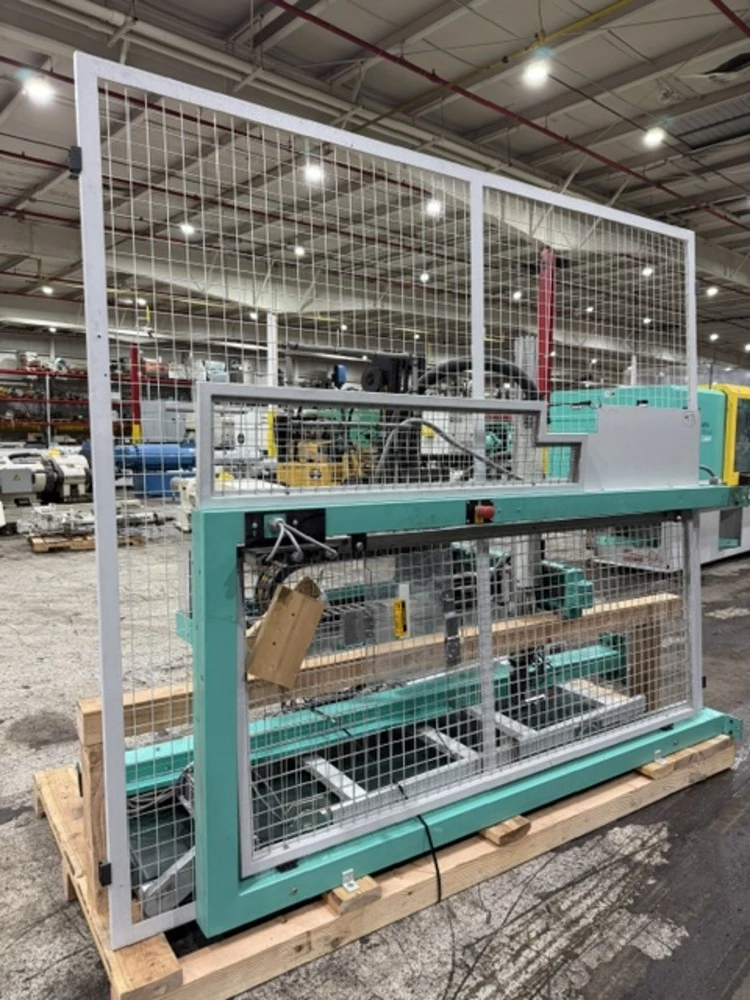

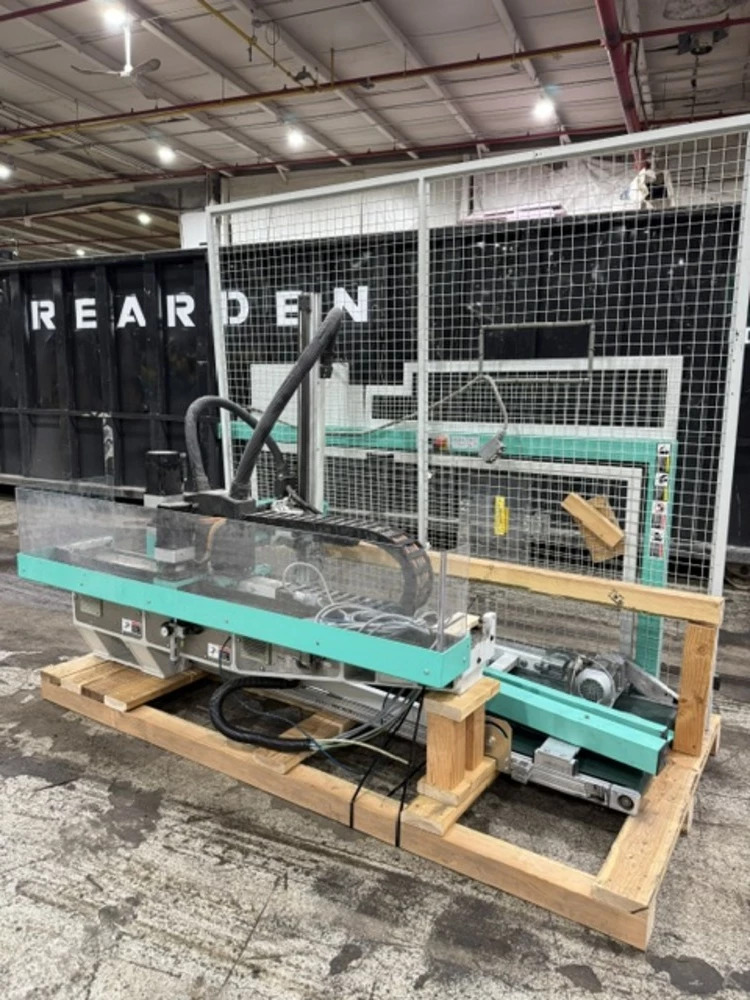

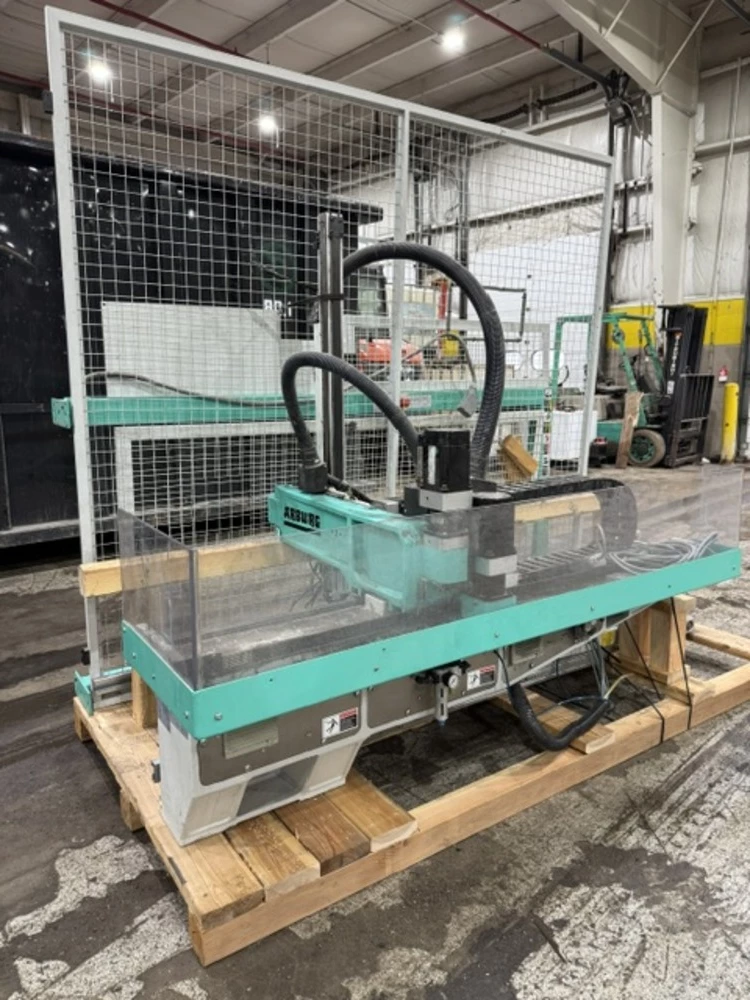

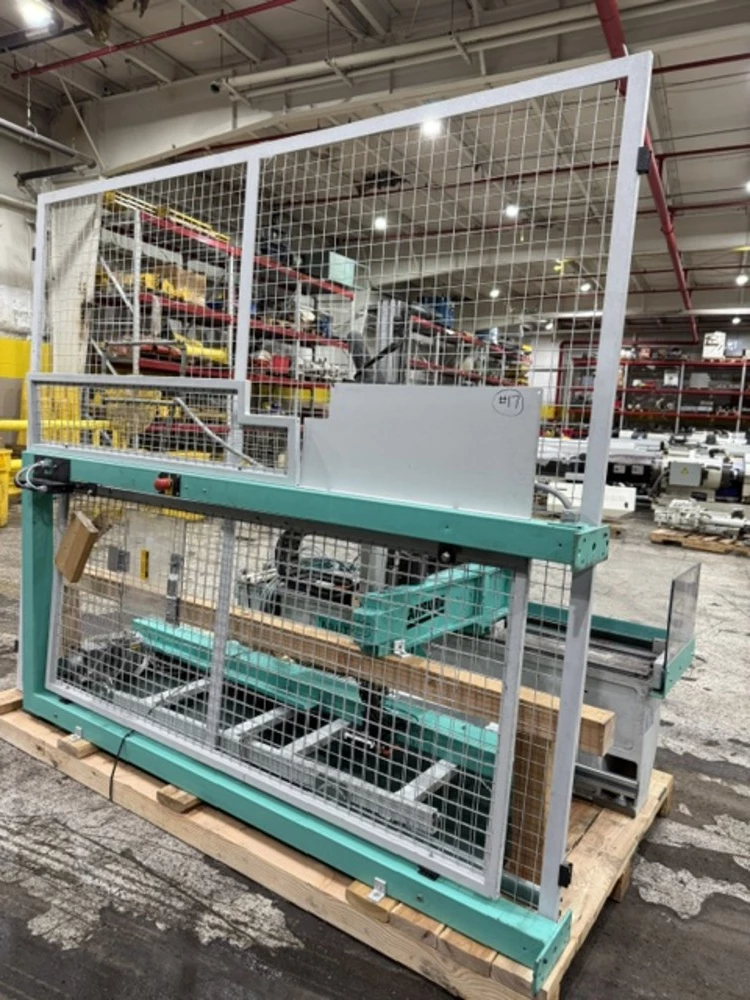

Arburg Robot Included |
CP |
|
HKO |
Robot Interface |
|
Under Power |
