Year |
2018 |
|---|---|
Make |
Okamoto |
Model |
ACC-12.24SA |
Description |
Surface Grinder |
Reference # |
8073546 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Okamoto ACC-12-24SA (2018) Surface Grinder for Sale. This pre-owned Okamoto CNC surface grinder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okamoto Surface Grinder, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Longitudinal Travel |
29.5" |
|---|---|
| Max Cross Travel |
6" |
| Max Distance Under Wheel to Table Surface |
13.6" |
| Magnetic Chuck Size (WxL) |
12" x 24" |
| Table Load Capacity (Includes Chuck Weight) |
925 Lbs |
| T-Slots (No. x Width) |
3 x 0.7” |
| Hydraulic Feed Rate |
1.0 - 82 ft/min |
| Hand Feed per Revolution |
1.85" |
| Intermittent Crossfeed |
0.02 - 0.8" |
| Continuous Crossfeed |
4 - 40 ft/min |
| Crossfeed per Revolution |
0.5/0.1/0.01" |
| Handfeed Dial Graduation |
0.005/0.001/0.0001" |
| Automatic Vertical Feed per Table Stroke |
0.00005 - 0.0015" (10 settings) |
| Rapid Feed Rate |
16 IPM |
| Manual Pulse Feed |
(x.1)0.00001", (x1)0.0001", (x10)0.001" |
| Size (DxWxB) |
12" x 1.5" x 5" (12 x 1.5 x 3 Avail.) |
| Speed |
1,800 RPM |
| Grinding Wheel Spindle |
5 HP |
| Hydraulic Pump |
2 HP |
| Vertical Rapid Feed/Downfeed Power |
0.4kW AC Servo |
| Crossfeed Power |
0.75kW AC Servo |
| Power Supply |
7.5kVA |
| Floor Space |
107" x 75" x 70"H |
| Net Weight |
5,280 Lbs |
Features
|
3-Axis Fully Automatic |
Built-In Chuck Controller |
|
Crossfeed Manual Pulse Generator |
Diamond Dressing Tool with Holder |
|
Full Table Back Splashguard |
Fully Automatic Cycle with Rough/Fine |
|
Grinding and Spark-Out in 1 Set-Up |
Grinding Wheel & Wheel Adapter |
|
Incremental Infeed |
Leveling Bolts with Plates |
|
Necessary Tools & Tool Box |
Okamoto MDI Controller |
|
Overhead Wheel Dresser |
Splash Cover with Coolant Nozzle & Pipe |
|
Table Parks at Right Side for Safety |
Vertical Digital Positioning Display |
|
Vertical Manual Pulse Generator |
Coolant System with Paper Filter |
|

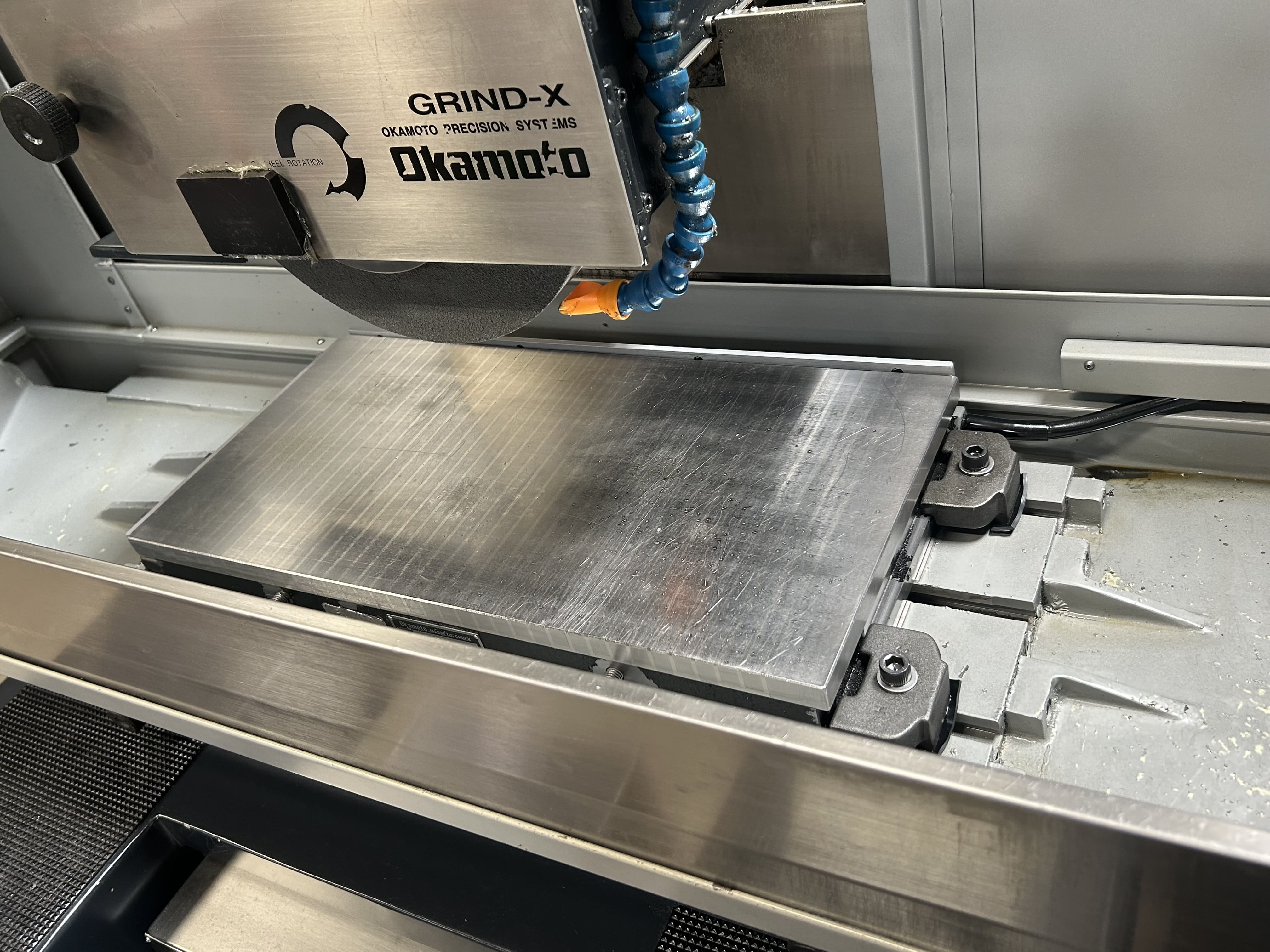

Electromagnetic Chuck |
