Year |
2018 |
|---|---|
Make |
Multicam |
Model |
6000 Series |
Description |
8.4' x 19.9' Hypertherm HPR130 XD Plasma Cutter |
Reference # |
8077781 |
Price |
Activate Pricing |

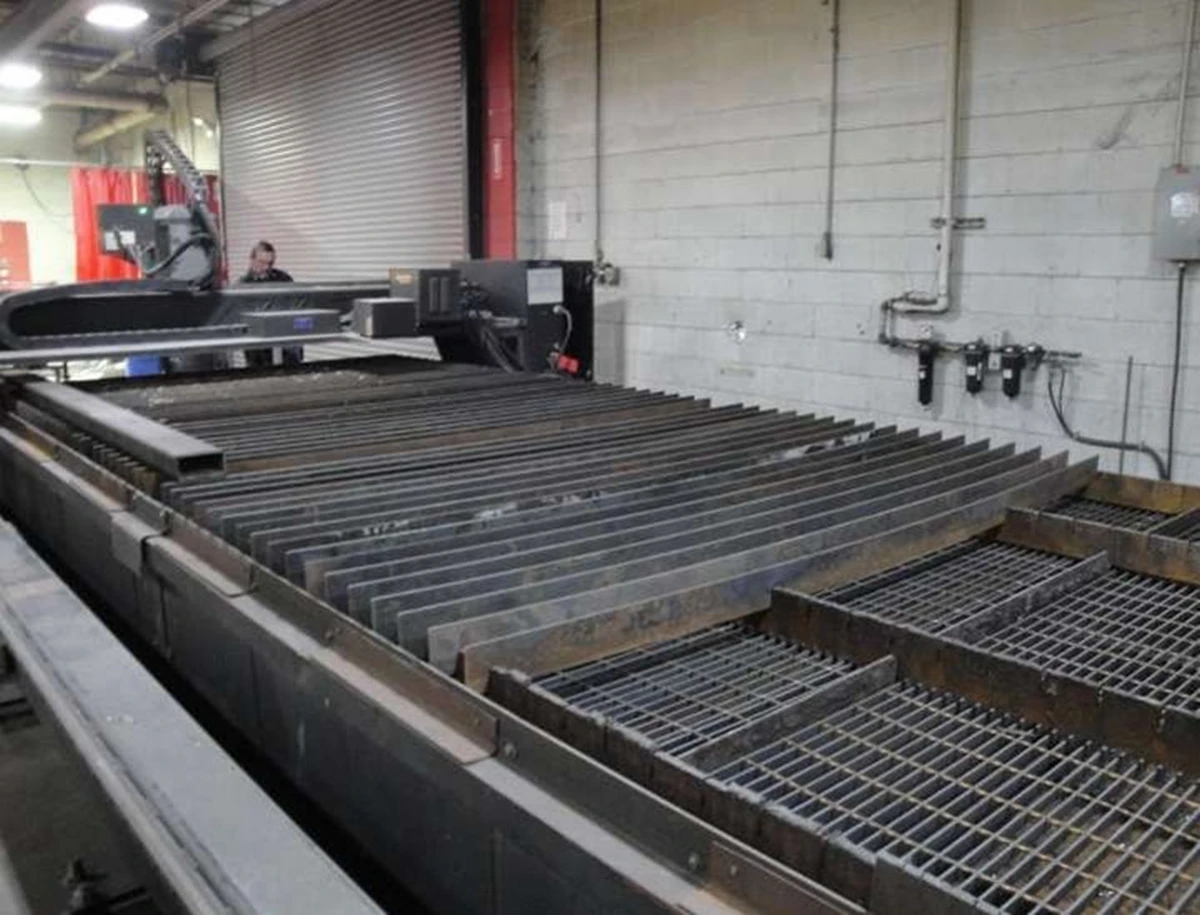

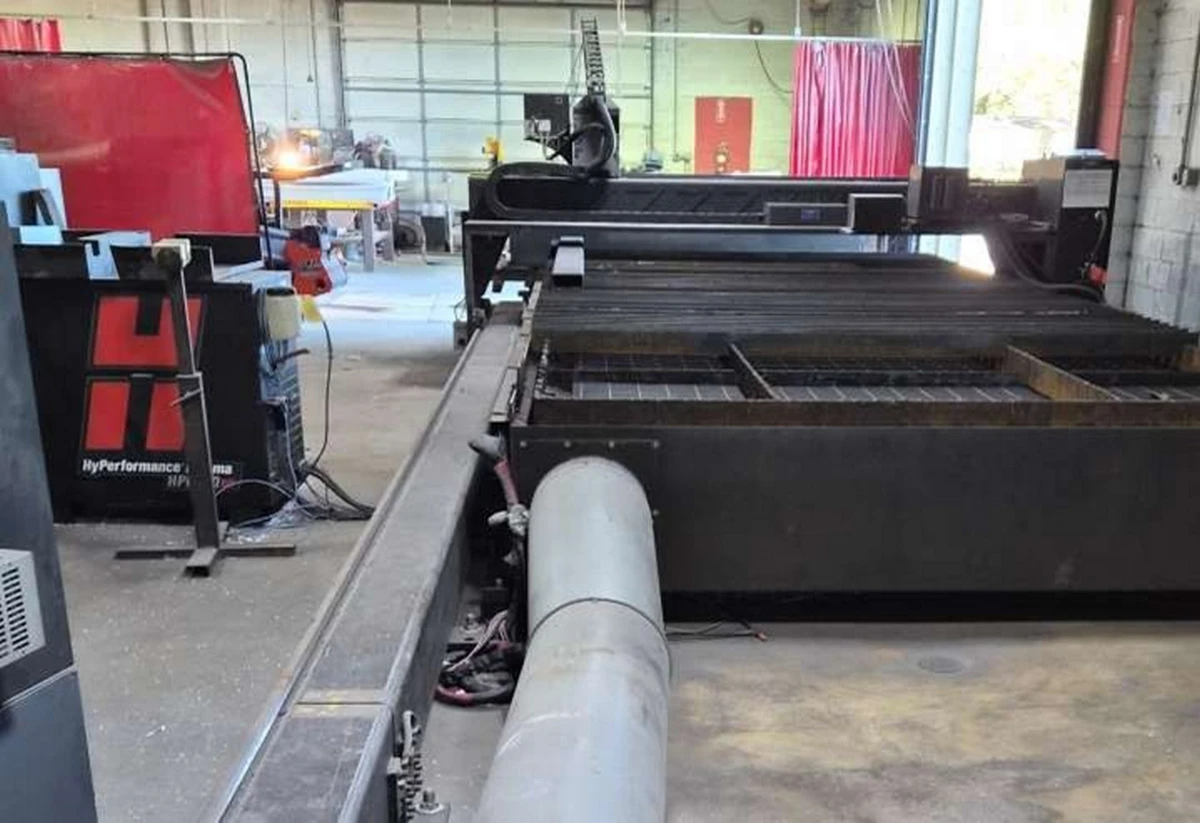

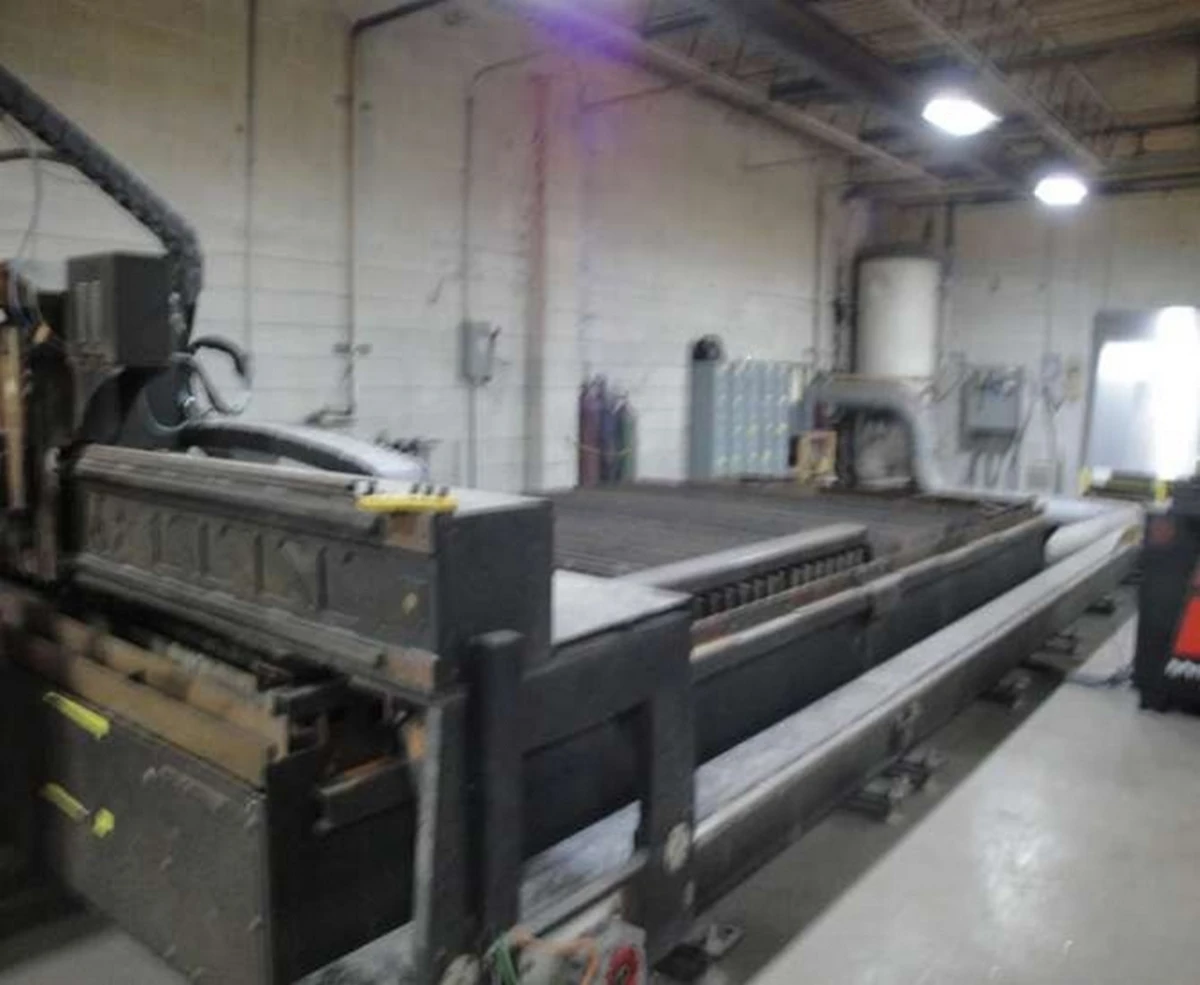

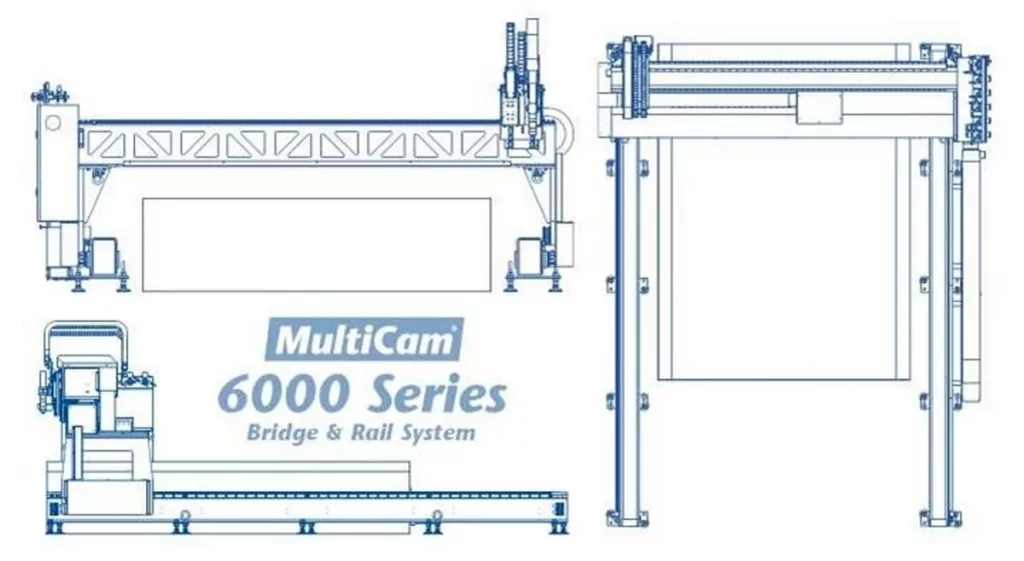

Used Multicam 6000 Series (2018) Plasma Cutter for Sale. This bridge and rail plasma system runs an Auto Multigas Control System with a Hypertherm HPR130 XD power source and shows only 700 cutting hours. The table measures 8.4′ x 19.9′ with a 240″ x 98″ work area, and 10ft sections can be added. Z-axis travel is 12″ with 38.5″ clearance without a cutting table and a 26″ – 38″ working range. Repeatability is +/- .001″ with positional displacement accuracy of +/- .010″ over 10ft, cutting speed to 800 IPM and rapid traverse to 1,000 IPM on 480V-3ph. Includes auto gas and Camfil dust collector, cabinet of consumables and manuals, and HP laptop with Corel software. Available for inspection under power. See more used plasma cutters, Activate Pricing, or Request a Quote.
Specifications
| Table Width |
8.4' |
|---|---|
| Table Length |
19.9' |
| Control |
Auto Multigas Control System |
| Power Source |

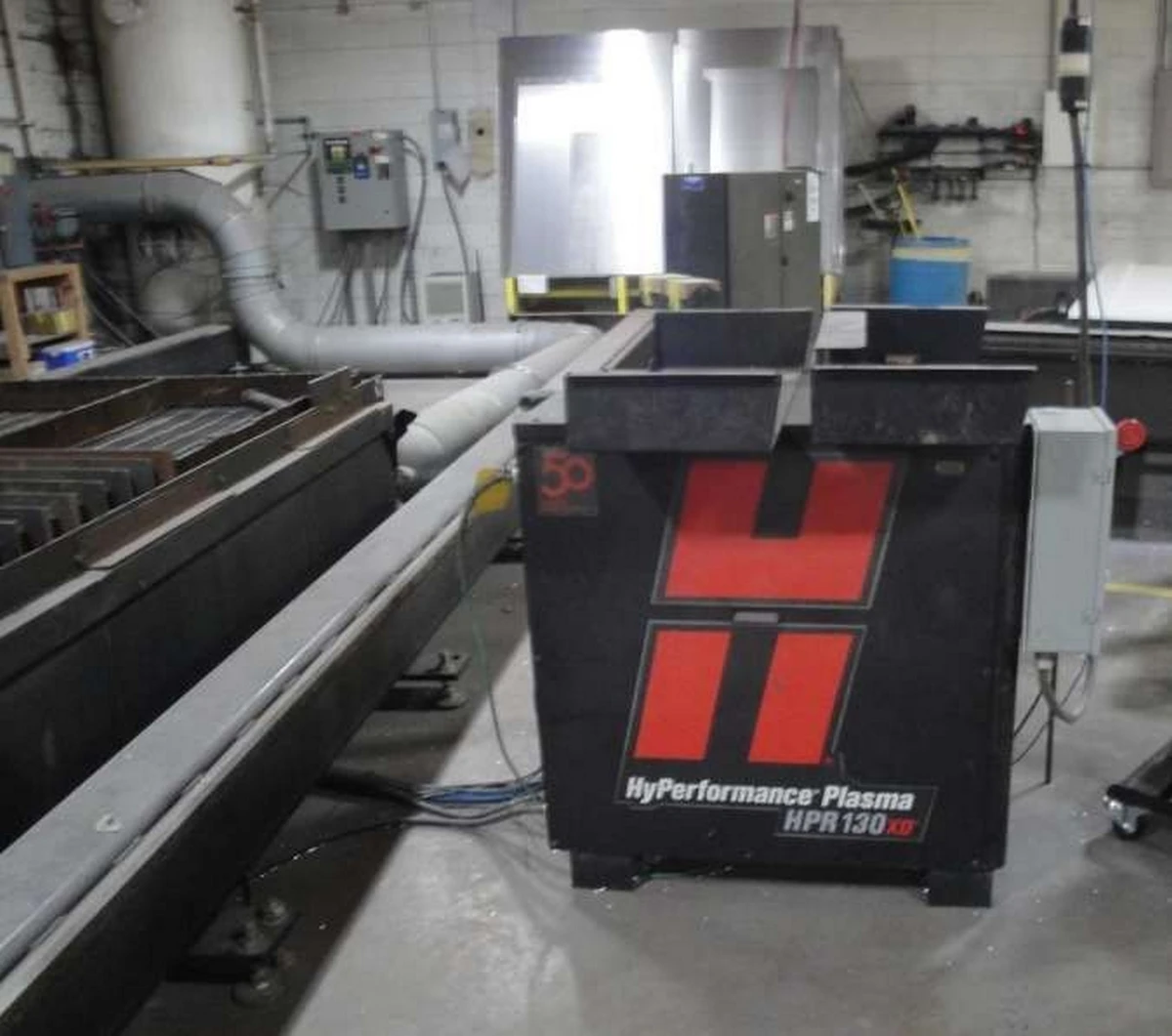

Hypertherm HPR130 XD |
| Z-Axis Travel |
12" |
| Z-Axis Clearance |
38.5" (without a cutting table) |
| Z-Axis Working Range |
26" - 38" |
| Repeatability |
+/- .001" |
| Positional Displacement Accuracy |
+/- .010" over 10ft |
| Cutting Speed |
800 IPM |
| Rapid Traverse |
1,000 IPM |
| Power Requirement |
480V-3ph |
| Work Area |
240” x 98” (10ft sections can be added) |
Features
|

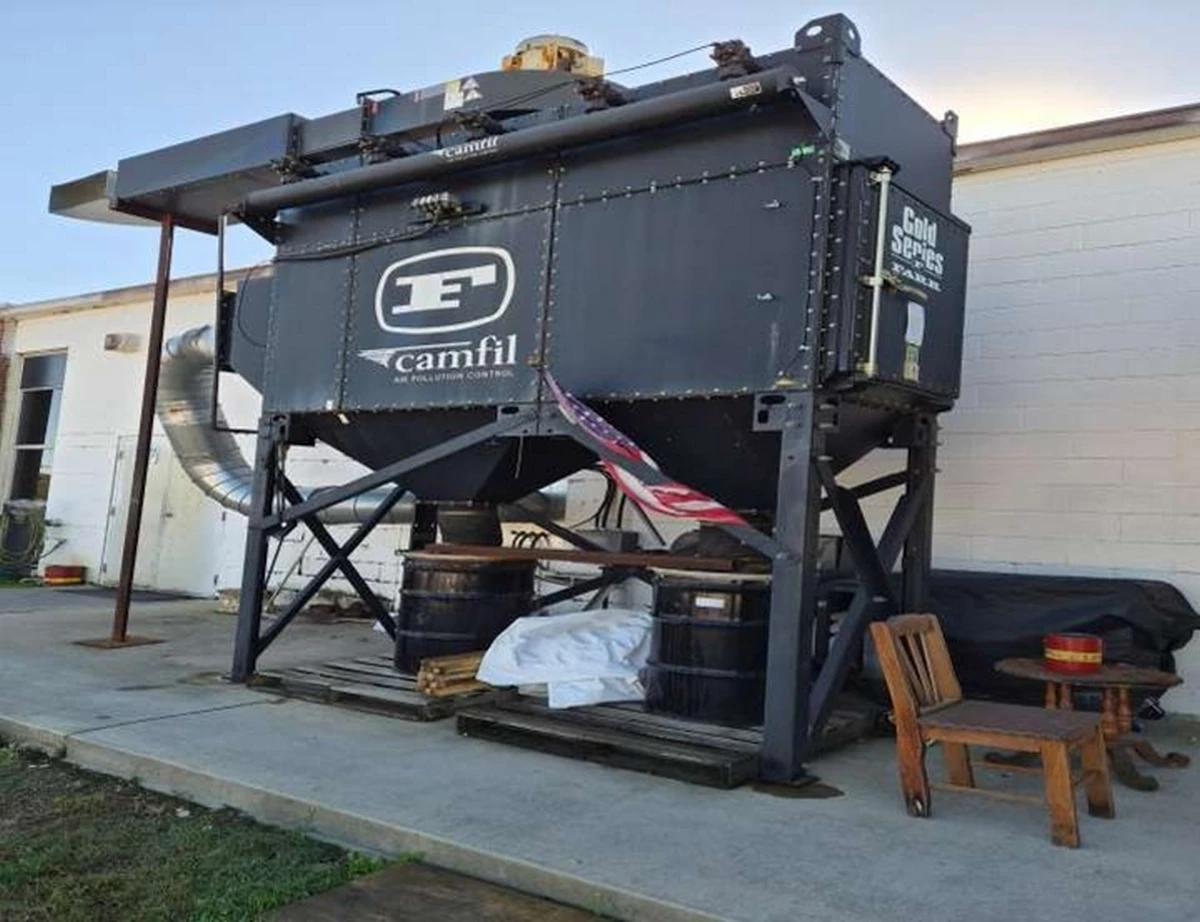

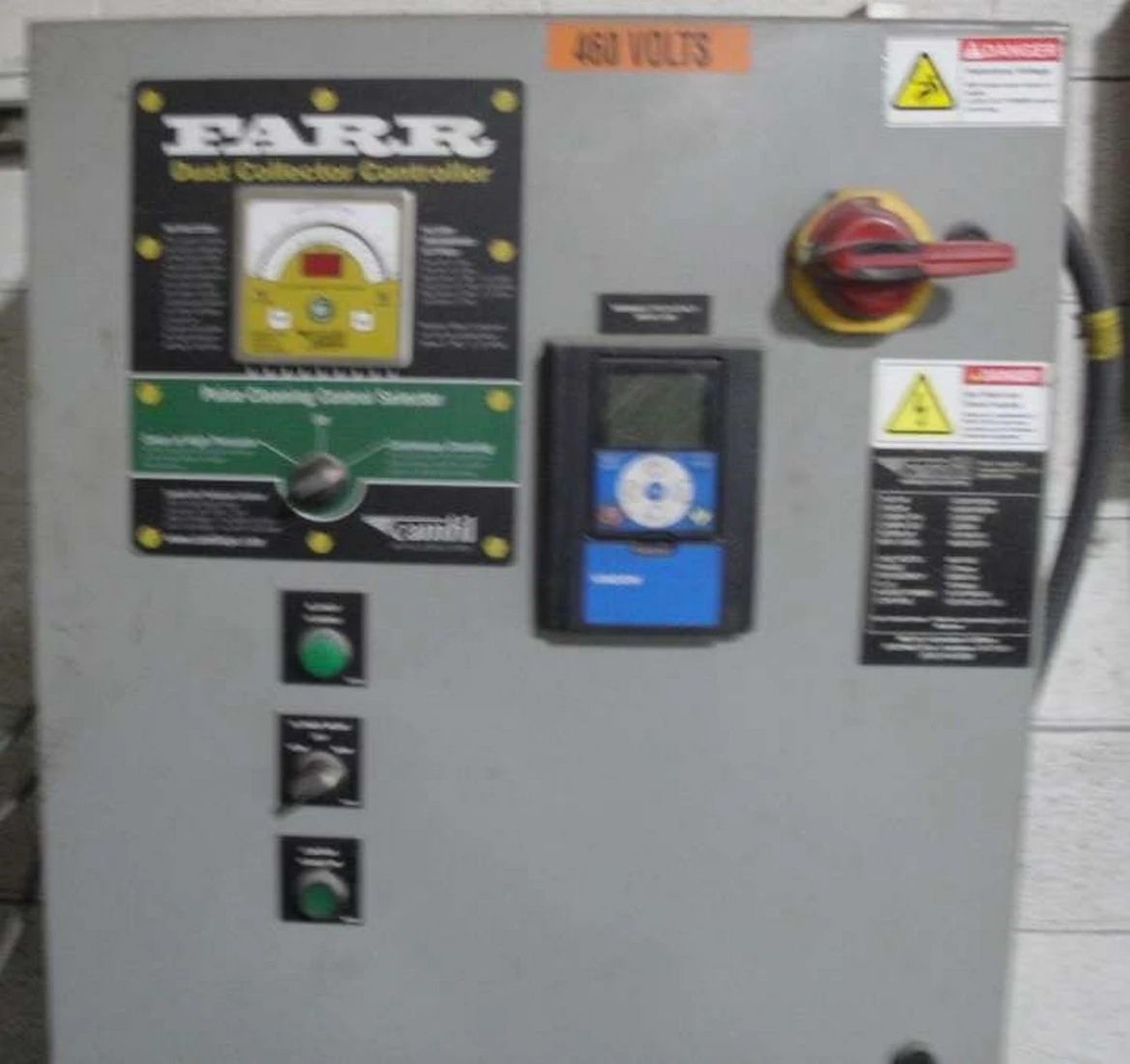

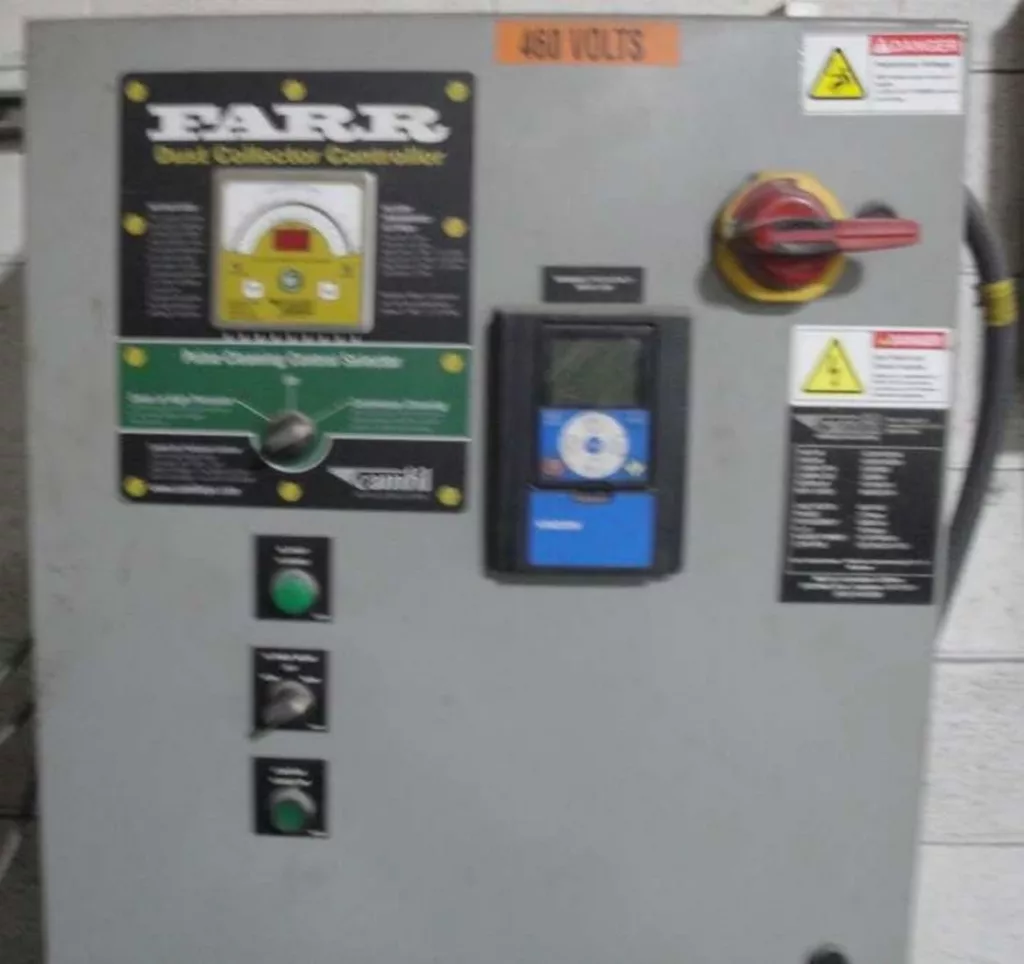

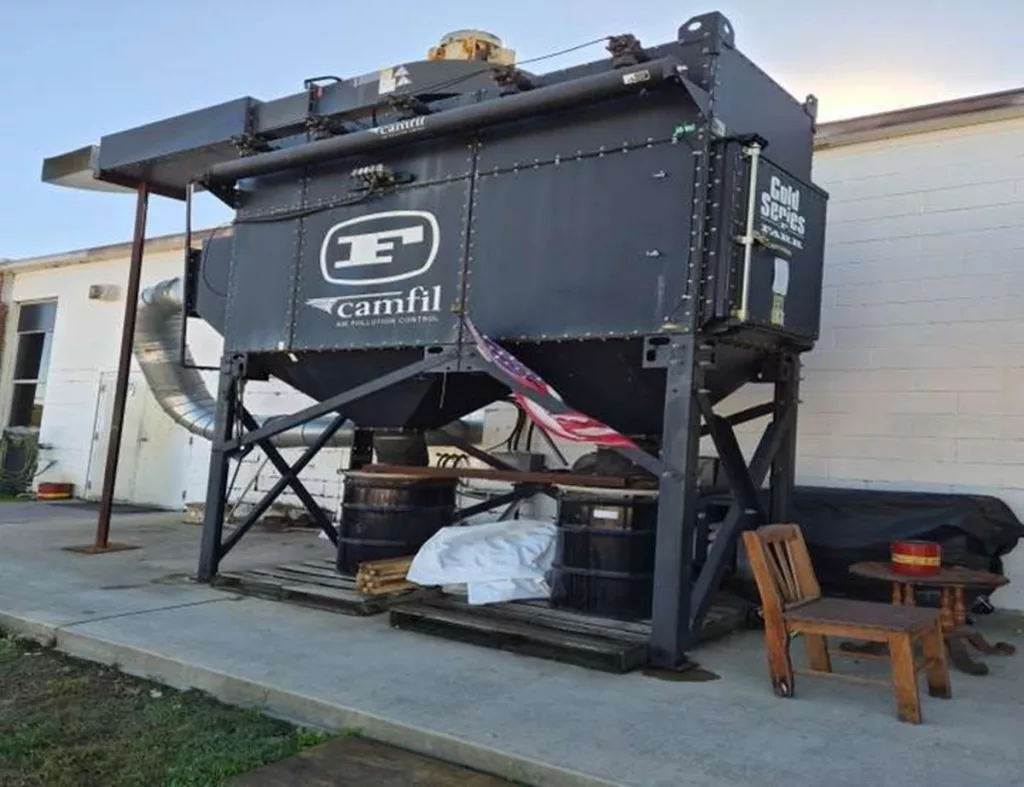

Auto Gas and Camfil Dust Collector |
Auto Multigas Plasma |
|

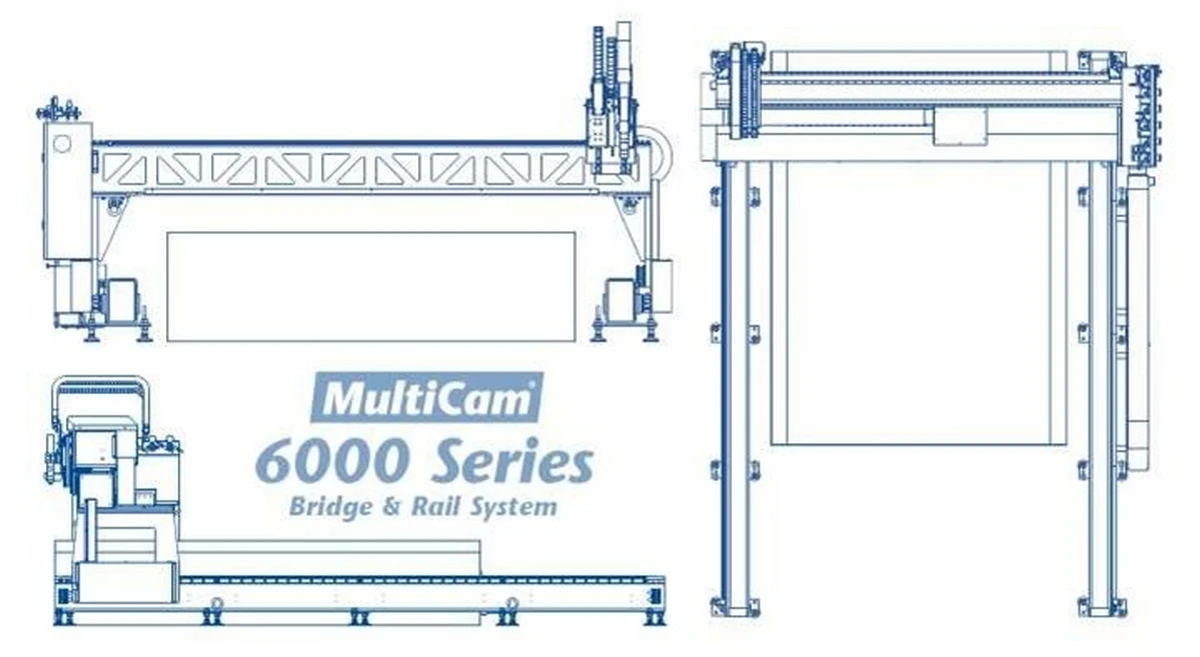

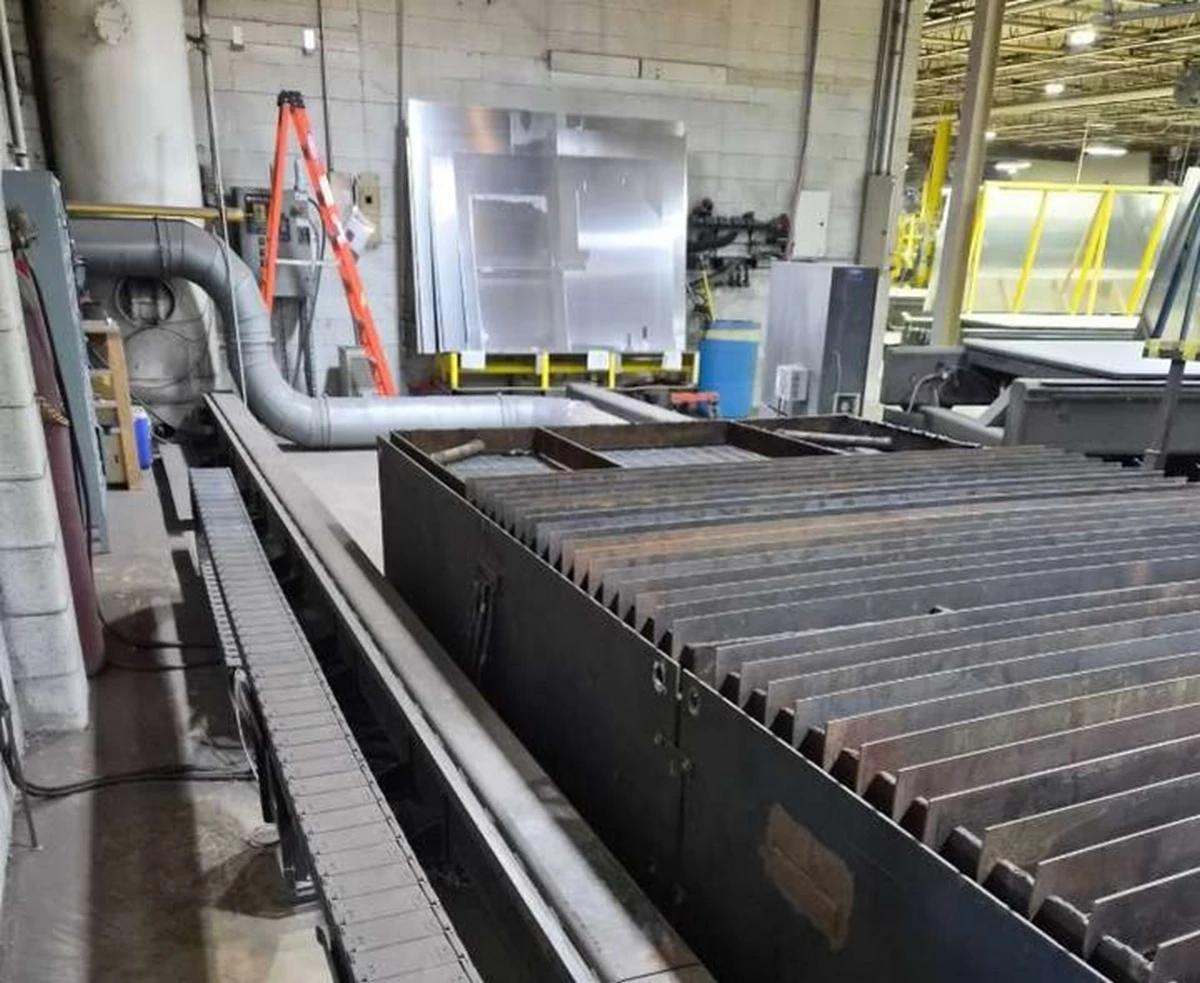

Bridge and Rail Plasma System |

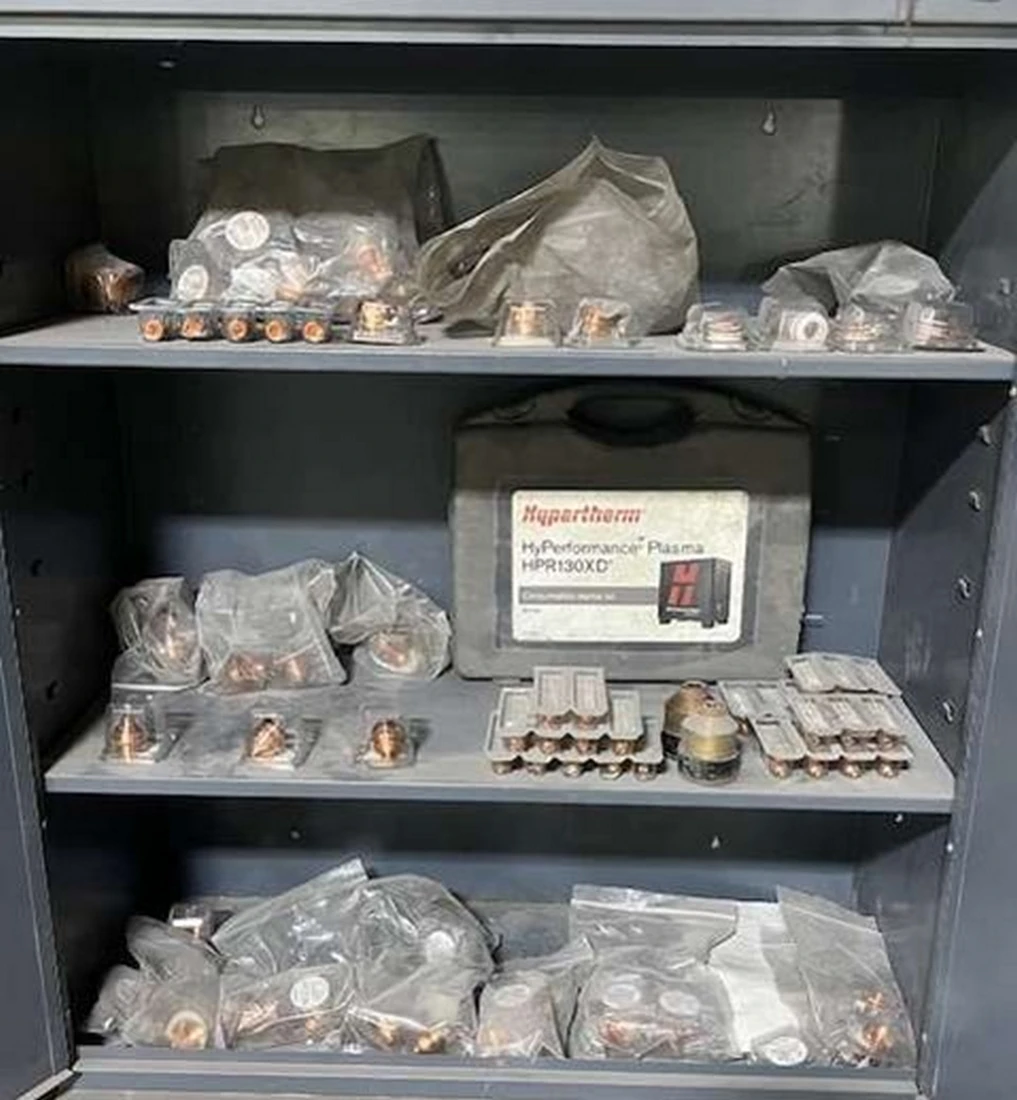

Cabinet of Consumables and Manuals Included |
|

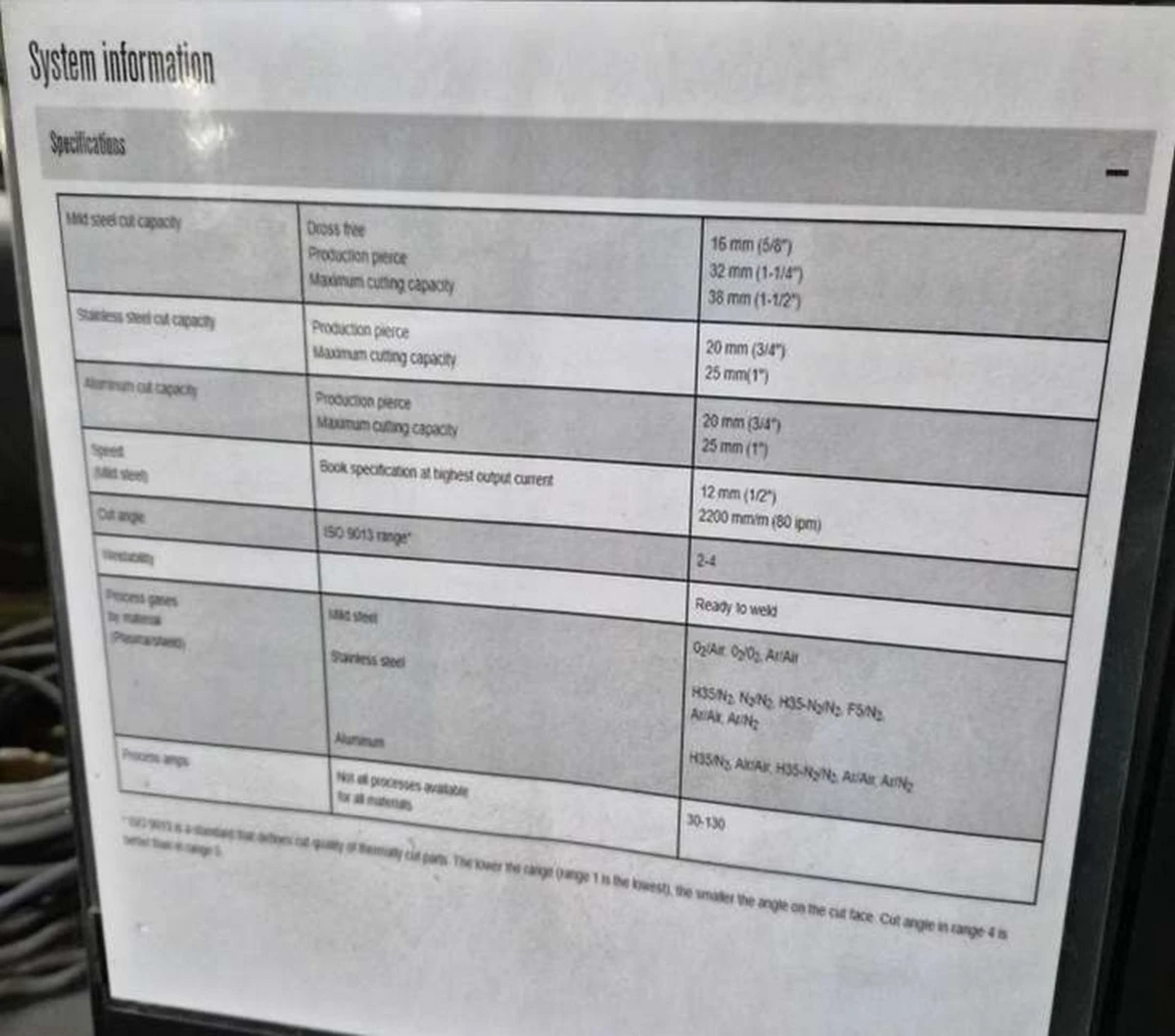

Cut Charts in Photos |
HP laptop with Corel Software for Post Processing |
|
Only 700 Cutting Hours |

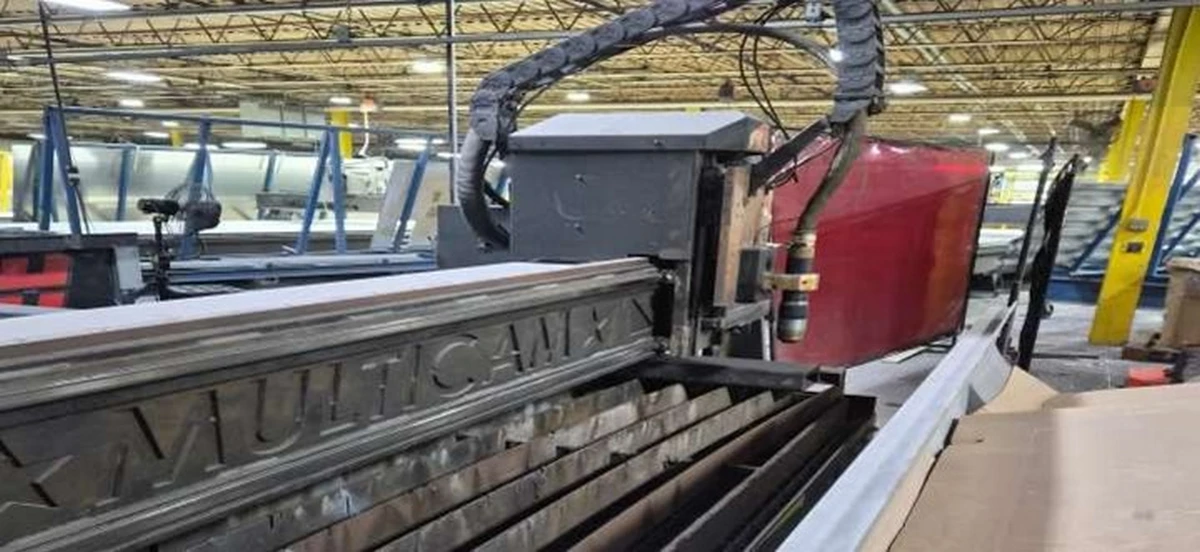

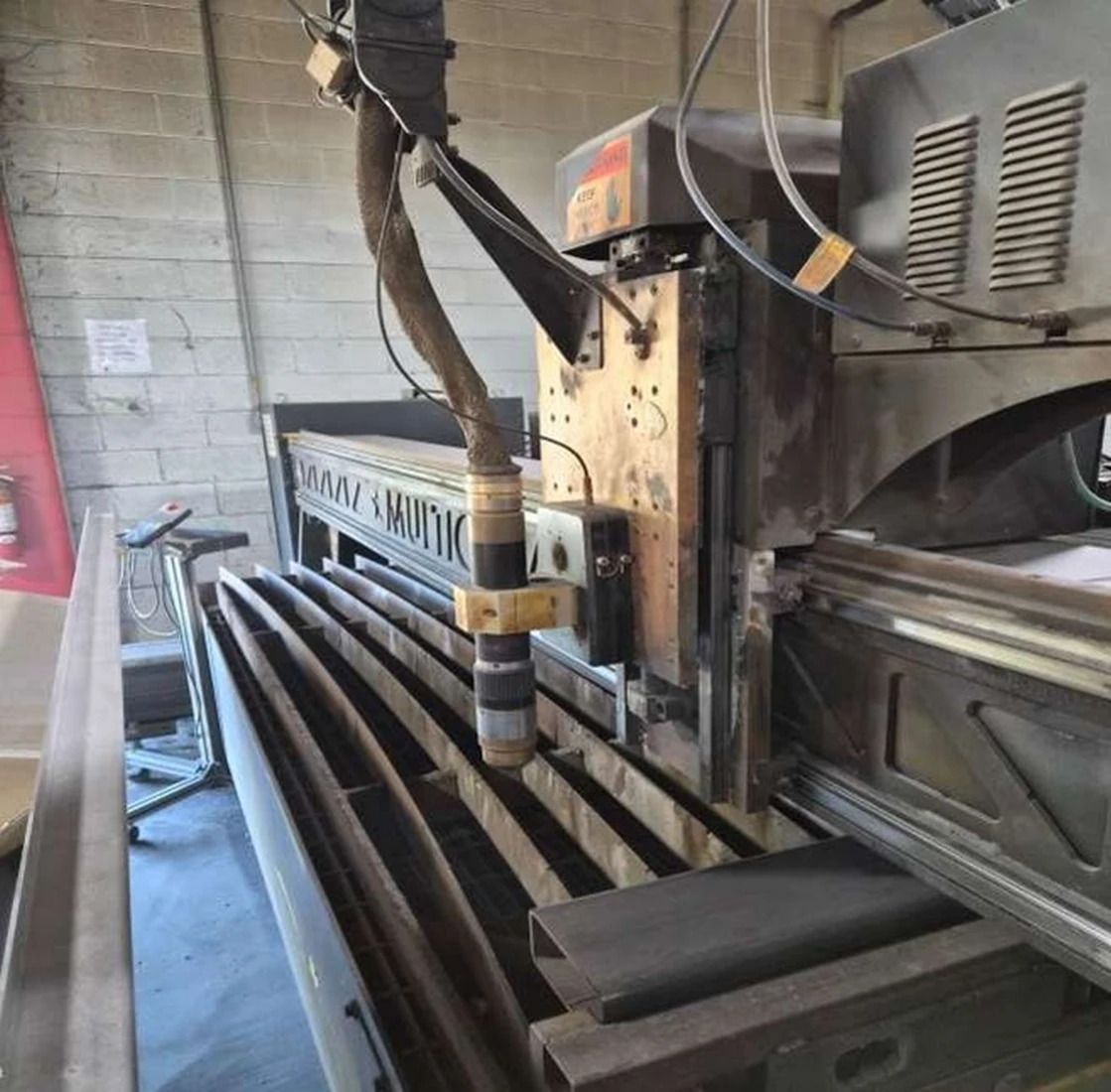

Single Carriage Can Support Oxy-Fuel and Plasma with Torch Height Control |
|
Standard Ethernet Communications |

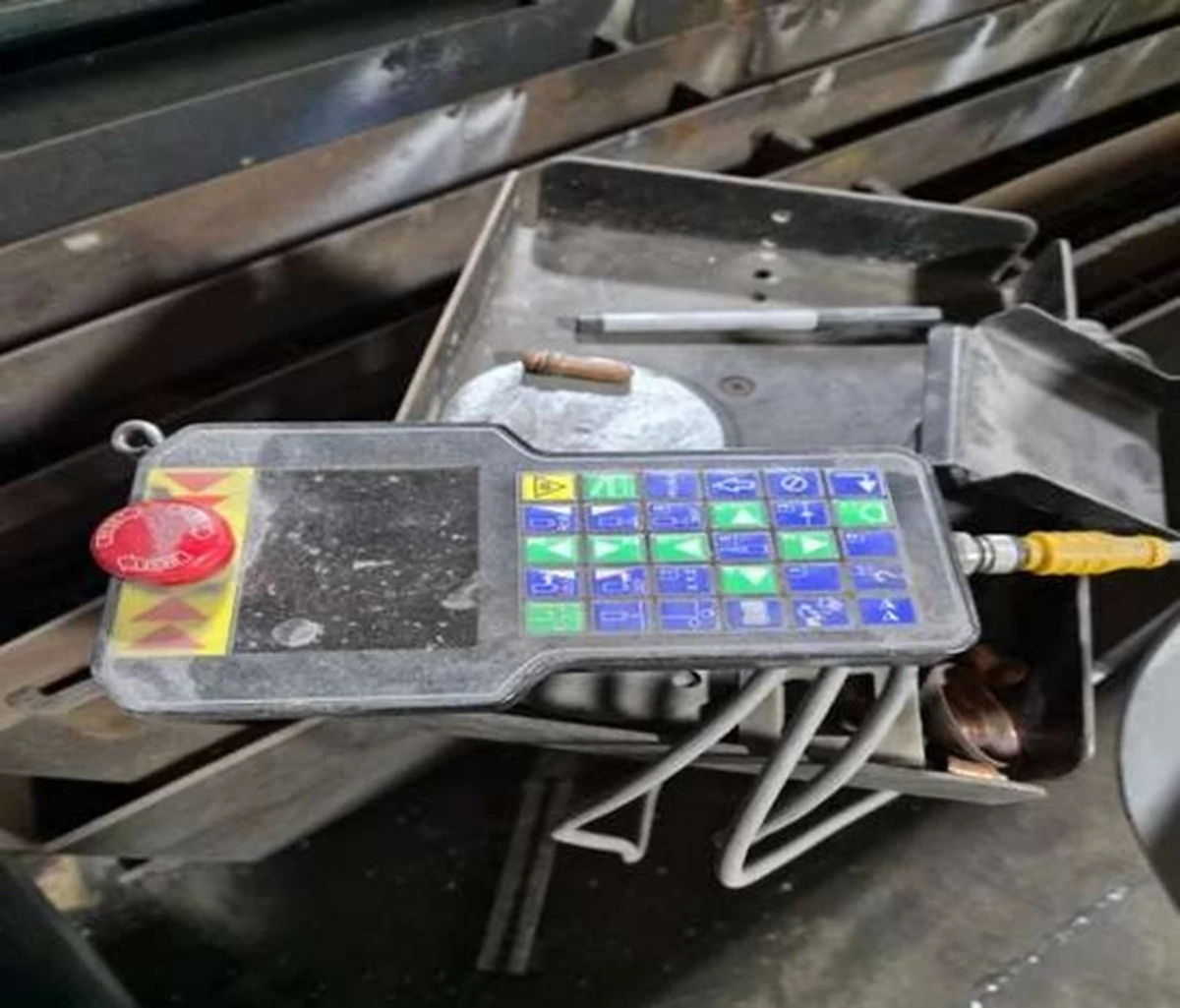

User-Friendly MultiCam Controller |
|
Drive Type X/Y Axis Rack and Pinion Drive |
Automatic Initial Pierce Height |
|
Fully Programmable Retract Between Parts |
High-Speed Contouring |
|
Material Database |
Z Axis Balls Screw Digital Drives System |
