Year |
2018 |
|---|---|
Make |
Magic |
Model |
ME-L1/ND 64-18 |
Description |
Blow Molder |
Reference # |
8071900 |
Price |
Activate Pricing |

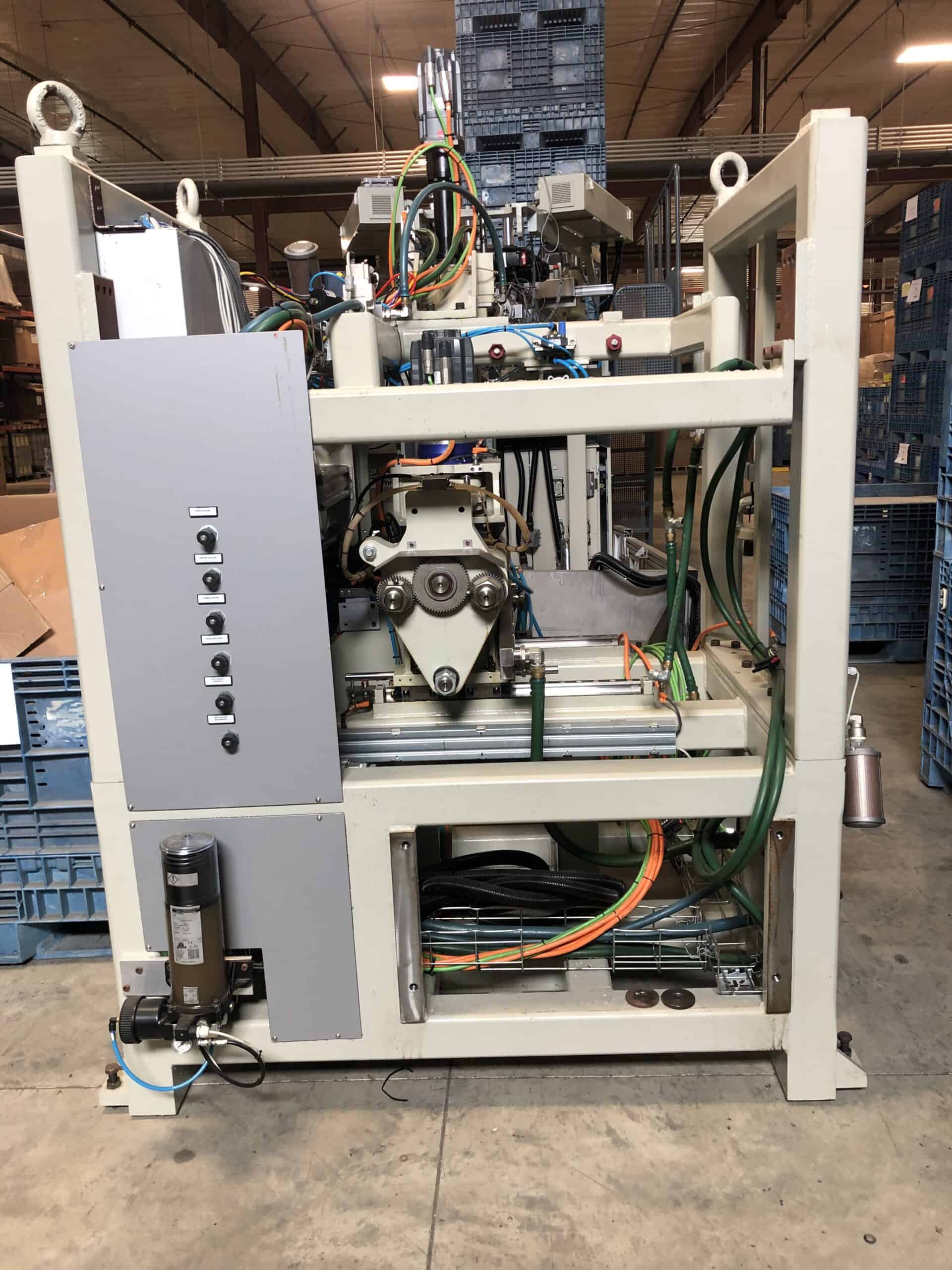

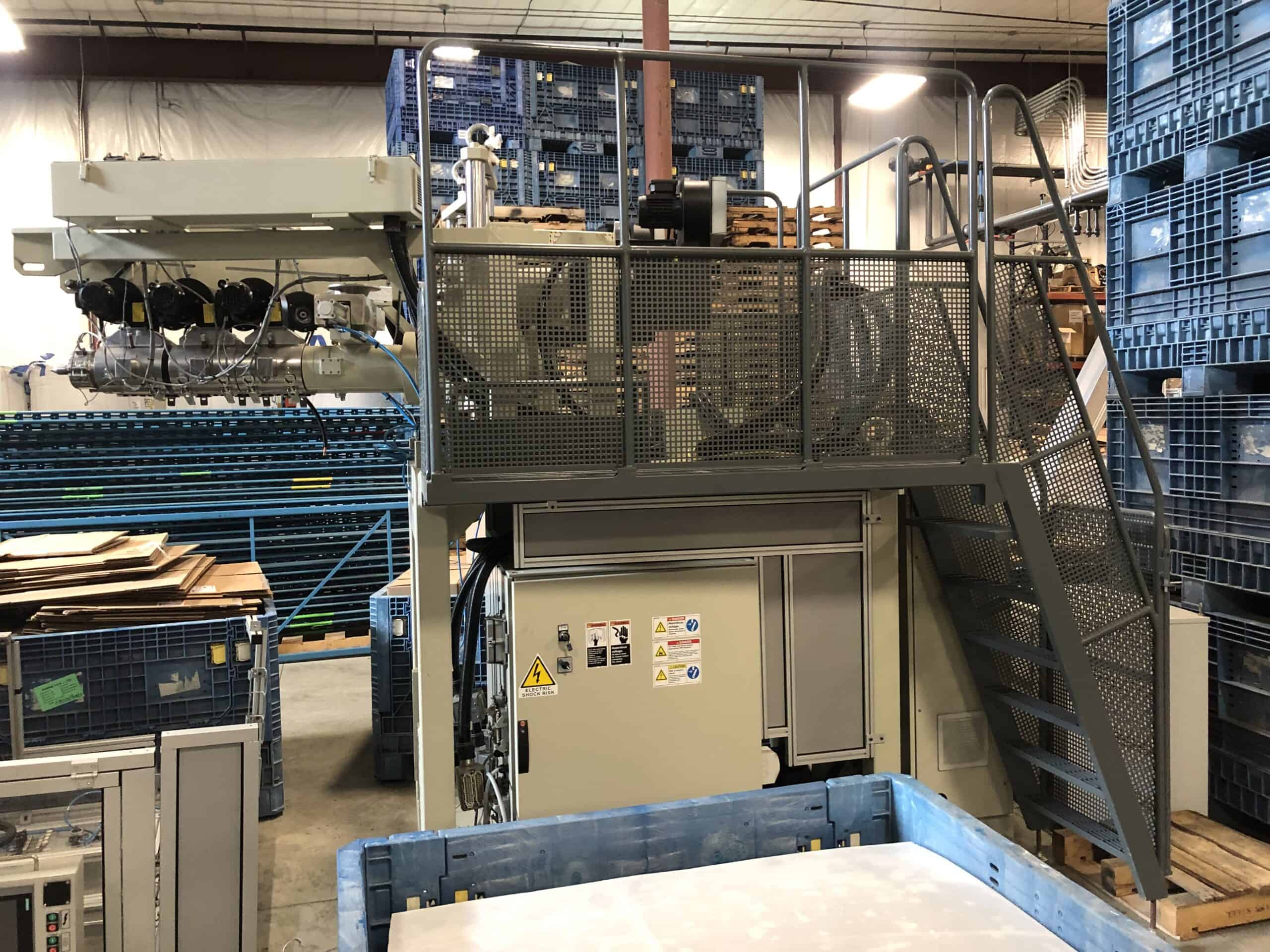

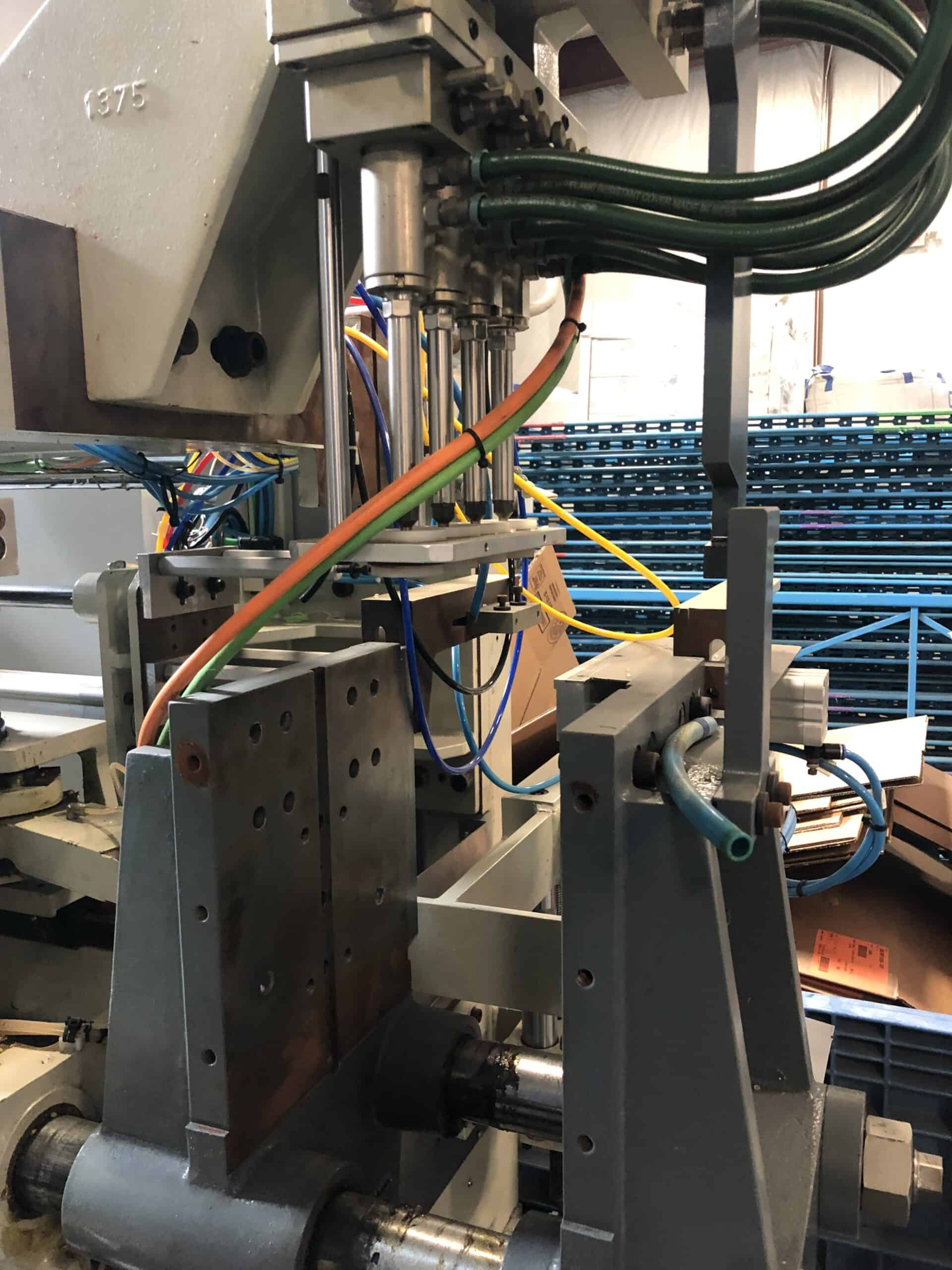

Used Magic ME-L1/ND 64-18 (2018) Blow Molder for Sale. This pre-owned Magic blow molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Magic Blow Molder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Type of Blow Molder |
All Electric EBM (Electric Blowmolding Machine) |
|---|---|
| Head Configuration |

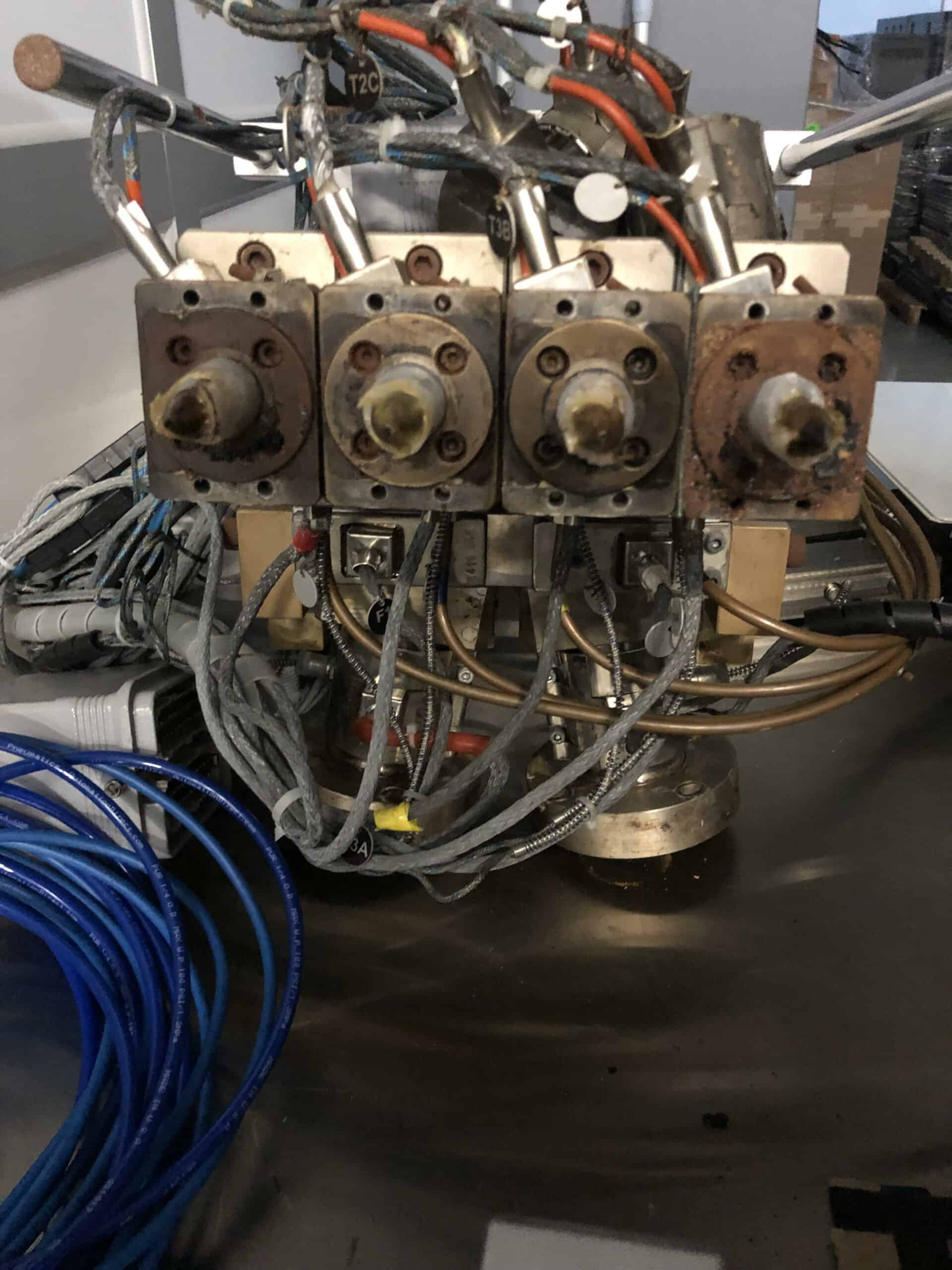

4 Heads x 50 mm |
| Max Mold Dimensions (WxLxH) (mm) |
290/2x85/280 |
| Closing Force (kN) |
30 |
| Extruder Screw Size (mm) |
38 |
| L/D Ratio |
24:1 |
| Power of Electric Motor |
8 kw (20 hp) |
| Hourly Output with HDPE (kg/hr) |
22 |

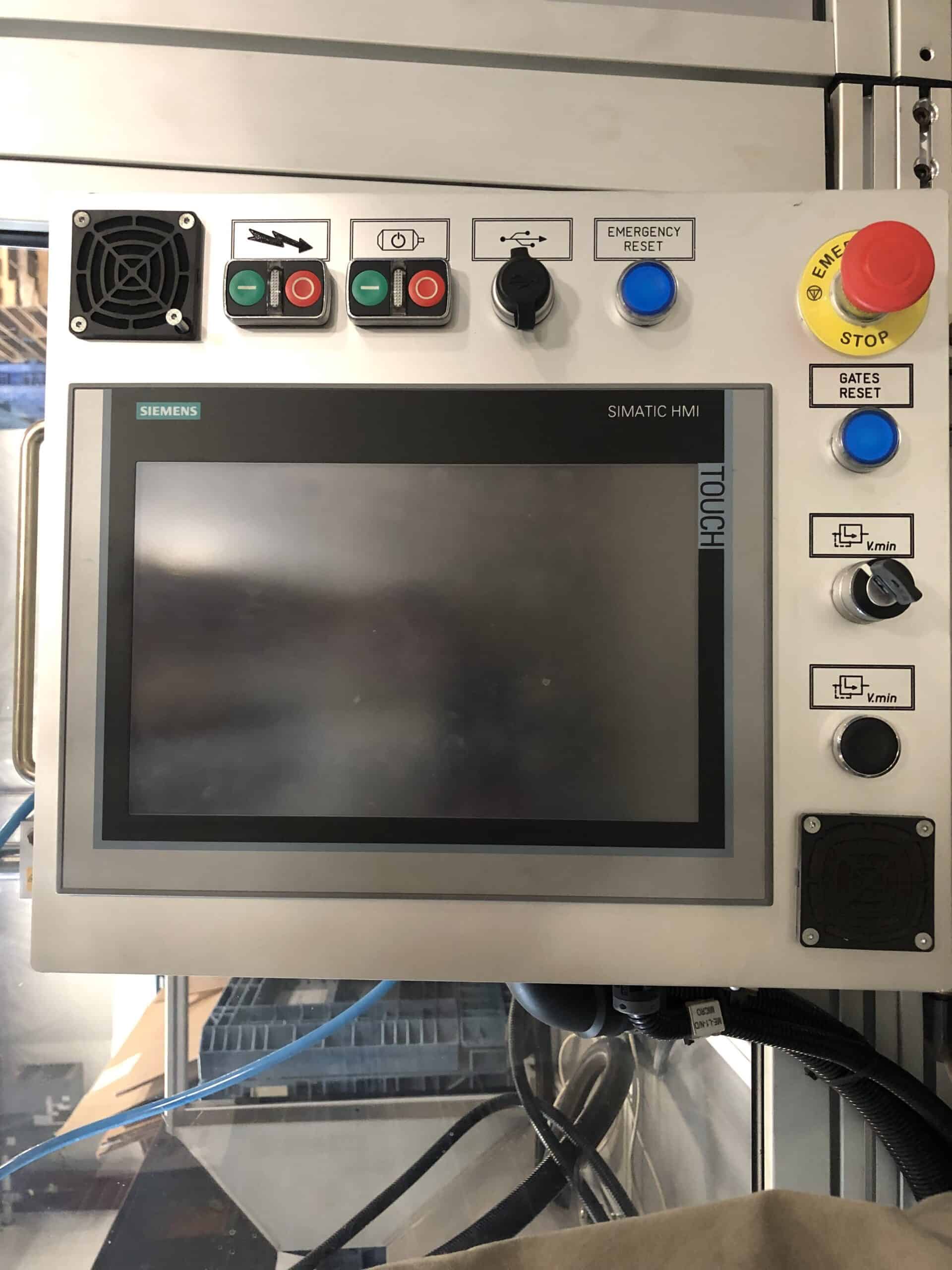

| Controller |
Siemens SYMATIC PC+ET 200 |
| Notes: |
Used only for R&D, Very Minimal Use |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
