Year |
2018 |
|---|---|
Make |
JSW |
Model |
180ADS-300U |
Description |
200 Ton 11.7 oz Shot Size Injection Molding Machine |
Reference # |
8079202 |
Price |
Activate Pricing |

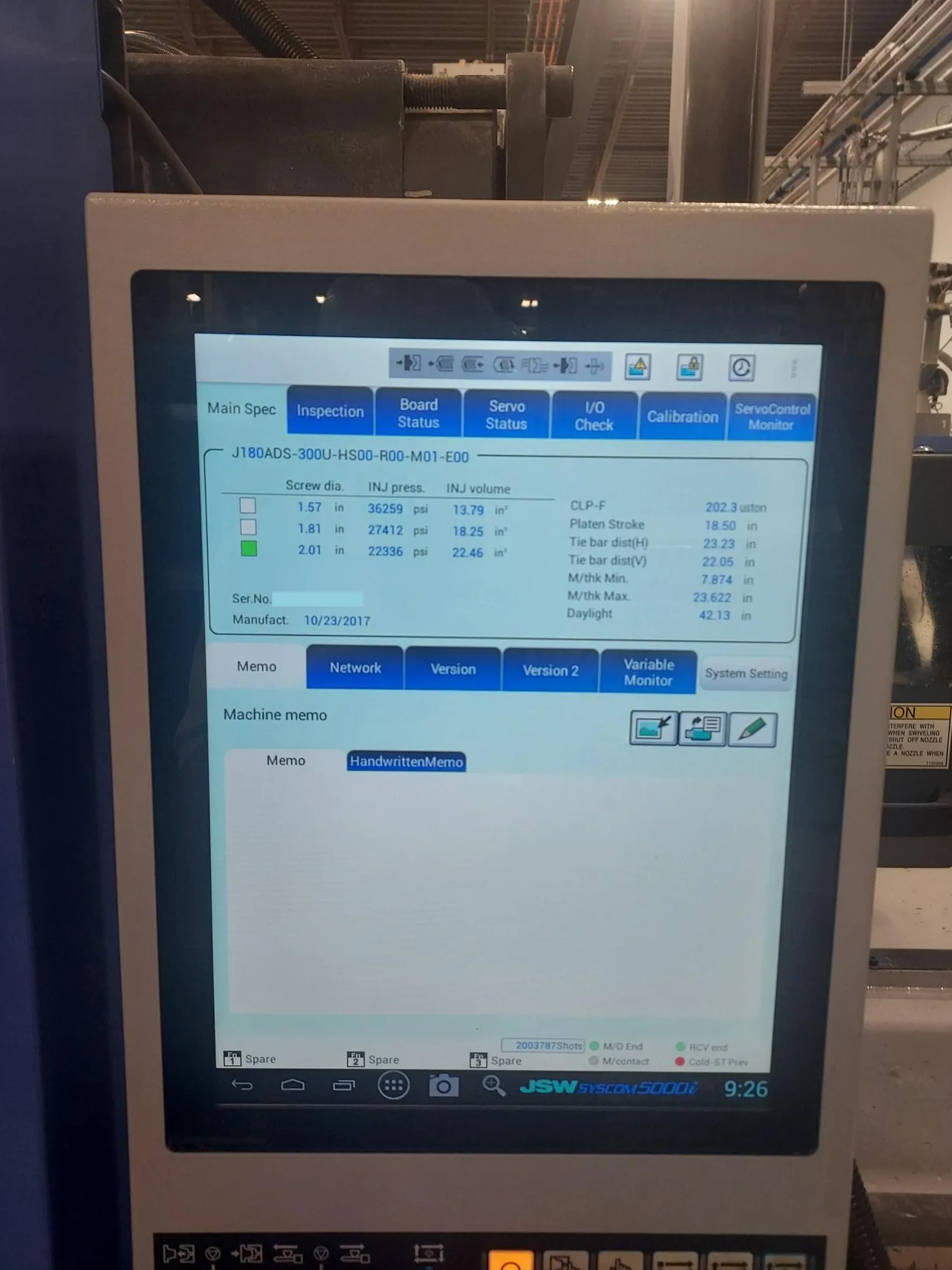

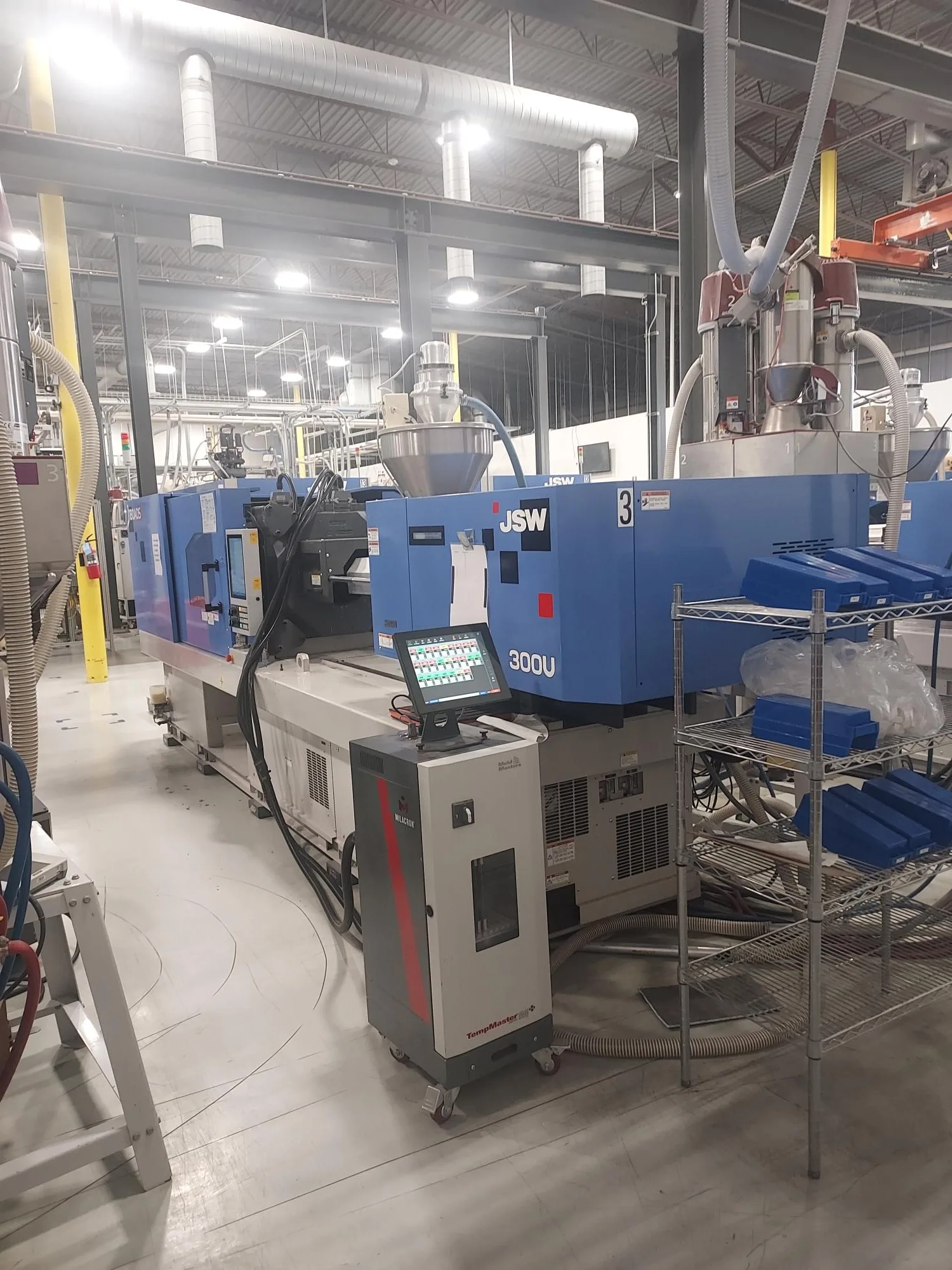

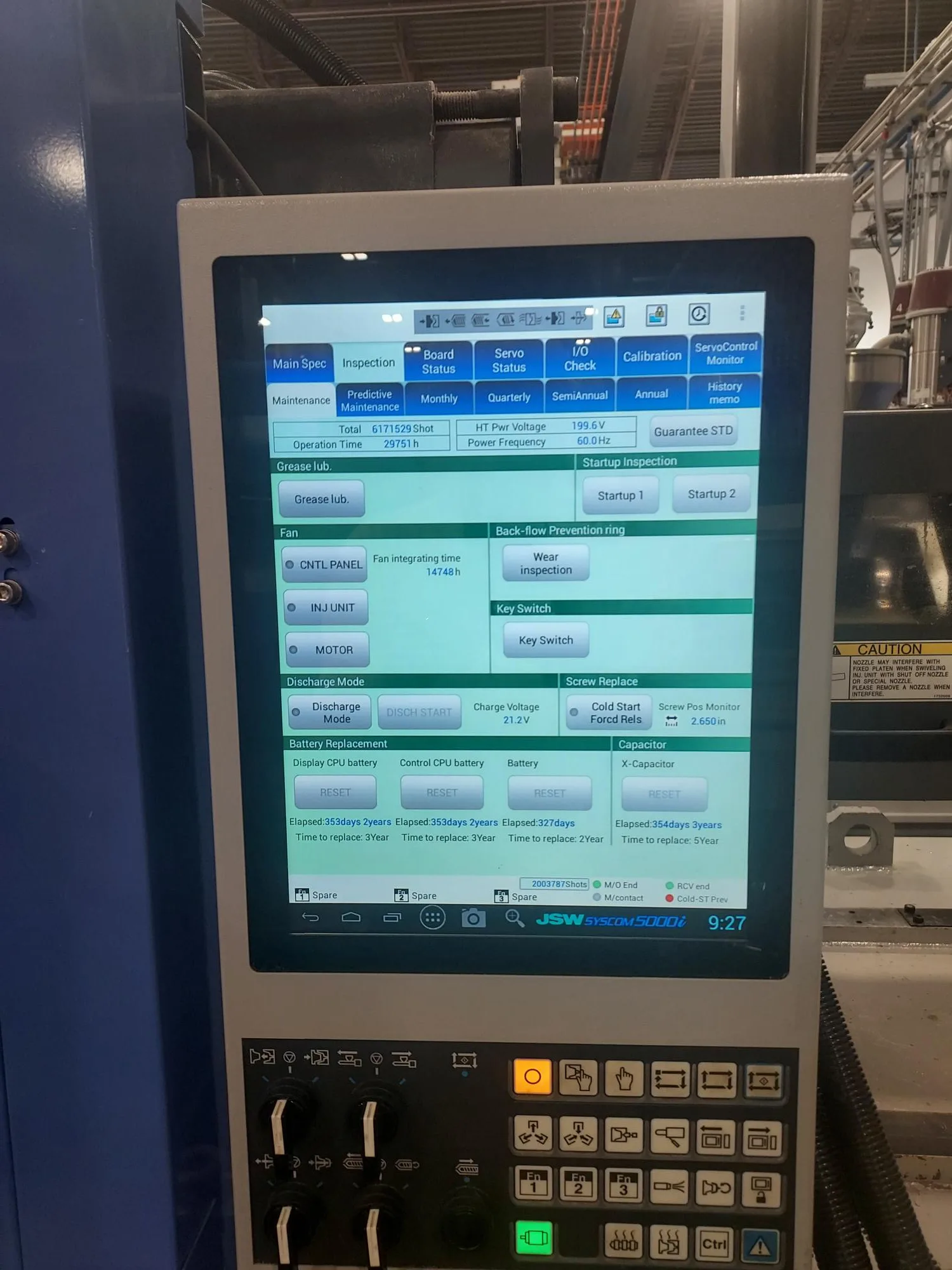

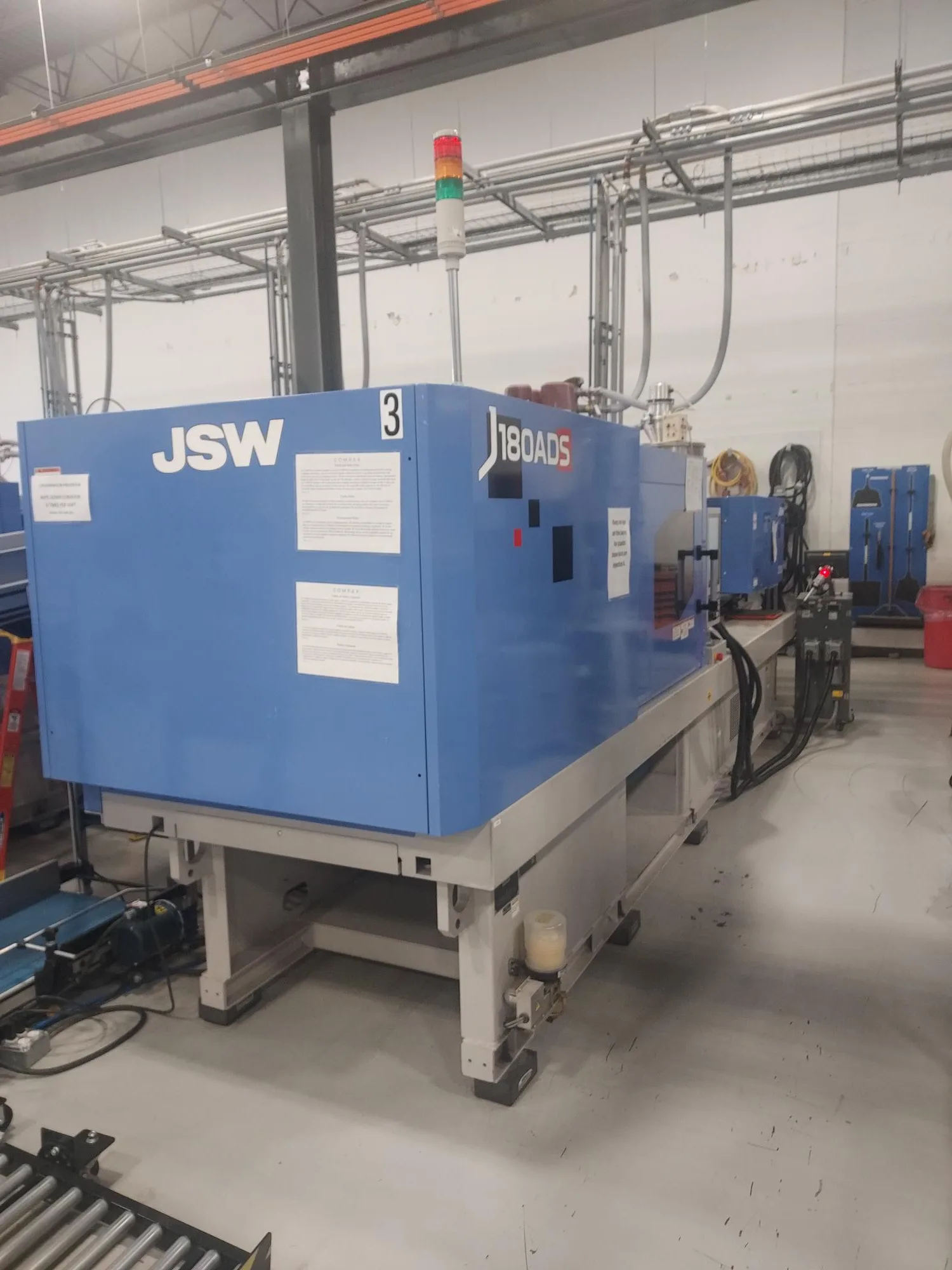

Used JSW 180ADS-300U (2018) Injection Molding Machine for Sale. This all-electric press is rated at 200 ton capacity with 202.3 ton clamp force and an 11.7 oz shot size. Platen size is 31.89″ x 30.71″ with tie bar spacing of 23.23″ x 22.05″. Maximum daylight is 42.13″, minimum to maximum mold height runs 7.87″ to 23.62″, and the maximum mold opening stroke is 18.50″. The machine runs a Syscom 5000 control and is equipped with air blow and a robot interface. It is under power and can be seen running for an inspection. See it alongside our other used plastic injection molding machines, then Activate Pricing or use the Inquire Now button to reach us about this press.
Specifications
| Capacity |
200 Ton |
|---|---|
| Shot Size |
11.7 oz |
| Platen Size |
31.89" x 30.71" |
| Tie Bar Spacing |
23.23" x 22.05" |
| Clamp Force |
202.3 Ton |
| Max Daylight |
42.13" |
| Min /Max Mold Height |
7.87" – 23.62" |
| Max Mold Opening Stroke |
18.50" |
| Control |
Syscom 5000 |
Features
|
Air Blow |
Robot Interface |
|
Under Power |
