Year |
2018 |
|---|---|
Make |
Haitian |
Model |
MA2000II-700E |
Description |
225 Ton 10.7 oz Shot Size Injection Molding Machine |
Reference # |
8078288 |
Price |
Activate Pricing |

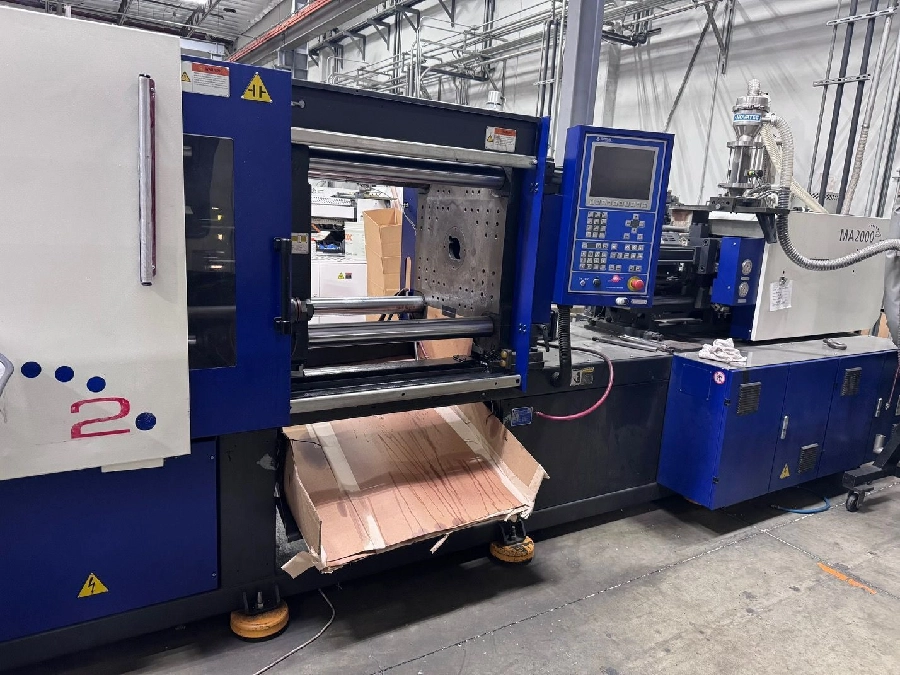

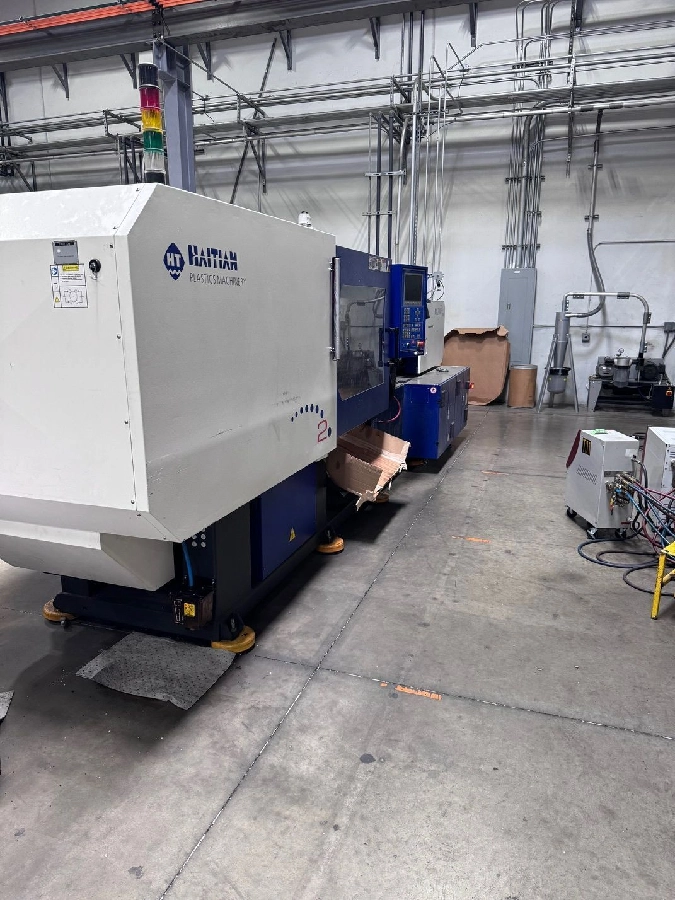

Used Haitian MA2000II-700E (2018) Injection Molding Machine for Sale. This Haitian is a 225 ton machine with a 10.7 oz shot size, tie bar spacing of 20.87″ x 20.87″ and platen size of 31.1″ x 31.1″. Maximum daylight is 40.9″, with a minimum/maximum mold height of 7.8″/21.6″ and a clamp stroke of 19.29″. Control is a Keba non touch screen unit. The machine is equipped with a bimetallic barrel, core pull and air blow. It can be seen under power for an inspection, and additional details are available on request. See more equipment in our used plastic injection molding machines category, use Activate Pricing to view current pricing, or Request a Quote and we will follow up with you. This machine is located in Arizona.
Specifications
| Capacity |
225 Ton |
|---|---|
| Shot Size |
10.7 oz |
| Tie Bar Spacing |
20.87" x 20.87" |

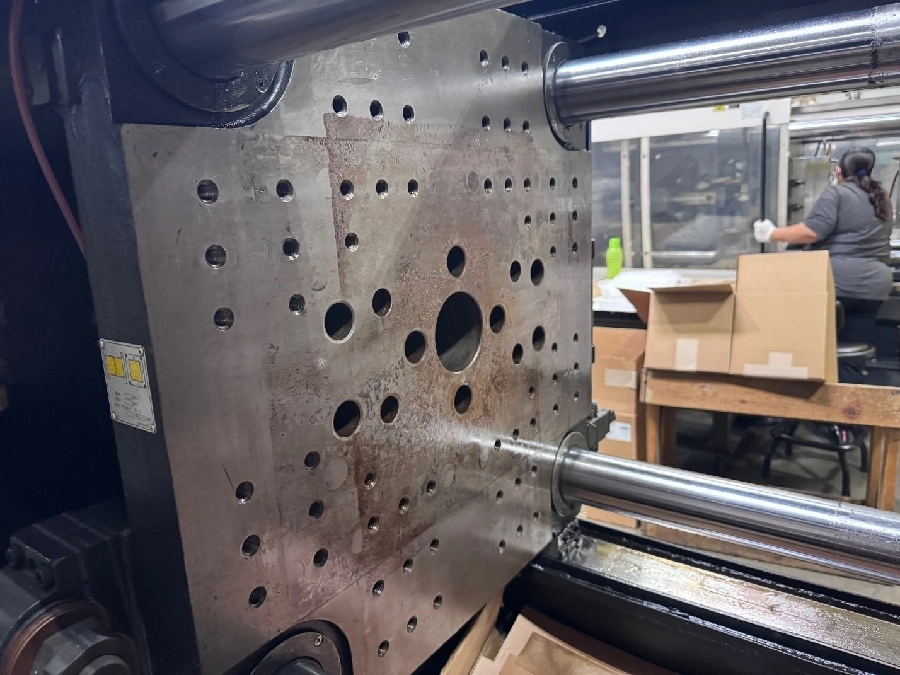

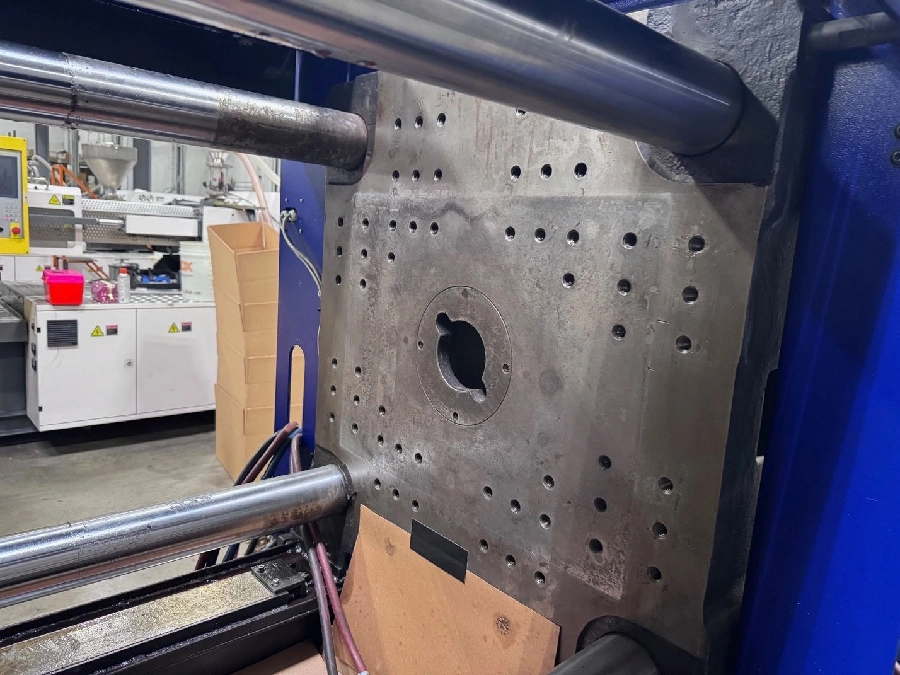

| Platen Size |
31.1" x 31.1" |
| Max Daylight |
40.9" |
| Min /Max Mold Height |
7.8"/21.6" |
| Clamp Stroke |
19.29" |

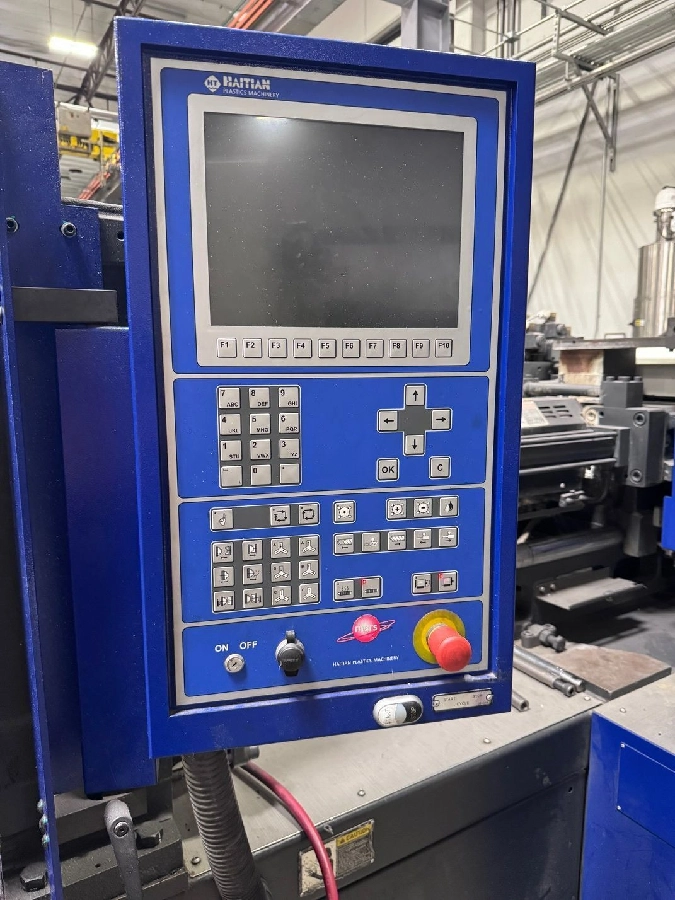

| Control |
Keba - Non Touch Screen |
Features
|
Bimetallic Barrel |
Core Pull |
|
Air Blow |
