Year |
2017 |
|---|---|
Make |
Elumatec |
Model |
SBZ 122/70 |
Description |
CNC Router |
Reference # |
8078983 |
Price |
Activate Pricing |

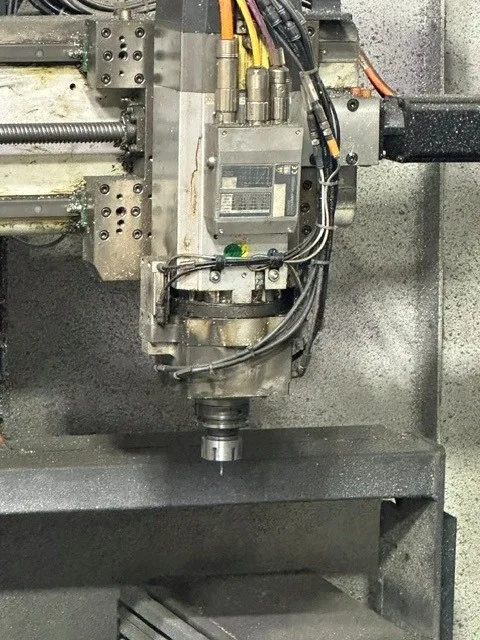

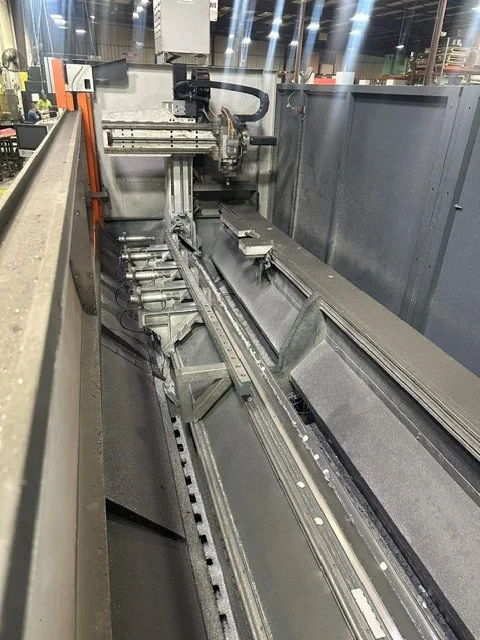

Used Elumatec SBZ 122/70 (2017) CNC Router for Sale. This 3-axis profile machining center runs an Elumatec control with X, Y and Z travels of 166.92″, 35.43″ and 24.01″ over a table measuring 11.81″ wide by 157.48″ long. Rapid traverse reaches 393.7 fpm on the X-axis and 262.46 fpm on the Y and Z axes. The 10.72 HP air-cooled routing spindle turns up to 24000 RPM with an HSK-F63 taper and is served by a 4-position ATC. Equipped with a 90 degree right-angle milling/routing head for processing profile sides, front, rear and end faces, four work piece clamps and a Rittal cooling unit, it handles aluminium, PVC and steel profiles up to 3 mm wall thickness. Available for inspection under power. Compare it with our other used CNC routers, then Activate Pricing or use the Inquire Now button.

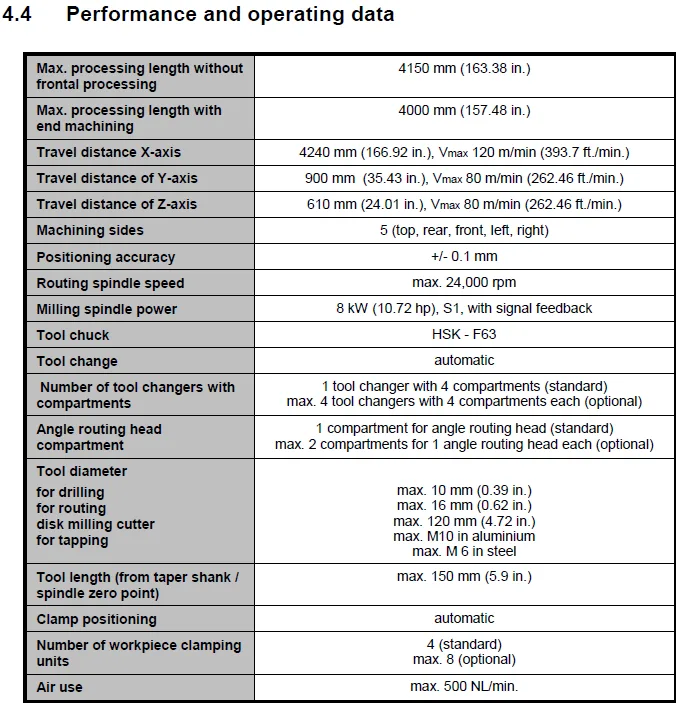

Specifications
| Table Width |
11.81" |
|---|---|
| Table Length |
157.48" |
| Number of Axis |
3 Axis |
| Control |
Elumatec |
| X-Axis Travel |
166.92" |
| Y-Axis Travel |
35.43" |
| Z-Axis Travel |
24.01" |
| Rapid Traverse Rate |
Up to 393.7 fpm on X-Axis, Up to 262.46 fpm on Y and Z Axes |
| Tool Changer Capacity |
4-Position |
| Spindle Speed |
Up to 24000 |
| Spindle Taper |
HSK - F63 |
| Spindle Power |
10.72 HP |

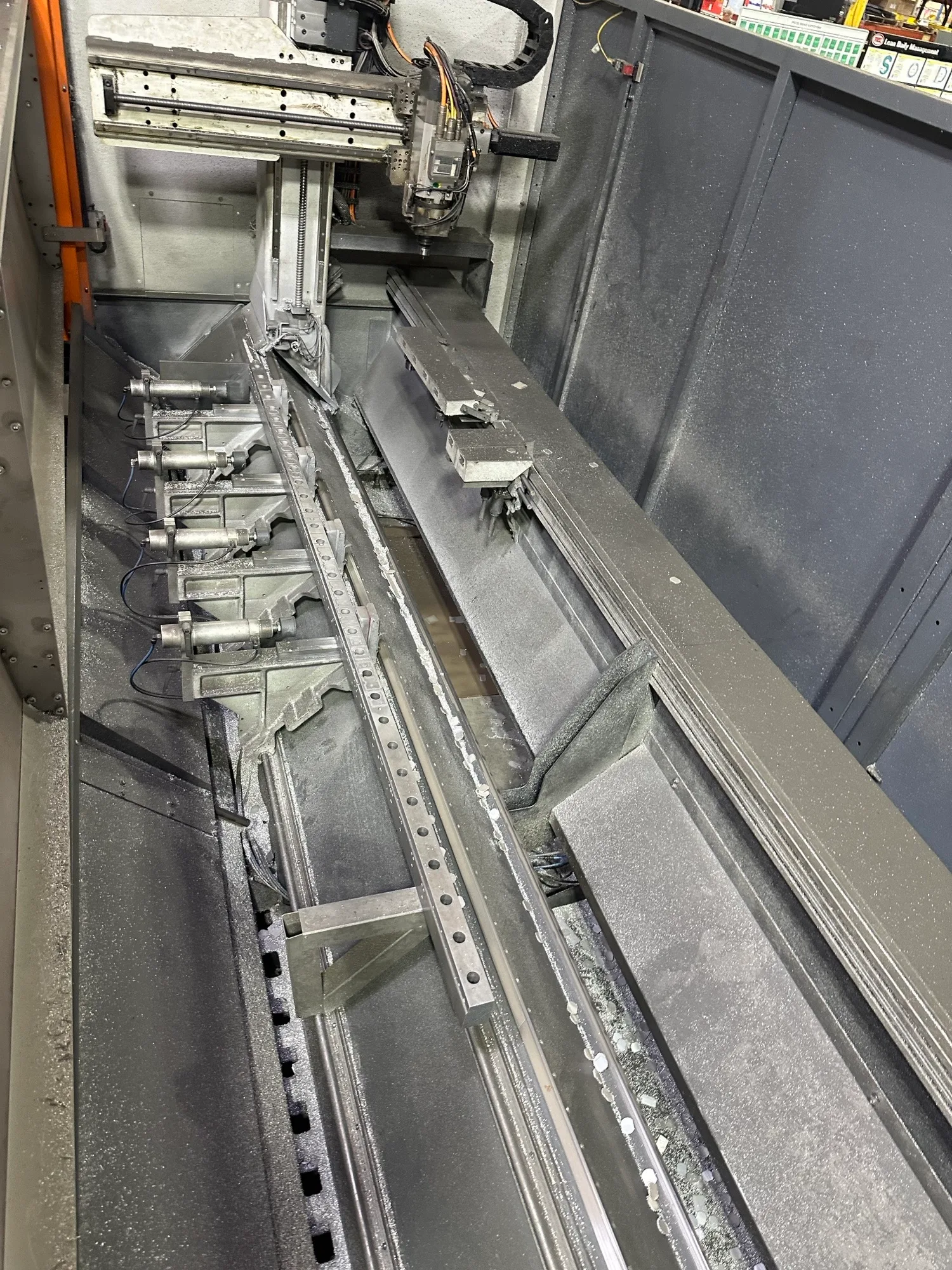

| Work Piece Clamps |
4 |
Features
|

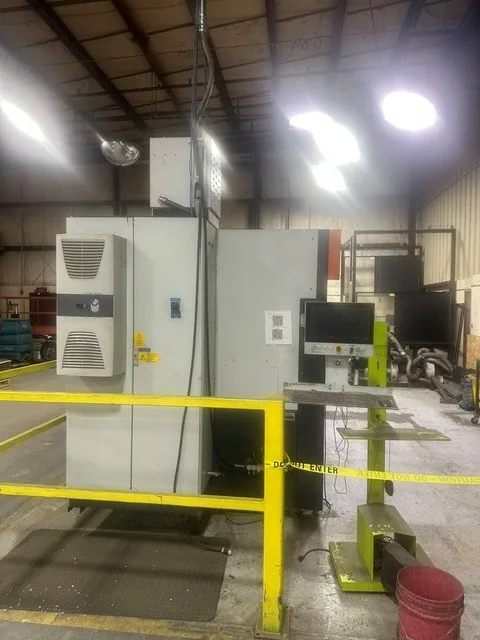

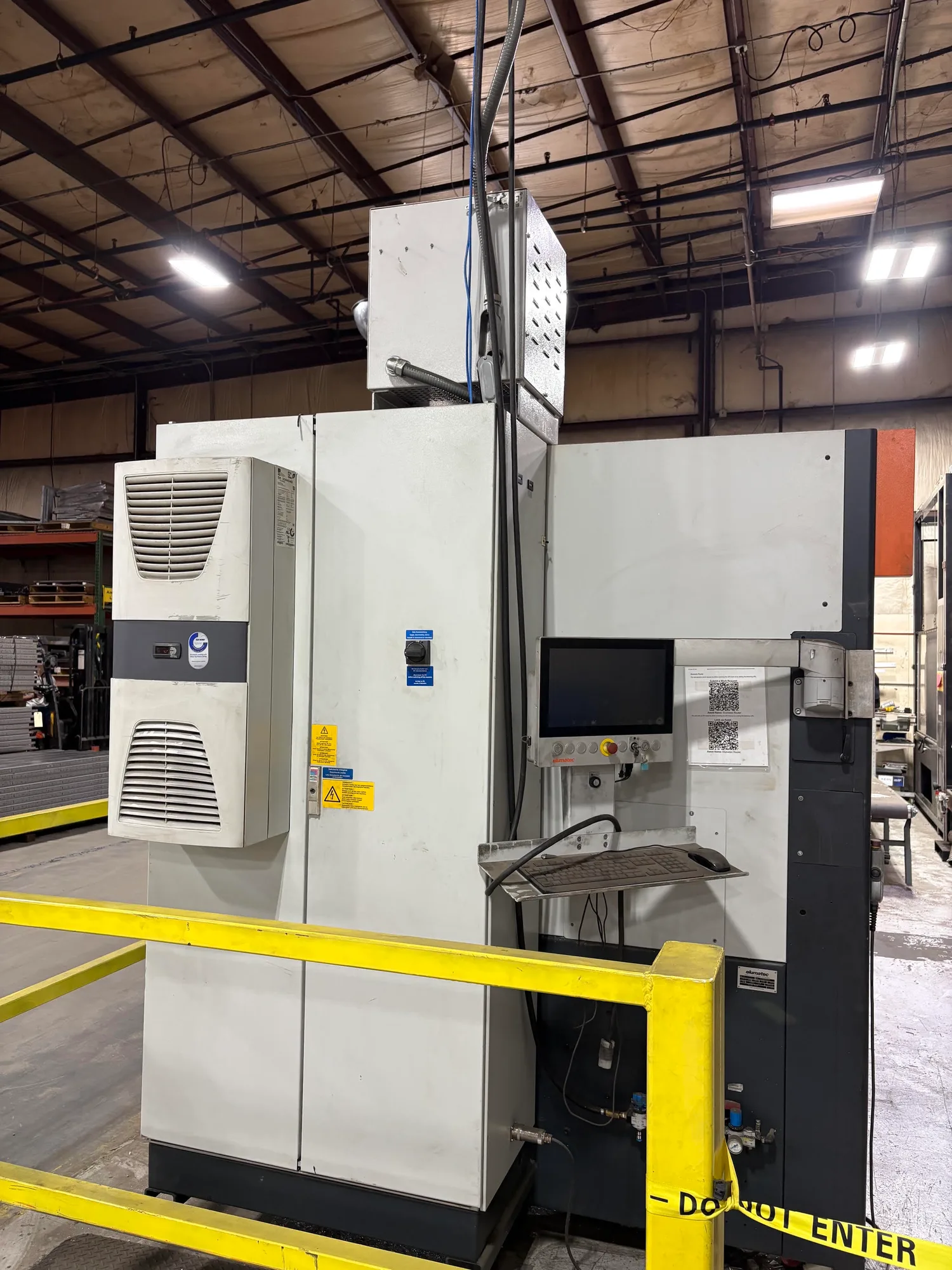

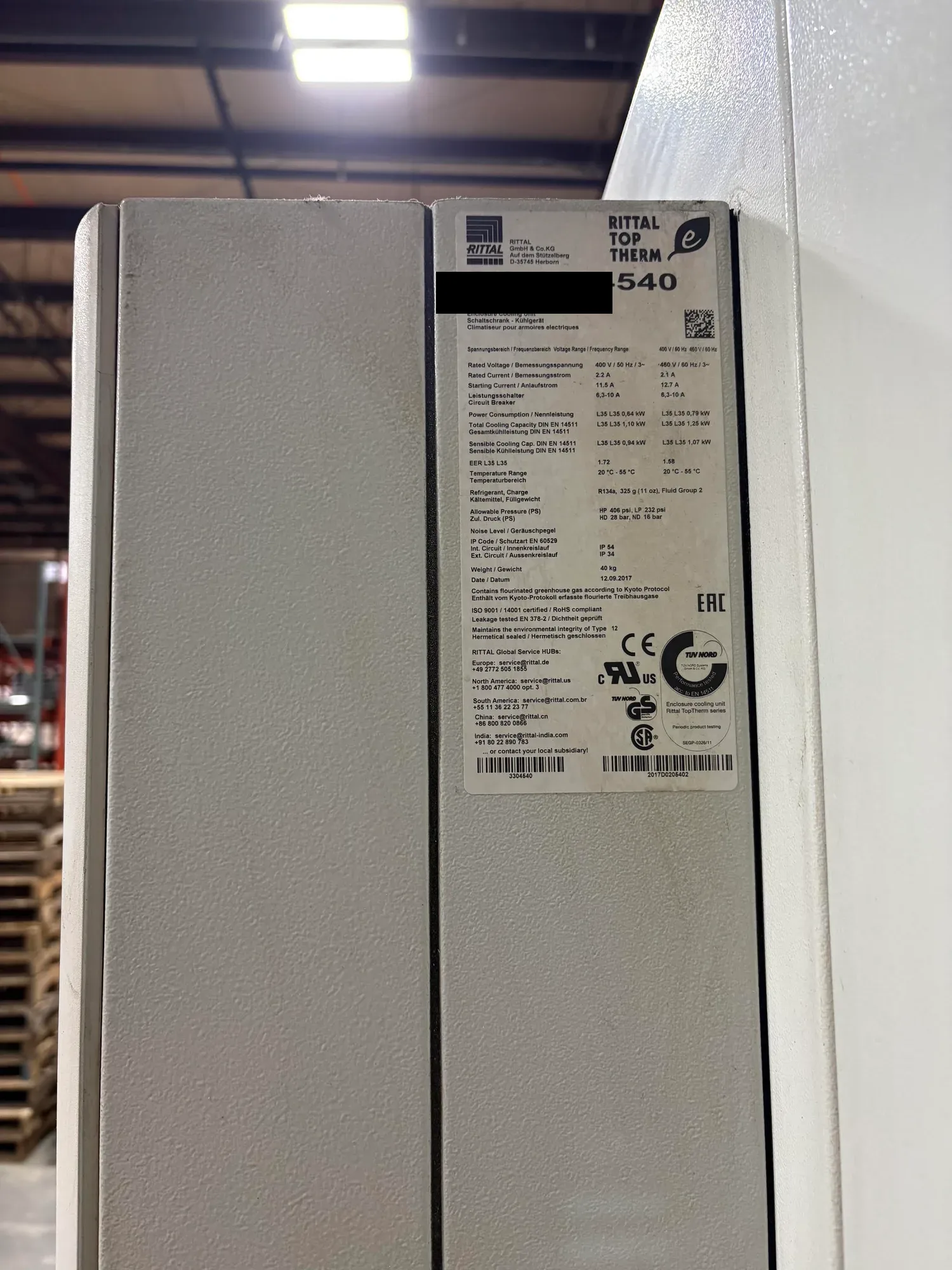

Rittal Cooling Unit |

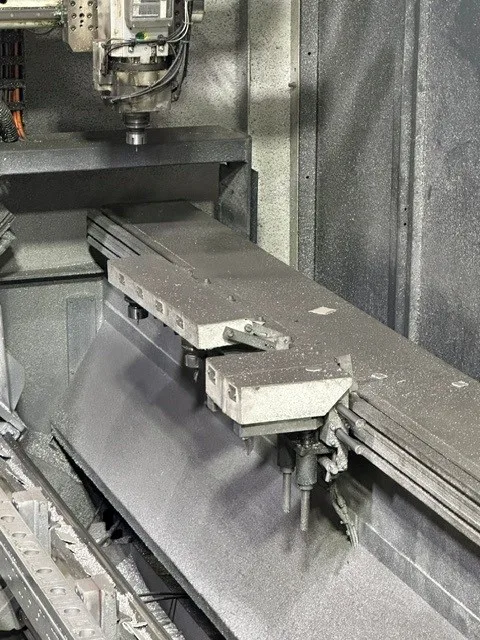

90° Right-Angle Milling/Routing Head (Allows Processing on Profile Sides/Front/Rear/End Faces) |
|
Air-Cooled Routing Spindle |
Aluminium/PVC/Steel Profiles up to 3 mm Wall Thickness |
