Year |
2017 |
|---|---|
Make |
Doosan |
Model |
Lynx 2100L |
Description |
CNC Lathe |
Reference # |
8077634 |
Price |
Activate Pricing |

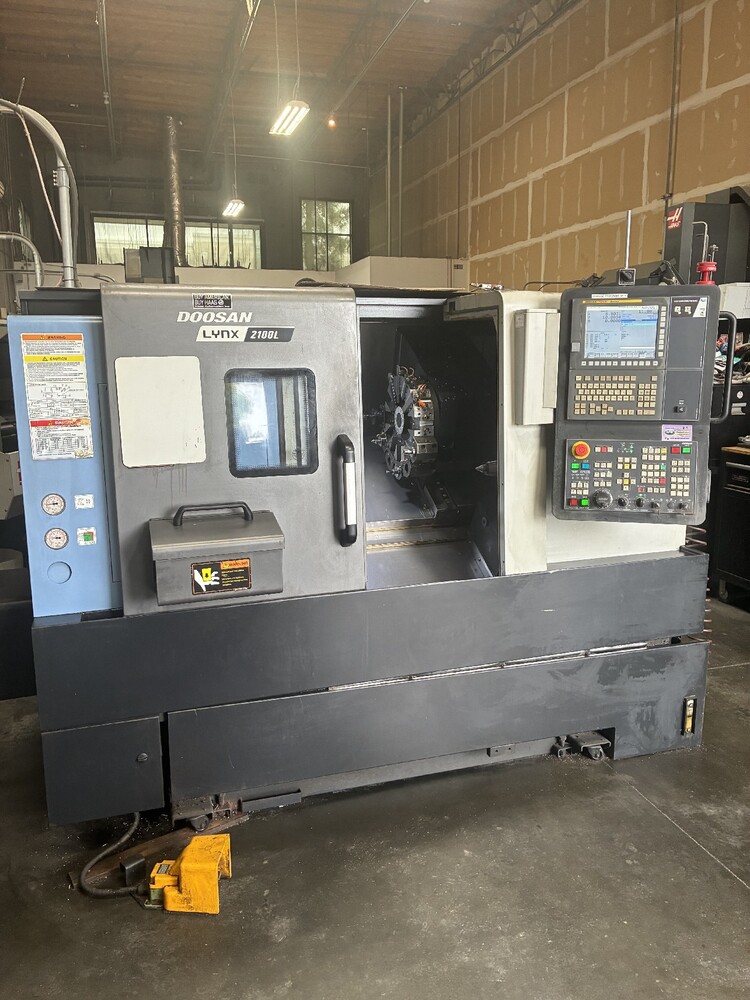

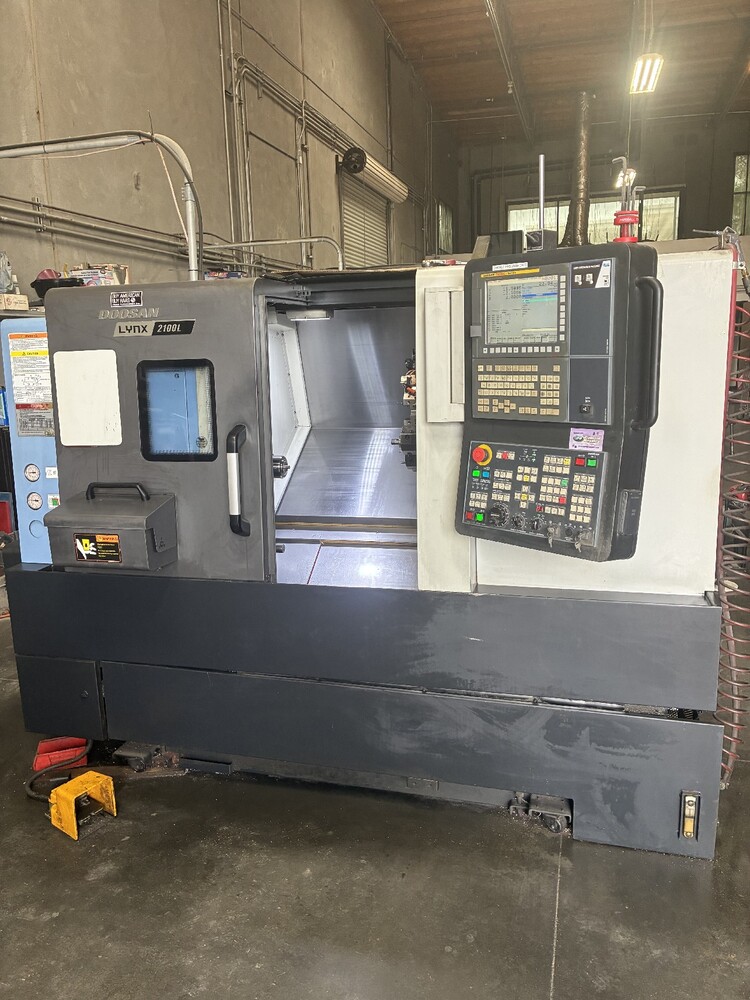

Used Doosan Lynx 2100L (2017) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.625" |
| Swing |
23.6" |
| Turning Diameter |
13.8" |
| Spindle Speed |
40-4500 RPM |
| Control |
Fanuc 0i-T |
| Distance Between Centers |
21.6" |
| Turret |
12 |
| Tailstock |
MT #4 Live |
| High-Speed Turret Indexing |
.11 Sec |
| Power Requirement |
205-235V/3 Ph/60Hz |
Features
|
20 HP High Torque Spindle- 124.6 ft/lb |
3J Chuck Collet and Assortment of Tool Holders Included |
|
65 PSI Multi-Stage Coolant Pump |
EZ Guide i Conversational Programming |
|
Fast Z Axis Rapid Traverse - 1417 IPM |
No Chip Removal System |
|
Tool Load Monitoring System |
Auto Tool Presetter |
|
Rigid Tapping |
*
