Year |
2008 |
|---|---|
Make |
Okuma |
Model |
Multus B400-W |
Description |
CNC Lathe |
Reference # |
8075838 |
Price |
Activate Pricing |

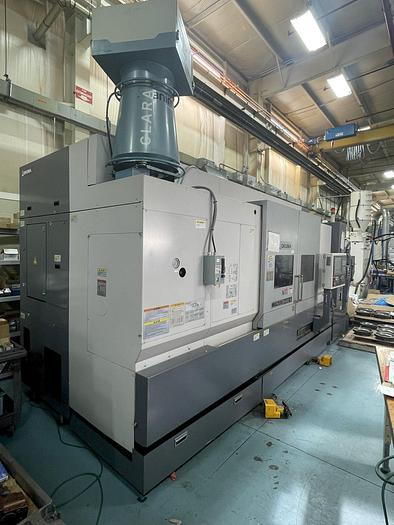

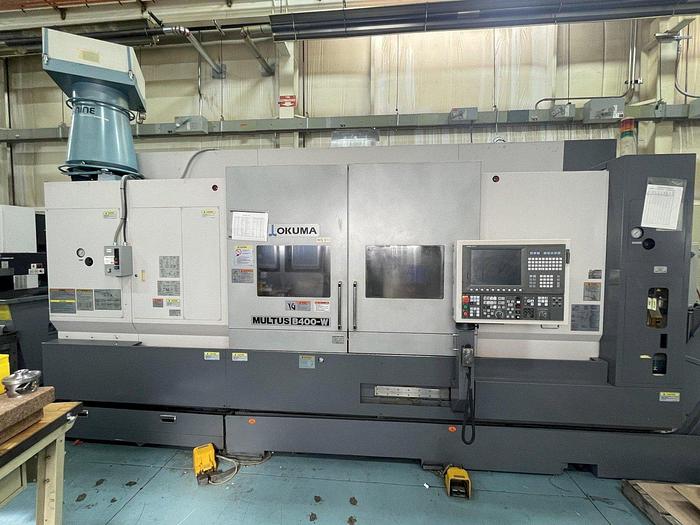

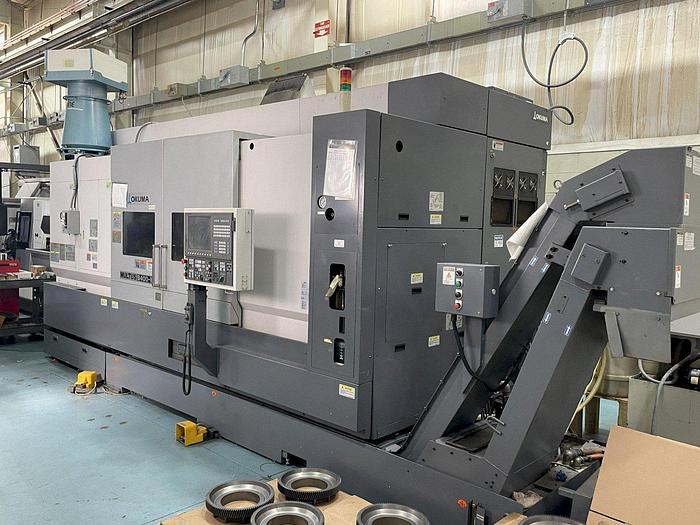

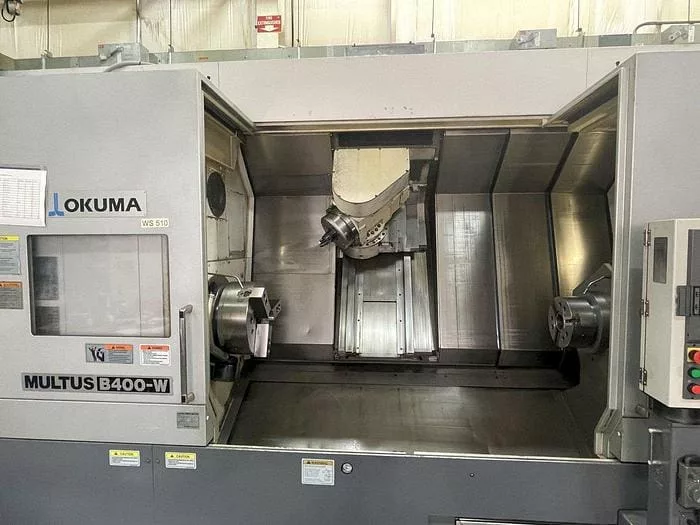

Used Okuma Multus B400-W (2008) CNC Lathe for Sale. This multitasking turning center is equipped with an OKUMA OSP-200L / OSP P200L CNC control, a 15″ chuck, and a 12″ chuck sub spindle. Capacities include 60.83″ between centers, 27.9″ max swing, 27.95″ swing over saddle, and 60″ max turning and machining length. Travels measure 27.17″ X, 60.83″ Y, and 9.06″ Z, with B-axis index of 225 degrees and C-axis index of 360 degrees, both at 0.001″. The main spindle runs 38 – 3800 RPM with an A2-11 nose and 4.72″ bore, rated 40/30 HP, and the opposing spindle is 30/20 HP. Milling spindle speed range is 50 – 6000 RPM with Capto (C6) taper. Equipped with foot switches, approximately $25k in tooling, Touch Setter M, chip conveyor, and coolant system. Available for inspection under power. See more CNC lathes and Okuma machines, Activate Pricing, or Request a Quote.
Specifications

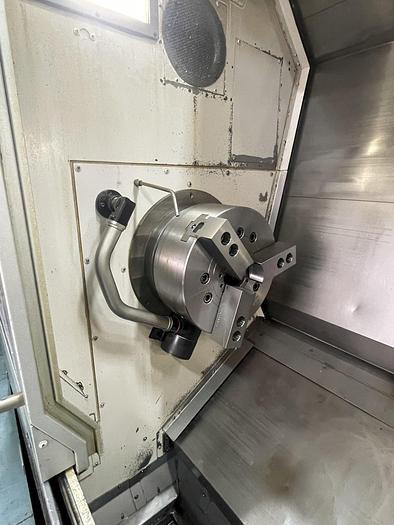

| Chuck Size |
15" |
|---|---|
| Distance Between Centers |
60.83" |

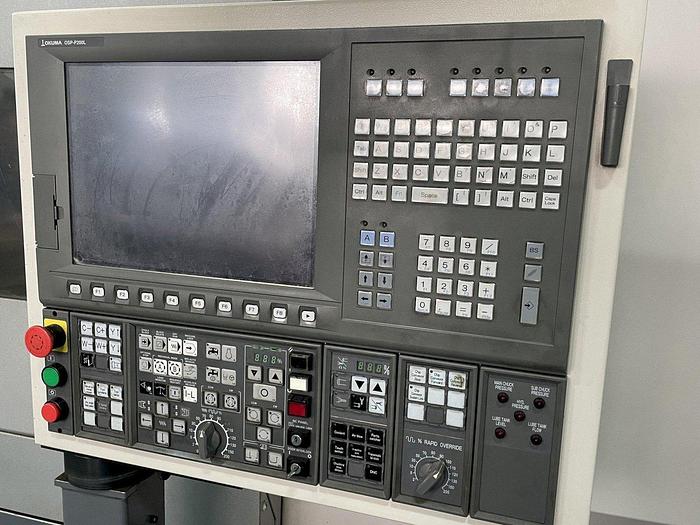

| Control |
OKUMA OSP-200L CNC Control |
| B-Axis Index |
225 Degree at 0.001″ |
| C-Axis Index |
360 Degrees at 0.001 |
| Max Machining Length |
60″ |
| Max Swing |
27.9" |
| Cutting Length |
60" |
| Swing Over Saddle |
27.95" |
| Max Turning Length |
60" |
| X Axis Travel |
27.17" |
| Y Axis Travel |
60.83" |
| Z Axis Travel |
9.06" |
| Main Spindle Speed Range |
38 – 3800 RPM |
| Main Spindle Nose |
A2-11 |
| Main Spindle Bore |
4.72″ |

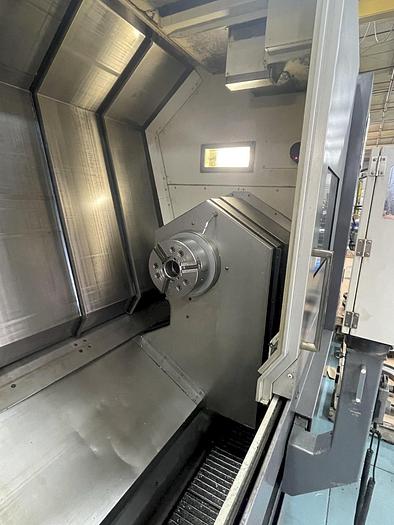

| Sub Spindle |
12″ Chuck |
| Tool Taper in the M-Spindle |
Capto (C6) |
| Milling Spindle Speed Range |
50 – 6000 RPM |
| Main Spindle |
40/30 HP |
| Opposing Spindle |
30/20 HP |
| Control |
OSP P200L Control |
Features
|
Foot Switches |
Lots of Tooling (approximately $25k) |
|
Touch Setter M |

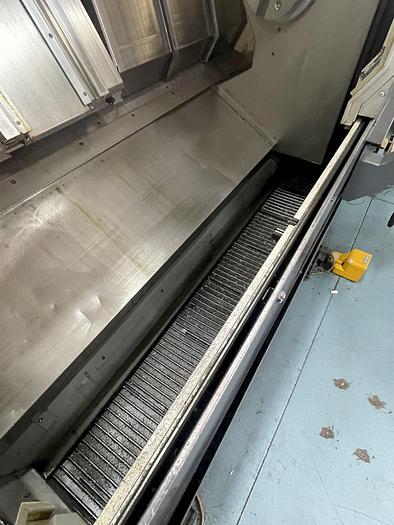

Chip Conveyor |
|
Coolant System |
