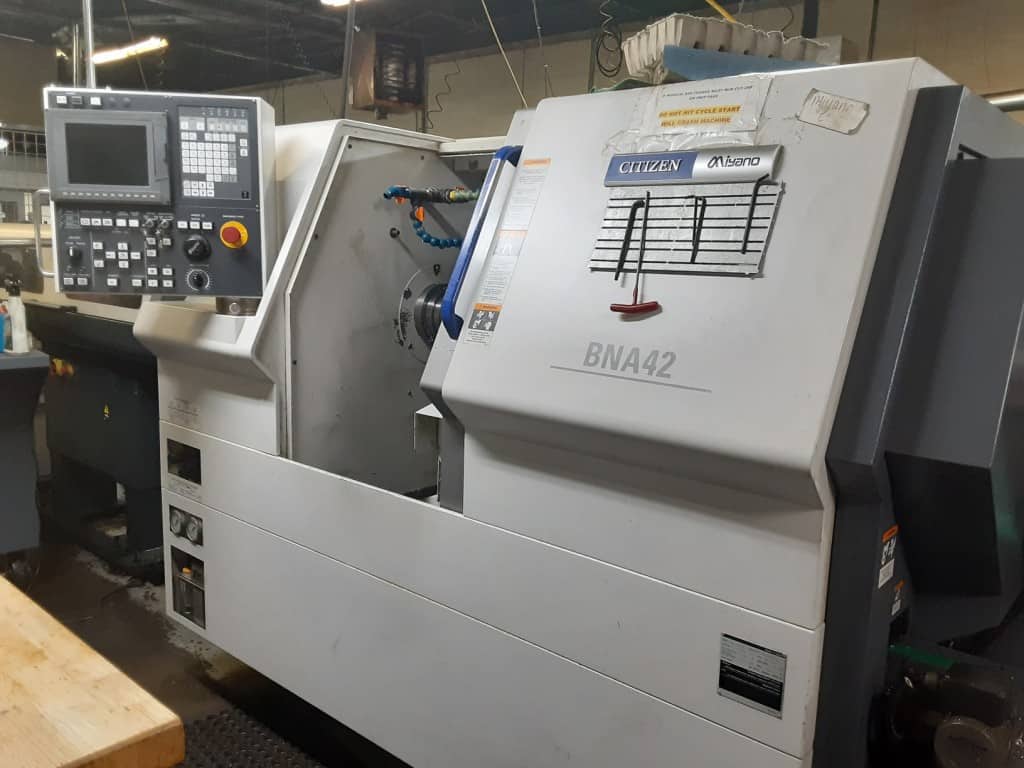

Year |
2017 |
|---|---|
Make |
Miyano |
Model |
BNA-42MSY2 |
Description |
CNC Lathe |
Reference # |
8069922 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
N/A |
|---|---|
| Bar Capacity |
N/A |
| Turning Diameter |
N/A |
| Spindle Speed |
6,000 RPM |
| Sub-Spindle |
5,000 RPM |
| Control |
Mitsubishi CNC |
| Distance Between Centers |
N/A |
| Turret |
8 Station |
| Coolant |
1,000 PSI High Pressure Coolant |
| Live Tooling |
Y-Axis |

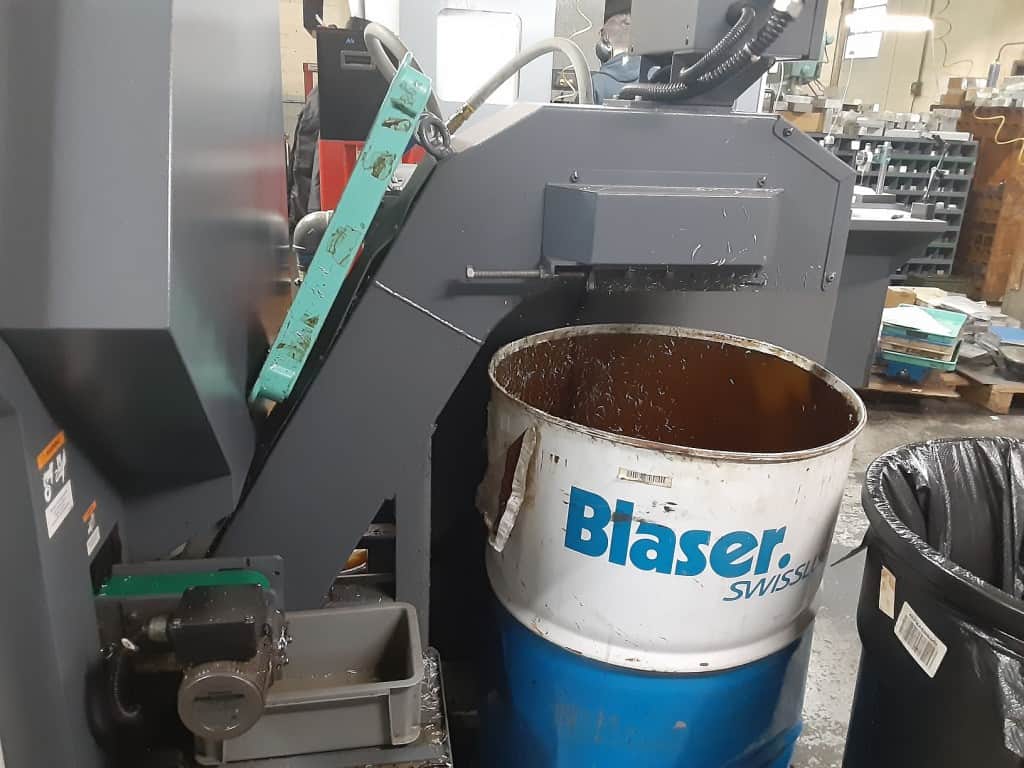

| Chip Removal |
Chip Conveyor |
| Maximum Machining Diameter of Bar Work |
SP1: 42mm, SP2: 34mm |
| Maximum Machining Length |
100mm |
| Spindle motor(15min./Cont.) |
SP1: 11/7.5kW, SP2: 5.5/3.7kW |
| Shank Height of Square Turning Tool |
20mm |
| Diameter of Drill Shank |
25mm |
| Rapid feed rate |
Z1 axis: 20m/min, X1 axis: 20m/min, Y1 axis: 12m/min, Z2 axis: 20m/min, X2 axis: 12m/min |
| Maximum Number of Revolving Tool |
8 |
| Machine Height |
1,620mm |
| Floor Space |
2,388×1,450mm |
| Machine Weight |
3,000kg |
Features
|

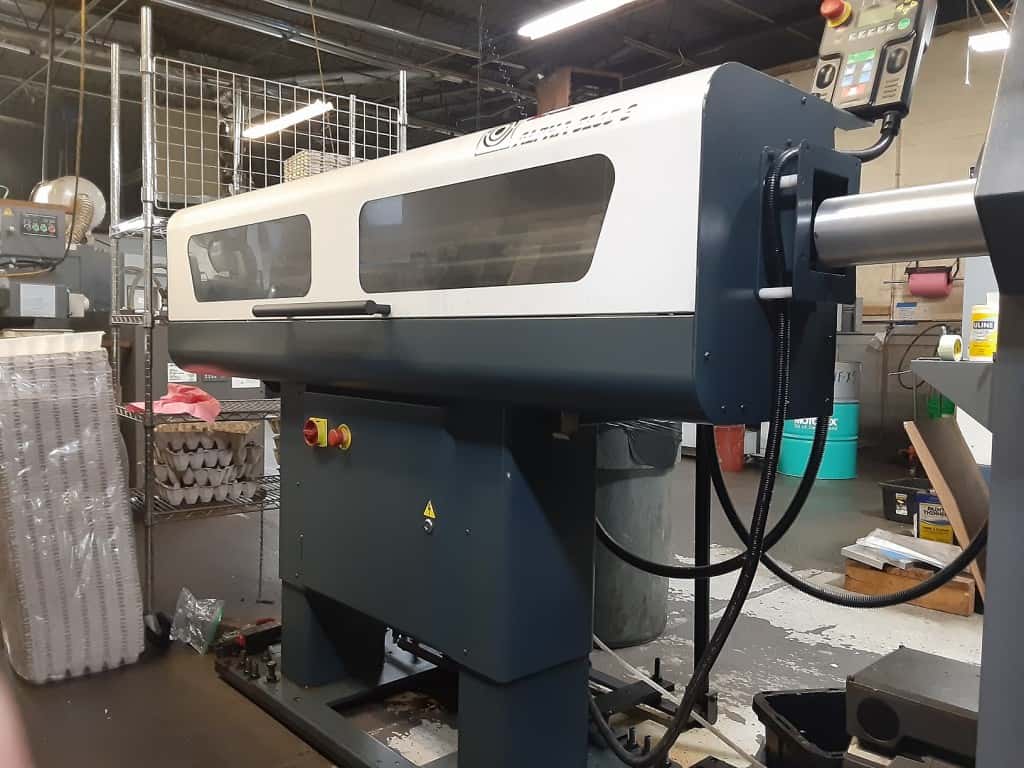

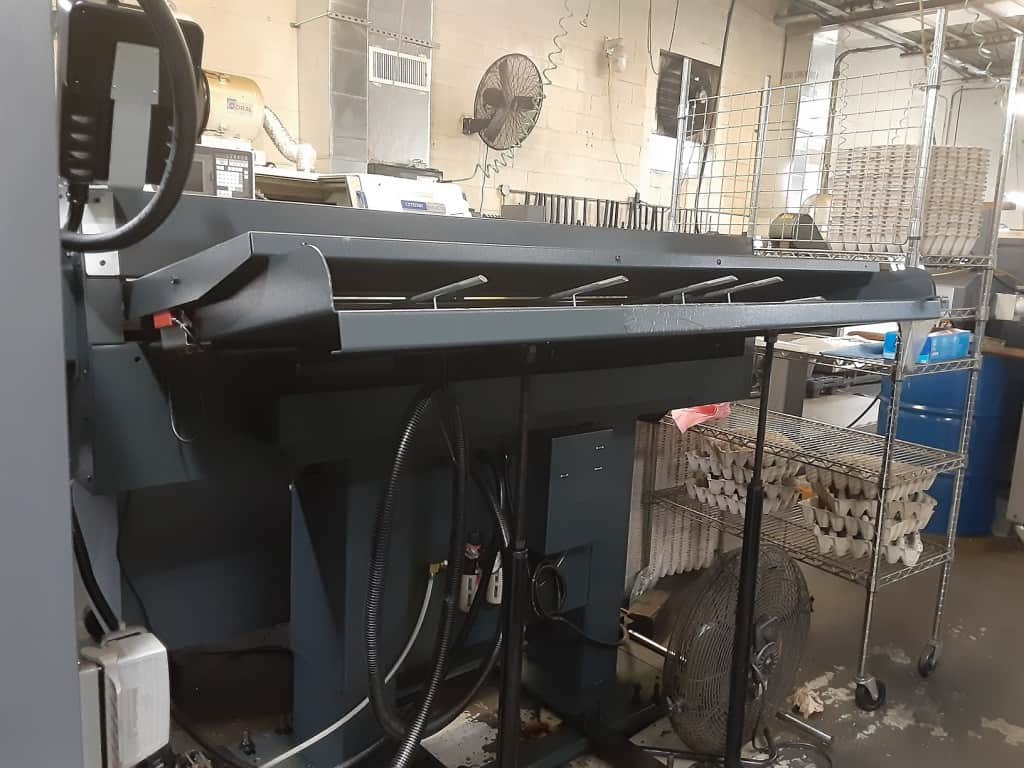

LNS ALPHA-SL65-S Barfeeder |
Mist Collector Coral Anti Pollution System |
*
