Year |
2016 |
|---|---|
Make |
Jet Edge |
Model |
MR2113 |
Description |
14' x 21' Dual Head CNC Waterjet |
Reference # |
8078138 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

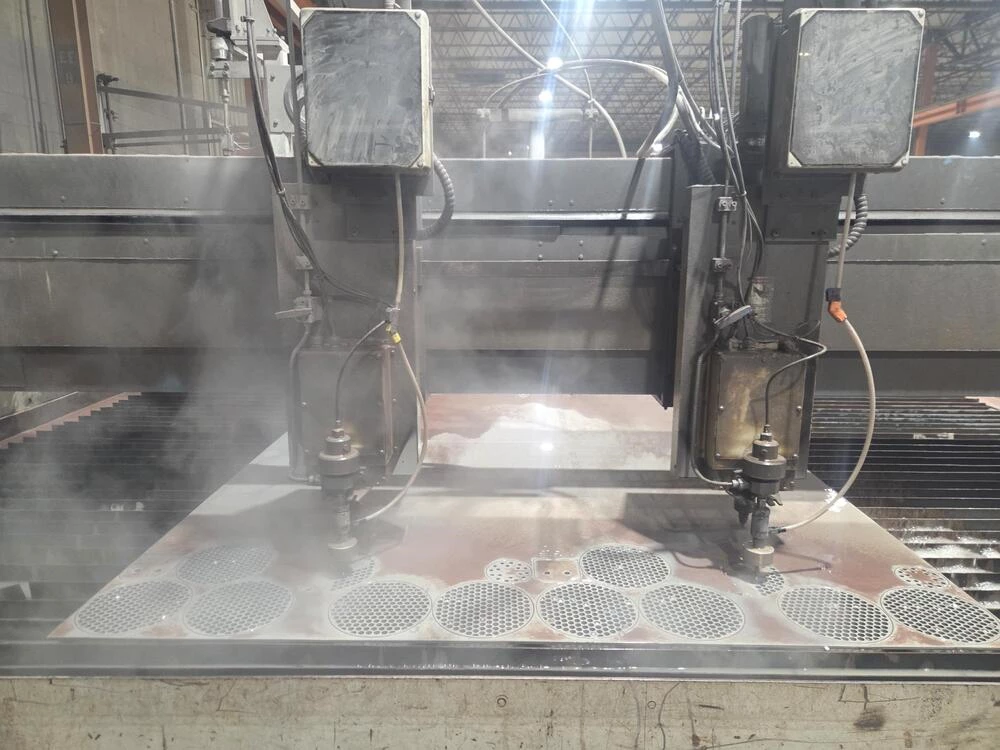

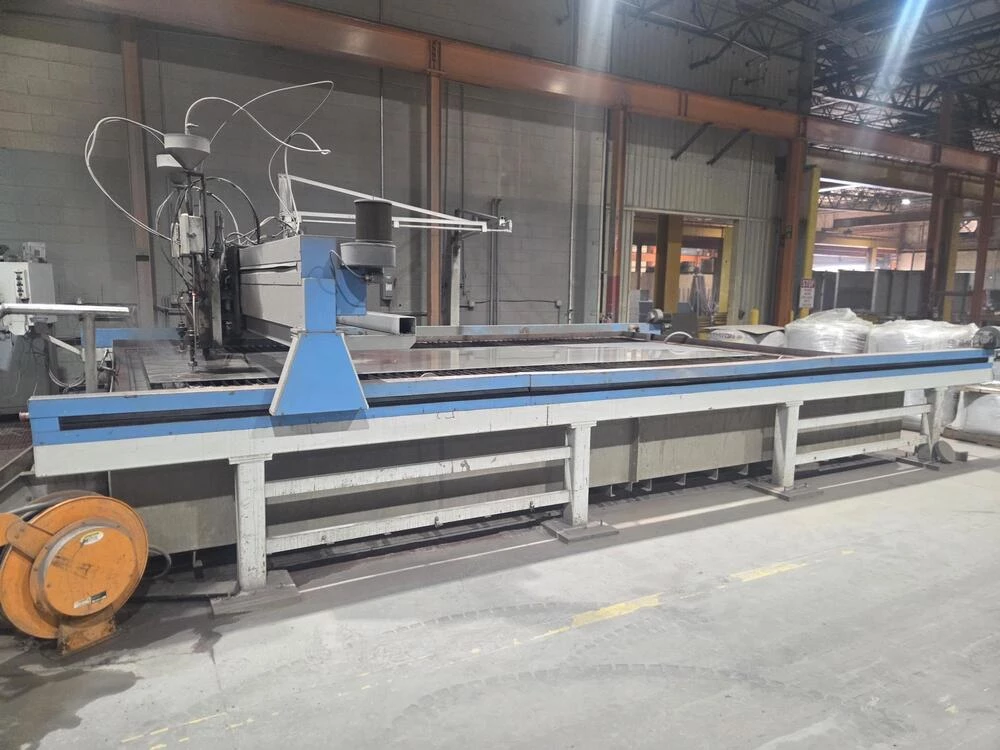

Used Jet Edge MR2113 (2016) Waterjet for Sale. This machine has a 14′ wide by 21′ long table with XYZ axis travels of 168″ x 253″ x 12″ and runs an Aquavision Di control. Cutting power comes from two 50 HP Jet Edge IP-6050 UHP intensifier pumps rated to a maximum cutting pressure of 60,000 PSI. It is equipped with a dual programmable head motion system, 500 IPM rapid and 300 IPM contouring rates, and a 2500 lb abrasive hopper. The one-piece catch tank measures 22′ x 14′; note that the motion system is separate from the catch tank. Power requirement is 460v/3/60Hz. The machine can be seen under power for an inspection. See more in our used waterjets listings, Activate Pricing, and Request a Quote.
Specifications
| Table Width |
14' |
|---|---|
| Table Length |
21' |
| Control |
Aquavision Di Control |
| Pump |
(2) 50 HP |
| Max Cutting Pressure |
60,000 PSI |
| Power Requirement |
460v/3/60Hz |
| XYZ Axis Travels |
168" x 253" x 12" |
| Catch Tank (One Piece) |
22' x 14' Note: Motion System is Separate from Catch Tank |
Features
|
(2) Jet Edge IP-6050 UHP Intensifier Pumps |
500 IPM Rapid/300 IPM Contouring |
|
Dual Programmable Head Motion System |
2500 Lb Abrasive Hopper |
