Year |
2014 |
|---|---|
Make |
Flow |
Model |
Mach 4 4020c |
Description |
6.5' x 13.1' XD Head CNC Waterjet |
Reference # |
8076720 |
Price |
Activate Pricing |

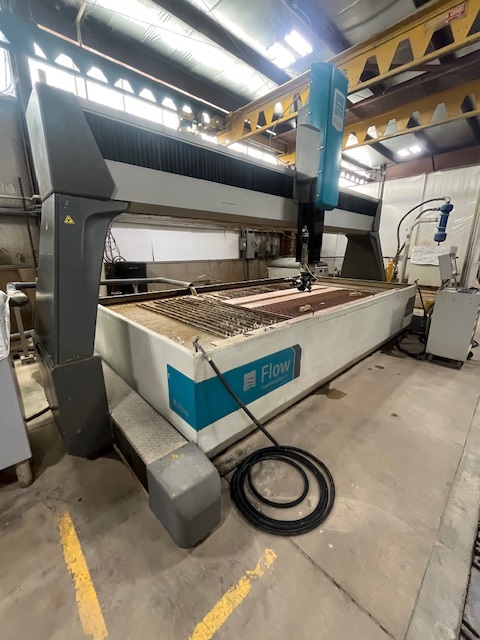

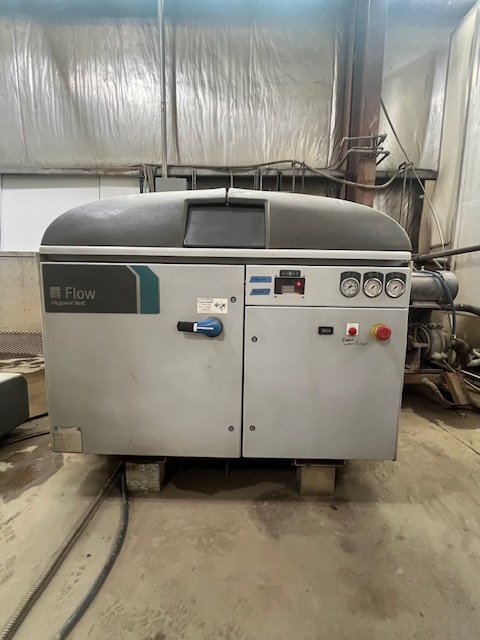

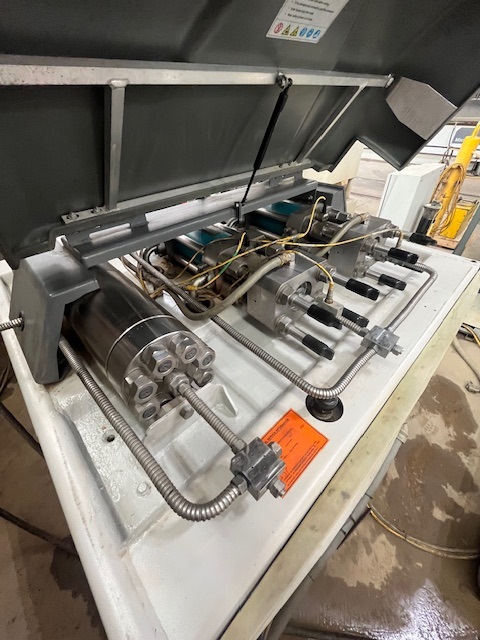

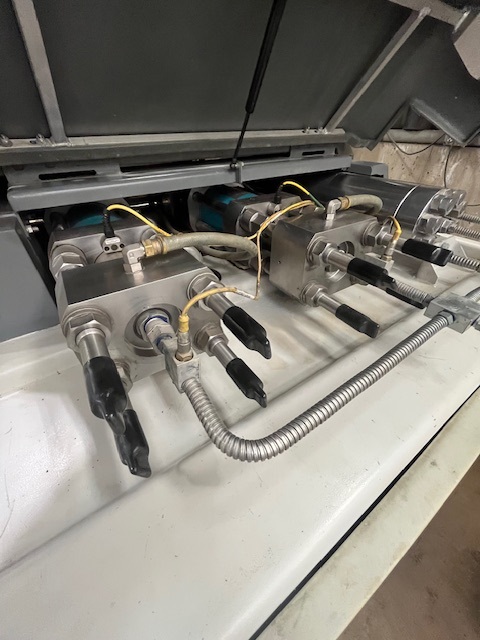

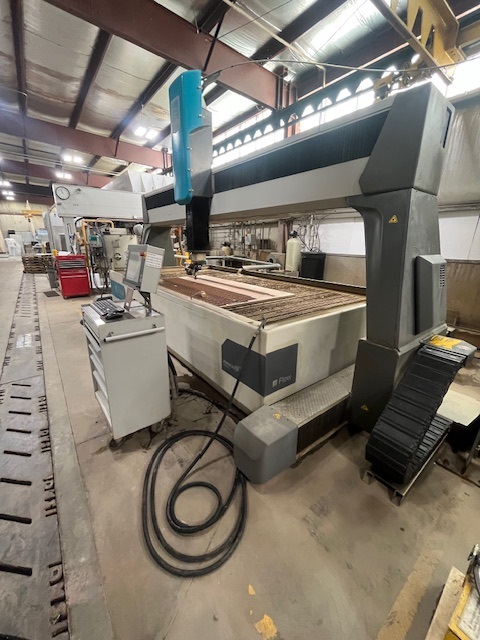

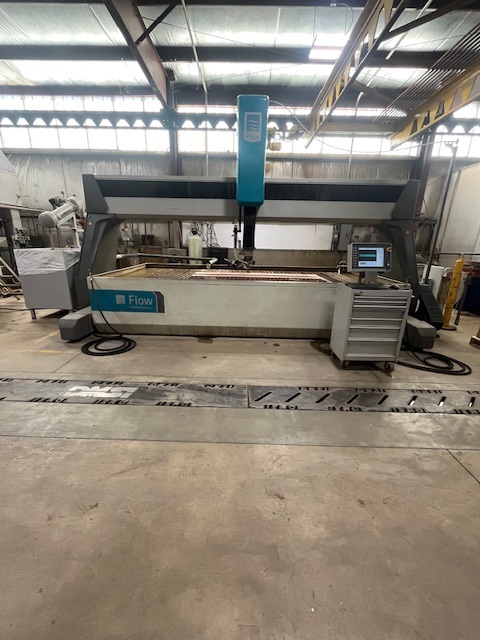

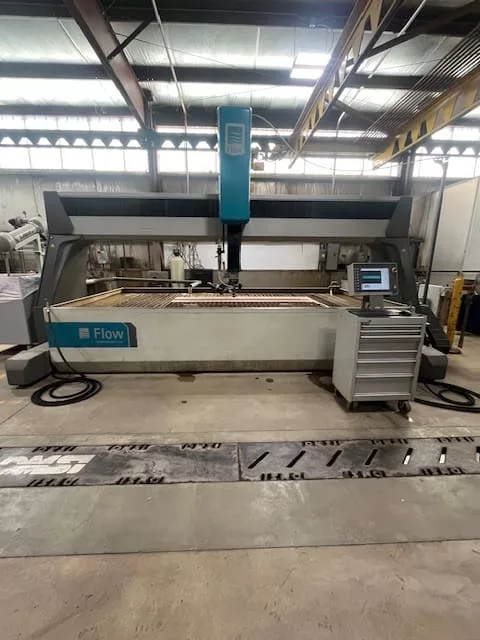

Used Flow Mach 4 4020c (2014) Waterjet for Sale. This Flow machine has a 6.5′ wide by 13.1′ long table, a Flowmaster control, and a 100 HP pump with a maximum cutting pressure of 94,000 PSI. Repeatability is 0.002″, with rapid traverse to 1400 IPM and maximum contouring speed of 1000 IPM. Equipped with a 15″ color monitor touchscreen rollaround control, 3D Expert desktop software, air-conditioned motion components, touch screen mobile control station/cabinet, dual-drive base axis with dedicated servo drives on each base axis, Flow nesting module, fully programmable 12″ servo-driven Z-axis, graphic programming with no G code needed, Paser 4 cutting head, and XD Dynamic 5 Axis cutting head. Can be seen under power for an inspection. See more used waterjets, Activate Pricing, or Request a Quote. This machine is located in Arizona.
Specifications
| Table Width |
6.5' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
100 HP |
| Max Cutting Pressure |
94,000 PSI |
| Repeatability |
0.002" |
| Rapid Traverse |
1400 IPM |
| Max Contouring Speed |
1000 IPM |
Features
|
15" Color Monitor Touchscreen Rollaround Control |
3D Expert Desktop Software |
|
Standard Air-Conditioned Motion Components Ensure Long Life in Any Operating Environment |
Standard Touch Screen Mobile Control Station/Cabinet Increases the Convenience |
|
Dual-Drive Base Axis (Each of The Base Axes Have Dedicated Servo Drives) |
Flow Nesting Module |
|
Fully Programmable 12" Servo-Driven Z-Axis |
Graphic Programming with No G Code Needed |
|
Paser 4 Cutting Head |
XD Dynamic 5 Axis Cutting Head |
