Year |
2016 |
|---|---|
Make |
DoAll |
Model |
500 SNC |
Description |
Horizontal Band Saw |
Reference # |
8076549 |
Price |
Activate Pricing |

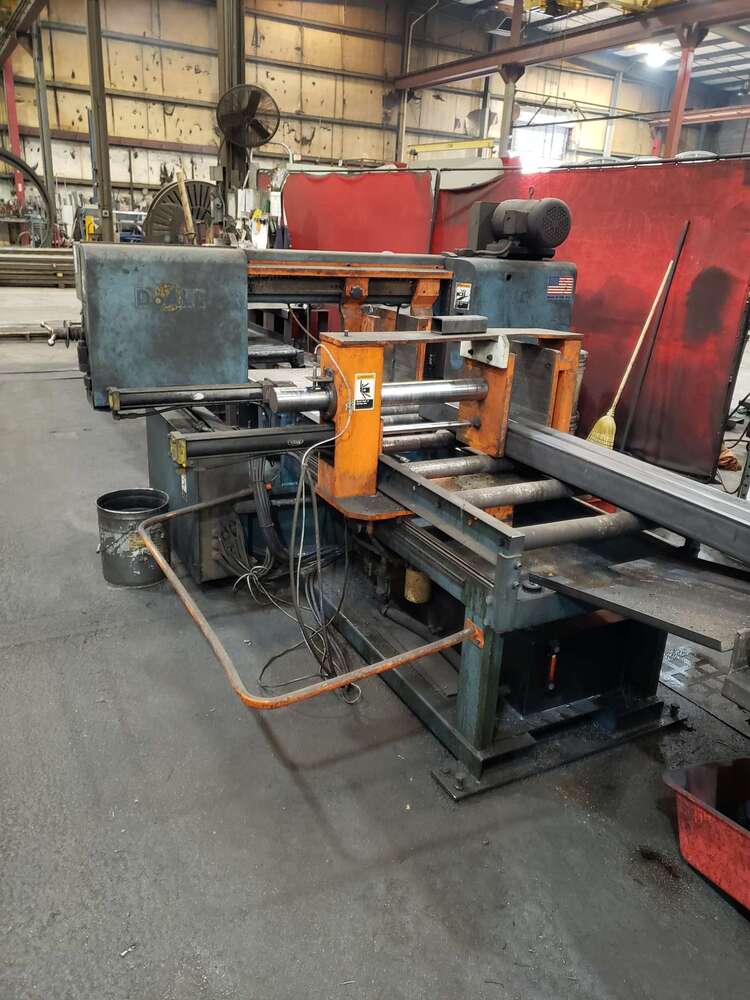

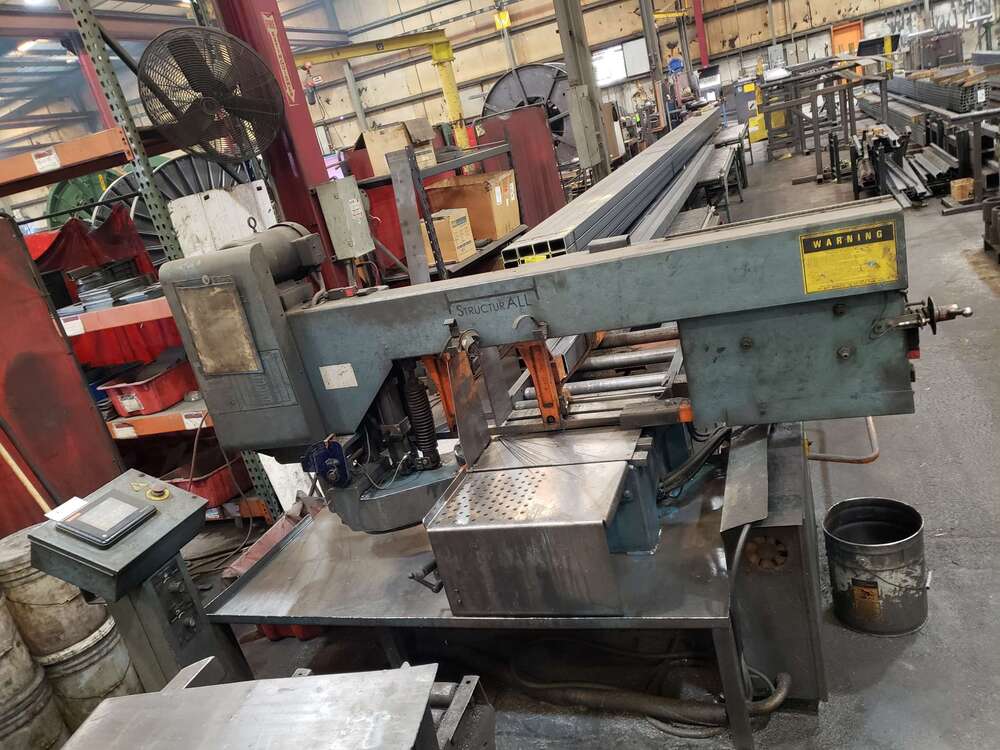

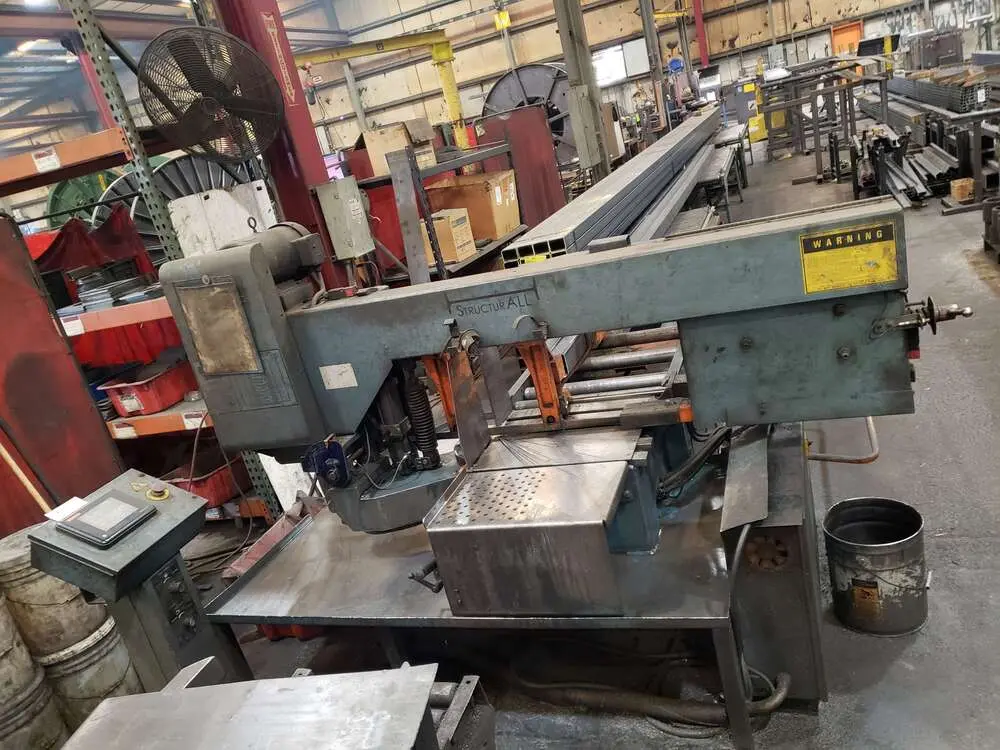

Used DoAll 500 SNC (2016) Other Equipment for Sale. This horizontal band saw cuts 14″ x 20″ and 14″ rounds at 90 degrees, 14″ x 14″ and 14″ rounds at 45 degrees, and 14″ x 8″ with 10″ rounds at 60 degrees. Recommended blade is 1-1/4″ x .042″, with a maximum blade length of 197″ and band speeds from 50 to 400 FPM. It carries a 5 HP band drive motor, a 20 HP hydraulic motor, and a 12 gallon hydraulic system. Equipped with band tension spring loaded by handwheel, adjustable feed rate and feed control, counterbalanced head, hydraulic full height and stroke vise, 20″ diameter cast iron wheels, and a flood coolant system. Approximate dimensions 8′ x 8′, weight 3000 lbs. Available to see under power for inspection. See more in our used saws inventory, Activate Pricing, or Request a Quote.
Specifications
| Capacity at 90 Degrees |
14" x 20" / Rounds 14" |
|---|---|
| Capacity at 45 Degrees |
14" x 14" / Rounds 14" |
| Capacity at 60 Degrees |
14" x 8" Rounds 10" |
| Recommended Blade |
1-1/4" x .042" |
| Max. Blade Length |
197" |
| Band Speed |
50-400 FPM |
| Band Drive Motor |
5 HP |
| Hydraulic System Capacity |
12 Gal. |
| Hydraulic Motor |
20 HP |
| Approximate Dimensions |
8' x 8' |
| Machine Weight |
3000 Lbs |
Features
|
Equipped with Band Tension Spring Loaded by Handwheel |
Feed Control Adjustable Feed Rate and Feed |
|
Head Counter Balanced |
Vise Hydraulic Full Height and Stroke |
|
Wheels 20" Diameter Cast Iron |
Flood Coolant System |
