Year |
2016 |
|---|---|
Make |
Citizen |
Model |
BNA-42S2 |
Description |

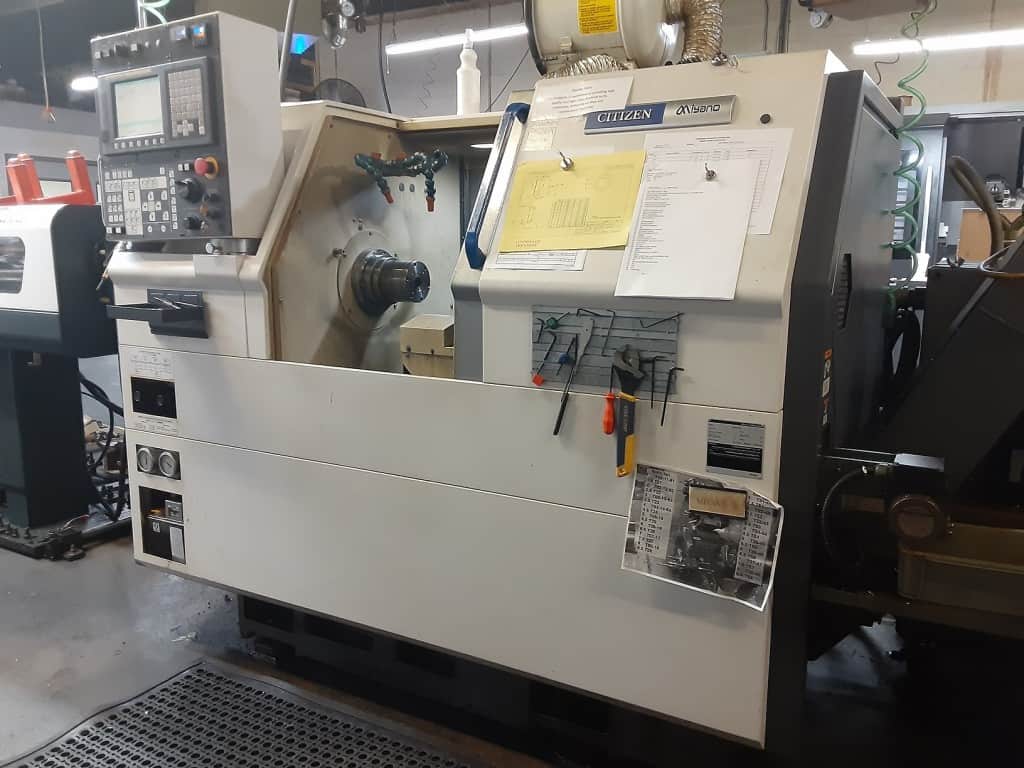

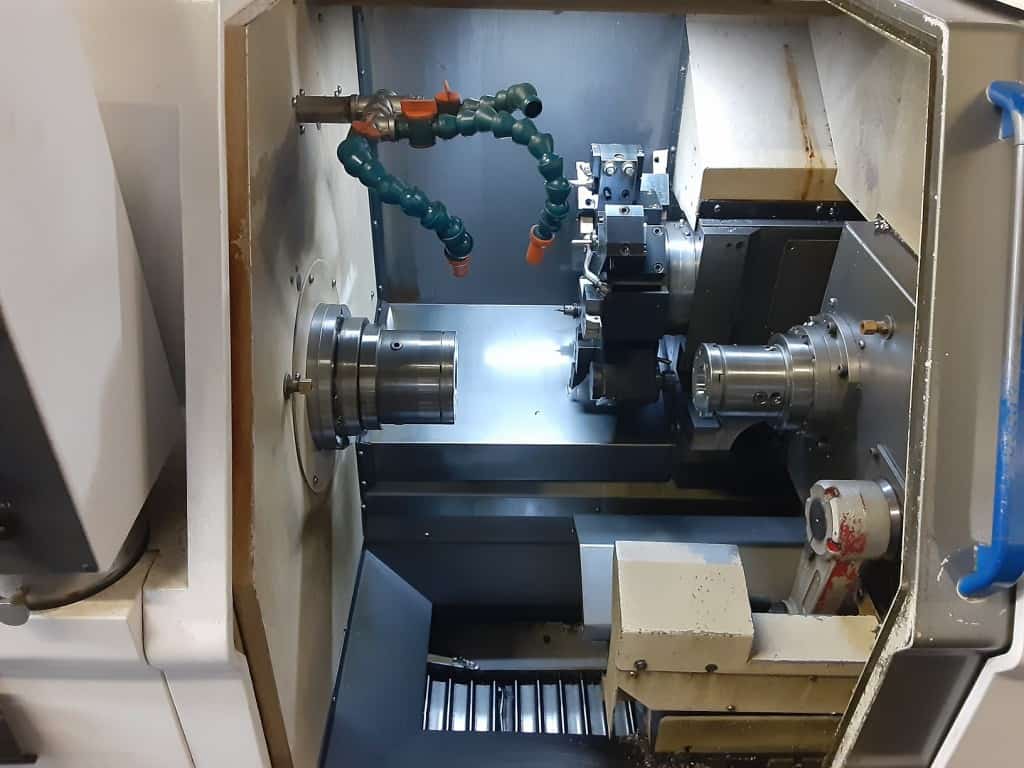

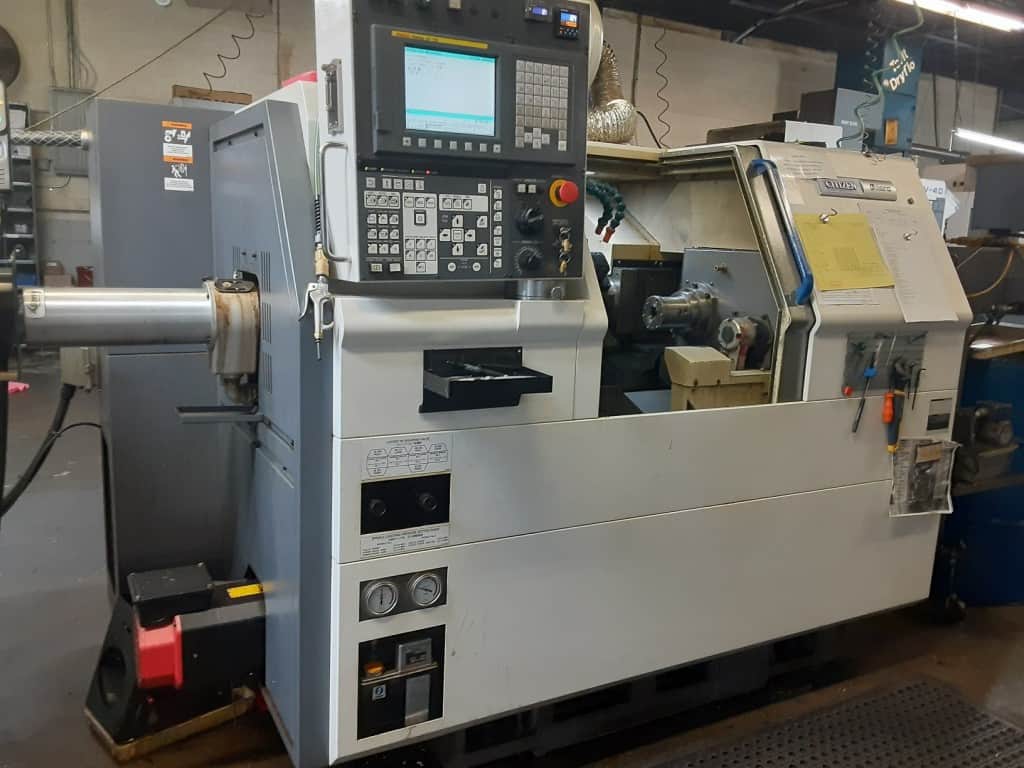

CNC Swiss Lathe |
Reference # |
8069924 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
N/A |
|---|---|
| Bar Capacity |
N/A |
| Turning Diameter |
N/A |
| Spindle Speed |
6,000 RPM |
| Sub-Spindle |
5,000 RPM |
| Control |
Fanuc Oi-TD |
| Distance Between Centers |
N/A |
| Turret |
8 Station |
| Coolant |
1,000 PSI High Pressure Coolant |
| Chip Removal |
Chip Conveyor |
| Maximum Machining Diameter of Bar Work |
SP1: 42mm, SP2: 34mm |
| Maximum Machining Length |
100mm |
| Spindle motor(15min./Cont.) |
SP1: 7.5/5.5kW, SP2: 5.5/3.7kW |
| Shank Height of Square Turning Tool |
20mm |
| Diameter of Drill Shank |
25mm |
| Slide Stroke |
X axis: 135mm, Z axis: 235mm, B axis(Z2 axis): 310mm |
| Maximum Number of Revolving Tool |
8 |
| Machine Height |
1,660mm |
| Floor Space |
2,150×1,290mm |
| Machine Weight |
2,800kg |
Features
|
Parts Catcher |

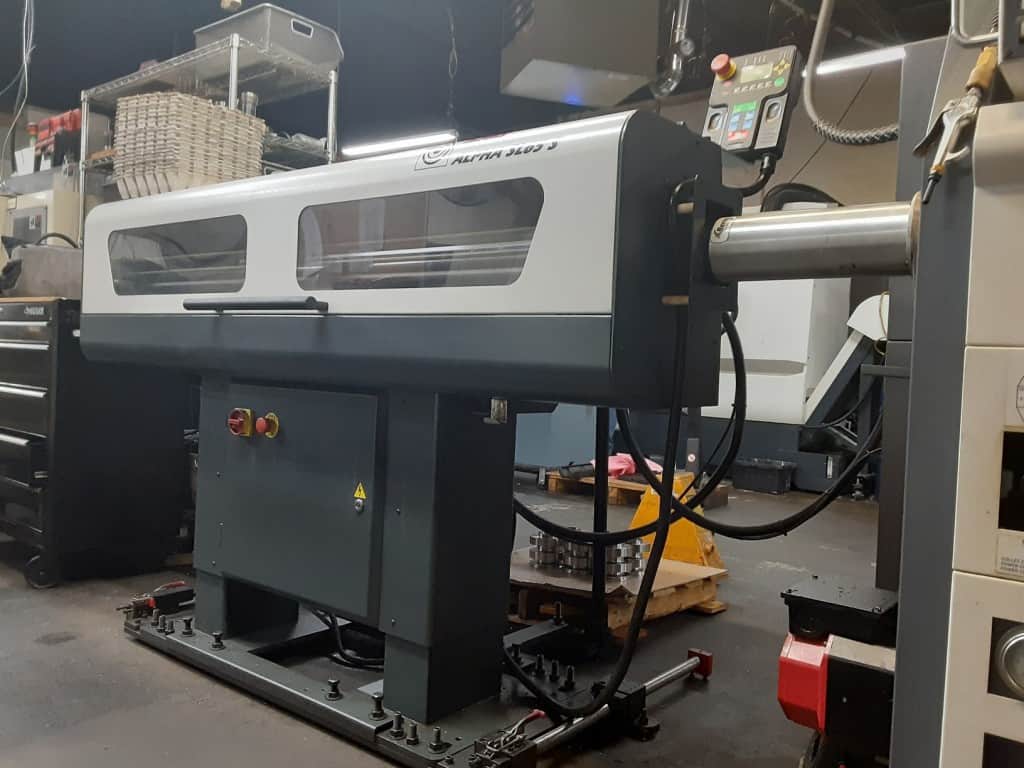

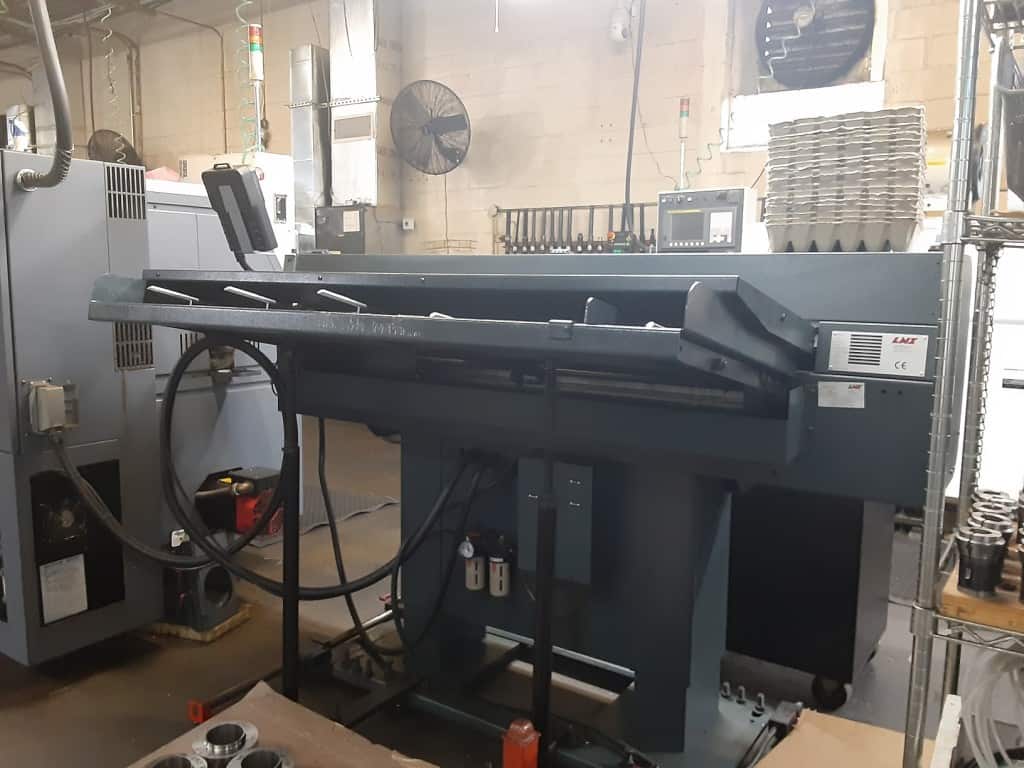

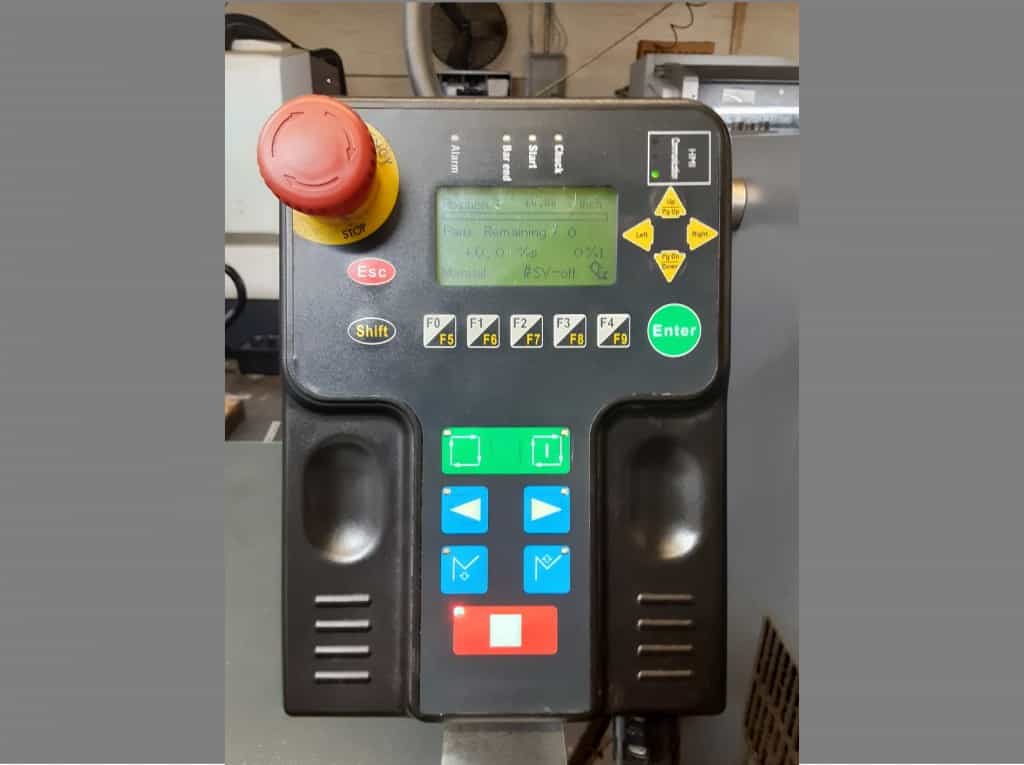

LNS ALPHA-SL65-S Barfeeder |
|
Mist Collector Coral Anti Pollution System |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
