Year

2016

Make

Miyano

Model

BNA-42S2

Description

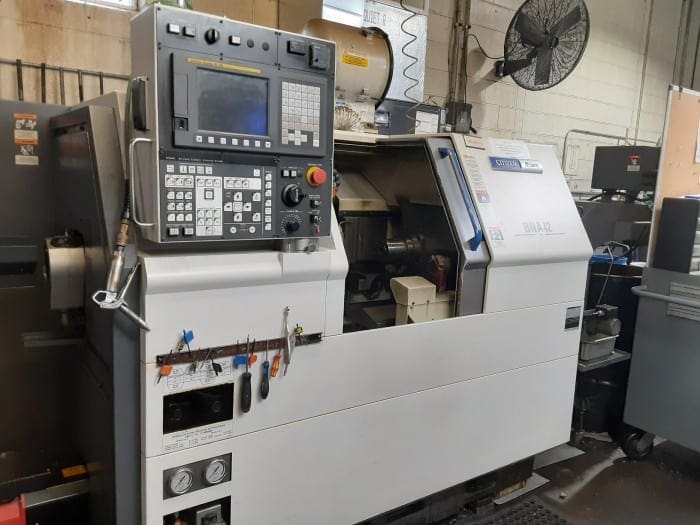

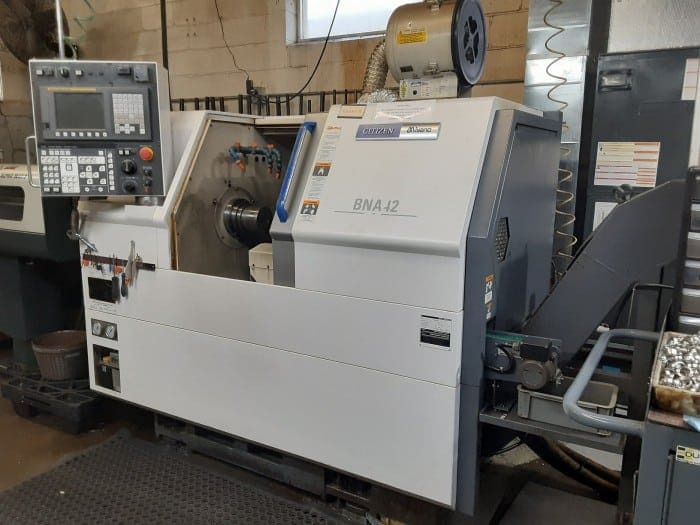

CNC Lathe

Reference #

8069925

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

Chuck Size

N/A

Bar Capacity

N/A

Turning Diameter

N/A

Spindle Speed

6,000 RPM

Sub-Spindle

5,000 RPM

Control

Fanuc Oi-TD

Distance Between Centers

N/A

Turret

8 Station

Coolant

1,000 PSI High Pressure Coolant

Chip Removal

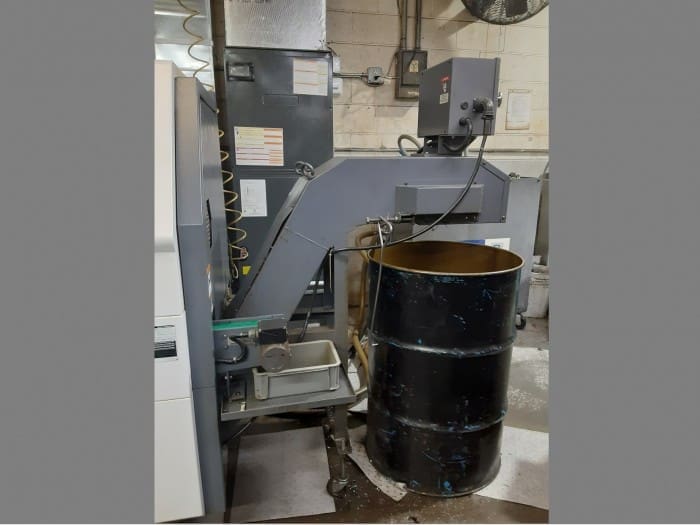

Chip Conveyor

Maximum Machining Diameter of Bar Work

SP1: 42mm, SP2: 34mm

Maximum Machining Length

100mm

Spindle motor(15min./Cont.)

SP1: 7.5/5.5kW, SP2: 5.5/3.7kW

Shank Height of Square Turning Tool

20mm

Diameter of Drill Shank

25mm

Slide Stroke

X axis: 135mm, Z axis: 235mm, B axis(Z2 axis): 310mm

Maximum Number of Revolving Tool

8

Machine Height

1,660mm

Floor Space

2,150×1,290mm

Machine Weight

2,800kg

Features

Parts Catcher

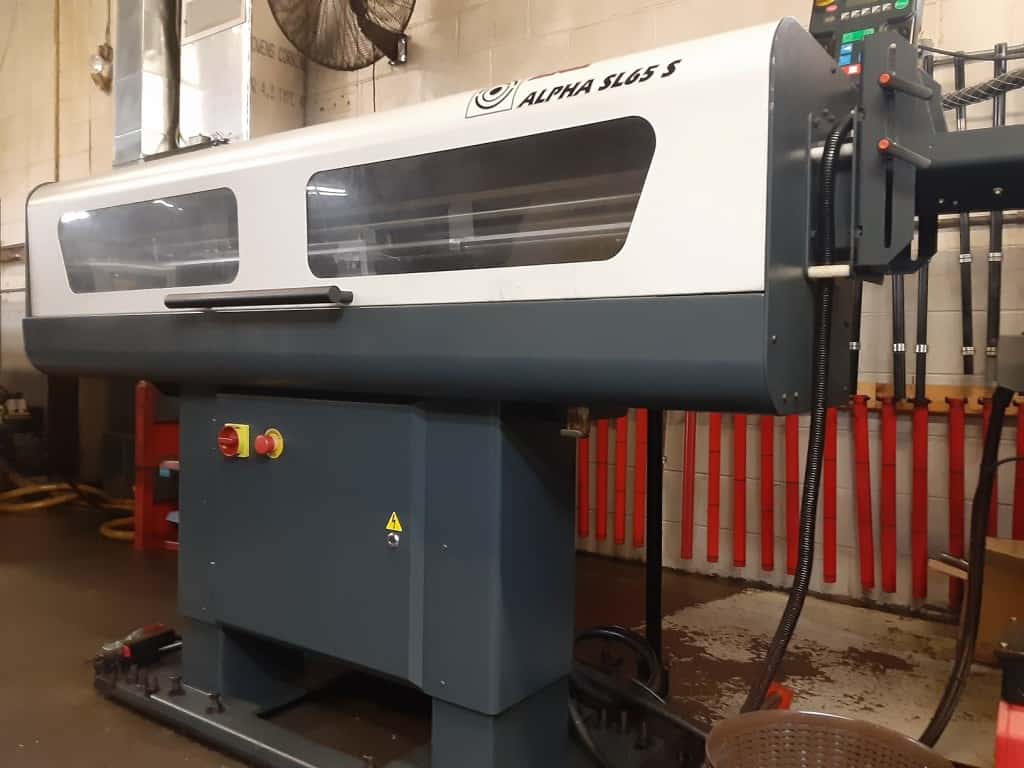

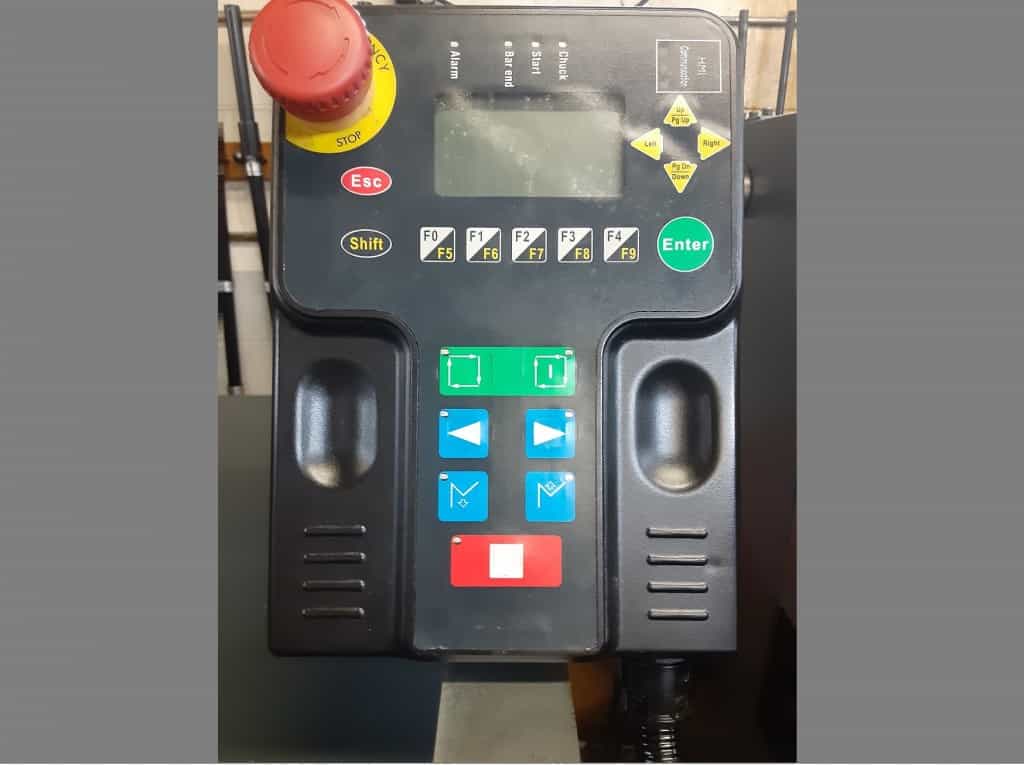

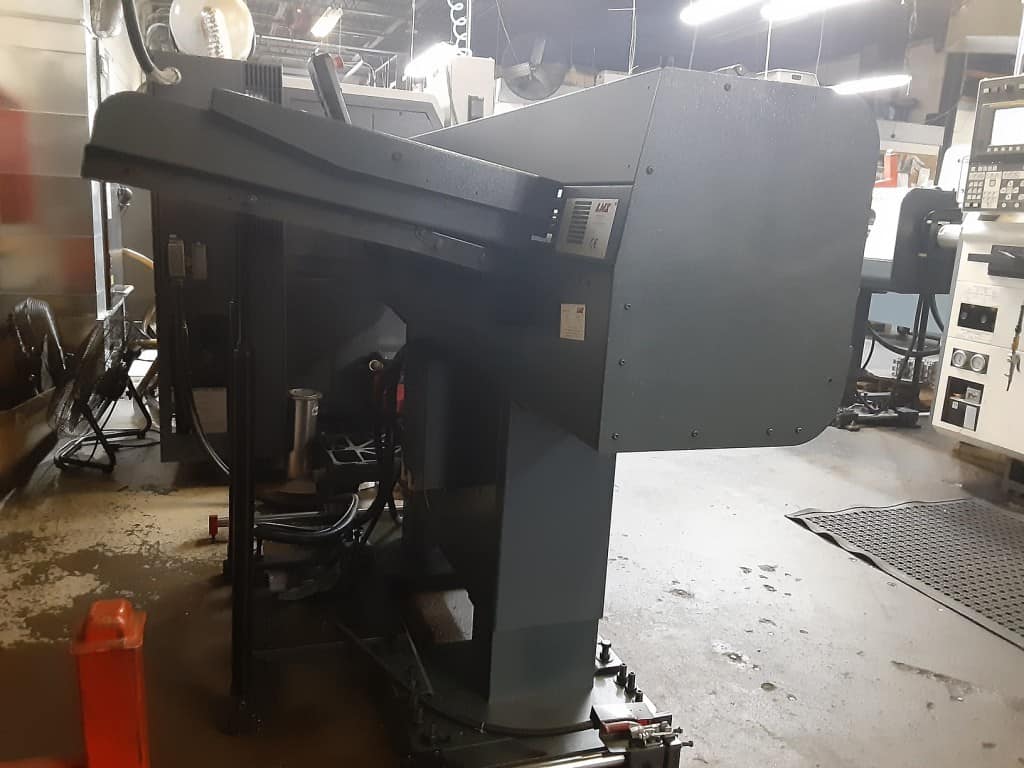

LNS ALPHA-SL65-S Barfeeder

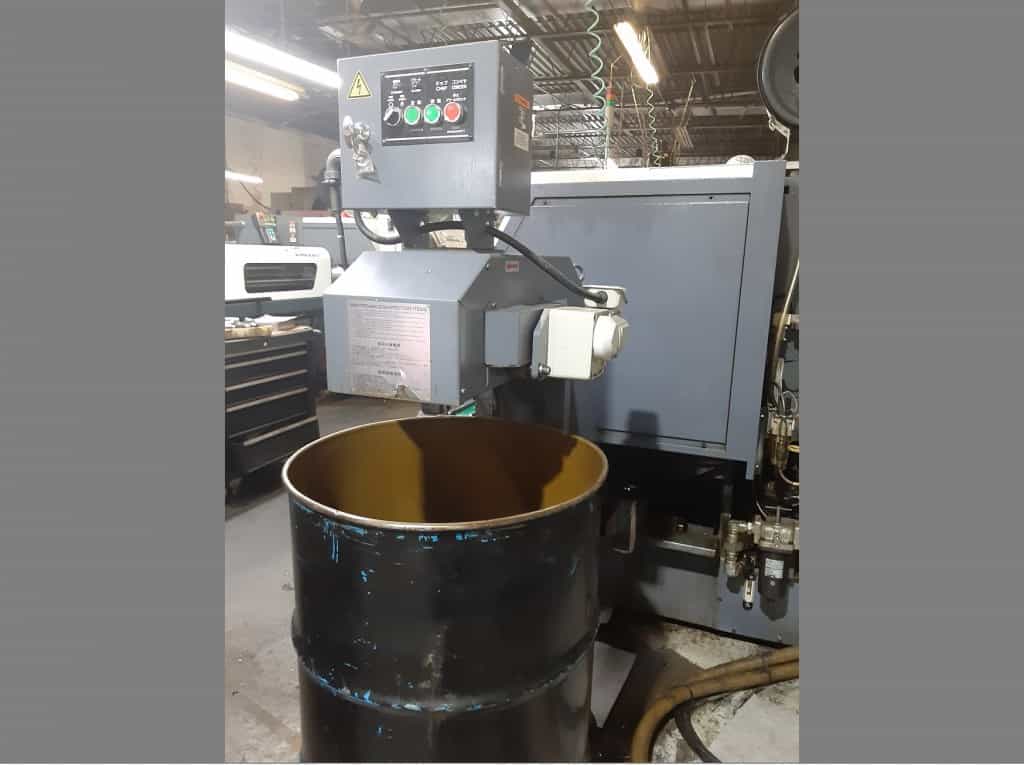

Mist Collector Coral Anti Pollution System

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
