Year |
2016 |
|---|---|
Make |
Brown |
Model |

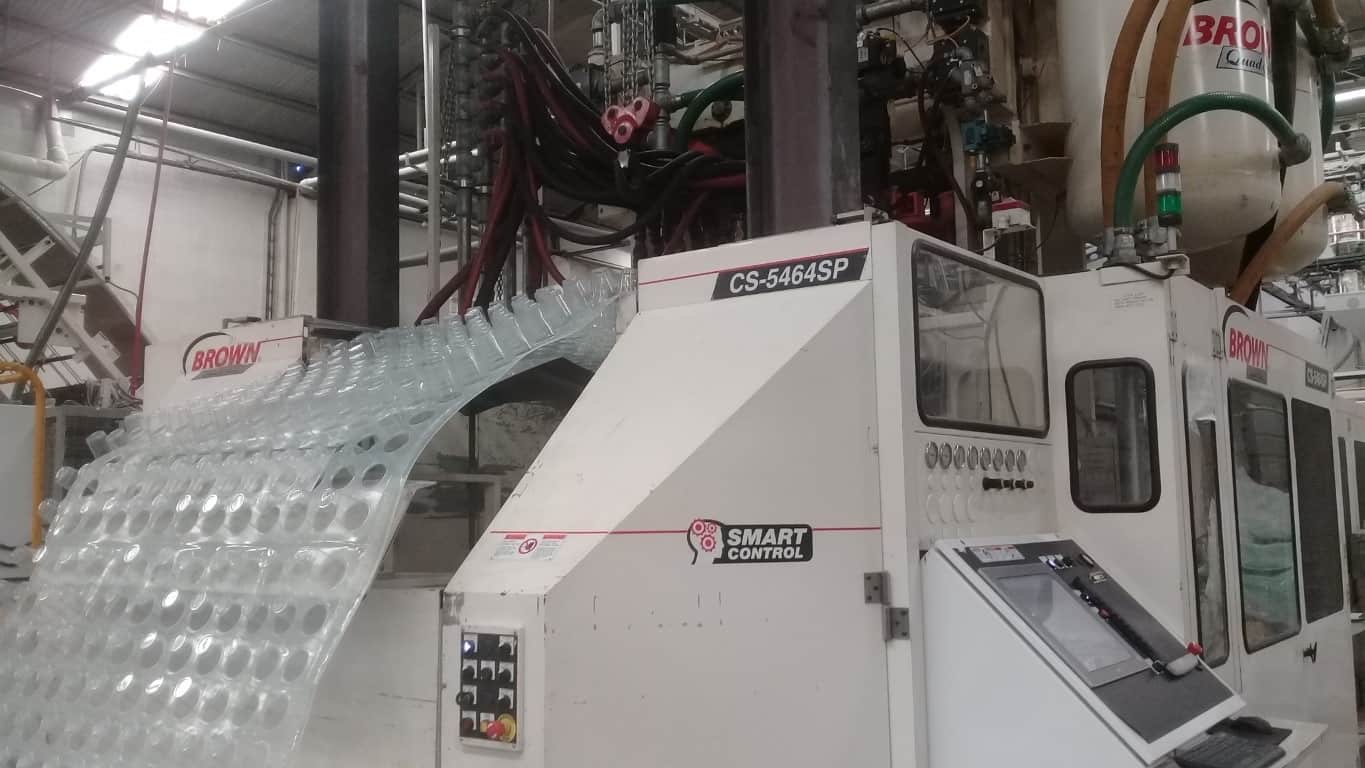

CS-5464SP Quad Series |
Description |
Inline Thermoformer |
Reference # |
8068429 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Max Mold Size |
54" X 64" (1372mm X 1626mm) |
|---|---|
| Oven Length |
Heated Oven Length 320" (8128mm) |
| Platen Drives |
Electric Motors Top / Bottom |
| Maximum Open Dimension |
24.06" (6113mm) Top Platen 34.06" (865mm) Bottom Platen |
| Maximum Closed Dimension |
15.06" (383mm) Top Platen 24.06" (611mm) Bottom Platen |
| Maximum Stroke |
9.00" (229mm) Top Platen 10.00" (254mm) Bottom Platen |
| Maximum Depth of Draw |
8.25" (210mm) Above And 7" (178mm) Below Sheet Line |
| Form Station Tonnage |
260 |
| Maximum Plug Stroke |
9" (229mm) |
| Minimum Tool Length |
56" (1422mm) |
| Sheetline |
86" (2184mm) |

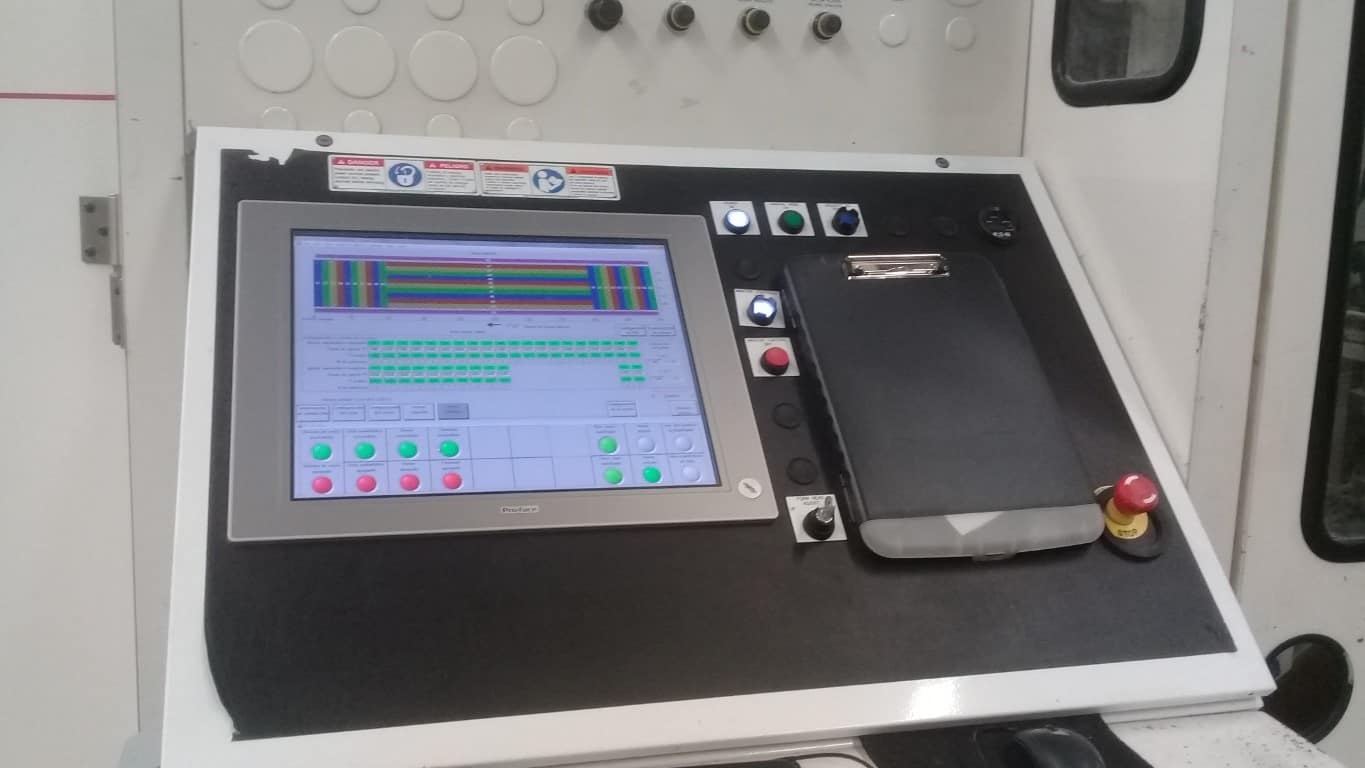

| Controller |
Allen Bradley PLC |
| Motion Control |
Yaskawa |
| Servo Motors / Drives |
Yaskawa |
| Stationary Platen Opening |
20.00" (508mm) Vertical 58.00" (1473mm) Horizontal Maximum |
| Moving Platen Opening |
10.25" (260mm) Vertical 52.00" (1321mm) Horizontal Maximum |
| Trim Press Tonnage |
40 |
| Assemble Stroke |
7.50" (190mm) |
| Adjustable Strokes |
4.5" (114mm) 7.5" (190mm) 10.5" (267mm) 13.5" (343mm) |
Features
|

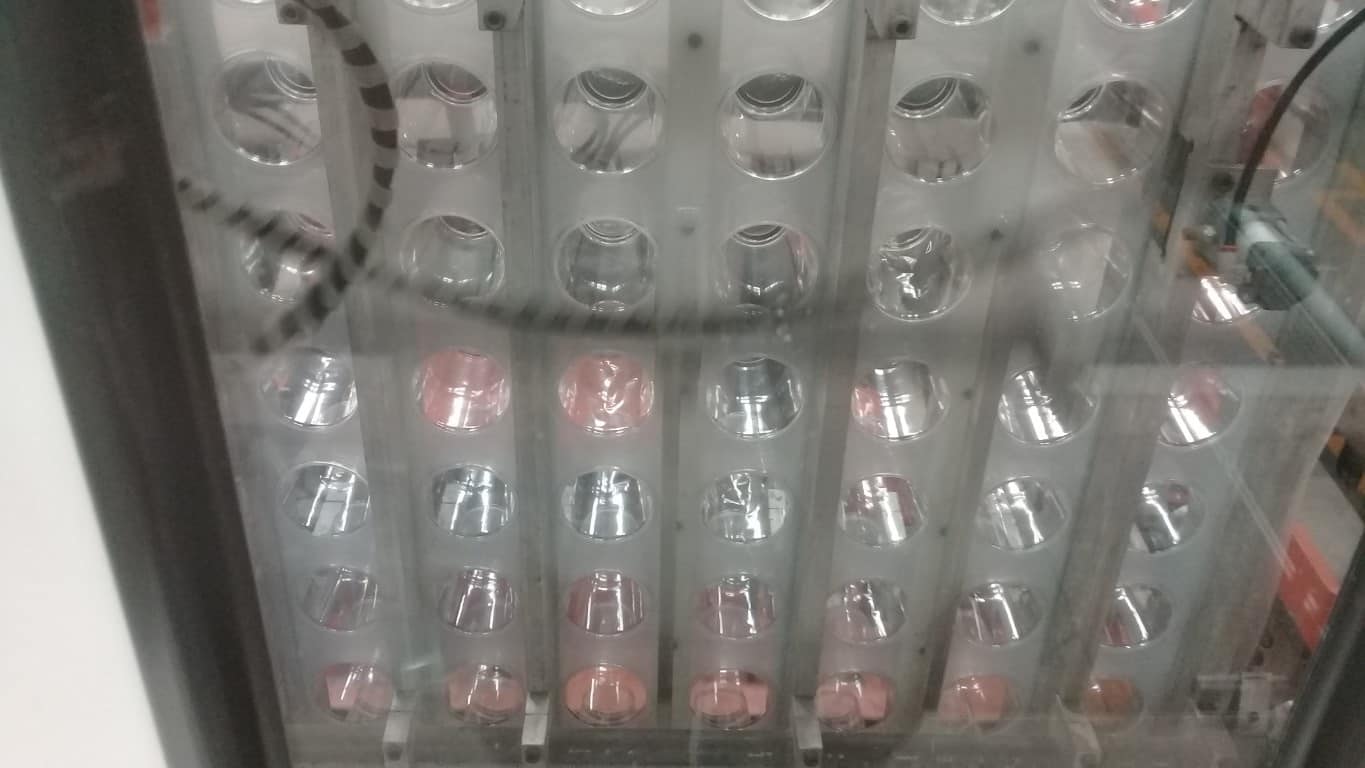

64mm PP Cup Tool |
76mm PP Cup Tool |
|
95mm PP Cup Tool |
LR-2000S Lip Roller |
*
