Year |
2015 |
|---|---|
Make |
Sodick |
Model |

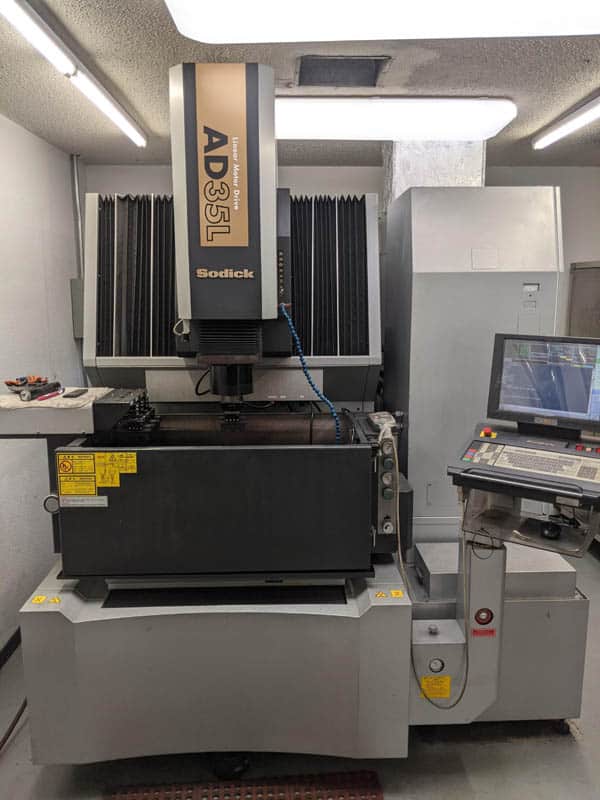

AD35L |
Description |
EDM Sinker |
Reference # |
8069910 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
13.78" |
|---|---|
| Y-Axis Travel |
9.84" |
| Z-Axis Travel |
10.63" |

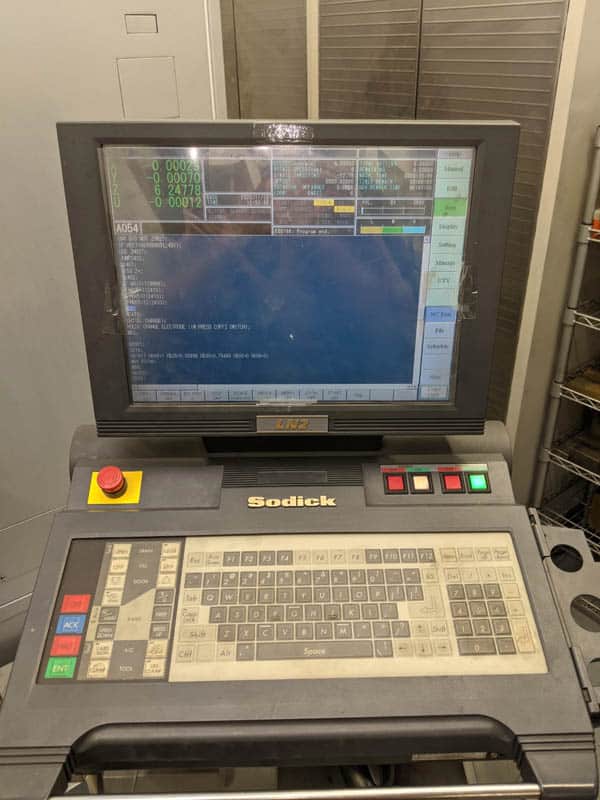

| Control |
Sodick LN2 |
| Tool Changer |
4 Position Shuttle |
| Power Source |
40 AMP |
| Chuck |
3R |
| Power Requirement |
200-220/3/60 |
| Worktable Size |
23.62" x 15.74" |
| Worktank Size |
38.39" x 21.85" x 13.78" |
| Fluid Level Min-Max |
6.69" - 11.81" |
| Maximum Workpiece Weight |
1,212 Lbs. |
| Maximum Electrode Weight |
110 Lbs. |
| Work Tank Capacity |
47.55 Gallons |
| Distance From Floor to Table Top |
31.89" |
| Dielectric External Dimensions |
32" x 67" x 80" |
| Machine Dimensions |
75" x 77" x 93" |
| Machine Weight |
7,200 Lbs. |
Features
|
Chiller |
SGF2 Circuit (Zero Wear) |
|
3D Graphics Drawing During Machining |
USB Port |
|
SVC Circuit (Fine Finish Circuit) |
Background Graphics Drawing |
|
LAN |
Linear Motor X/Y/Z |
|
XYZ Glass Scale Feedback |
