Year |
2015 |
|---|---|
Make |
Nakamura-Tome |
Model |
WT-300MMY |
Description |
CNC Lathe |
Reference # |
8079122 |
Price |
Activate Pricing |

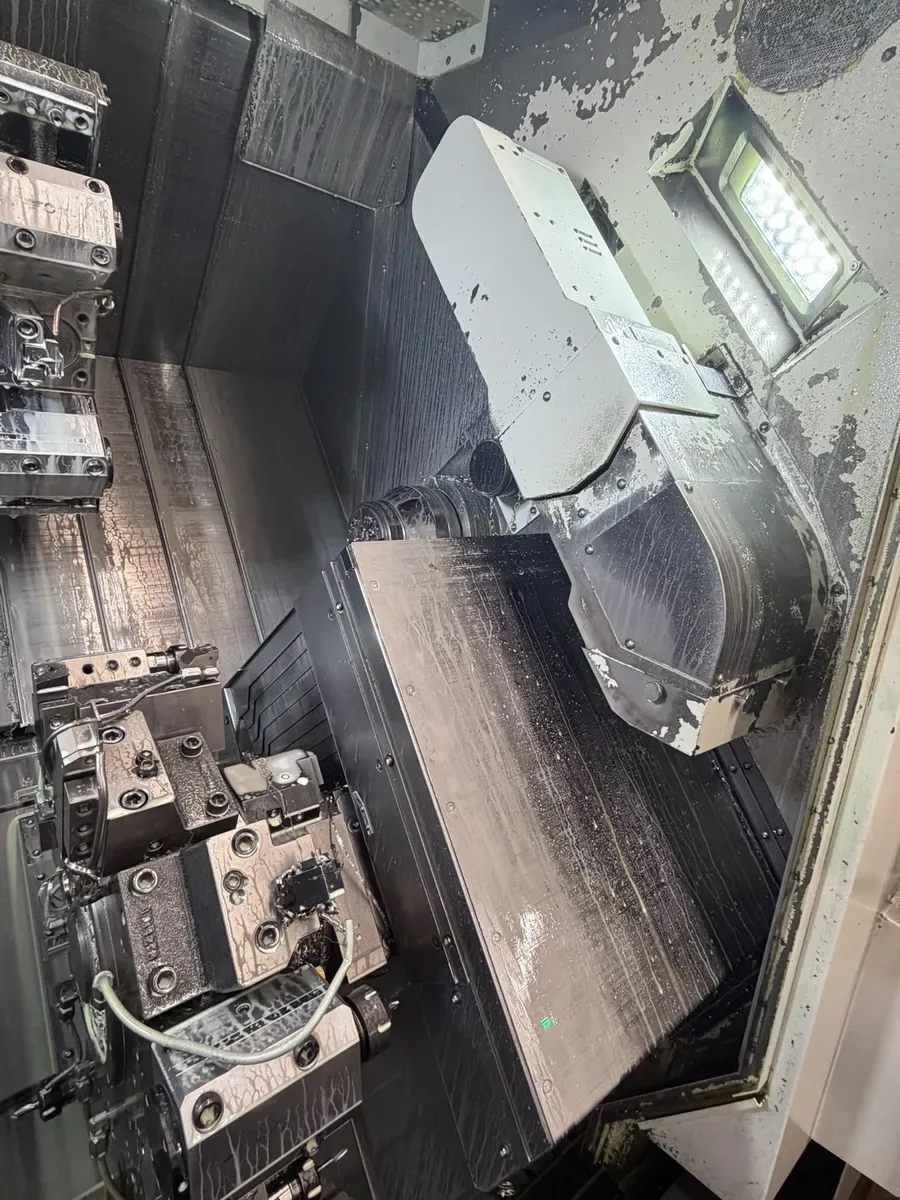

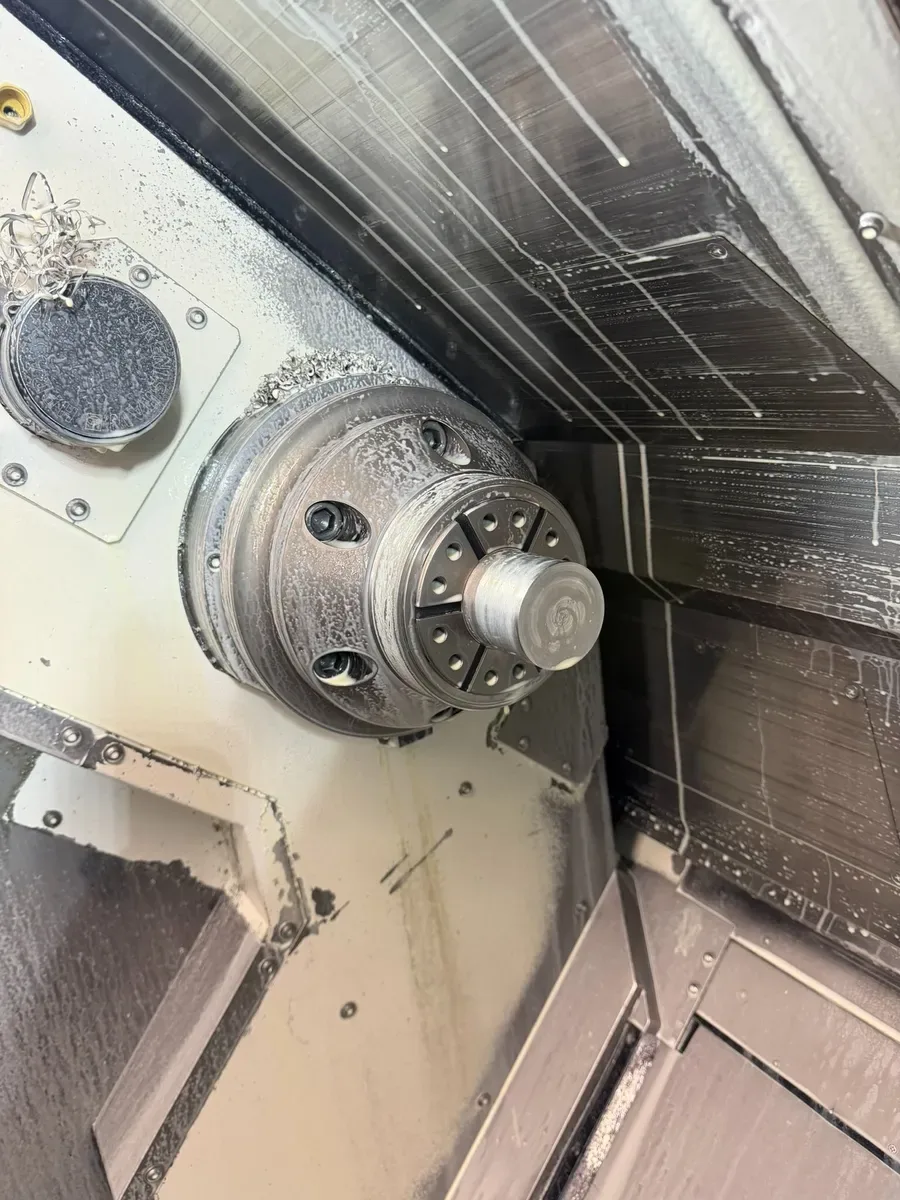

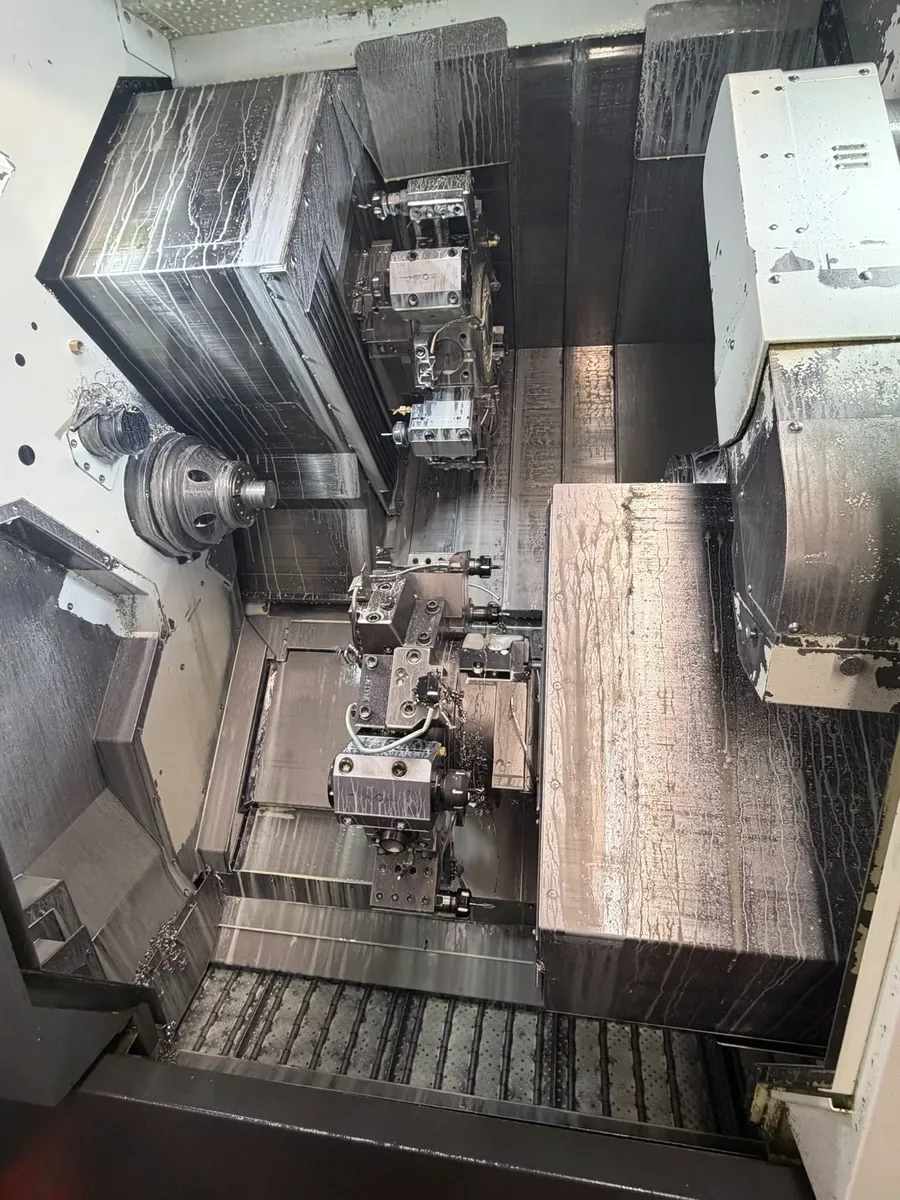

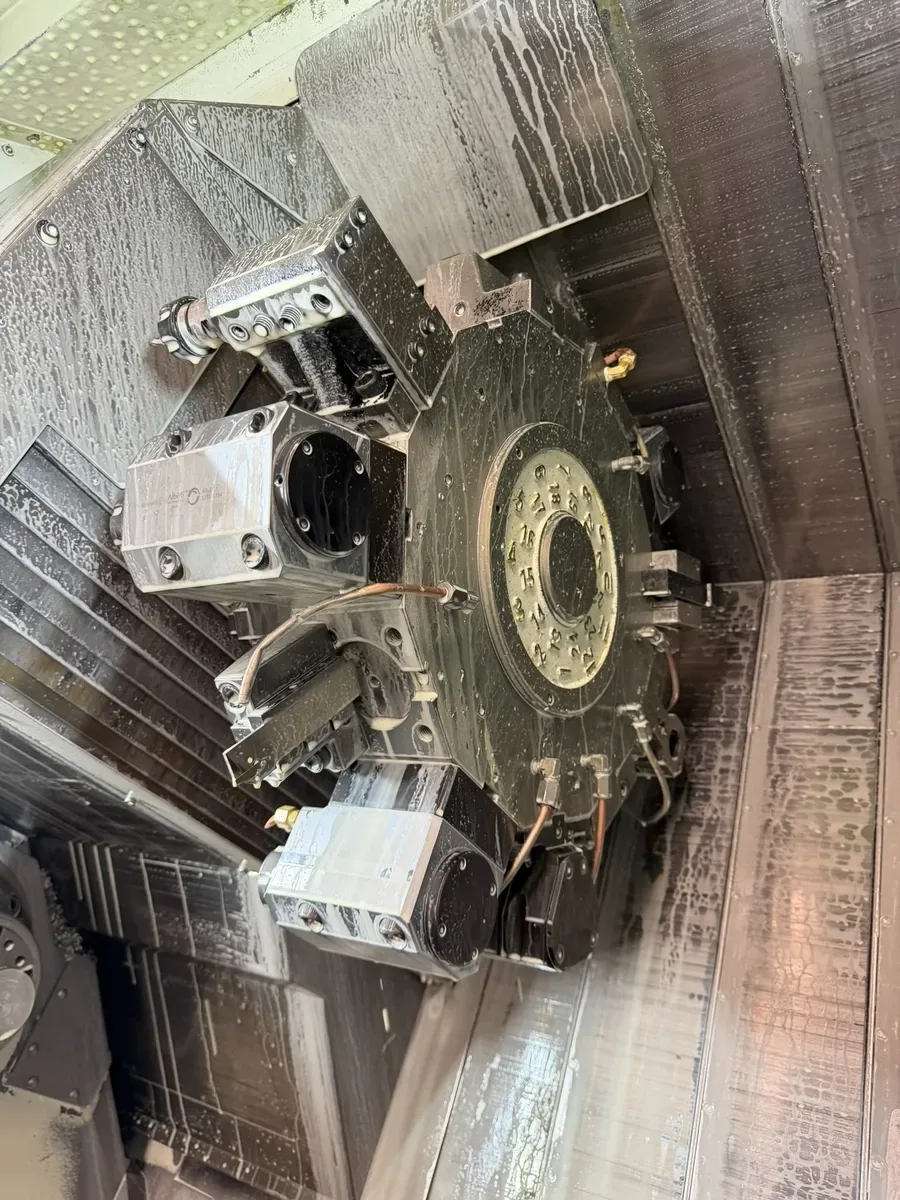

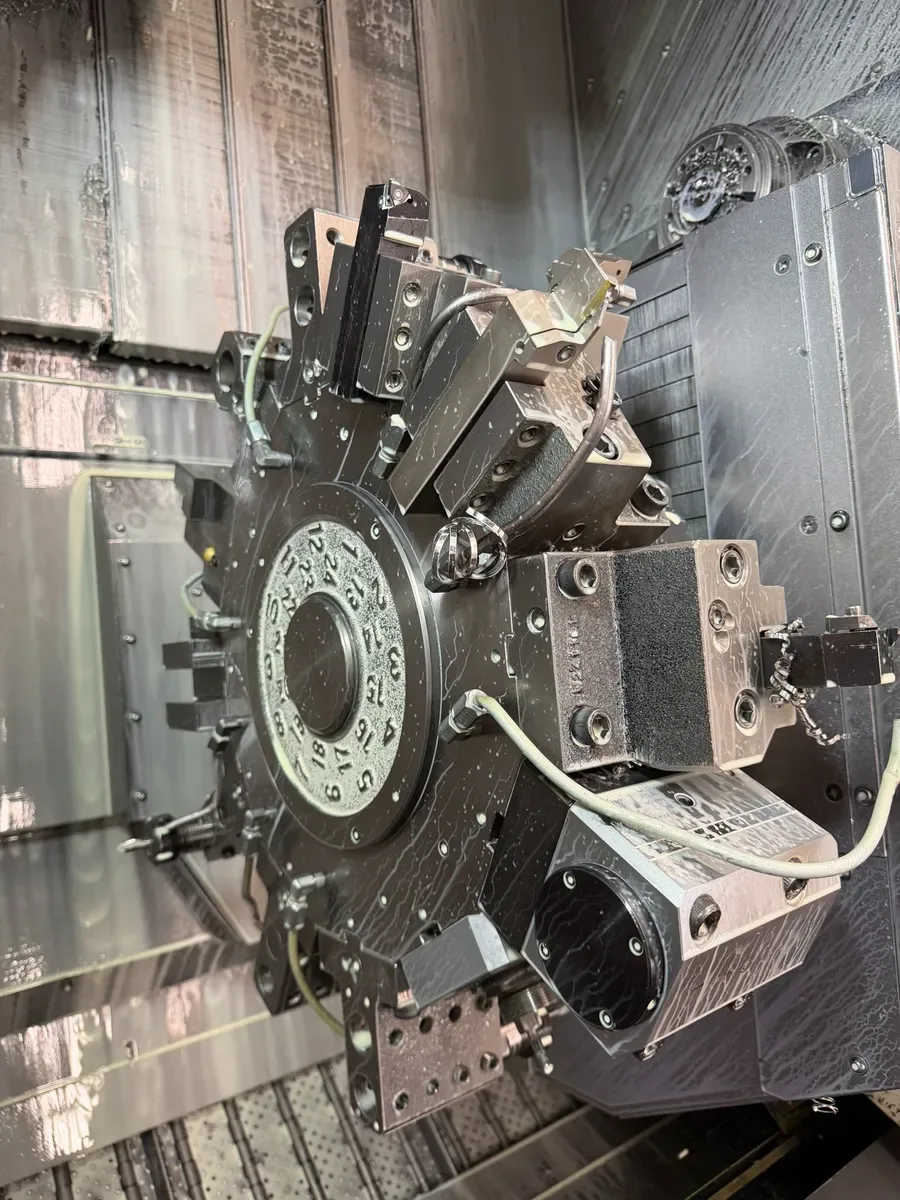

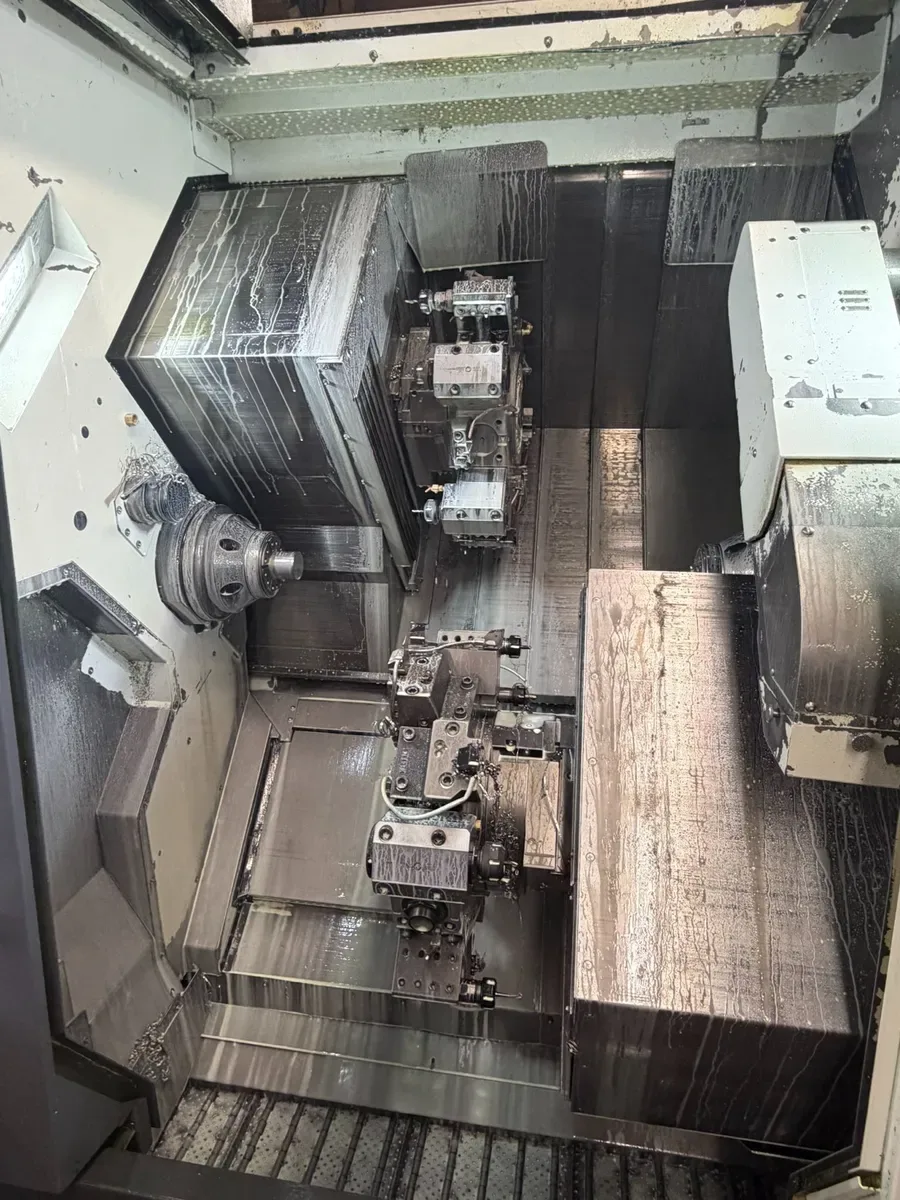

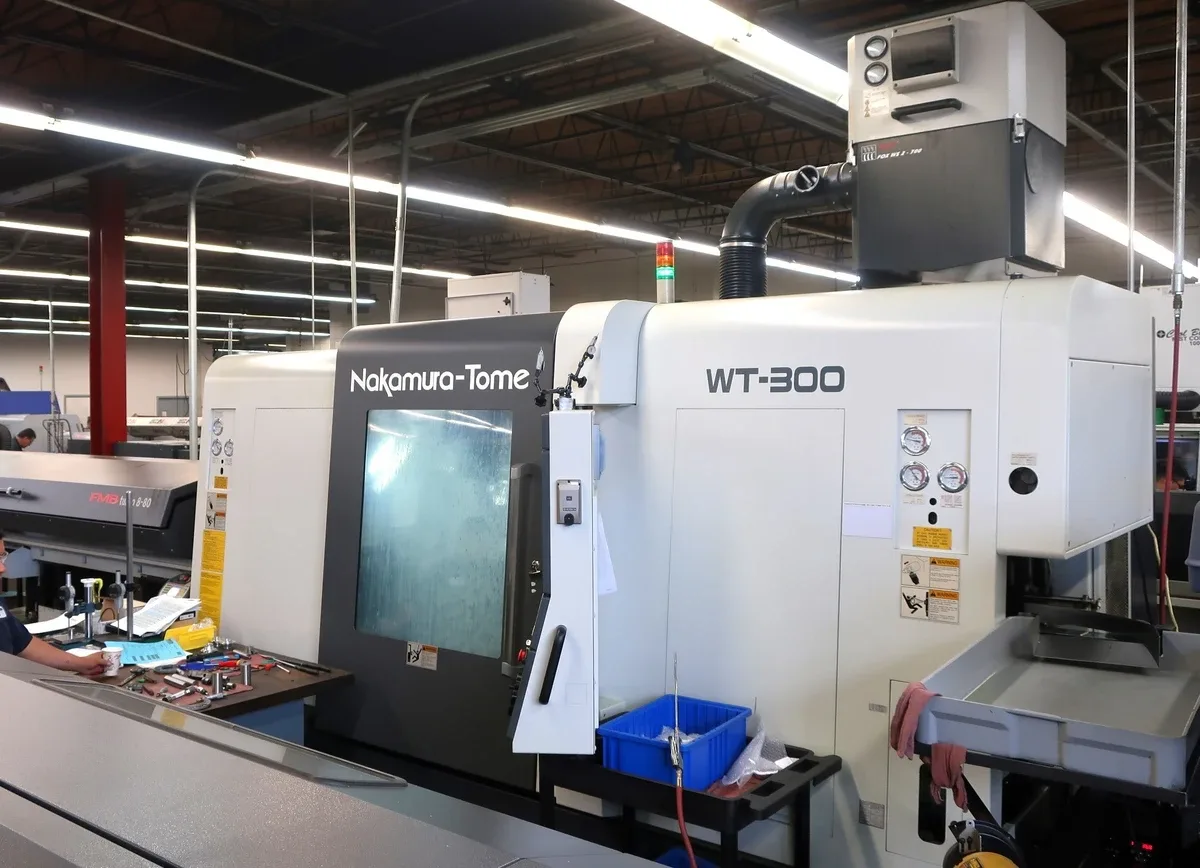

Used Nakamura-Tome WT-300MMY (2015) CNC Lathe for Sale. This twin-spindle, twin-turret lathe runs a Fanuc 31i-A5 control with NT Smart X Control, and carries an 8″ chuck, 2.5″ bar capacity, 10.63″ swing and turning diameter, and 30.71″ between centers. Spindle speed is 4,500 RPM with 20/15 HP left/right spindle motors, max milling speed 3,600 RPM, and a 24-station turret with C-axis live tooling, Y-axis function on the upper turret, and milling on both turrets. Equipped with a sub-spindle, chip conveyor, Chip Blaster J2-60 high pressure coolant pump, parts catcher and exit conveyor, FMB Turbo 8-80/4200 “A” bar feeder, LNS Fox WS2 700 mist collector, collet chucks, and (10) live tools (5 radial/5 axial). Machine weight is 31,975 lbs and it can be seen under power for an inspection. See our other used CNC lathes and used Nakamura-Tome machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
10.63" |
| Turning Diameter |
10.63" |
| Spindle Speed |
4,500 RPM |
| Control |
Fanuc 31i-A5 |
| Distance Between Centers |
30.71" |
| Turret |
24 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |

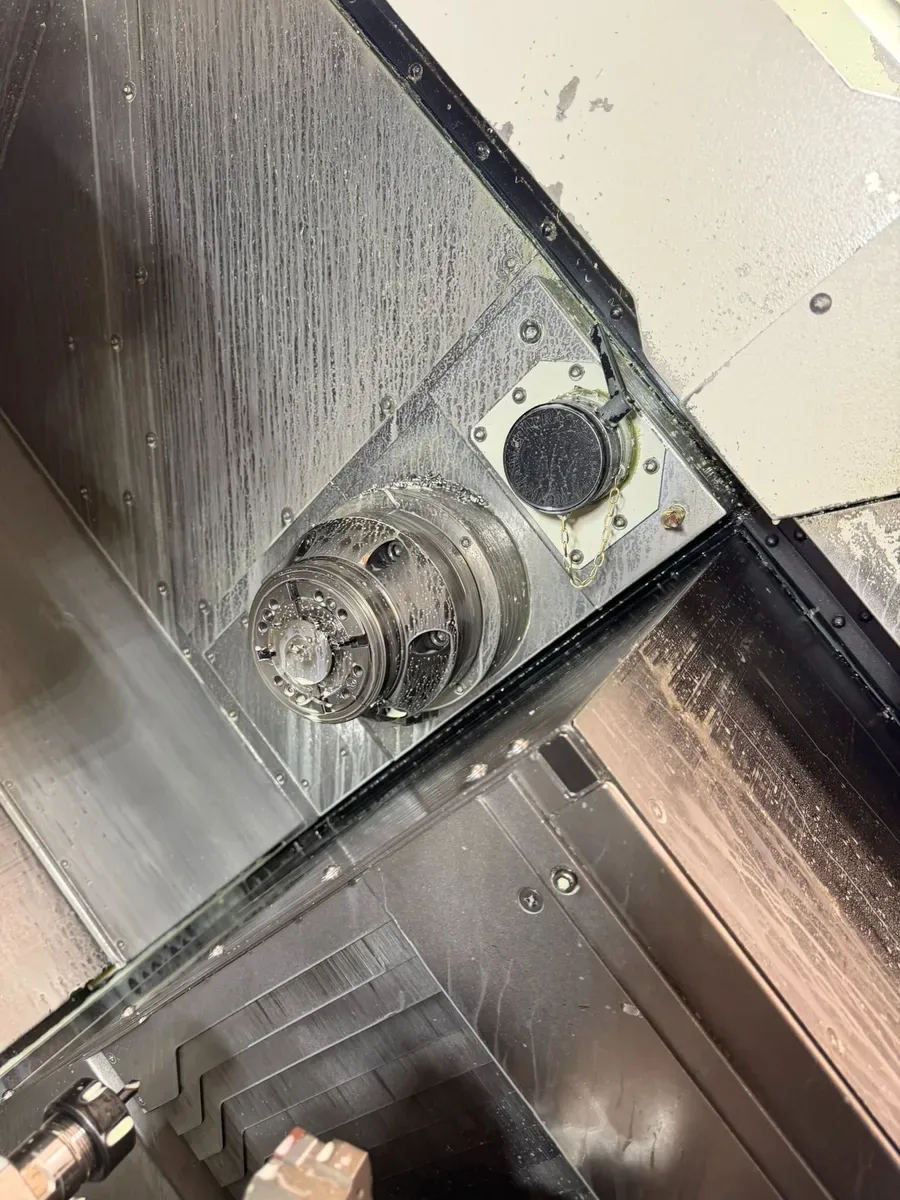

| Sub-Spindle |
Yes |
| Chip Removal |
Chip Conveyor |
| Max Milling Speed |
3,600 RPM |
| Spindle Motors (L/R) |
20/15 HP |
| Machine Weight |
31,975 Lbs |
Features
|
(10) Live Tools (5 Radial/5 Axial) |
65 mm Bar Cap. On Right Spindle |
|
71 mm Bar Cap. On Left Spindle |

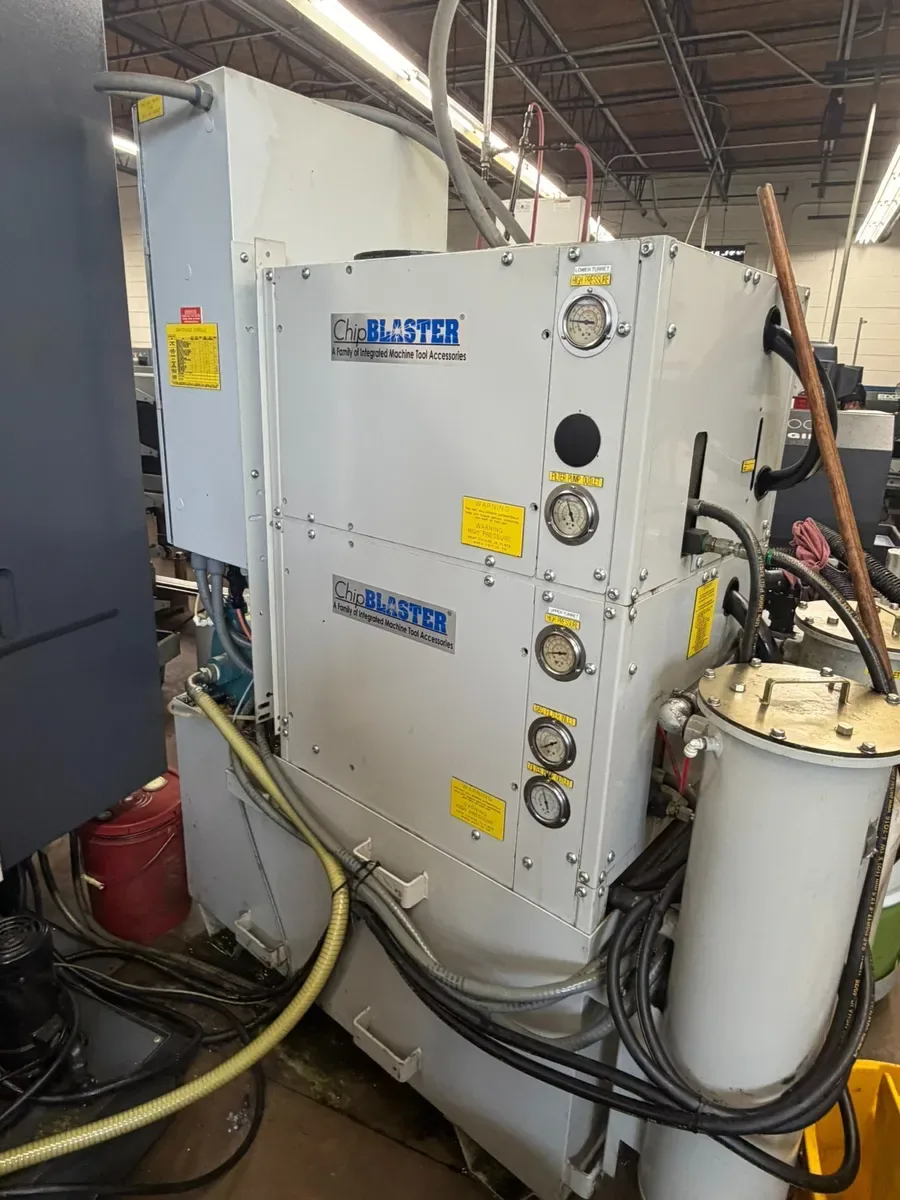

Chip Blaster J2-60 High Pressure Coolant Pump |
|

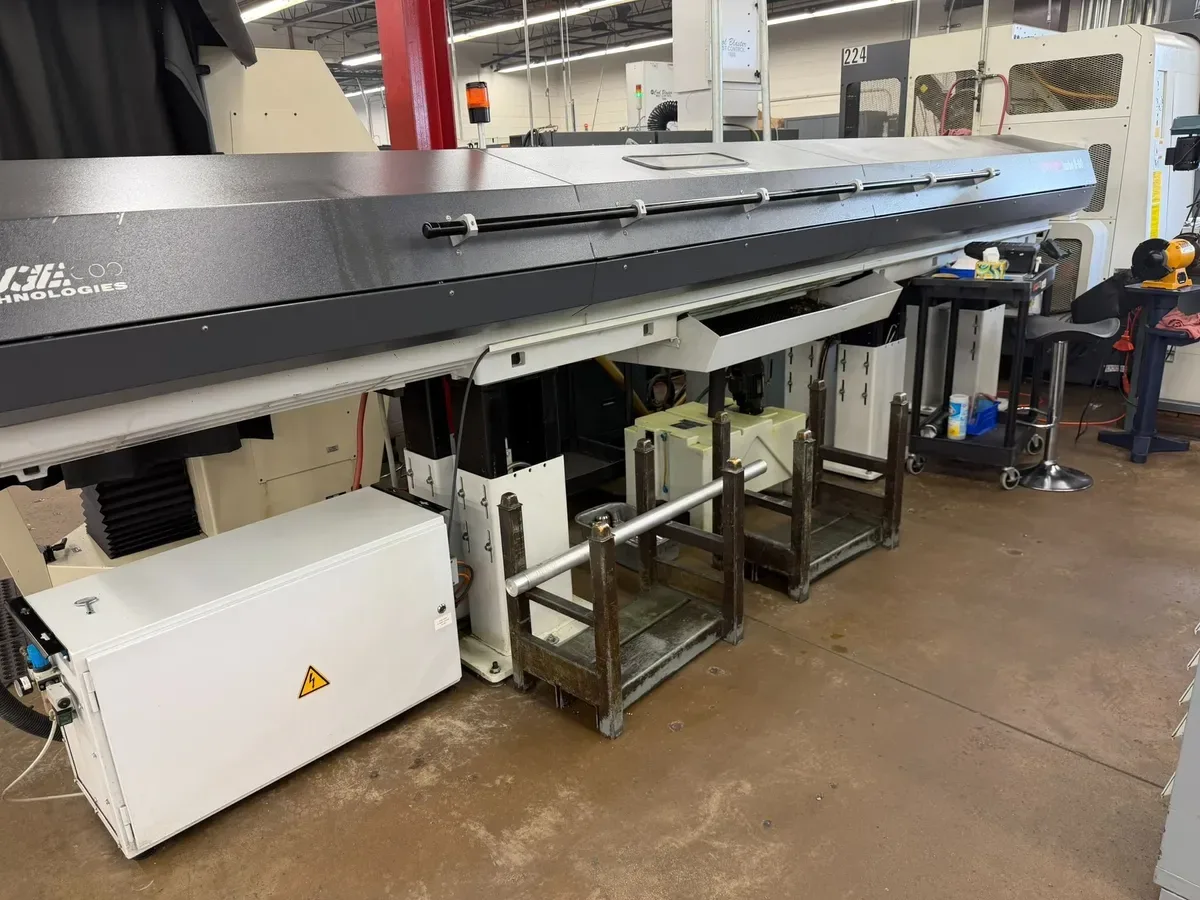

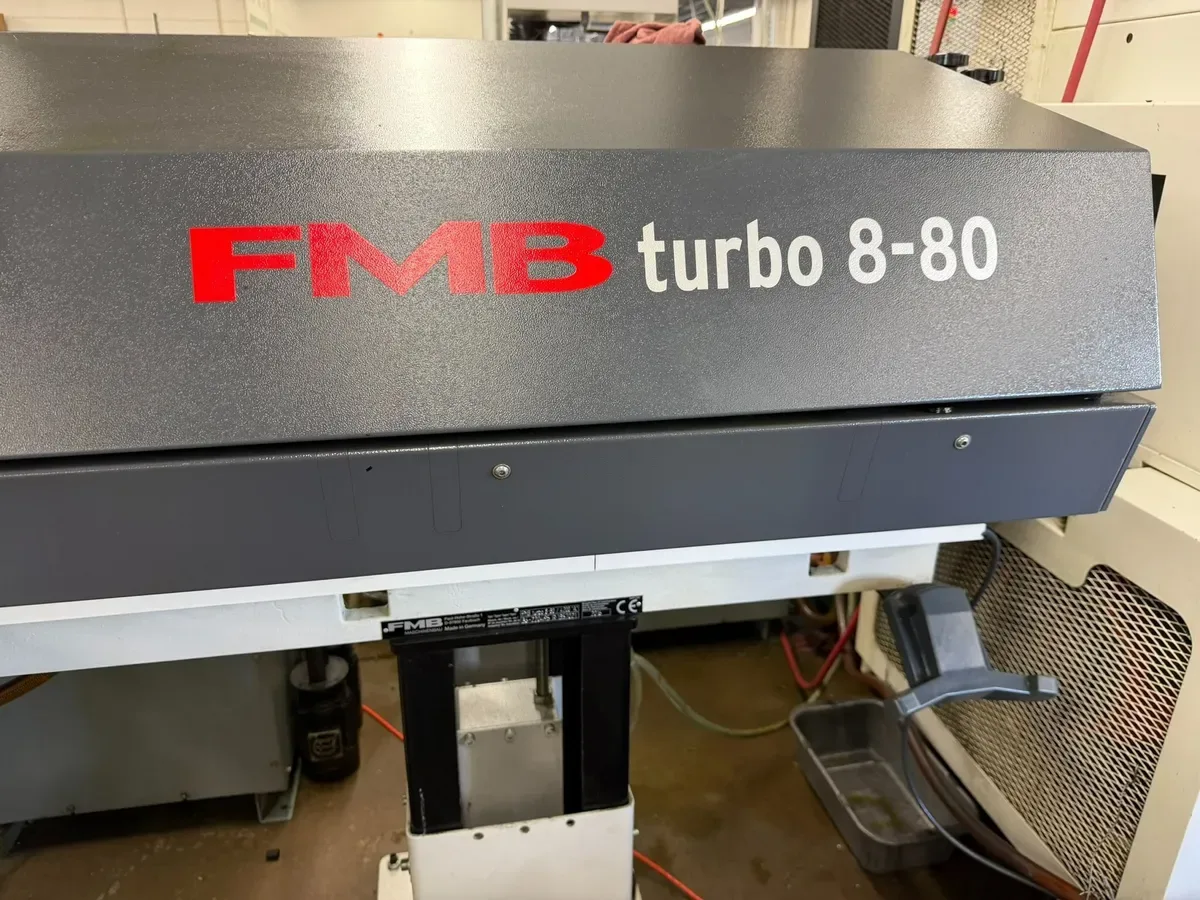

FMB Turbo 8-80 / 4200 "A" Bar Feeder |
Milling Function On Both Turrets |
|

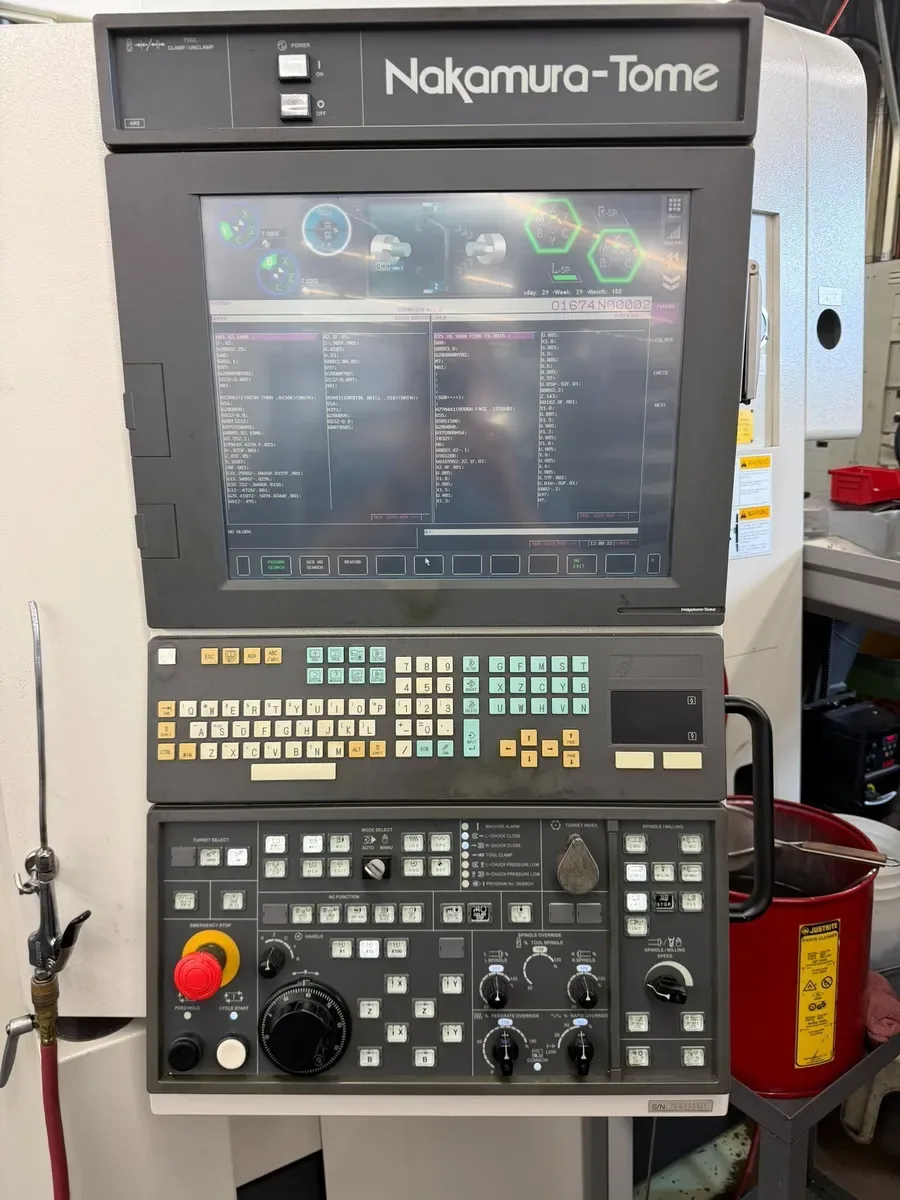

NT Smart X Control |

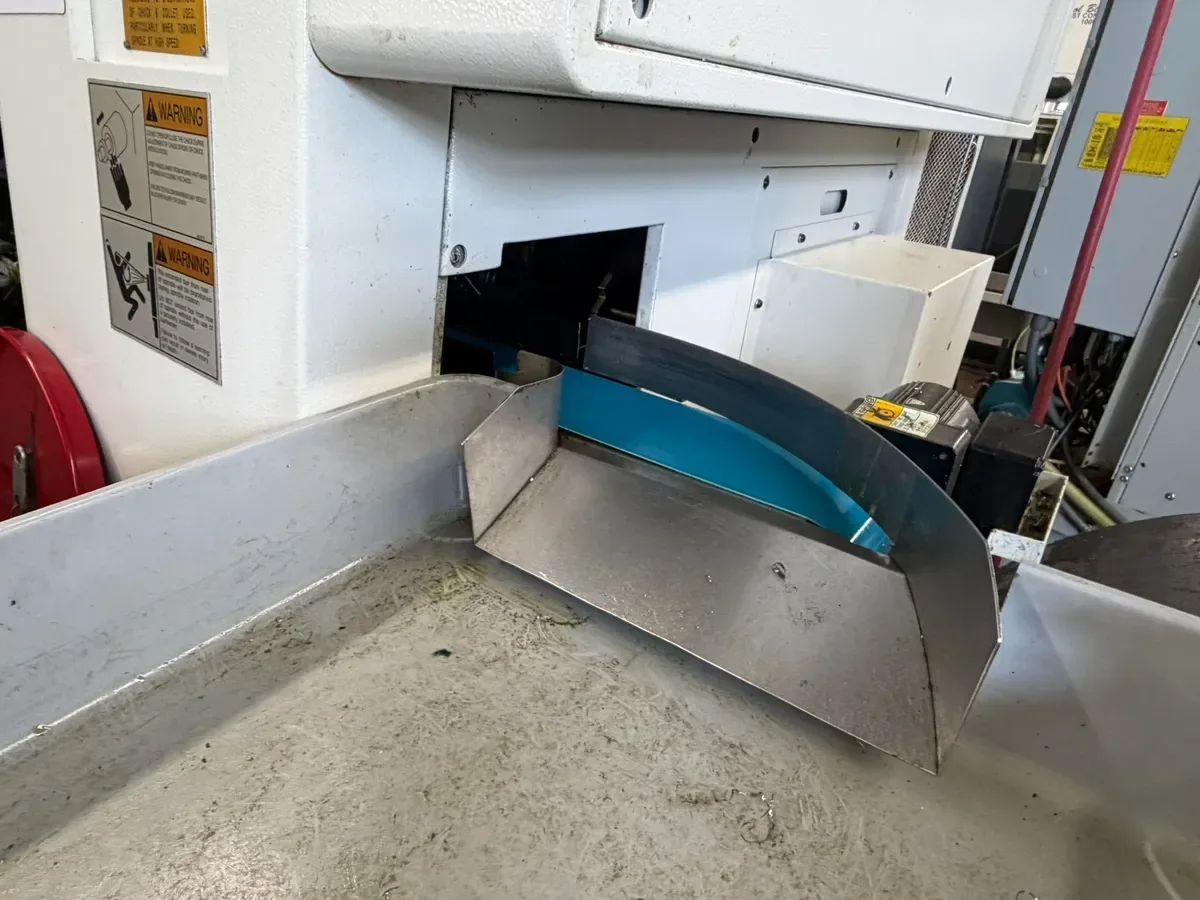

Parts Catcher And Exit Conveyor |
|
Y-Axis Function On Upper Turret |

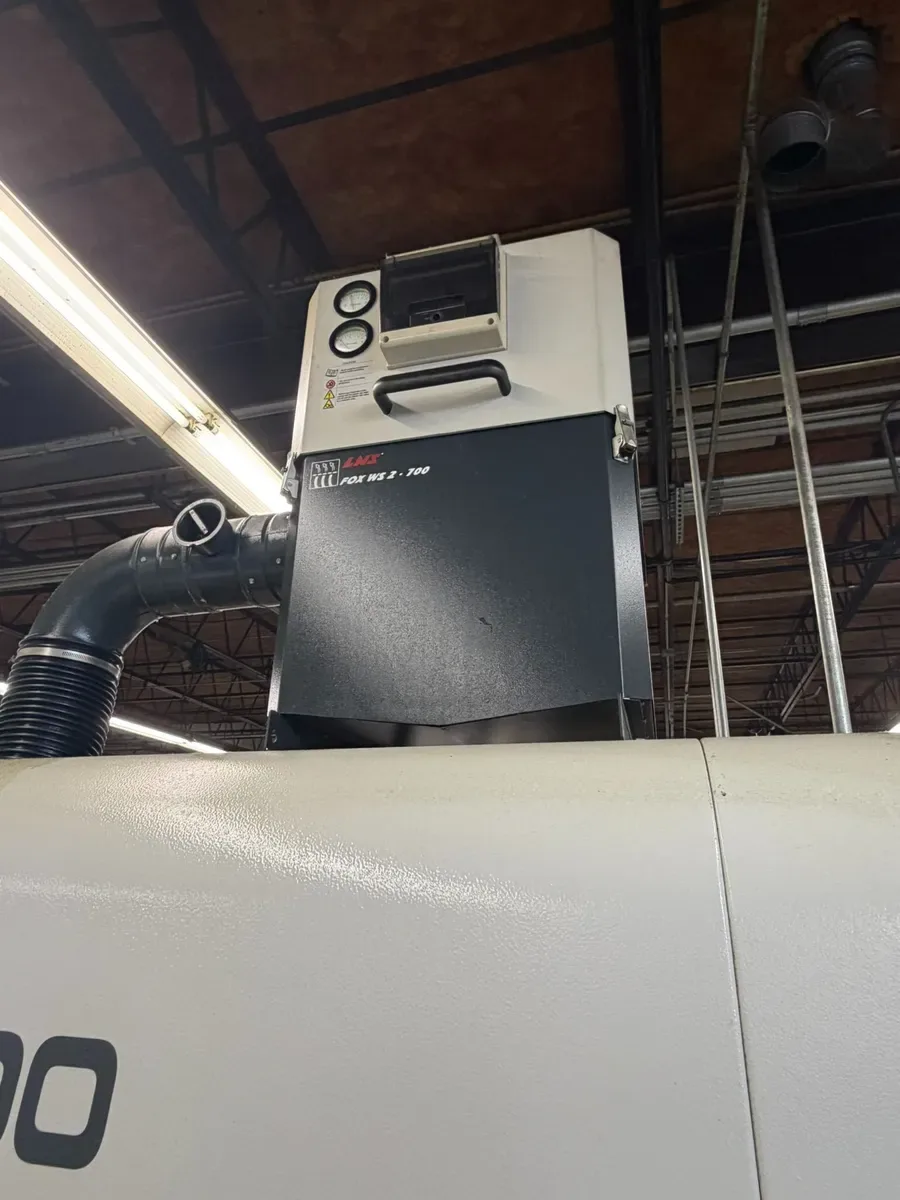

LNS Fox WS2 700 Mist Collector |
|
Collet Chucks |
